Product Description

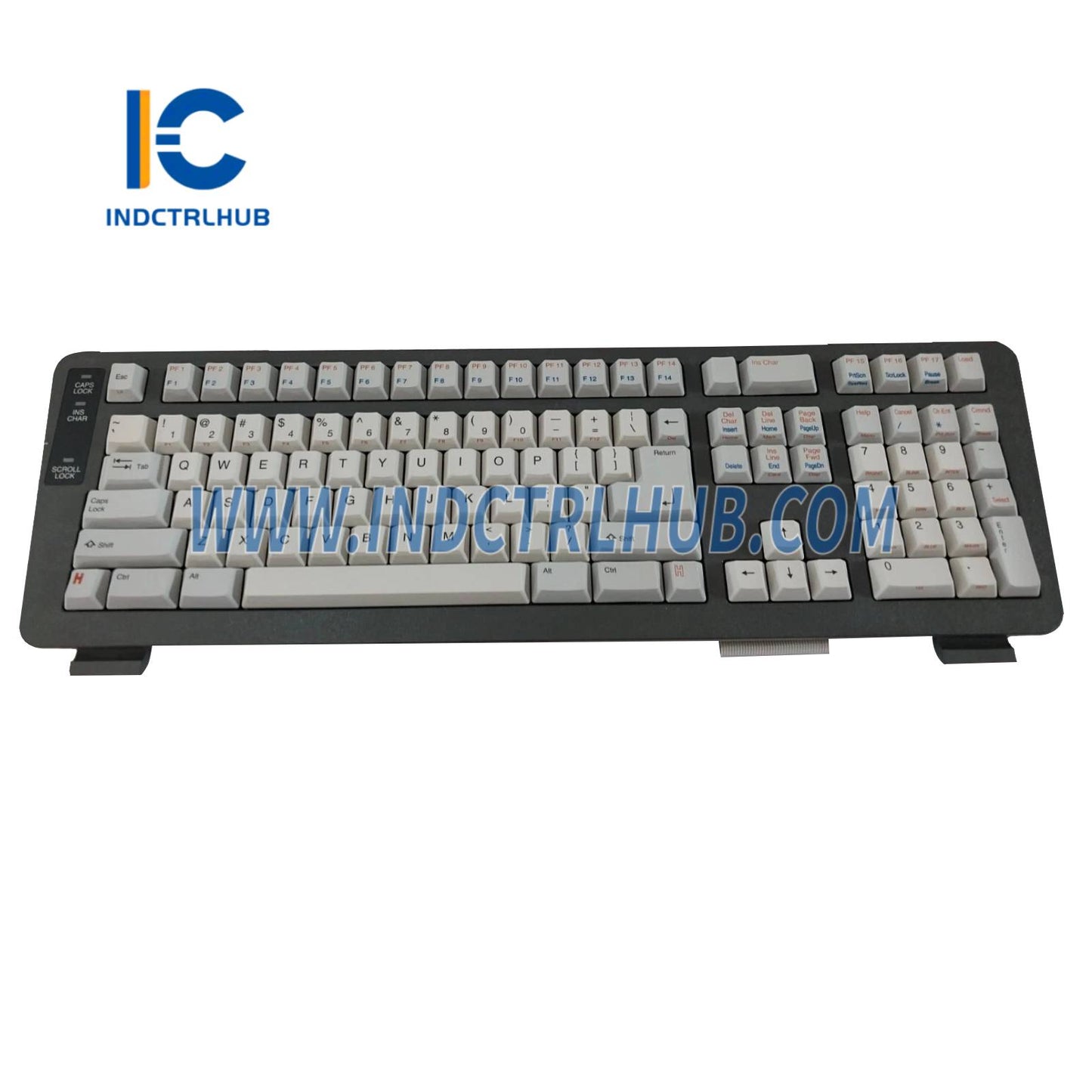

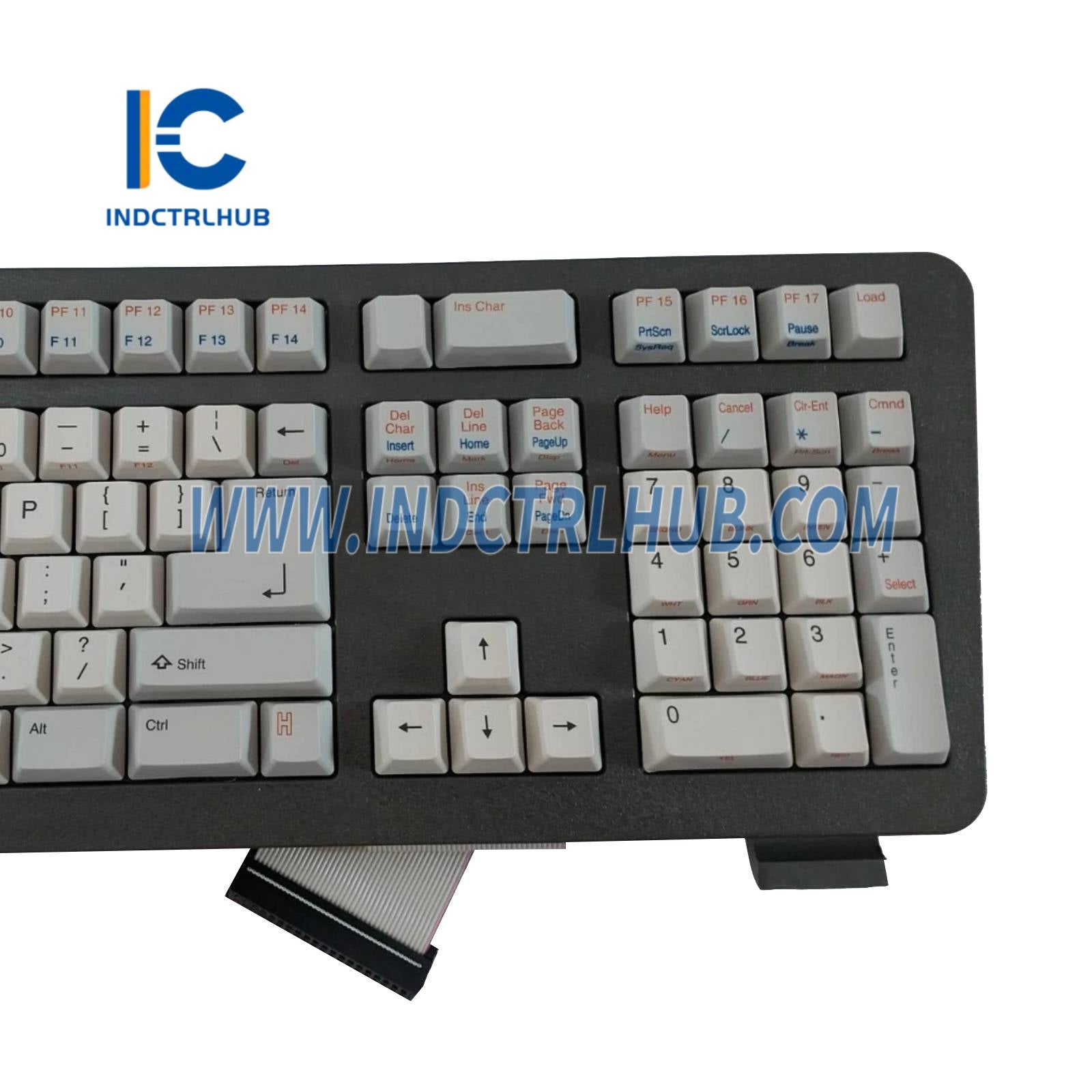

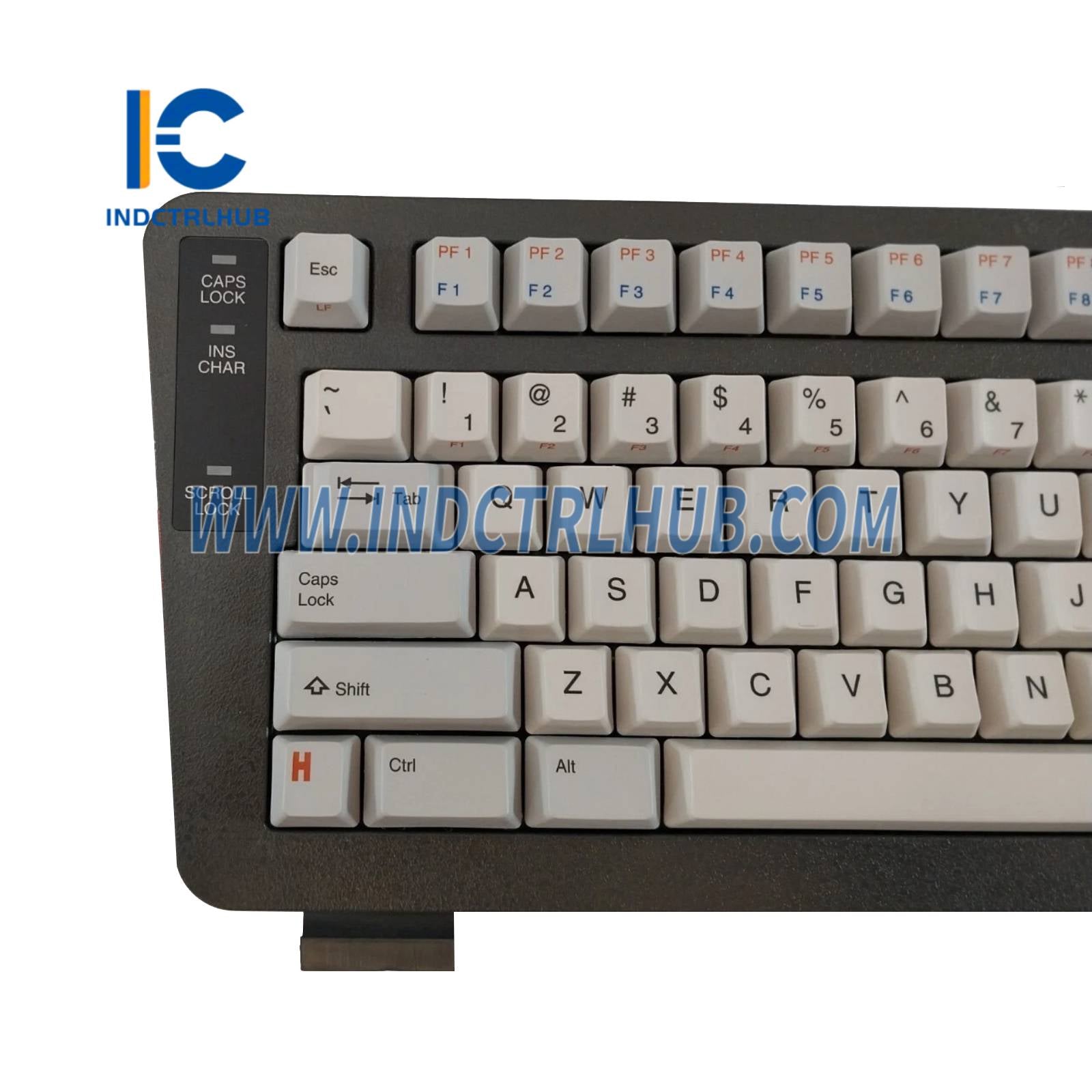

Honeywell 51196694-904 TDC 3000 IKB Keyboard with Trackball
Product Overview
- Description: The Honeywell 51196694-904 is an Integrated Keyboard (IKB) with Trackball designed for use with Honeywell’s TDC 3000 Distributed Control System (DCS) Universal Station.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 |
| Model/Part Number | 51196694-904 |
| Model Type | Integrated Keyboard (IKB) with Trackball |
| Function | Operator interface for TDC 3000 Universal Station |
| Display | Not applicable (interfaces with Universal Station monitor) |
| Inputs | Keypad inputs, trackball for cursor control |
| Outputs | Data to TDC 3000 Universal Station via proprietary connection |
| Communication Interfaces | Proprietary TDC 3000 interface (typically serial or custom connector) |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable (input device) |
| Redundancy | Not applicable |
| Diagnostics | Basic status via TDC 3000 system diagnostics |
| Compatibility | Honeywell TDC 3000 Universal Station |
| Power Supply | Powered via TDC 3000 Universal Station (typically 5 VDC or 12 VDC) |
| Power Consumption | 2–5 W (estimated, typical for similar devices) |
| Environmental Specifications | Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Material | Durable plastic housing, metal frame (trackball assembly) |
| Enclosure | Not applicable (desktop or console-mounted) |
| Dimensions | Approx. 450 mm (W) x 200 mm (D) x 50 mm (H) (estimated) |
| Weight | 1.0–1.5 kg (approx.) |
| Mounting | Desktop or integrated into TDC 3000 Universal Station console |
| Certifications | CE, UL, CSA (system-dependent) |
