Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | 51196653-100 REV.D |

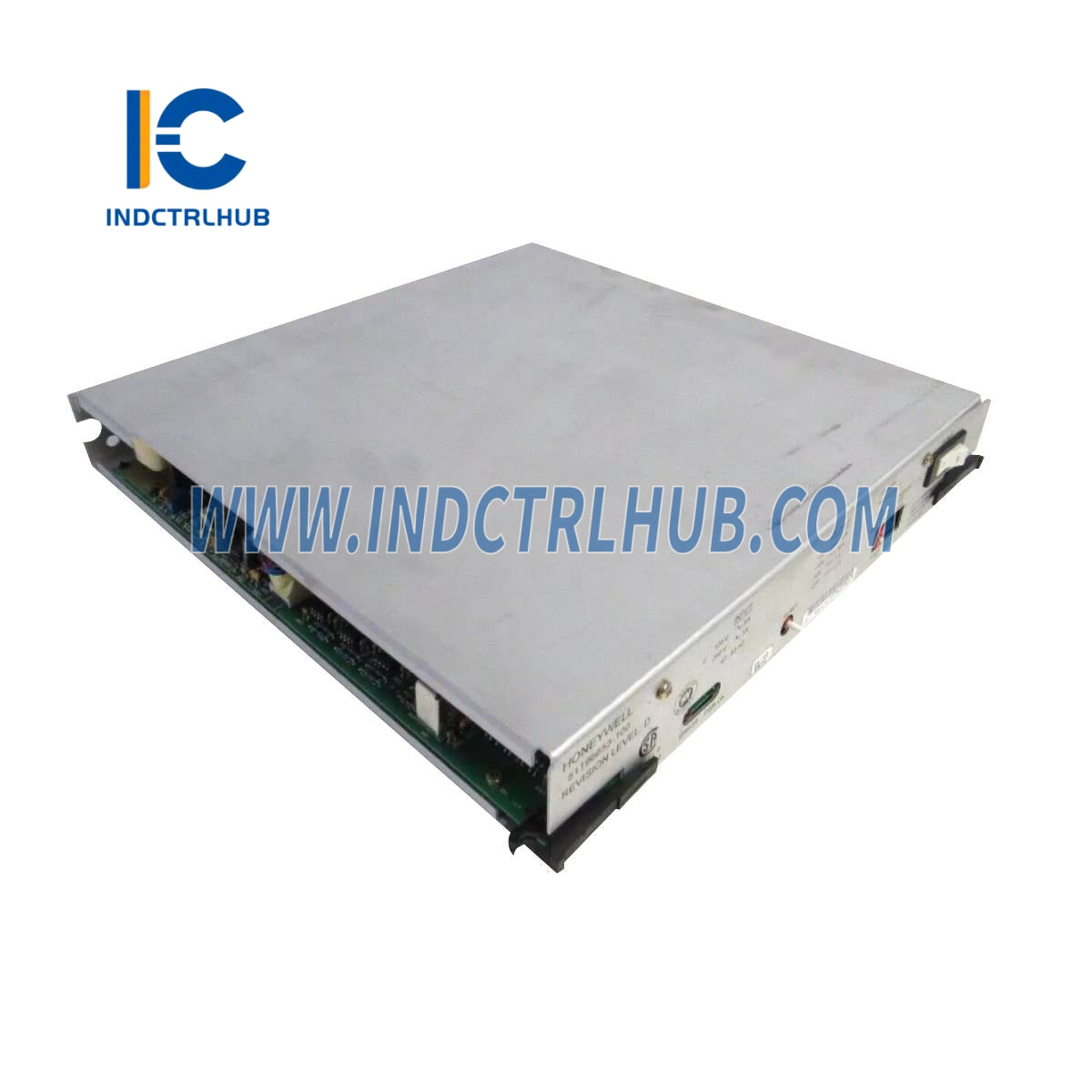

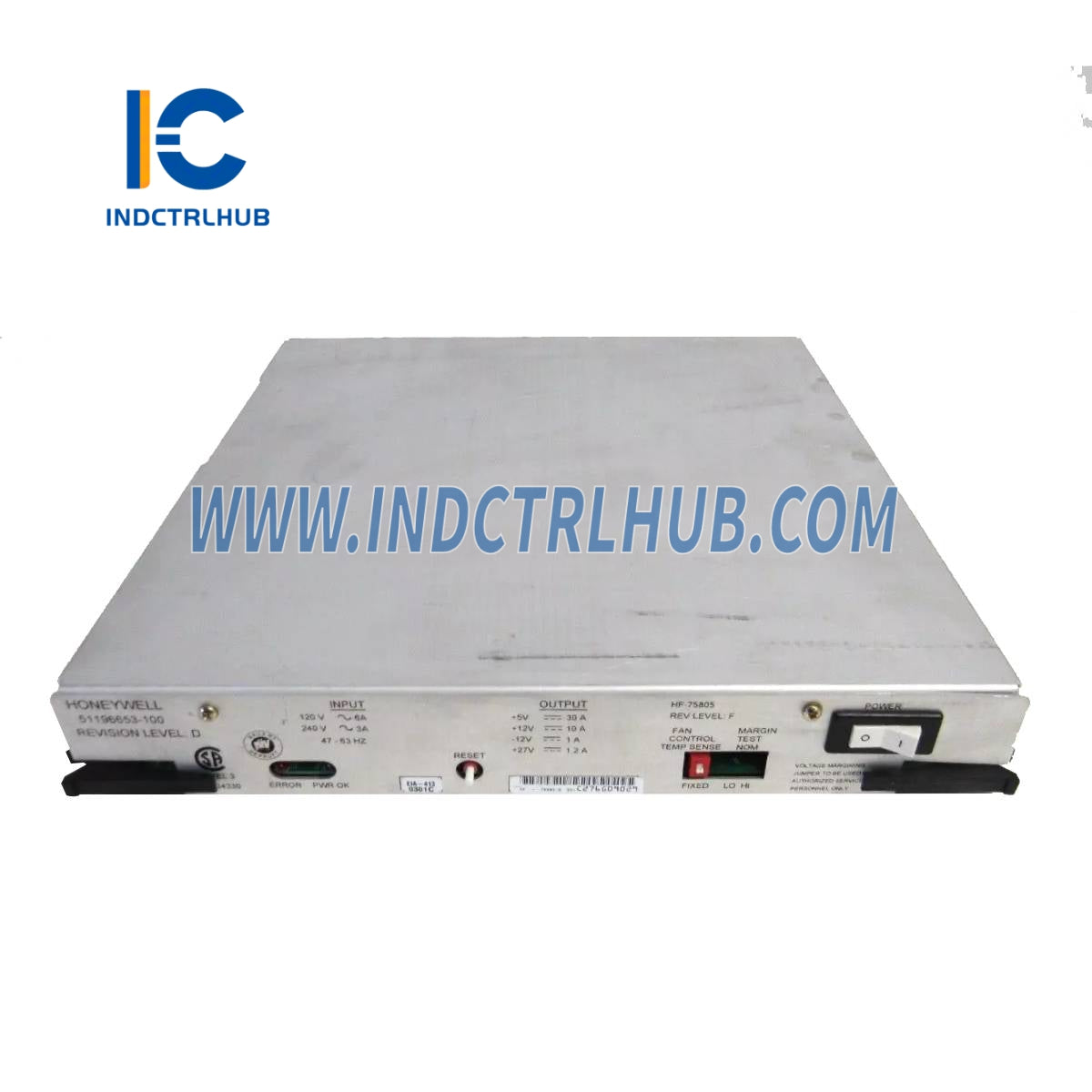

| Description | Power Supply Module for Honeywell TDC 3000 systems, designed to provide reliable power to a five-slot file chassis |
| Key Features | Supports five-slot file, redundant power configuration, high efficiency, conformal coated, integrates with TDC 3000 Distributed Control System (DCS) |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 51196653-100 |
| Revision | D |
| Product Type | Power Supply Module |
| Series | TDC 3000 |

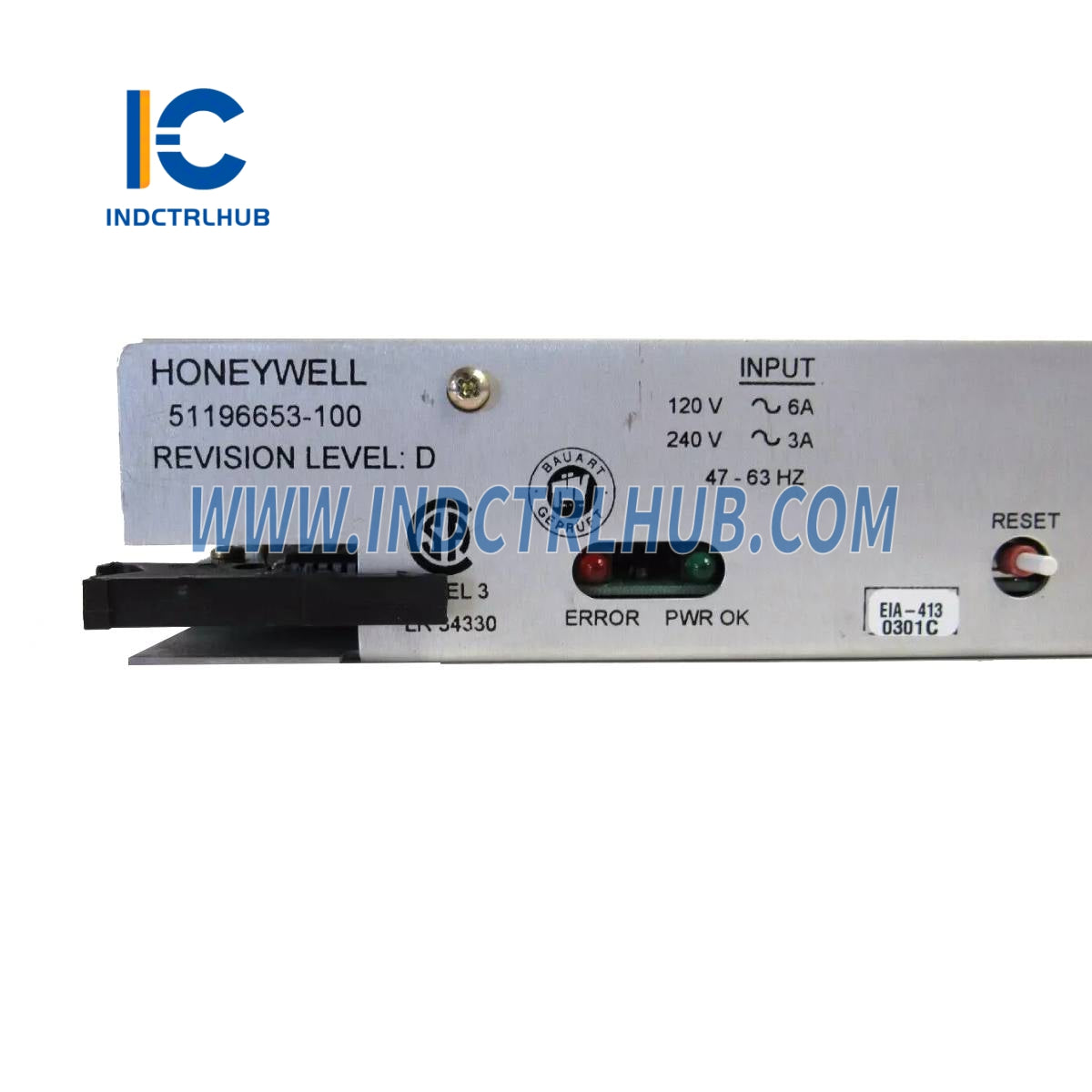

| Input Voltage | 120/240 VAC, 47-63 Hz |
| Output Voltages | +5 VDC, +12 VDC, -12 VDC, +27 VDC |
| Output Current | +5 V at 20 A, +12 V at 3 A, -12 V at 1 A, +27 V at 6 A |
| Power Consumption | Approx. 4 A at 120 VAC, 3 A at 240 VAC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Approx. 300 x 100 x 200 mm (11.8 x 3.9 x 7.9 in) |
| Weight | Approx. 1.935 kg (4.26 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|

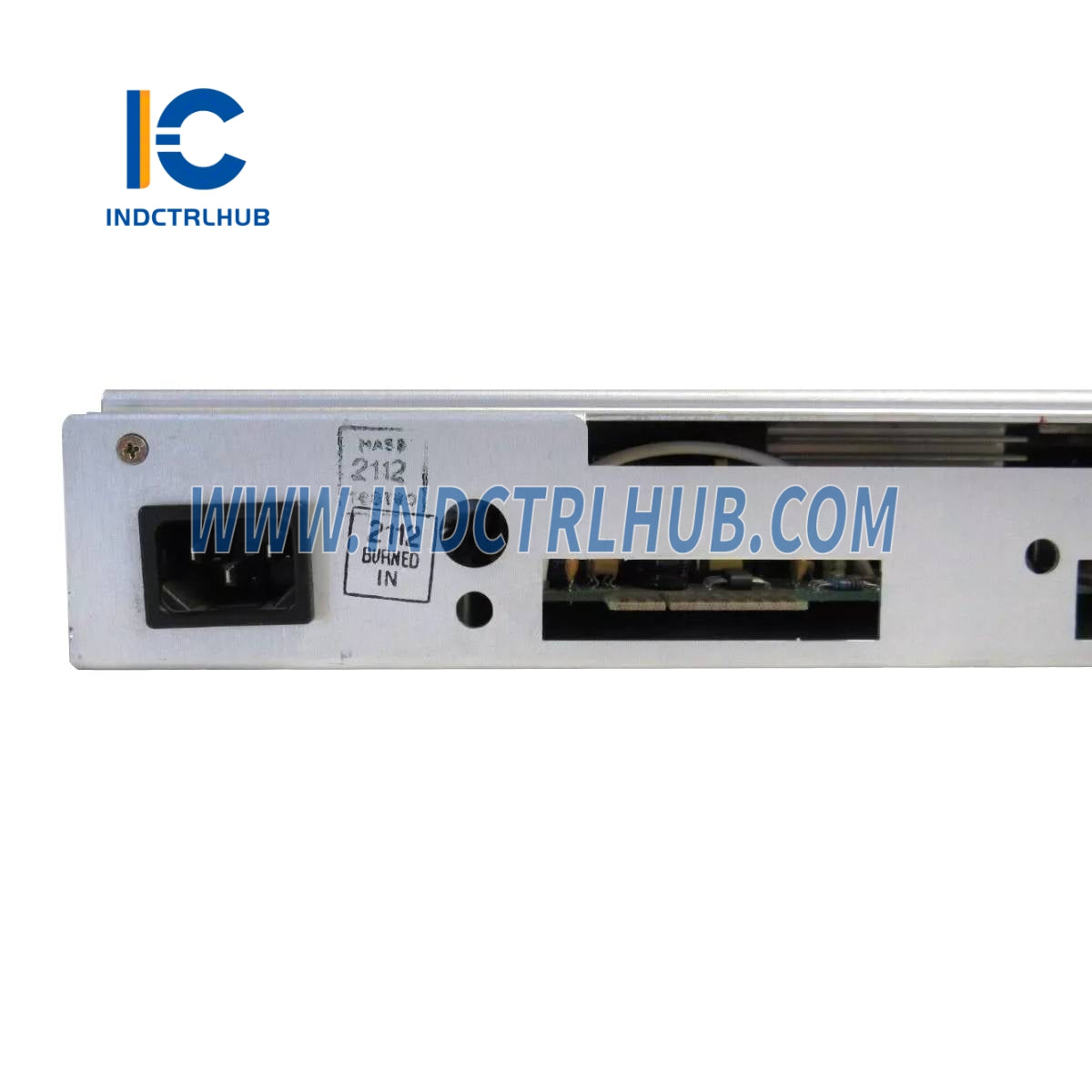

| Supported Connections | AC input terminal block, backplane connection to TDC 3000 five-slot file chassis |
Functional Features
| Feature | Details |
|---|---|
| Power Distribution | Supplies multiple voltage levels to TDC 3000 system components |
| Redundancy Support | Compatible with redundant power setups for increased reliability |
| Environmental Protection | Conformal coating for durability in industrial environments |
| Diagnostics | Built-in monitoring for power status and fault detection |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 51196653-100 |
| Configuration | Revision D, conformal coated, designed for five-slot file |
Applications and Benefits
| Category | Details |
|---|---|
| Applications | Powering TDC 3000 control systems in oil and gas, chemical, power generation, and refining industries |
| Benefits | Stable power delivery, enhanced system uptime, robust design, seamless integration with TDC 3000 DCS |
