Product Description

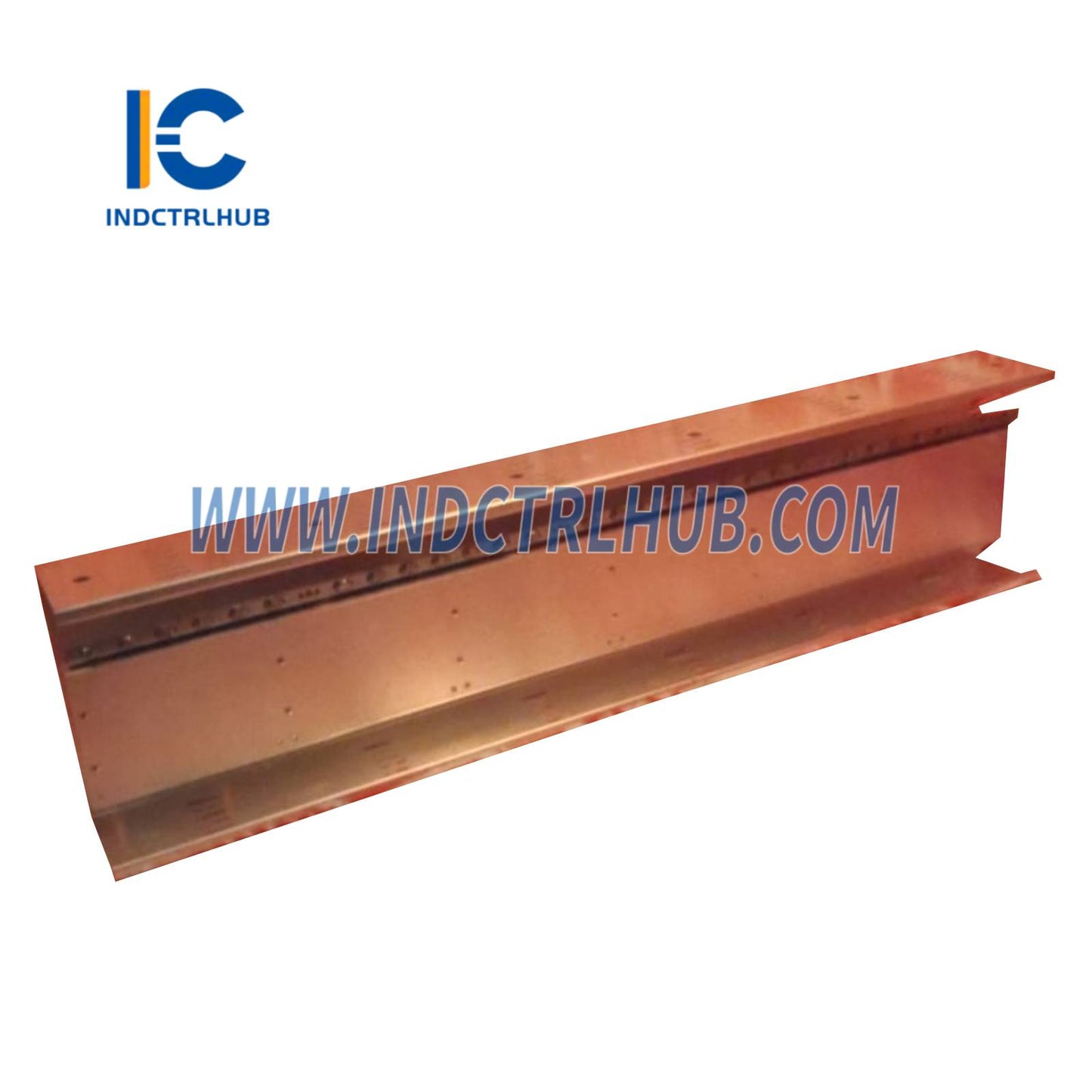

Honeywell 51196094-100 TDC 3000 FTA Mounting Channel
Product Overview
- Description: The Honeywell 51196094-100 is a Field Termination Assembly (FTA) Mounting Channel, specifically a Narrow Rittal with Shield Ground Bar, designed for use in Honeywell’s TDC 3000 Distributed Control System (DCS).
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | TDC 3000 |
| Model/Part Number | 51196094-100 |
| Model Type | FTA Mounting Channel (Narrow Rittal with Shield Ground Bar) |
| Function | Provides mounting and grounding for TDC 3000 FTA modules |
| Display | Not applicable (no display) |
| Inputs | Not applicable (passive component for mounting and grounding) |
| Outputs | Not applicable (passive component) |
| Communication Interfaces | Not applicable |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable |
| Redundancy | Not applicable (supports system-level redundancy) |
| Diagnostics | Not applicable (diagnosed via connected TDC 3000 components) |
| Compatibility | Honeywell TDC 3000 Distributed Control System, compatible with FTA modules |
| Power Supply | Not applicable (passive component) |
| Power Consumption | Not applicable |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Material | Metal (typically steel or aluminum) with grounding bar |
| Enclosure | IP20 (when installed in TDC 3000 cabinet) |
| Dimensions | Approx. 500 mm (L) x 50 mm (W) x 30 mm (H) (narrow Rittal design, estimated) |
| Weight | 1.0–1.5 kg (approx., depending on length) |
| Mounting | Rack-mounted in TDC 3000 cabinet, Rittal-compatible |
| Certifications | CE, UL, CSA (system-dependent) |
