Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Honeywell |

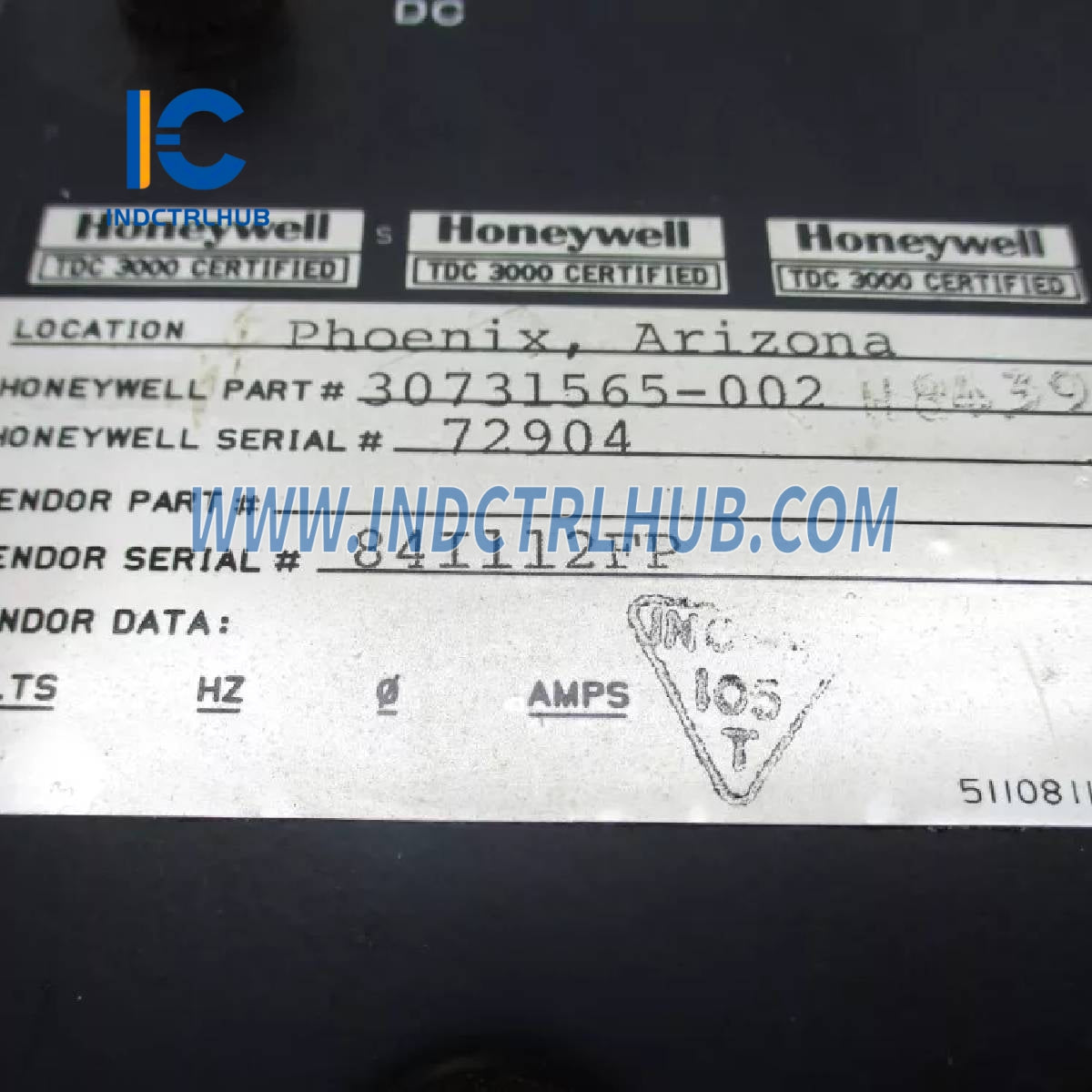

| Model/Part Number | 30731565-002 |
| Description | Data Hiway Port (DHP) Board designed for Honeywell TDC 2000 systems, facilitating communication between Data Hiway networks and control processors |
| Key Features | Supports Data Hiway protocol, redundant communication paths, integrates with TDC 2000 controllers, conformal coated, high-speed data transfer |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 30731565-002 |
| Product Type | Data Hiway Port (DHP) Board |
| Series | TDC 2000 |
| Communication Interface | Data Hiway |
| Data Rate | Up to 250 kbps |
| Power Supply | 24 VDC (via system backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Approx. 200 x 100 x 50 mm (7.9 x 3.9 x 2.0 in) |
| Weight | Approx. 0.5 kg (1.1 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for network wiring, integrates with TDC 2000 system backplane |
Functional Features
| Feature | Details |
|---|---|
| Network Communication | Enables data exchange between TDC 2000 controllers and Data Hiway networks |
| Redundancy | Supports redundant communication paths for reliability |
| Environmental Protection | Conformal coating for durability in industrial environments |
| Diagnostics | Built-in diagnostics for network status monitoring |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 30731565-002 |
| Configuration | Standard, conformal coated, non-redundant |
Applications and Benefits
| Category | Details |
|---|---|
| Applications | Process automation in oil and gas, chemical, power generation, and refining industries |
| Benefits | Reliable network communication, seamless TDC 2000 integration, enhanced system uptime, durable design |
