Product Description
Product Overview

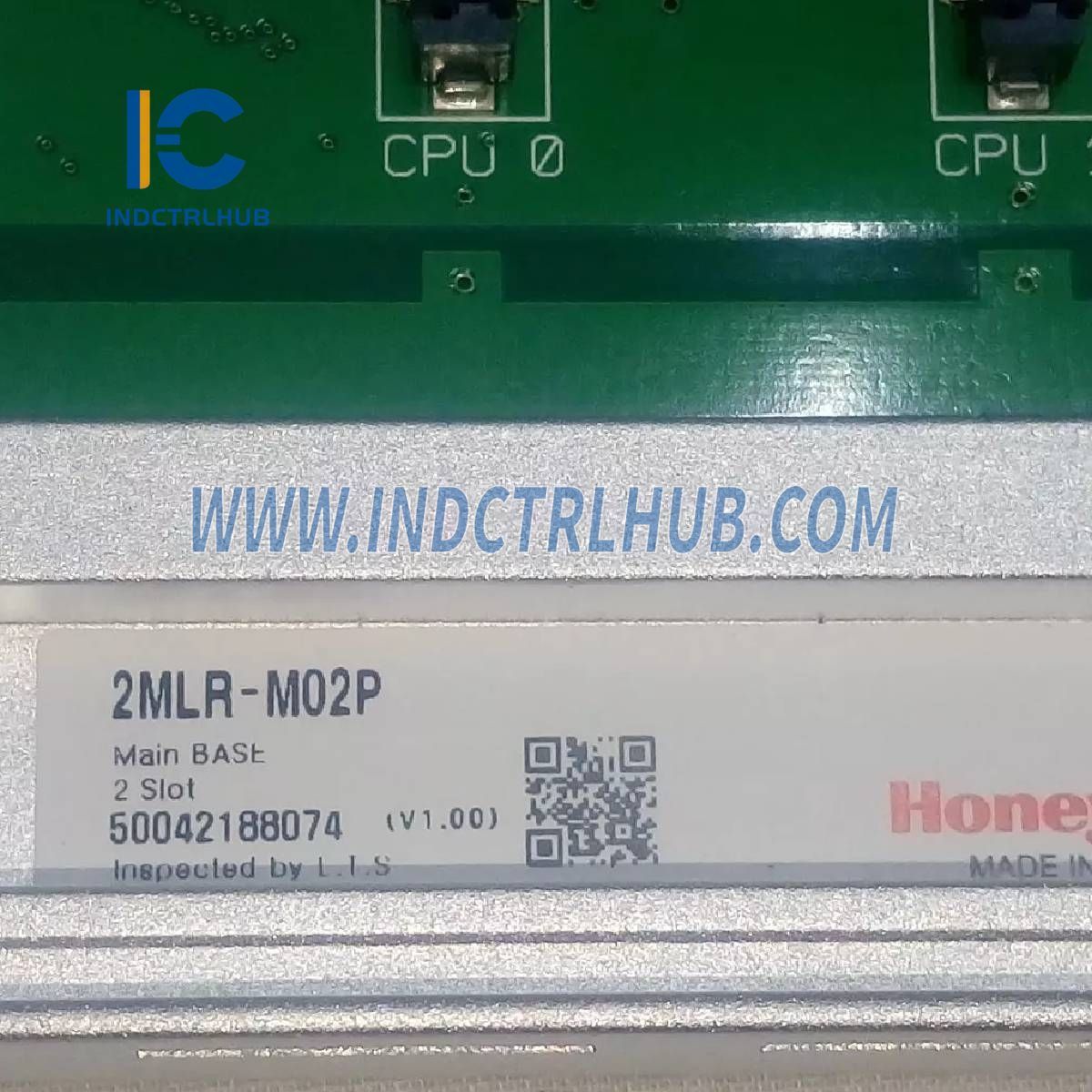

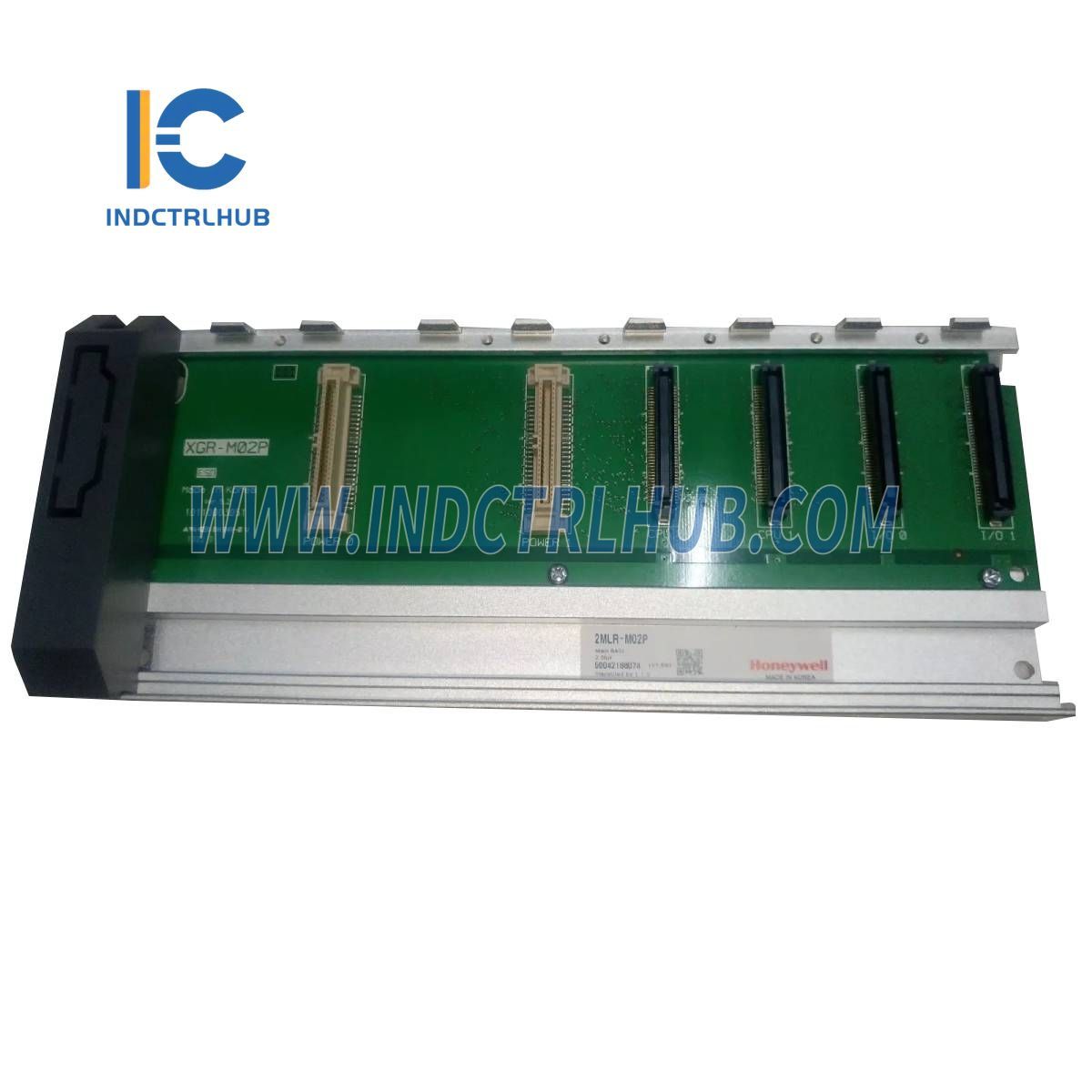

The Honeywell 2MLR-M02P-CC is a Main Base Module from the MasterLogic 200R PLC series, designed for industrial automation applications. It serves as a 2-slot rack for mounting a CPU and an additional module (e.g., I/O or communication module) in a redundant or standalone configuration. Featuring conformal coating for enhanced environmental protection, this module is used in distributed control systems requiring robust and reliable performance.
Technical Specifications
The 2MLR-M02P-CC has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 2MLR-M02P-CC |
| Manufacturer | Honeywell |
| Description | MasterLogic 200R Main Base Module |
| Series | MasterLogic 200R |
| Slot Capacity | 2 slots (1 CPU slot, 1 additional module slot) |
| Coating | Conformal coating (CC) for environmental resistance |
| Power Supply Compatibility | Requires external 2MLR power supply module (e.g., 2MLR-AC13 or 2MLR-DC42) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | 0.5 kg |
Additional Details
The 2MLR-M02P-CC includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Provides base structure and backplane for CPU and one additional module |
| Mounting | DIN rail or panel mount |
| Compatibility | MasterLogic 200R CPUs (e.g., 2MLR-CPUH), I/O modules, and communication modules |
| Environmental Protection | Conformal coating protects against dust, moisture, and corrosive elements |
| Programming | Configured via MasterLogic PLC software (e.g., SoftMaster) |
| Certifications | Meets UL, CE, and IEC standards |
| Part Type | New, surplus, or refurbished (depending on supplier) |
