| Sensor Type |

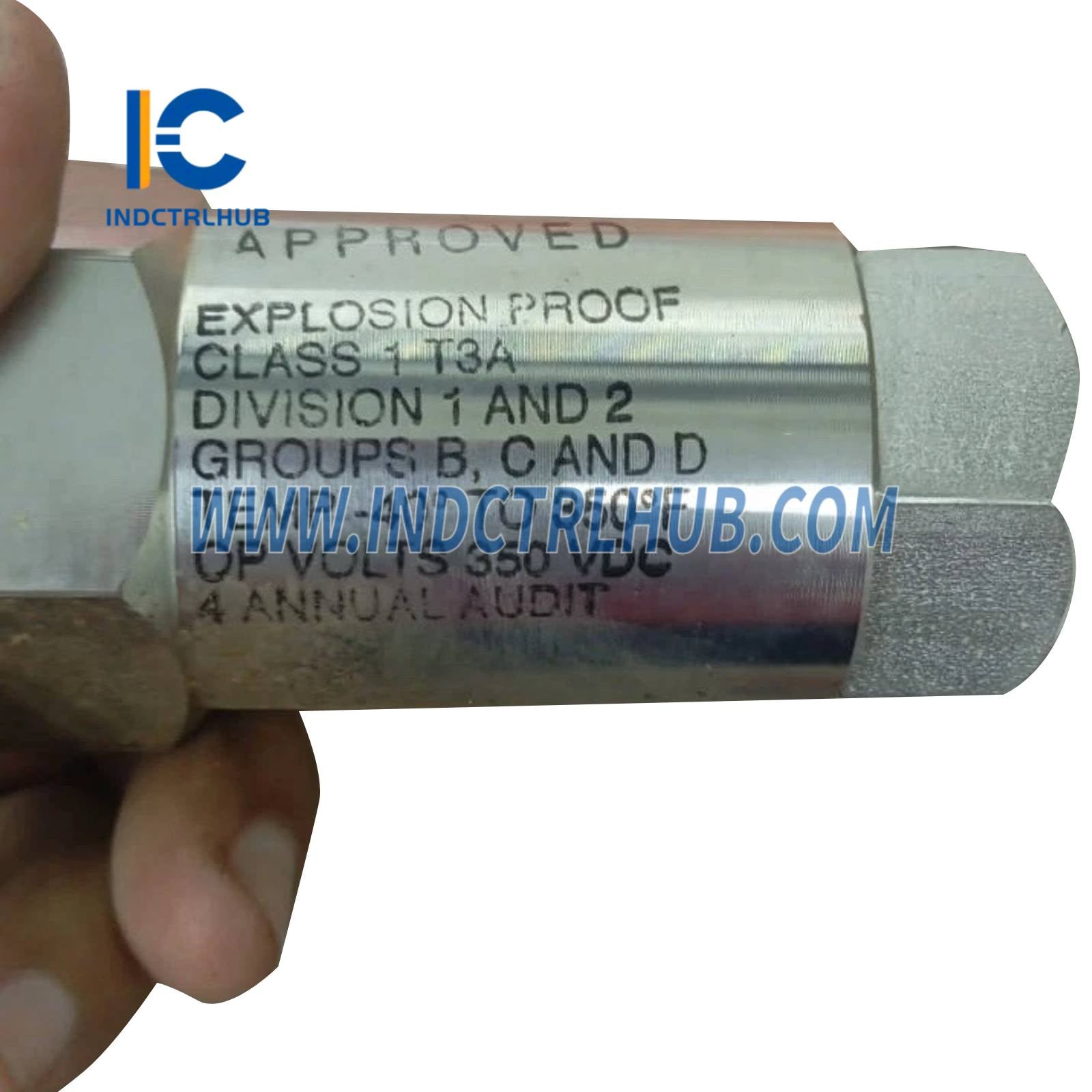

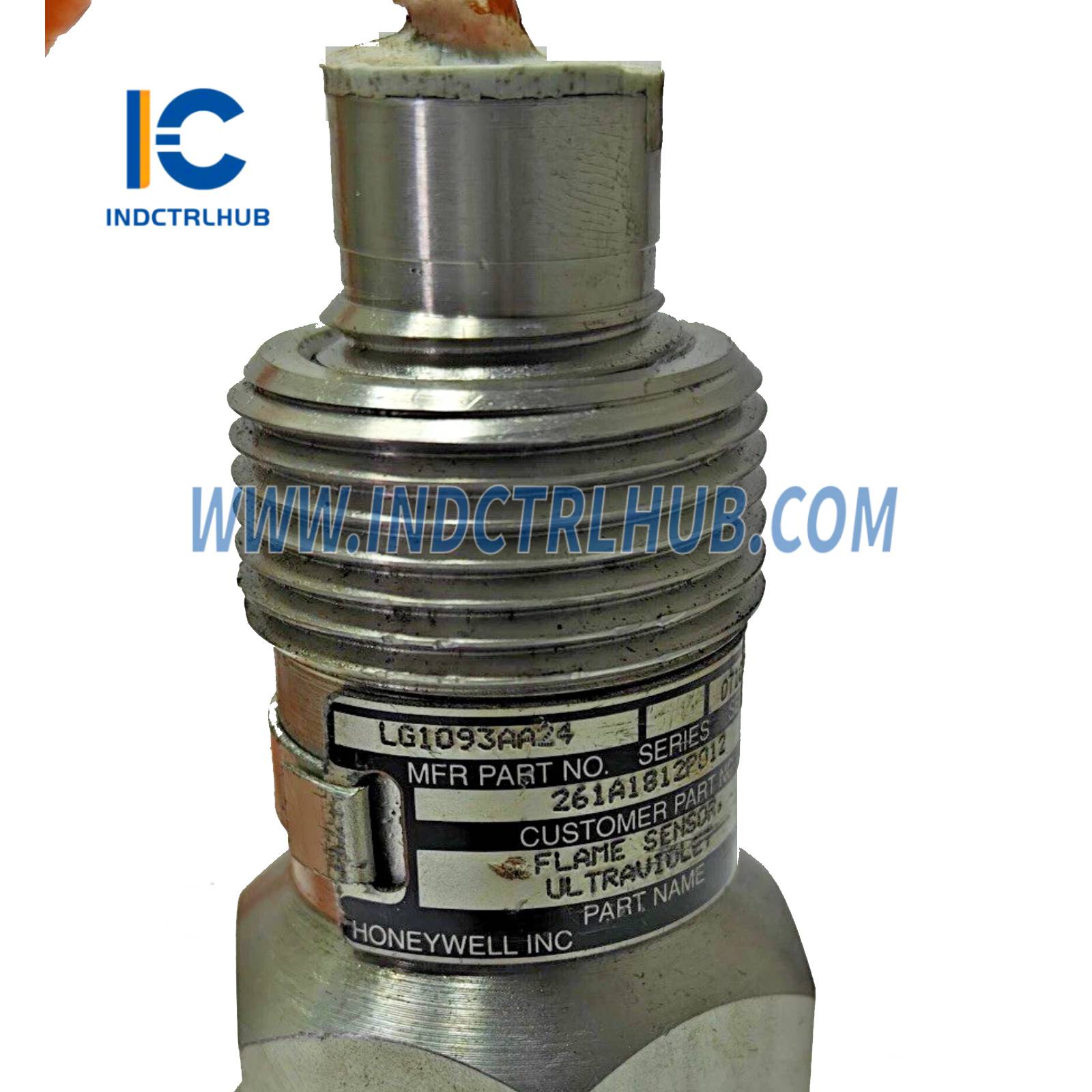

Ultraviolet (UV) flame detector |
| Detection Range |
UV radiation from hydrocarbon flames |
| Response Time |
Less than 0.1 seconds |
| Operating Temperature |
-40°C to 177°C (-40°F to 350°F) |
| Power Supply |
24 V DC typical (18 to 32 V DC via System 57 rack or control system) |
| Power Consumption |
1.5 W typical |
| Output Signal |
Digital signal (compatible with PLC/DCS systems) |
| Communication Protocols |
Modbus, proprietary Honeywell standards (depending on system integration) |

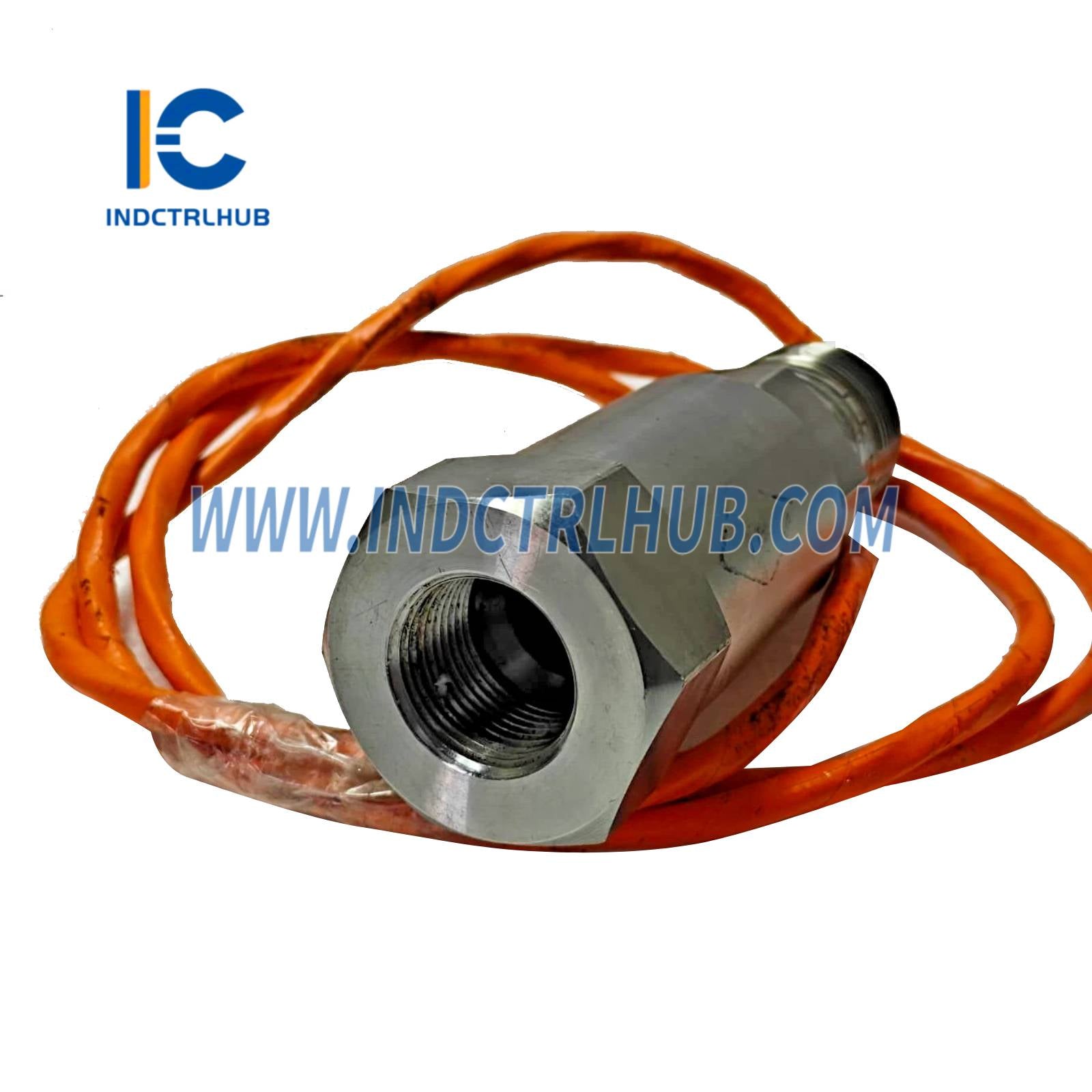

| Cable Length |
16 ft (4.88 m) standard |
| Mounting Type |
Direct mount or via adapter for gas turbine applications |
| Material |
Stainless steel housing, UV-sensitive tube |
| Protection Rating |
IP66 (dust-tight, water-resistant) |
| Standards Compliance |
CE, UL, CSA, ATEX (for hazardous areas) |
| Weight |
Approximately 0.5 kg |
