Product Description

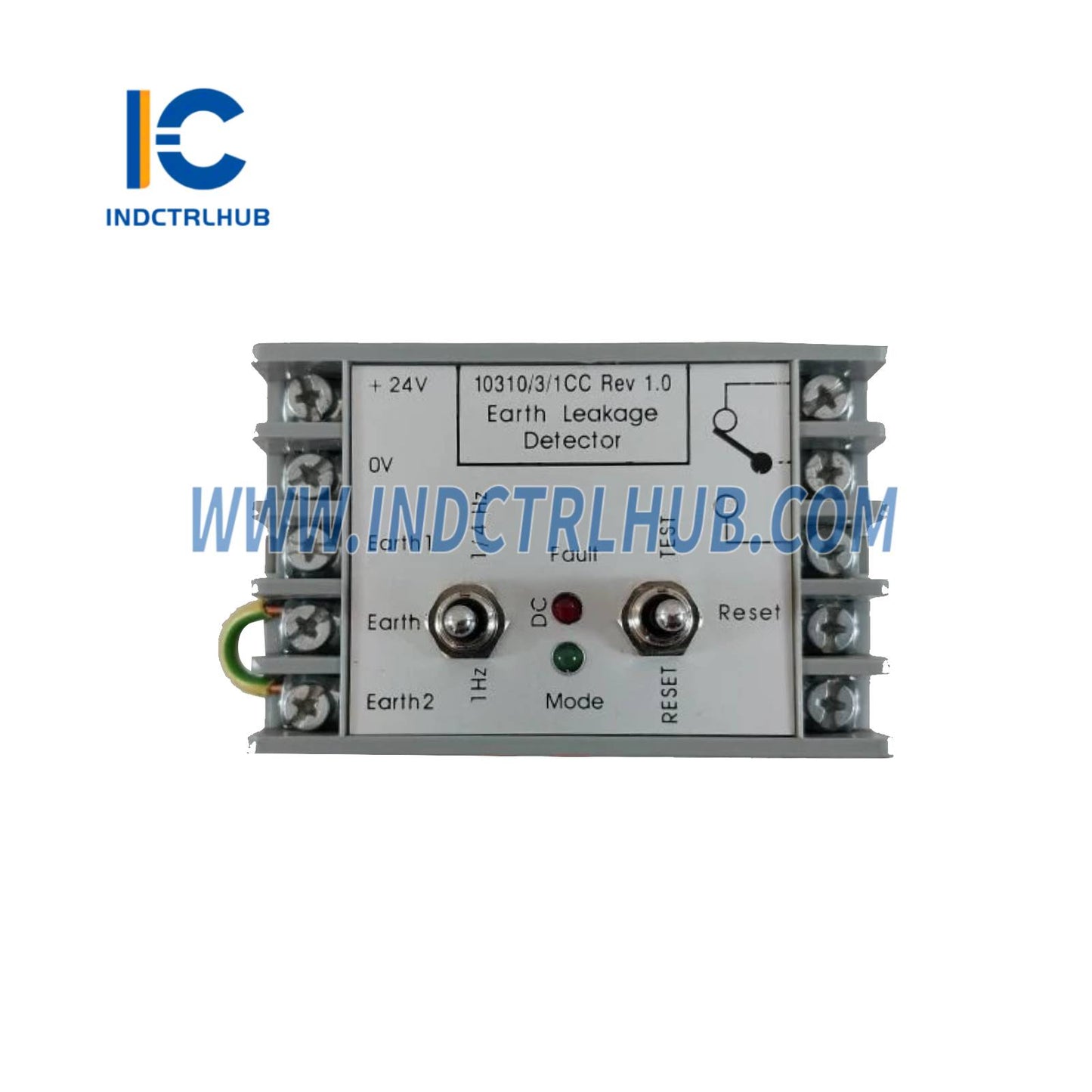

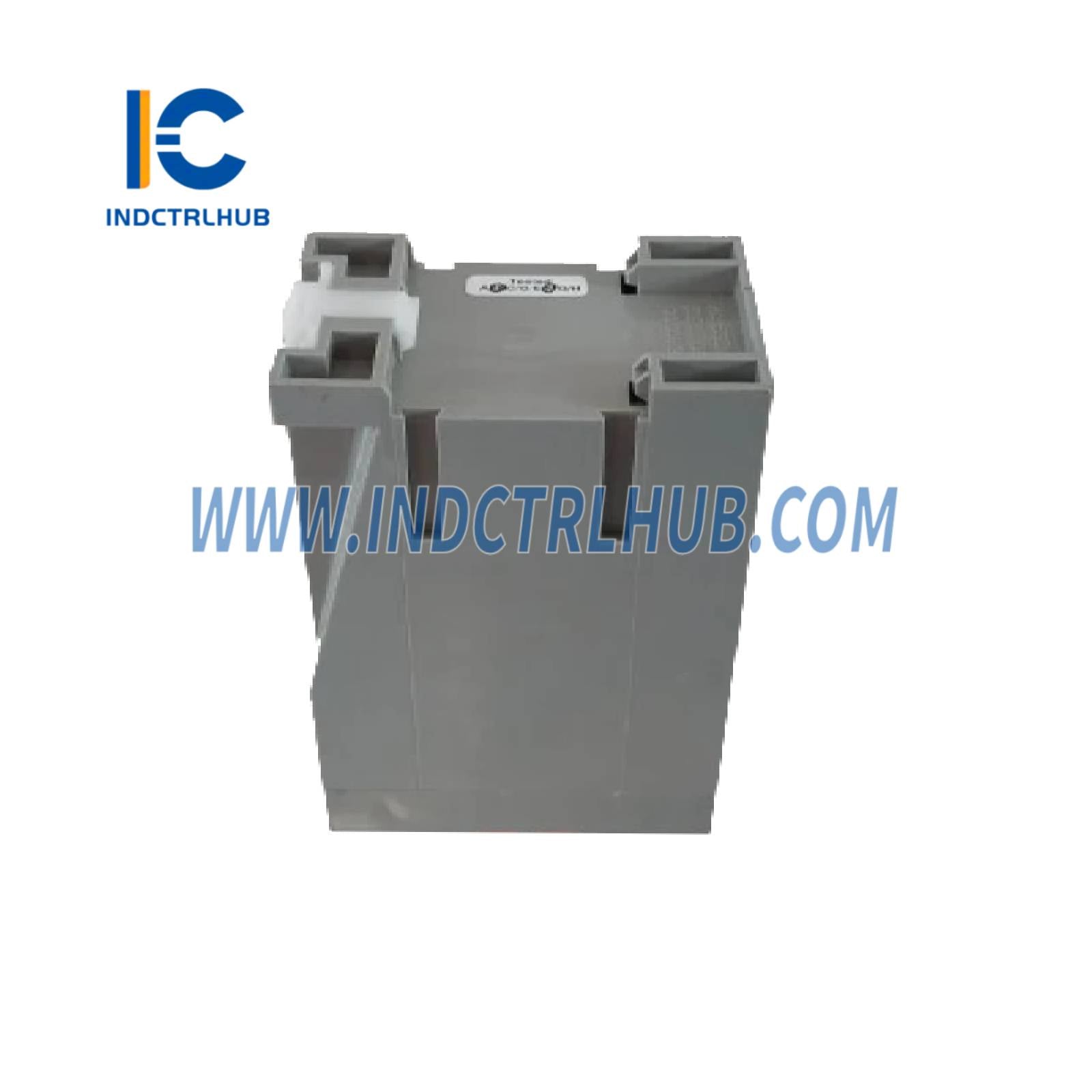

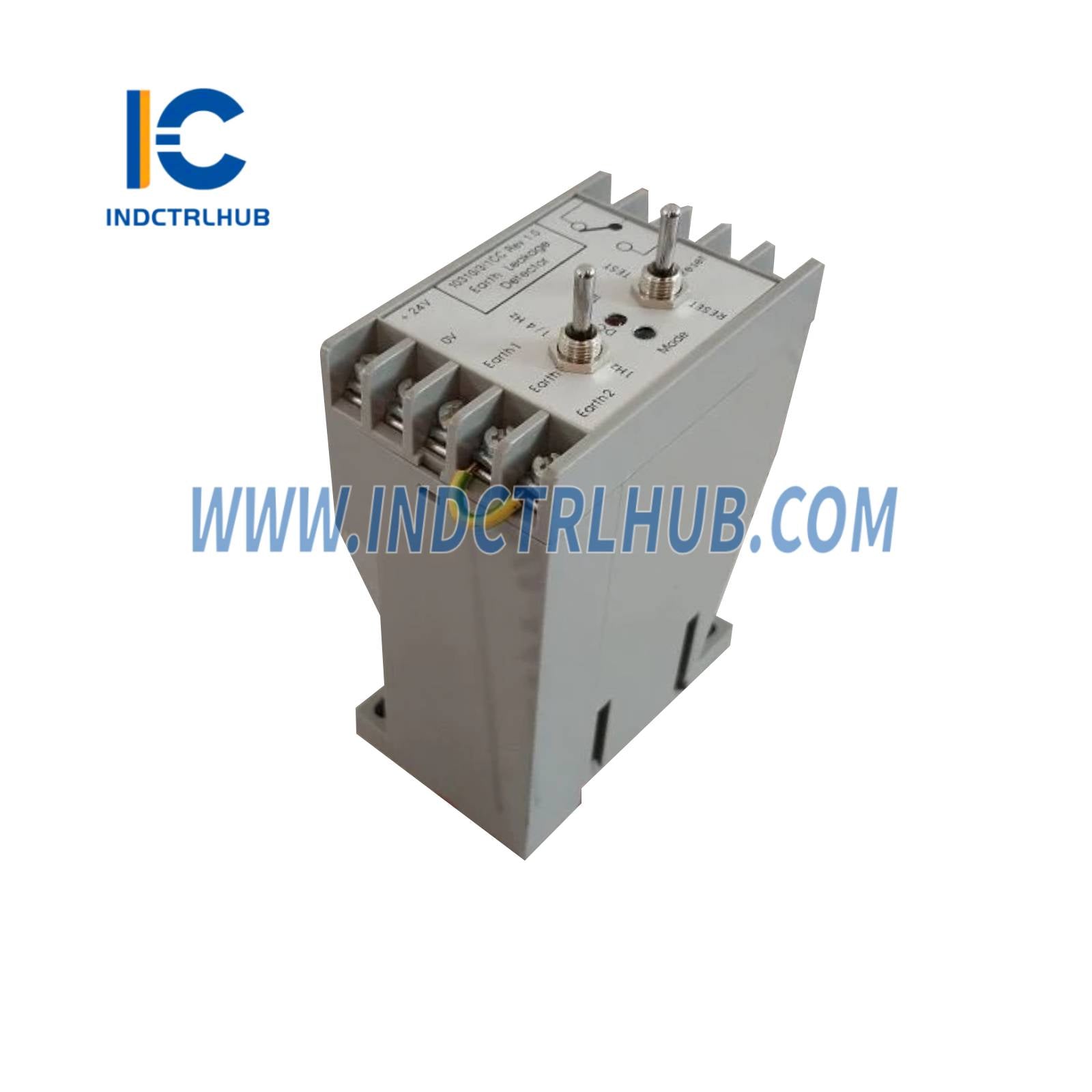

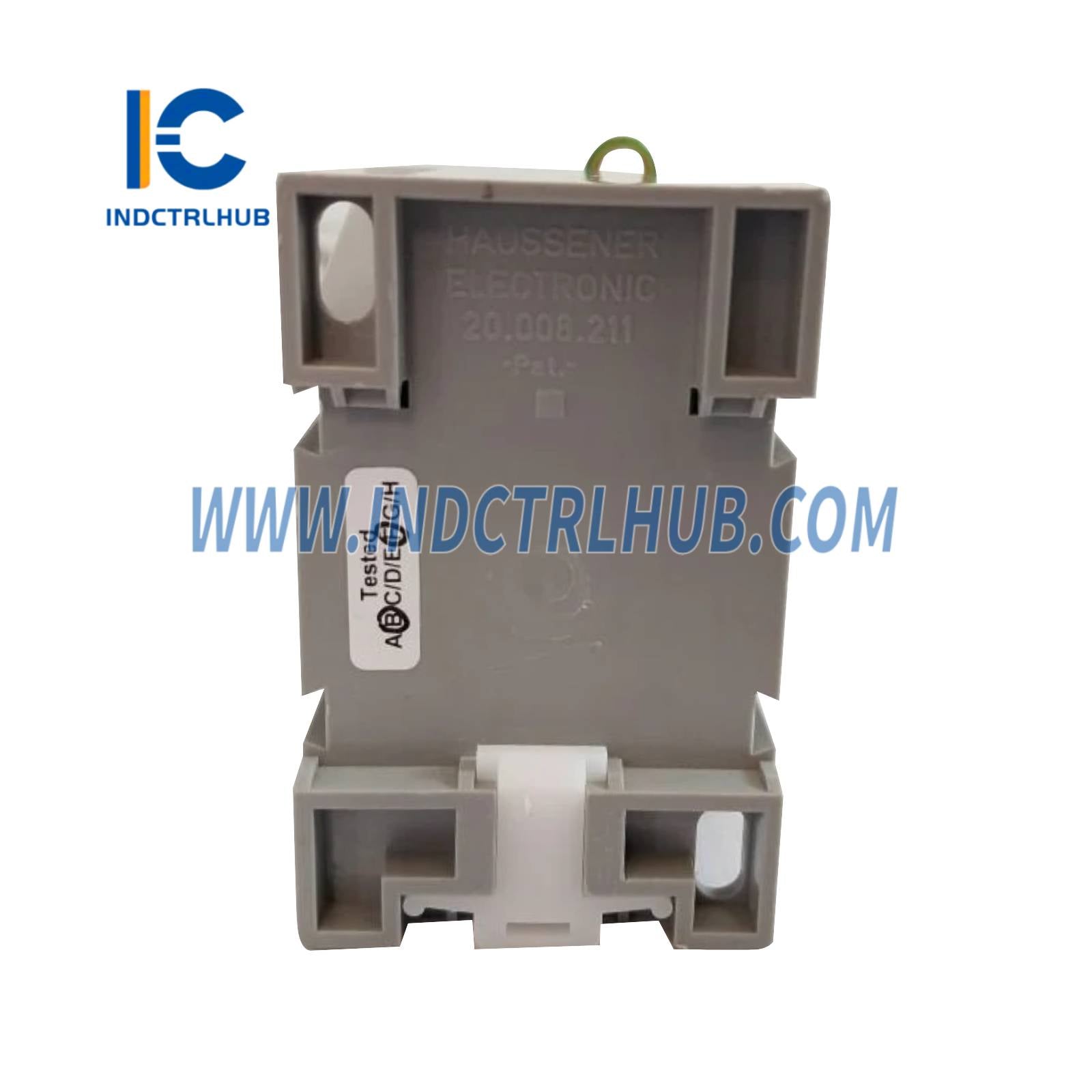

Honeywell 10310/3/1CC FSC Earth Leakage Detector Module
Product Overview
- Description: The Honeywell 10310/3/1CC is an earth leakage detector module designed for use in Honeywell’s Fail Safe Controller (FSC) safety system. It monitors earth leakage currents in electrical circuits to detect ground faults
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) |
| Model/Part Number | 10310/3/1CC |
| Model Type | Earth Leakage Detector Module |
| Function | Monitors earth leakage currents for ground fault detection |
| Display | LED indicators (status, fault, alarm) |
| Inputs | Earth leakage current inputs (typically via external CTs or sensors) |
| Outputs | Digital outputs to FSC system (alarm, fault signals) |
| Communication Interfaces | Proprietary FSC backplane |
| Signal Conditioning | Internal signal processing for leakage current detection |
| Accuracy | ±5% for leakage current detection (typical) |
| Redundancy | Supports redundant configurations in FSC systems |
| Diagnostics | LED status indicators, fault detection, self-diagnostics |
| Compatibility | Honeywell FSC safety systems |
| Power Supply | 24 VDC (via FSC backplane) |
| Power Consumption | 3 W typical, 6 W max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -25°C to +70°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in FSC rack) |
| Dimensions | Approx. 150 mm (H) x 30 mm (W) x 200 mm (D) |
| Weight | 0.4 kg (approx.) |
| Mounting | Plugs into FSC system rack |
| Certifications | ATEX, IECEx, SIL 3 (system-dependent), UL, CSA |
