Product Description

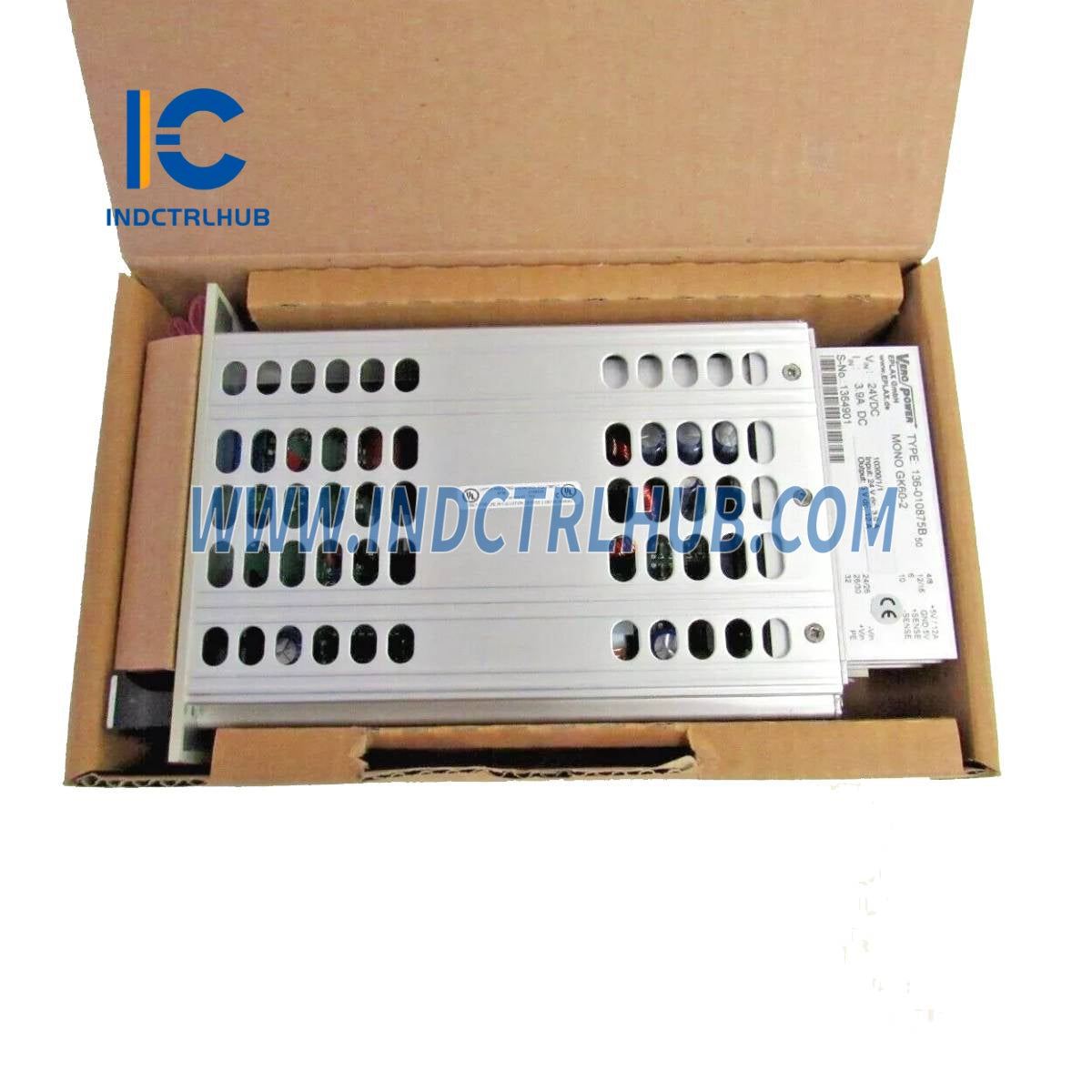

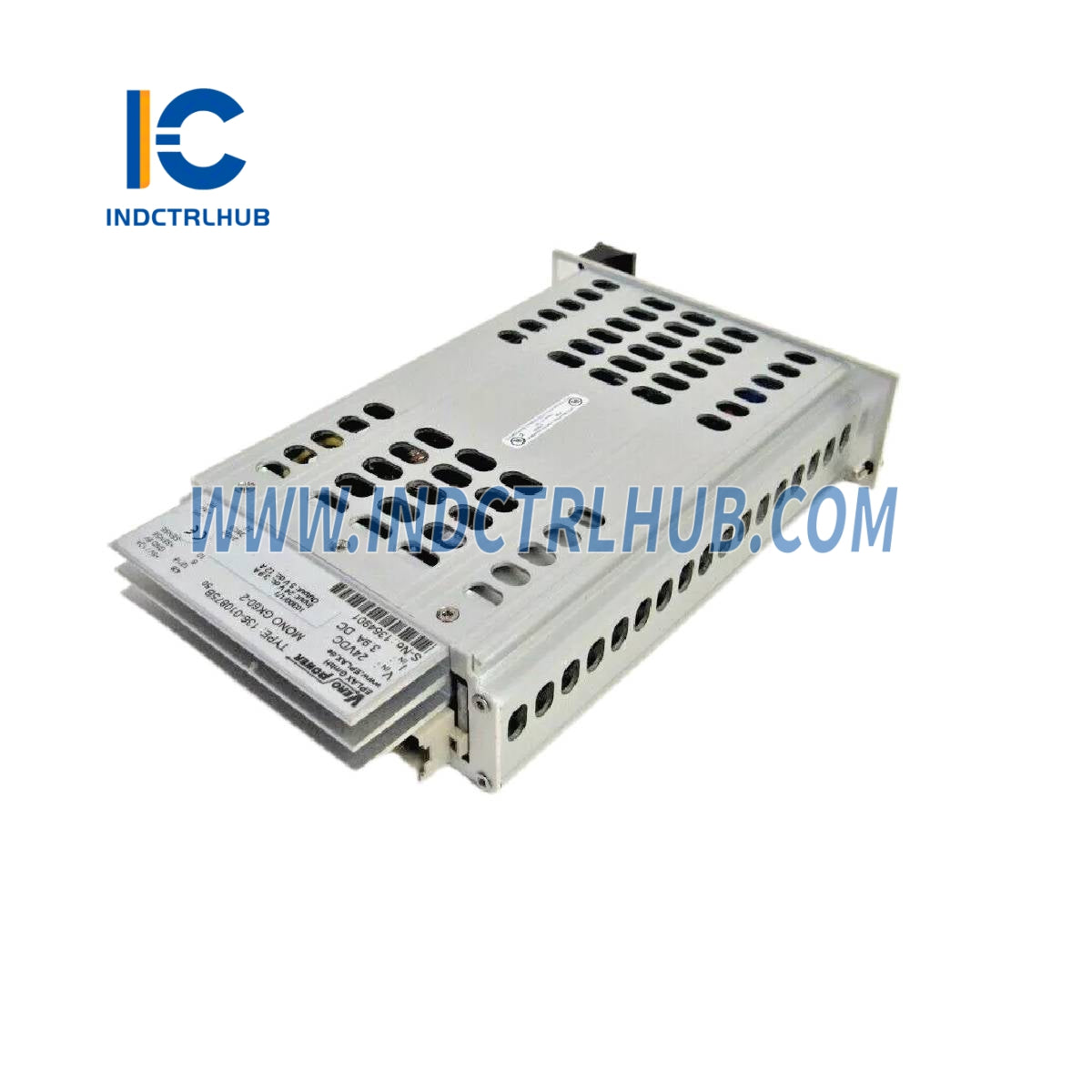

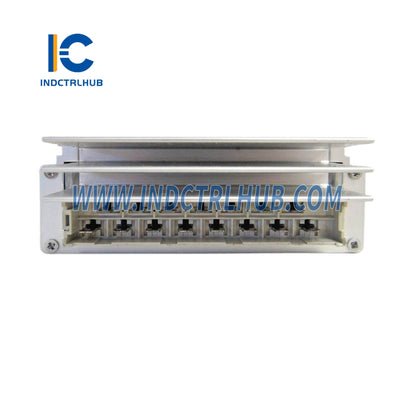

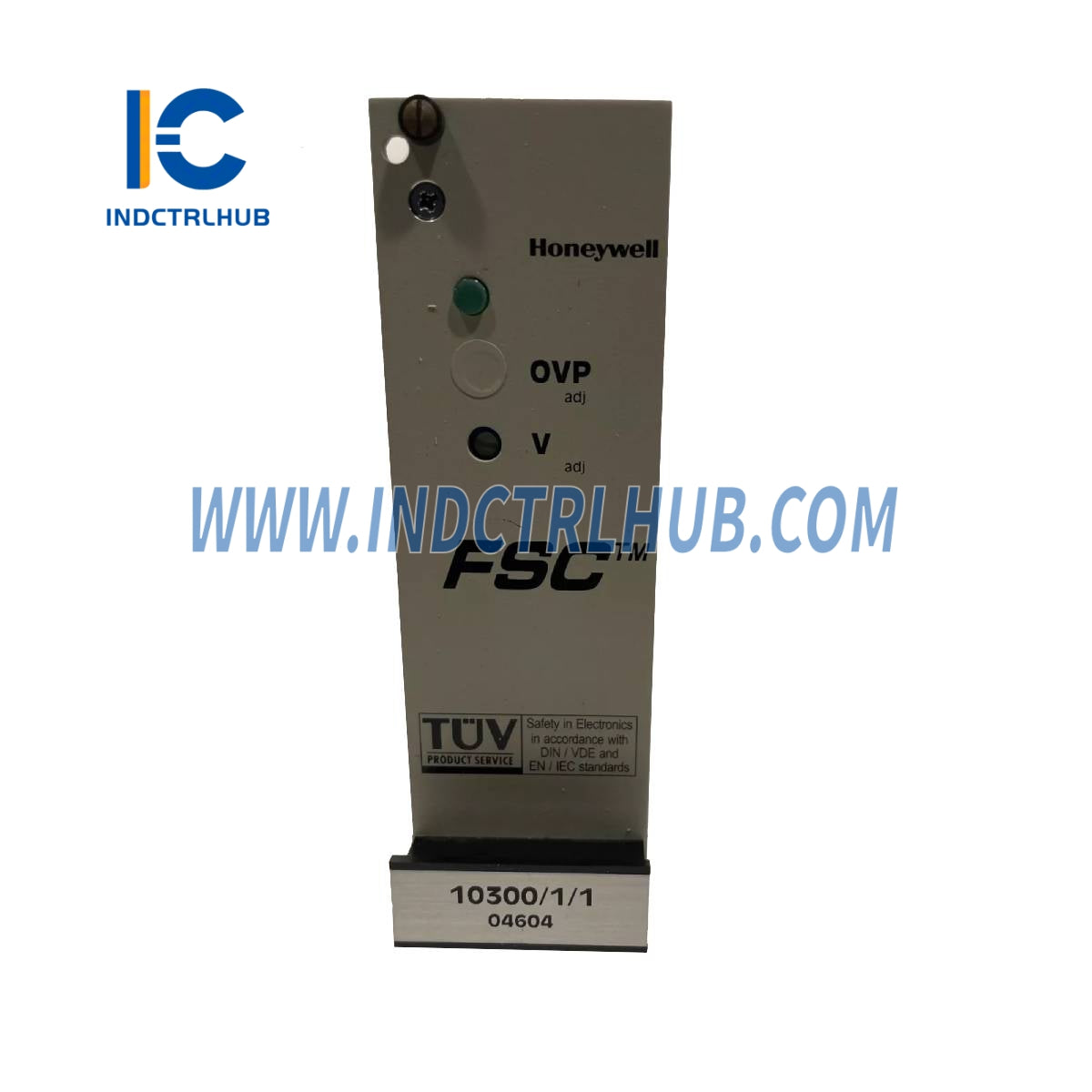

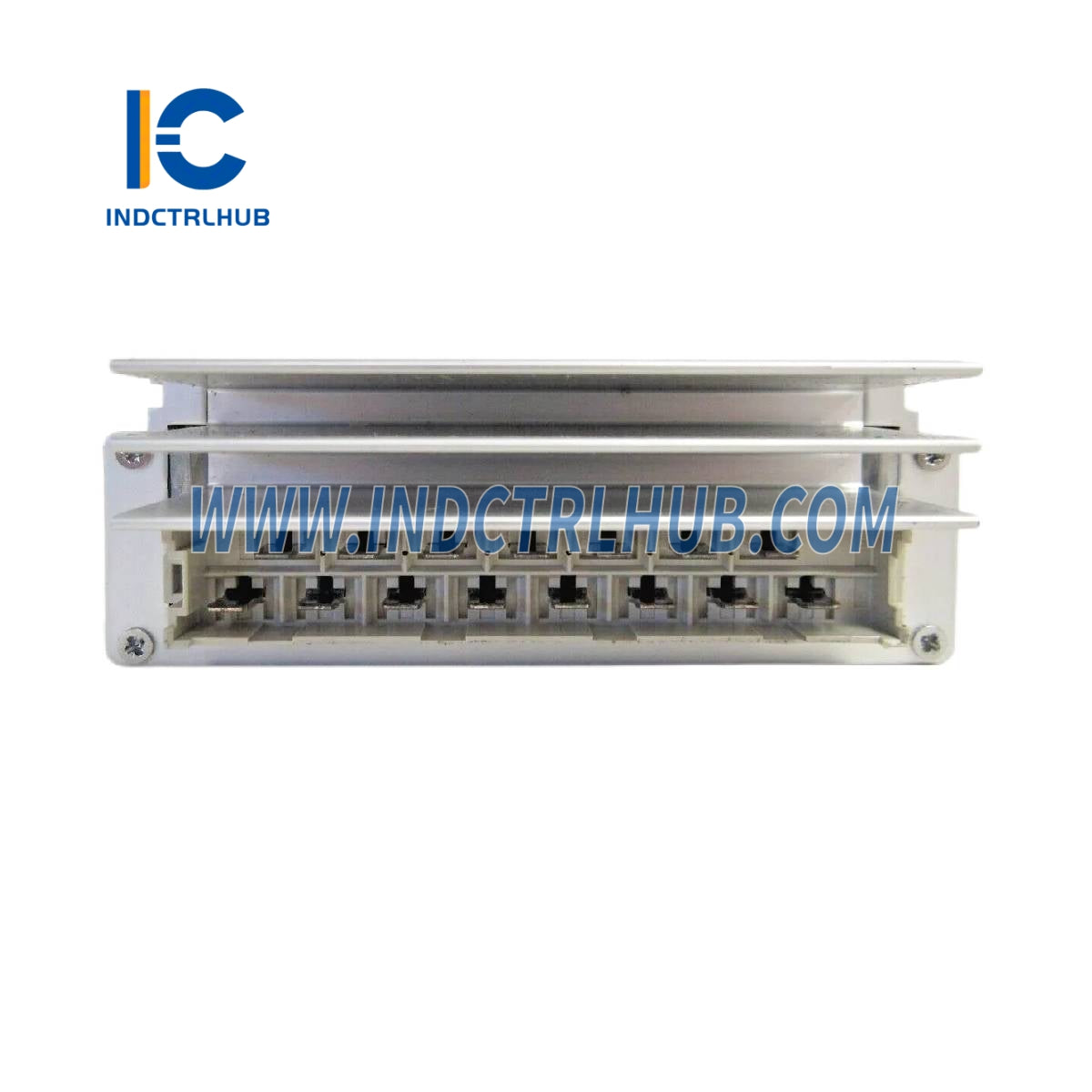

Honeywell 10300/1/1 Converter Module
Product Overview
- The Honeywell 10300/1/1 is a DC/DC Converter Module designed for use in Honeywell’s Fail-Safe Controller (FSC) system within the TDC 3000 and Experion Process Knowledge System (PKS) platforms. This module converts a 24 VDC input to a 5 VDC output to power internal FSC modules, providing galvanic isolation between the input and output voltages. It is critical for ensuring reliable power supply in industrial automation applications, particularly in safety-critical environments.
Technical Specifications
- The 10300/1/1 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 10300/1/1 |
| Manufacturer | Honeywell |
| Description | DC/DC Converter Module, 24 VDC to 5 VDC |
| Series | FSC / TDC 3000 / Experion PKS |
| Input Voltage | 24 VDC (-15% to +30%, 18–30 VDC) |
| Output Voltage | 5 VDC with overvoltage protection (adjustable to 5.00 VDC) |
| Output Current | 12 A at 0°C to 45°C (32°F to 113°F) 8 A at 0°C to 60°C (32°F to 140°F) |
| Power Consumption | Current < 3.9 A at 24 VDC |
| Inrush Current | < 18 A (with NTC resistor limiter) |
| Ripple Content | < 40 mV peak-to-peak (at full load) |
| Efficiency | ≥ 70% |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.68 kg |
| Space Requirements | 8 TE, 3 HE (8 HP, 3U) |
Additional Details
- The 10300/1/1 includes the following additional information based on its standard use and documentation:
- Function: Converts 24 VDC plant supply to 5 VDC for FSC system modules, ensuring galvanic isolation and stable power delivery.
- Mounting: Installs in FSC system rack, close to the system bus (e.g., 12-SBUS) to minimize voltage drop; requires proper sense wire usage and short, adequate-diameter wiring.
- Compatibility: Compatible with Honeywell’s FSC system, TDC 3000 Process Manager, and Experion PKS; pin-compatible upgrade for the GK60 module.
- Configuration: Supports redundant configurations; includes overvoltage protection set at 5.75 VDC. Note: Modules without suffix code or with suffix ≤04602 are not CE-approved.
- [](https://www.6gcontrols.com/products/honeywell-10300-1-1-24-vdc-to-5-vdc-12-a-converter-in-stock/)
- Certifications: CE, TÜV, UL (for modules with suffix code >04602).
