Product Description
Product Details
-
Manufacturer: Honeywell
-
Model/Part Number: 10205/2/1
-

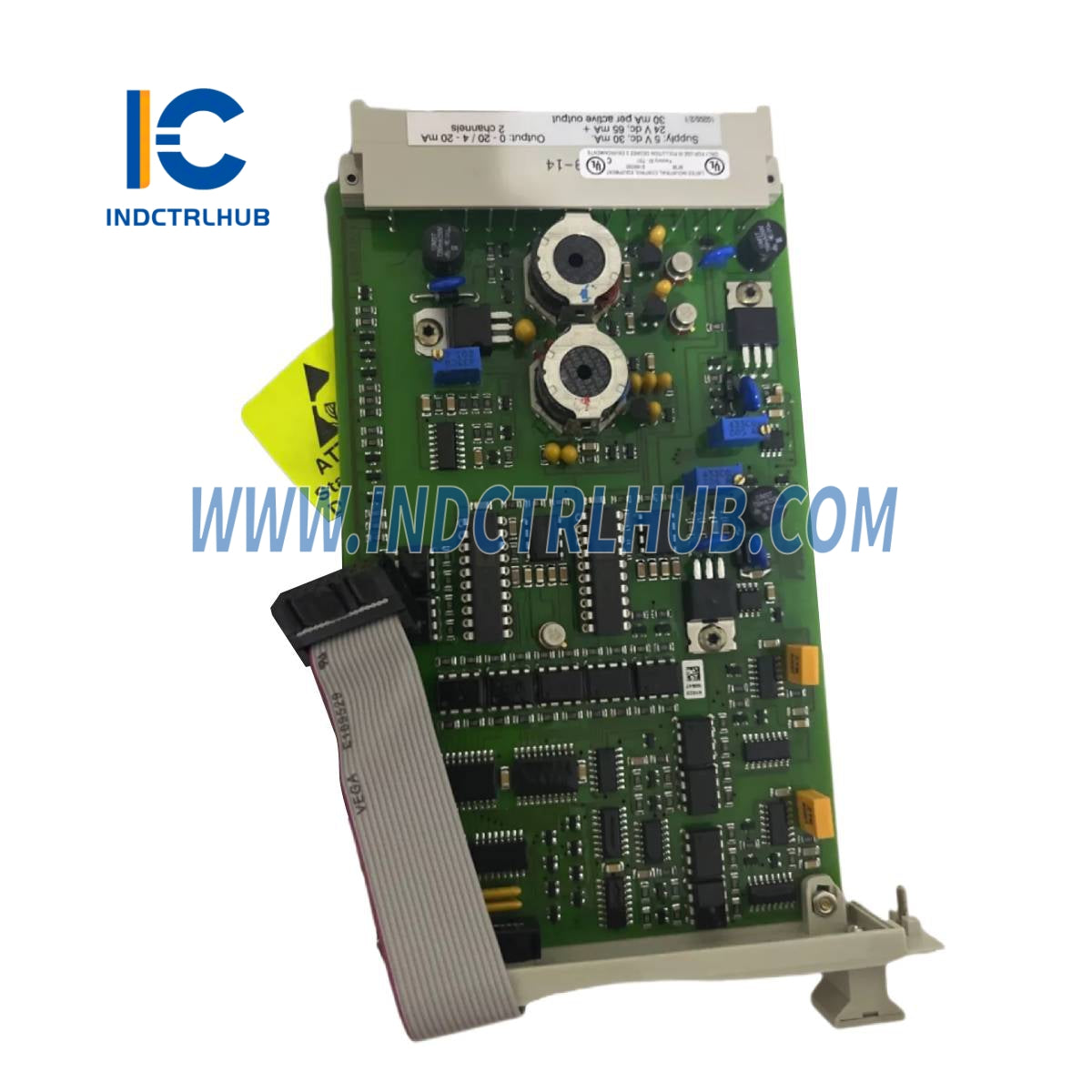

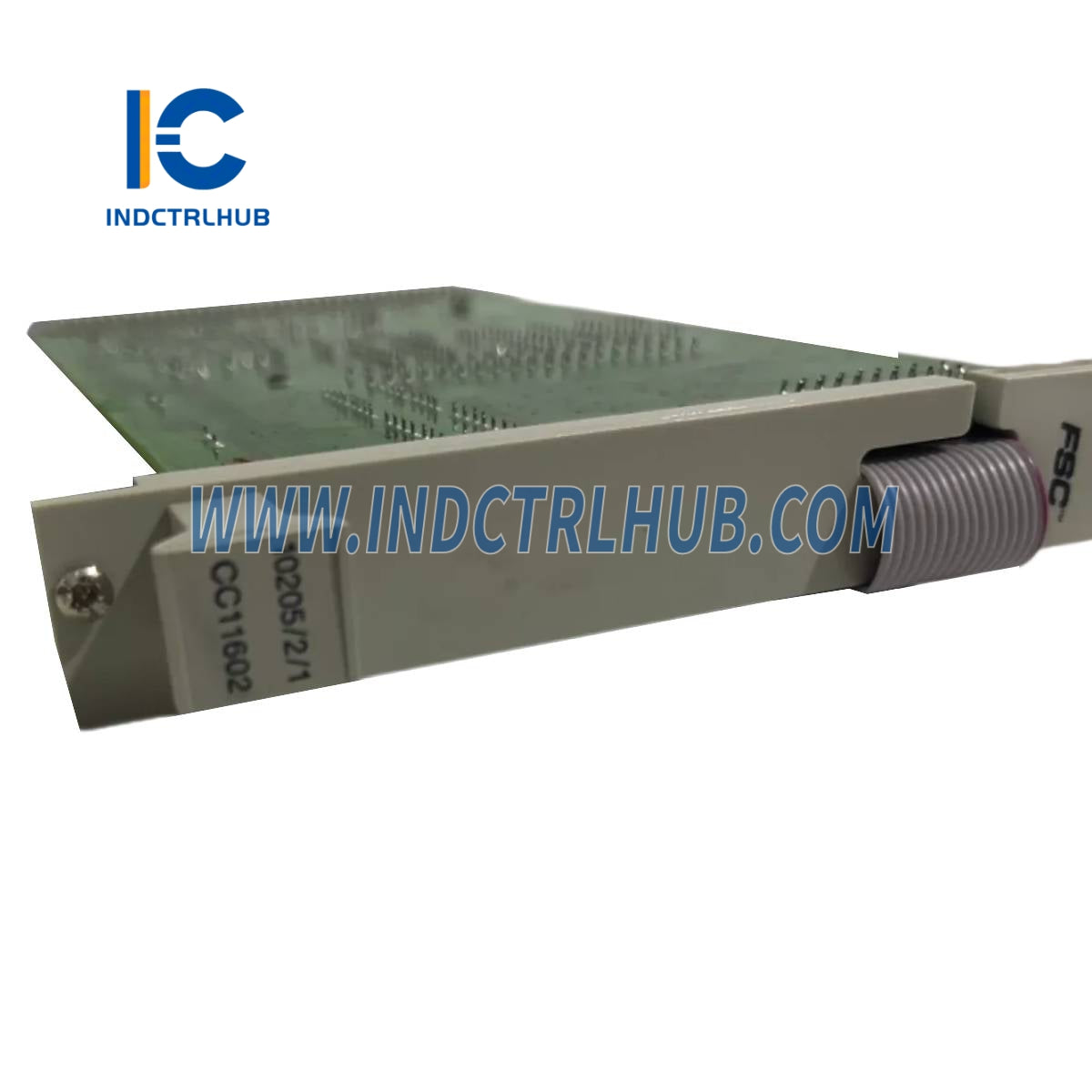

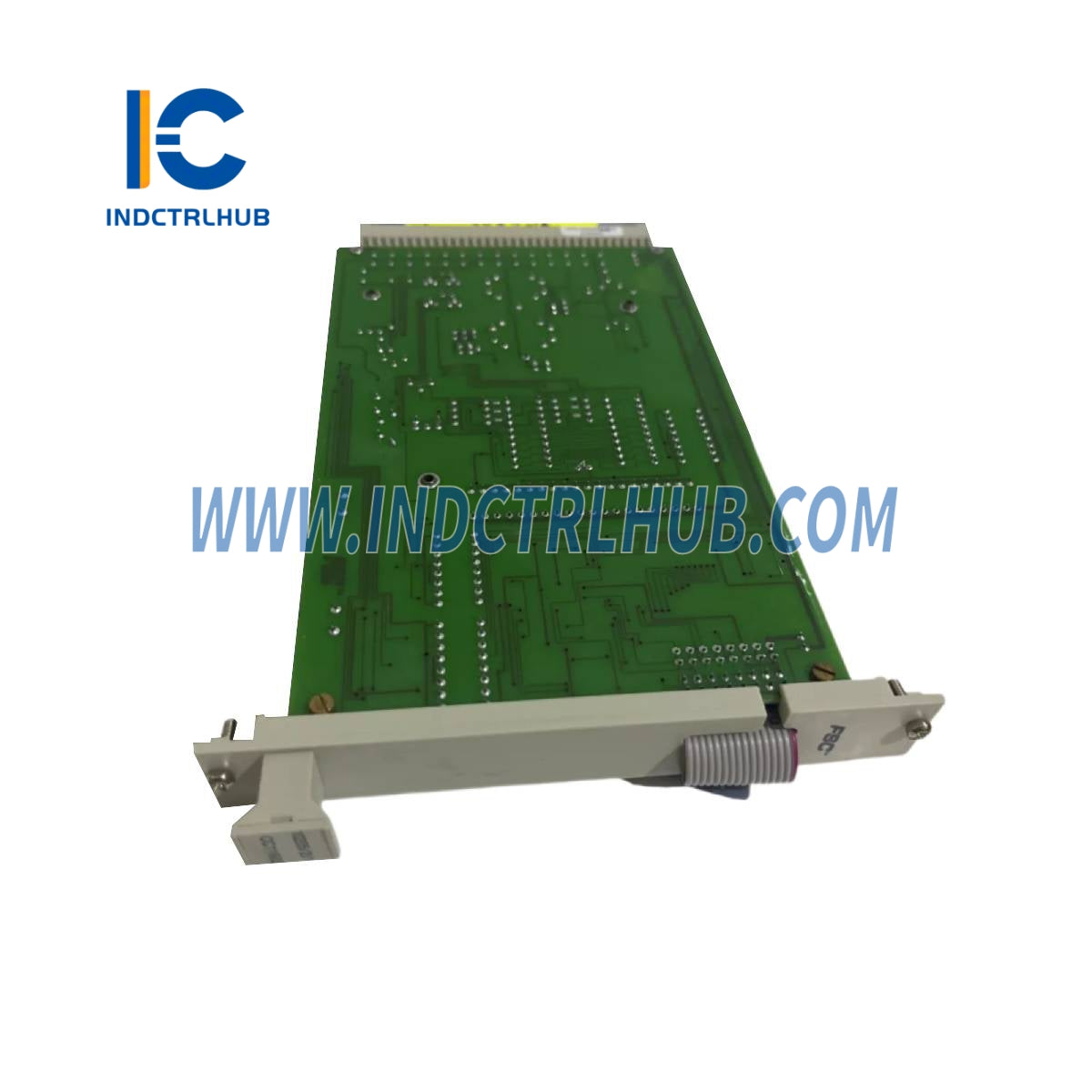

Description: 2-Channel Analog Output Module
Technical Specifications
|
Category |
Details |
|---|---|
|
General Type Number |
10205/2/1 11600 |
|
Approvals |
CE, TÜV, UL |
|
Software Compatibility |
Version ≥ 3.00 |
|
Space Requirements |
4 TE, 3 HE (4 HP, 3U) |
Power Requirements
|
Voltage |
Current Consumption |
|---|---|
|
5 V DC |
30 mA |
|
24 V DC |
65 mA + 30 mA per active output |
Output Characteristics
|
Parameter |
Specification |
|---|---|
|
Channels |
2 analog output channels (galvanically isolated from supply; 0V1 and 0V2 interconnected) |
|
Output Type |
Active or passive current outputs (0–20 mA / 4–20 mA) |
|
D/A Converter Resolution |
12-bit |
|
Off Current |
< 0.05 mA |
|
Active Loop Powering |
Max. loop resistance: 1 kΩ; Max. output voltage: 30 V DC |
|
Passive External Powering |
Max.: 40 V DC; Min. voltage drop: ≤ 7.5 V |
|
Watchdog (WDG) Input Current |
0.5 mA |
Key Coding
|
Type |
Code |
|---|---|
|
Module Code |
Holes A9, C5 |
|
Rack Code |
Large pins A9, C5 |
