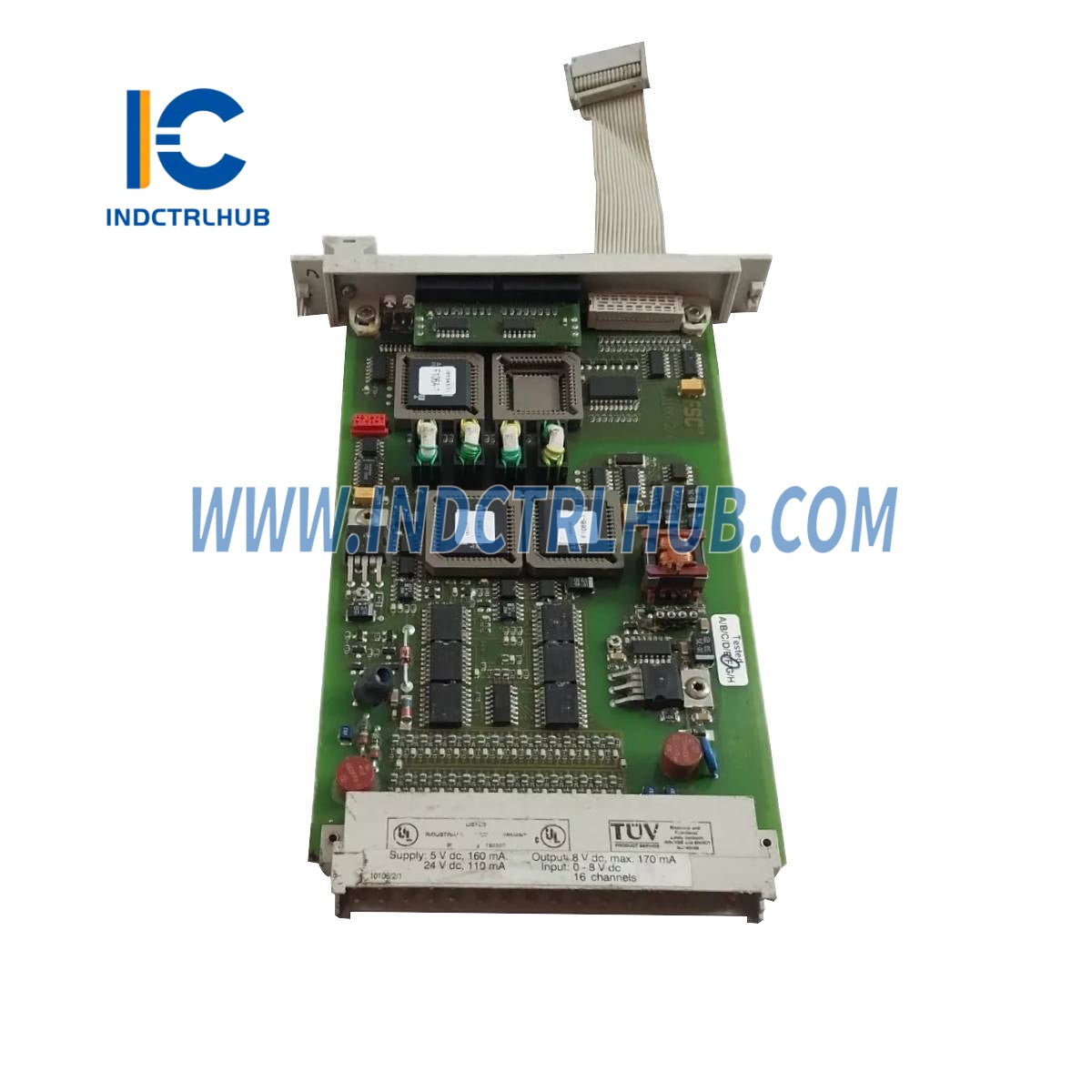

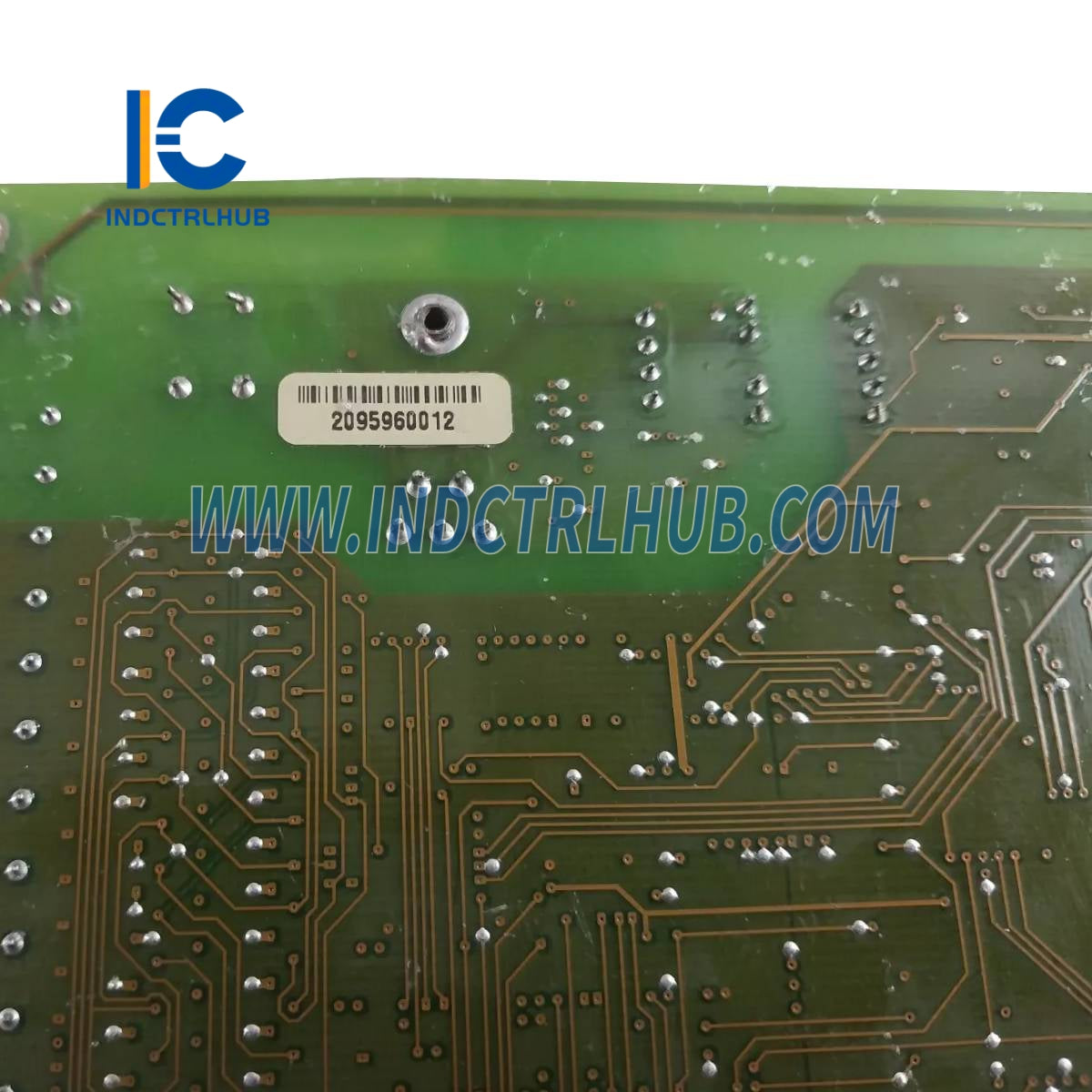

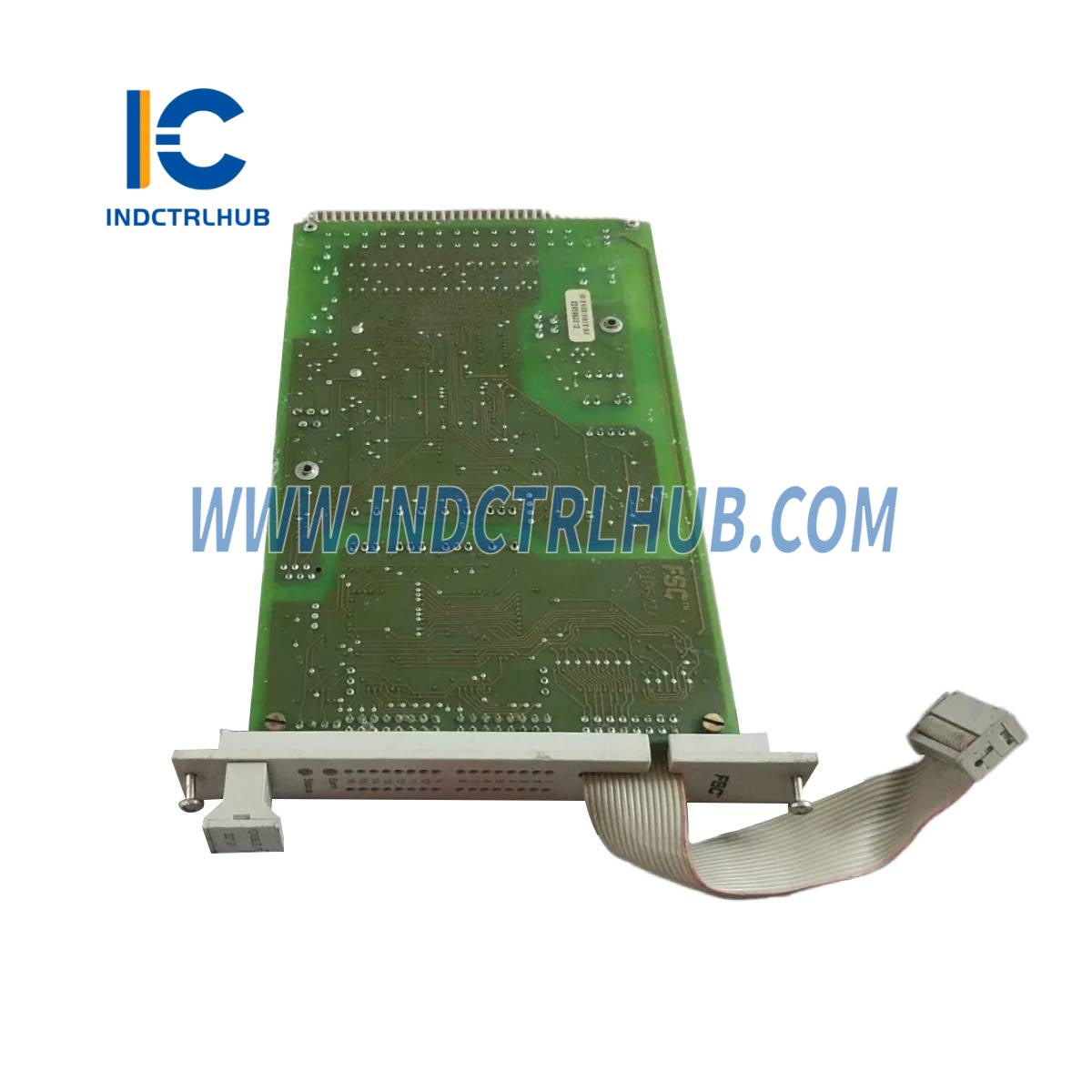

Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|

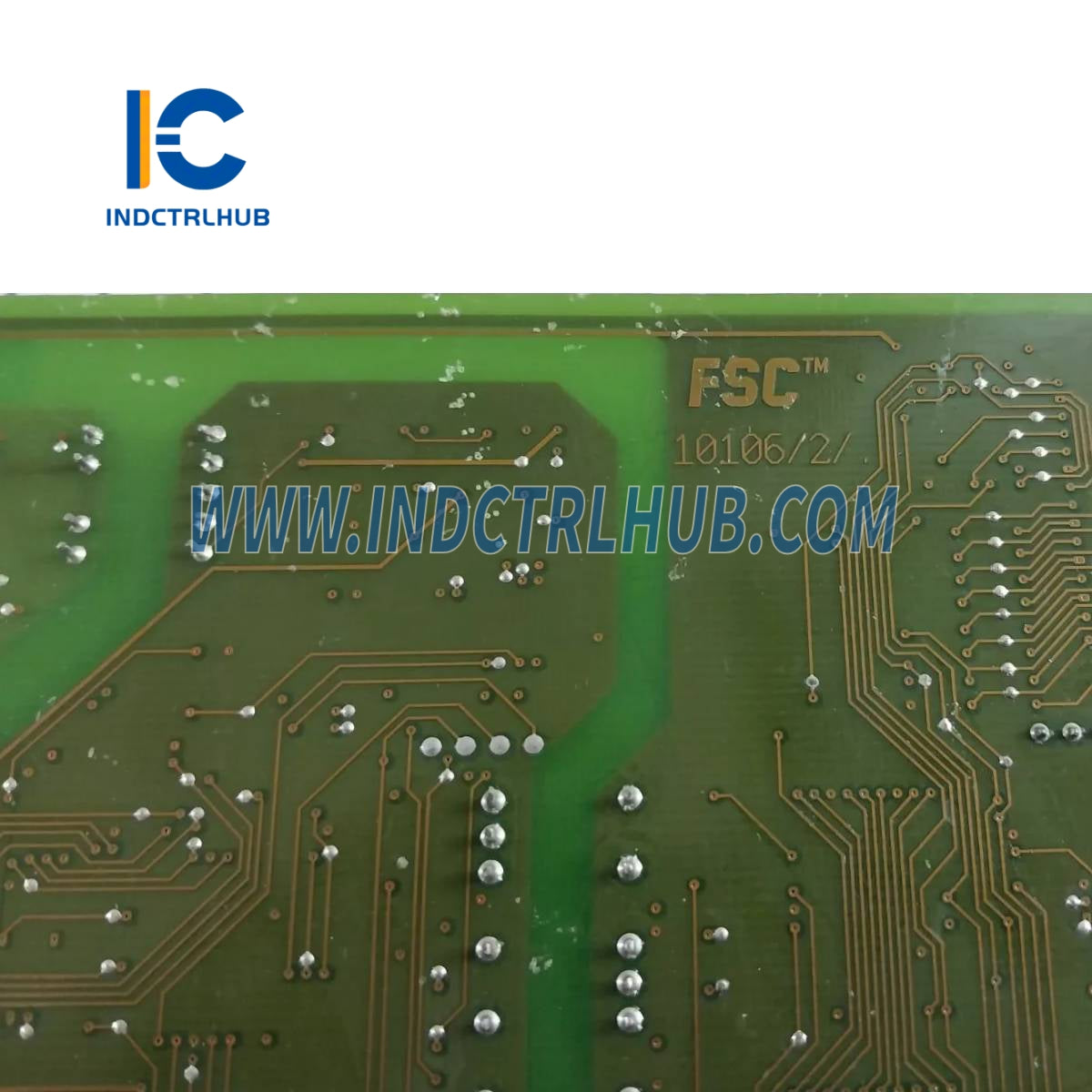

Model/Part Number |
10106/2/1 |
|
Description |

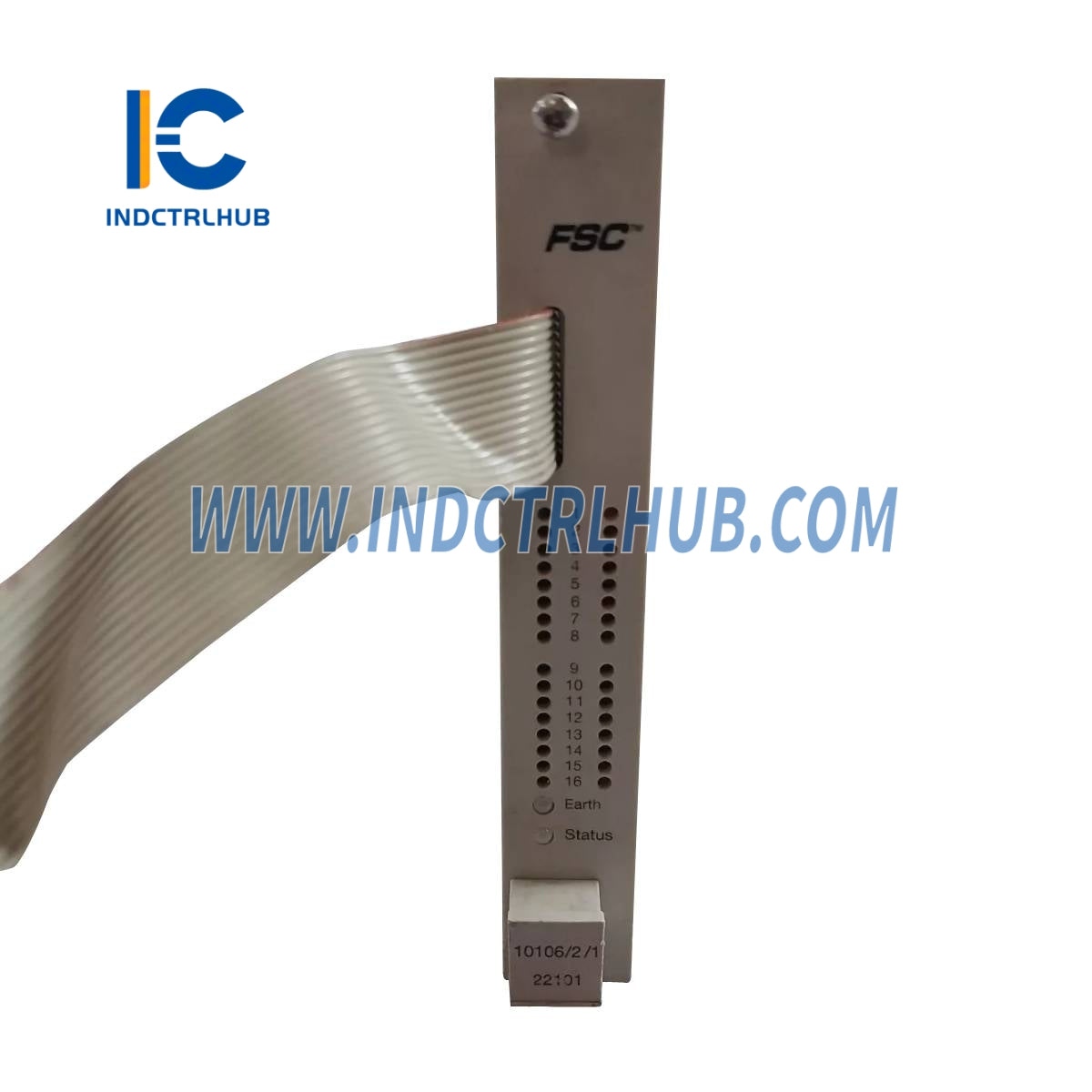

16-Channel Digital Input Module (NAMUR Type, Intrinsically Safe) |
|
Type Number |
10106/2/1 22101* |
|
Approvals |
CE, UL, TÜV, FM** |
|
Safety Class |
AK1-6 |
|
Software Version |
≥ 510 |
|
Space Requirement |
4 TE, 3 HE (= 4 HP, 3U) |
⚙️

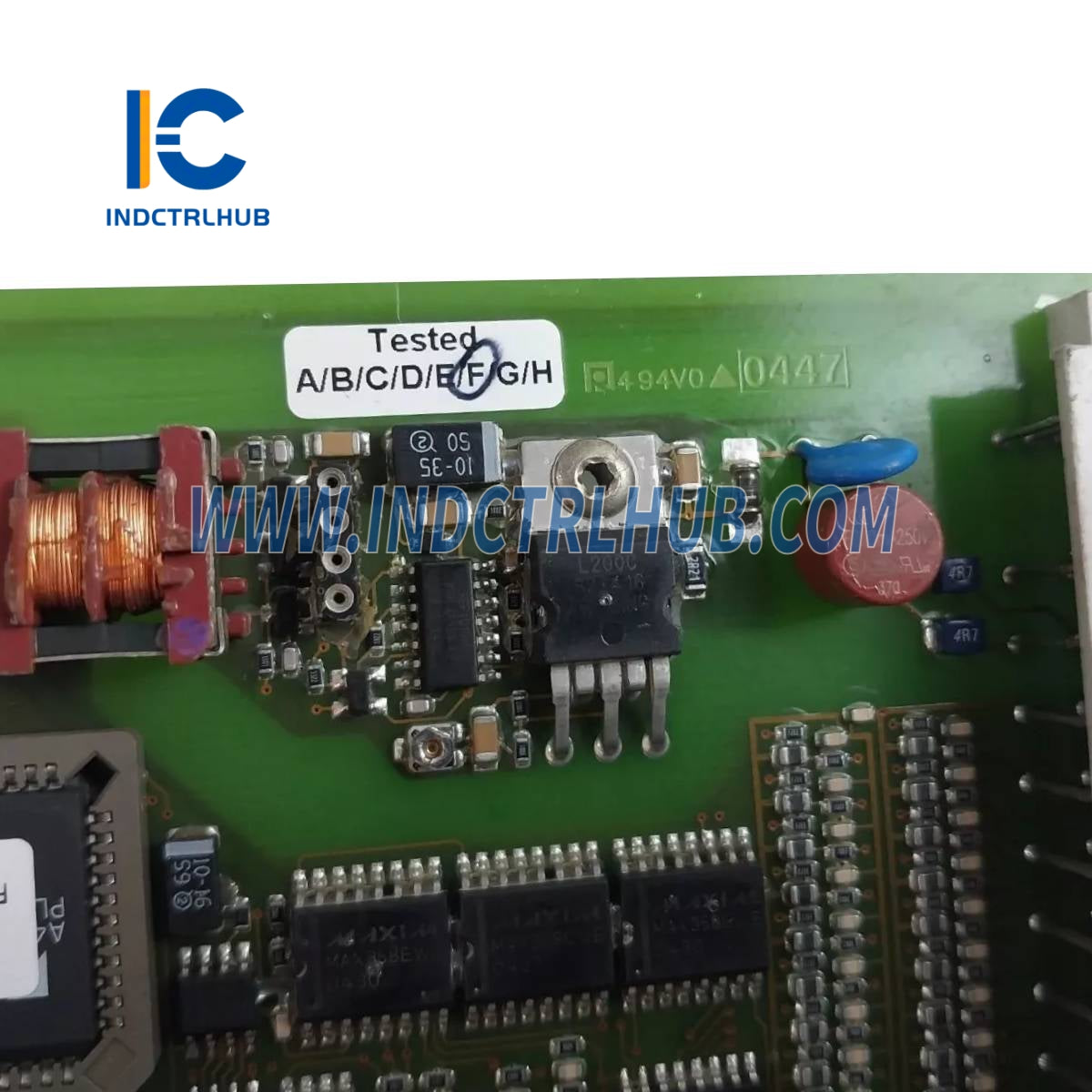

Technical Specifications
|
Category |
Specification |
|---|---|
|

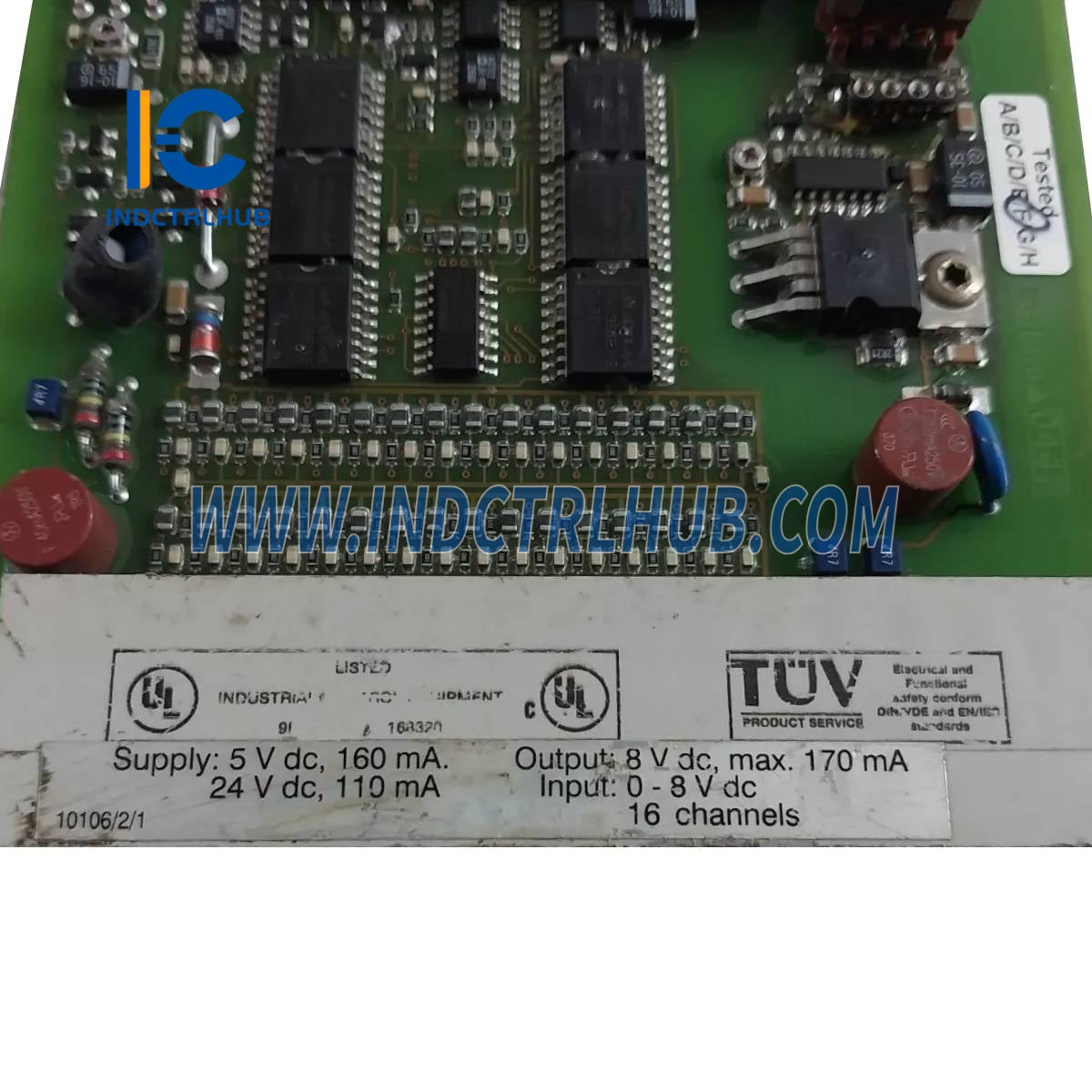

Power Requirements |
5 VDC @ 160 mA24 VDC @ 110 mA |
|
Number of Channels |
16 |
|
Input Type |
NAMUR (DIN 19234 standard) |
|
Switch Level |
1.4 to 1.9 mA |
|
Hysteresis |
0.2 mA ± 0.05 mA |
|
Field Wire Resistance |
Max. 50 Ω |
|
Loop Supply Voltage |
7.9 to 8.7 VDC |
|
Loop Supply Current |
170 mA (short-circuit proof) |
|
Earth Connection Monitor |
1 channel |
|
Input Resistance |
~0.5 MΩ (–40 V < U < 40 V) |
|
Test Current |
~0.5 mA |
|
Output Voltage |
~0.5 VDC |
|
Max. Field Fault Voltage |
250 VAC |
🔧

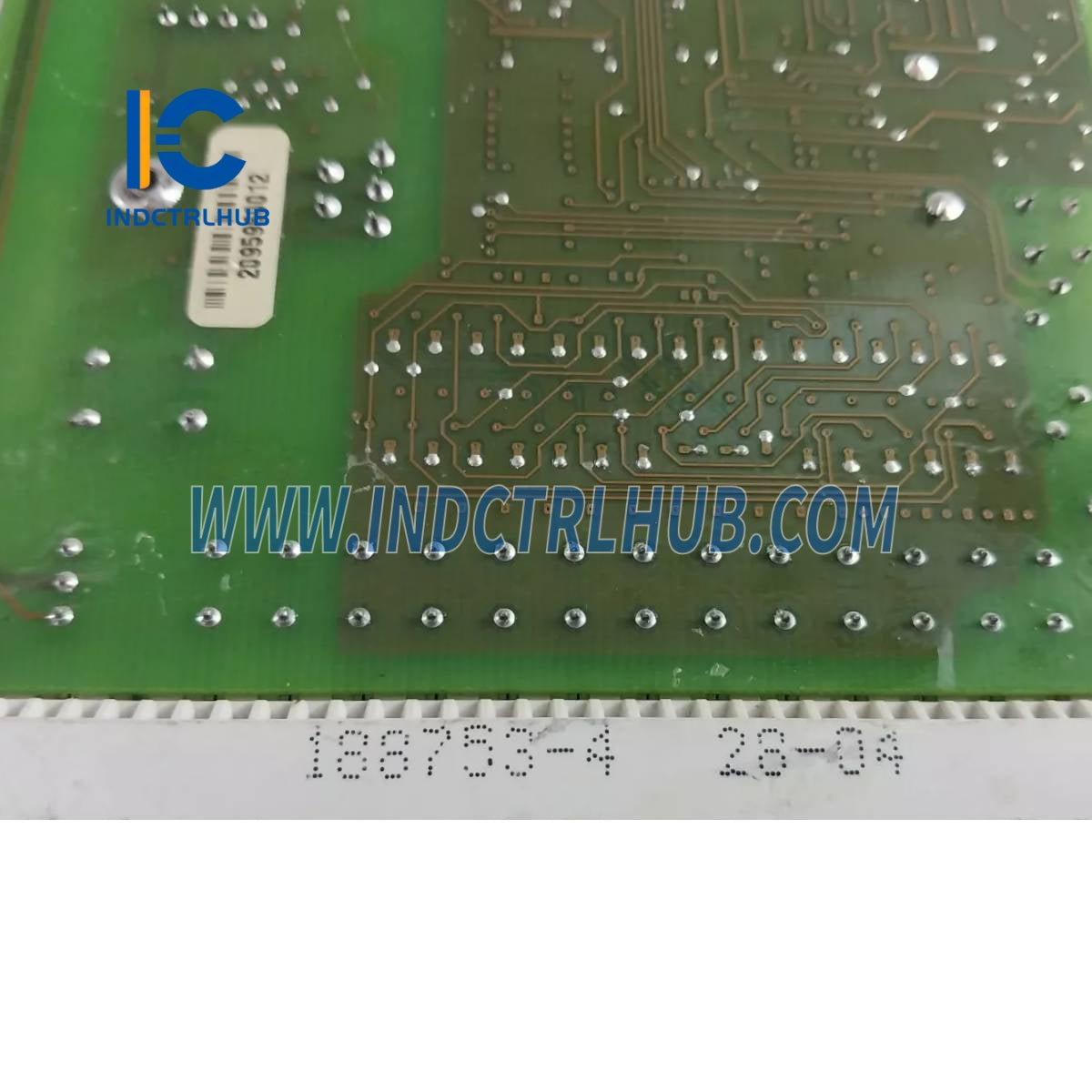

Mechanical Details
|
Parameter |
Specification |
|---|---|
|
Module Connector Code |
Holes: A5, C29 |
|
Rack Connector Code |
Large Pins: A5, C29 |
