Product Description

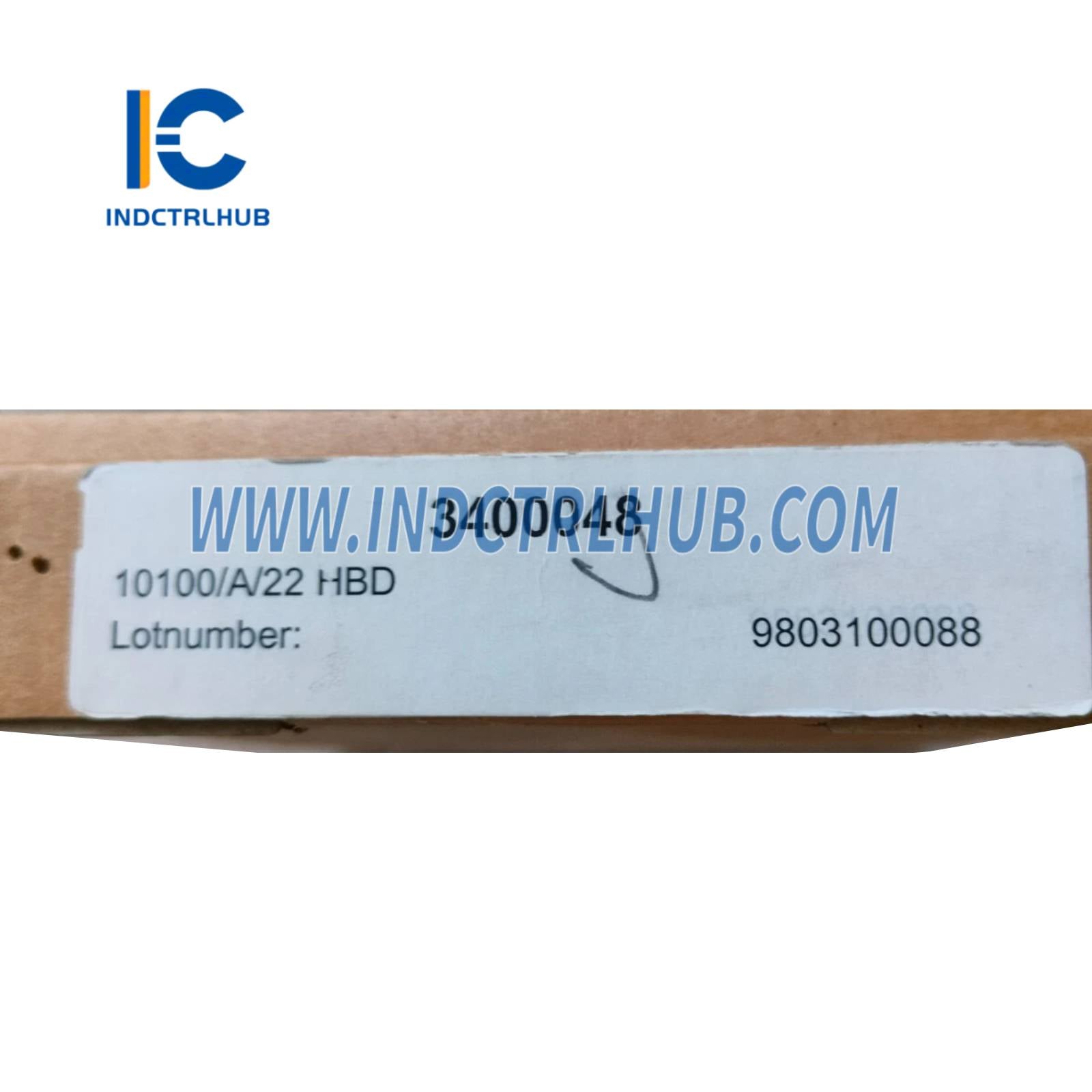

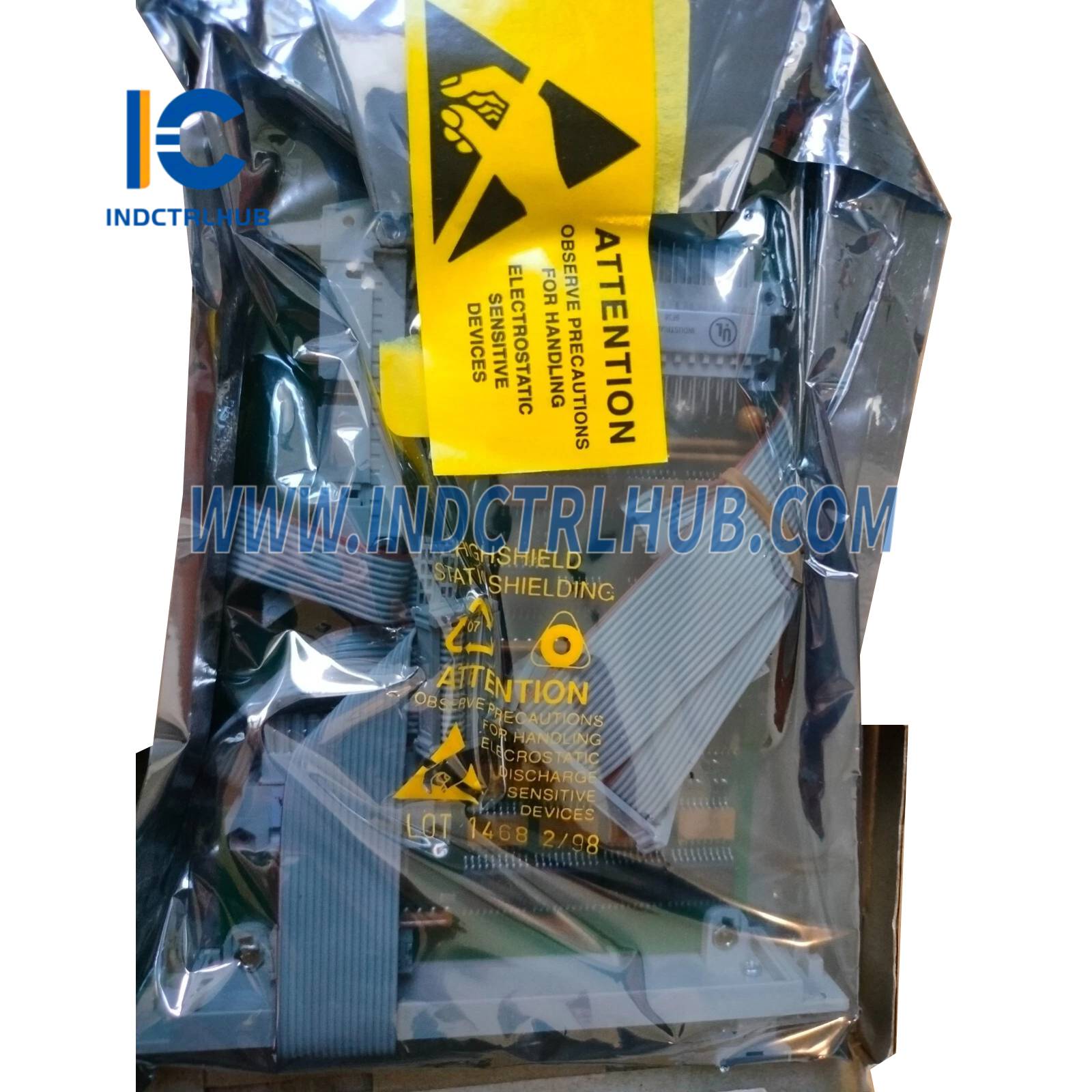

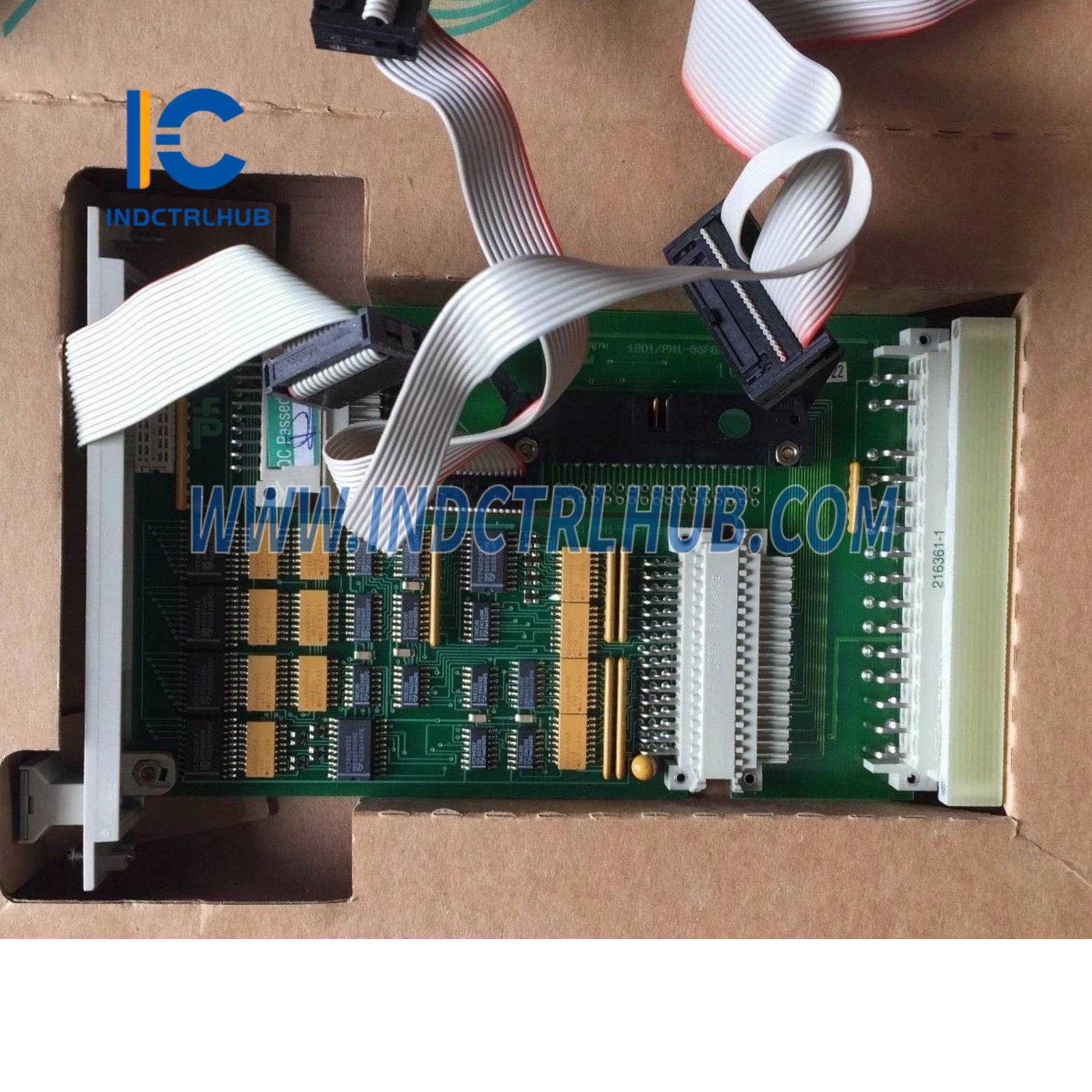

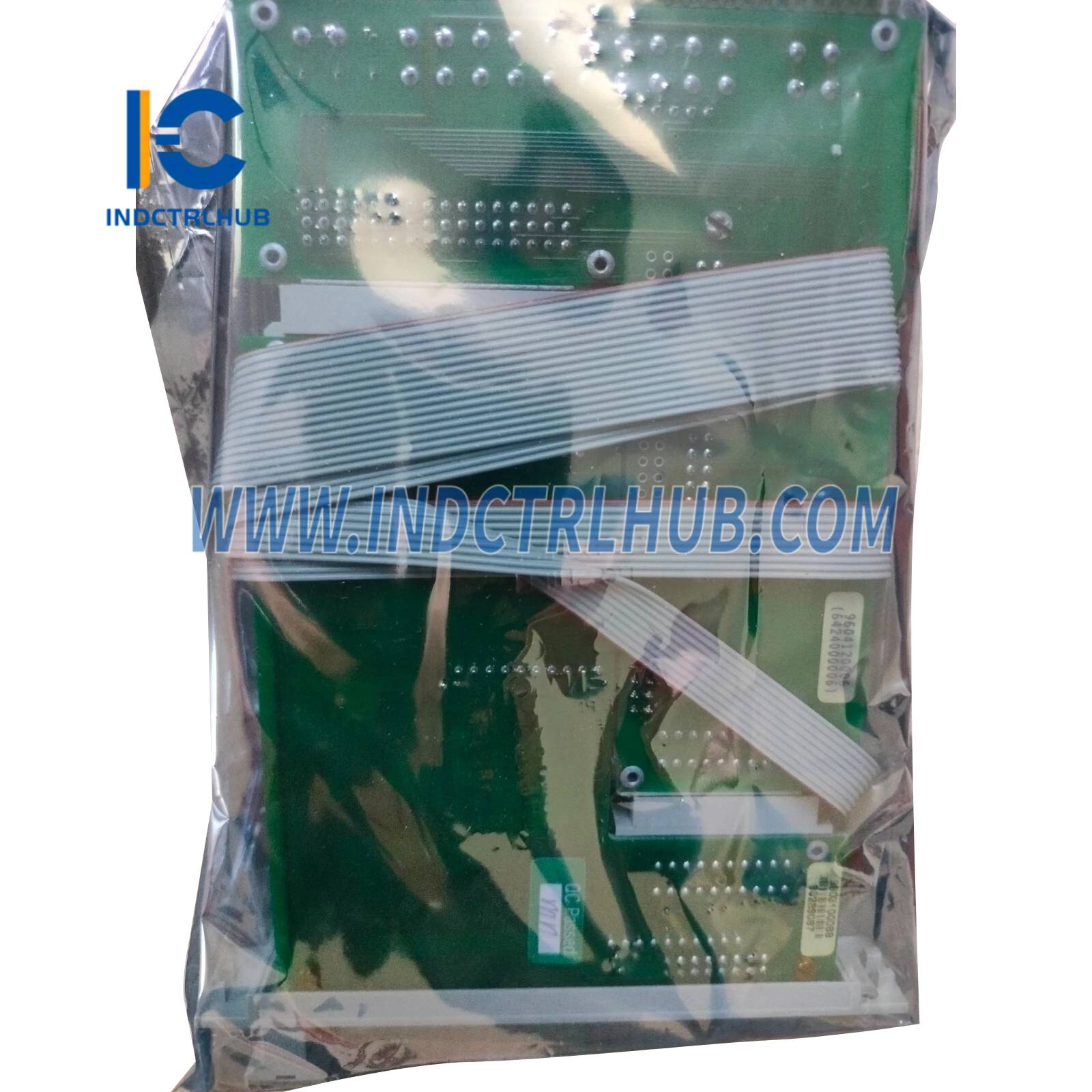

Honeywell 10100/2/1 Horizontal Bus Driver Module
- Manufacturer: Honeywell
- Series: Fail-Safe Controller (FSC) / Safety Manager
- Model/Part Number: 10100/2/1
- Description: Horizontal Bus Driver (HBD) Module for FSC control systems
Overview
The Honeywell 10100/2/1 is a Horizontal Bus Driver (HBD) Module designed for use in Honeywell’s Fail-Safe Controller (FSC) and Safety Manager systems. It facilitates reliable communication between the central processing unit and I/O racks, ensuring efficient data transmission in industrial safety and control applications, such as oil and gas, chemical processing, and power generation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 10100/2/1 |
| Series | Fail-Safe Controller (FSC) / Safety Manager |
| Type | Horizontal Bus Driver (HBD) Module |
| Function | Connects central system to I/O racks for data transmission |
| Power Requirements | With A1/A21 cable: 5 VDC, 35 mA; With A22 cable: 5 VDC, 65 mA |
| Ripple Content | < 50 mV peak-to-peak |
| Cable Compatibility | A1, A21, or A22 flat cables (non-redundant, single rack redundant, dual rack redundant) |
| Connectors | CN1 (back connector for vertical bus flat cable), CN3 (front connector for horizontal bus flat cable) |
| Space Requirements | 4 TE, 3 HE (4 HP, 3U) |
| Compatibility | Honeywell FSC and Safety Manager I/O racks |
| Mounting | Plugs into FSC I/O rack |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for indoor industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 20 mm x 128 mm x 160 mm (0.8 x 5 x 6.3 in) |
| Weight | Approx. 0.11 kg (0.24 lbs) |
| Certifications | CE, TÜV, UL |
| Manual | Honeywell FSC System Manual |
