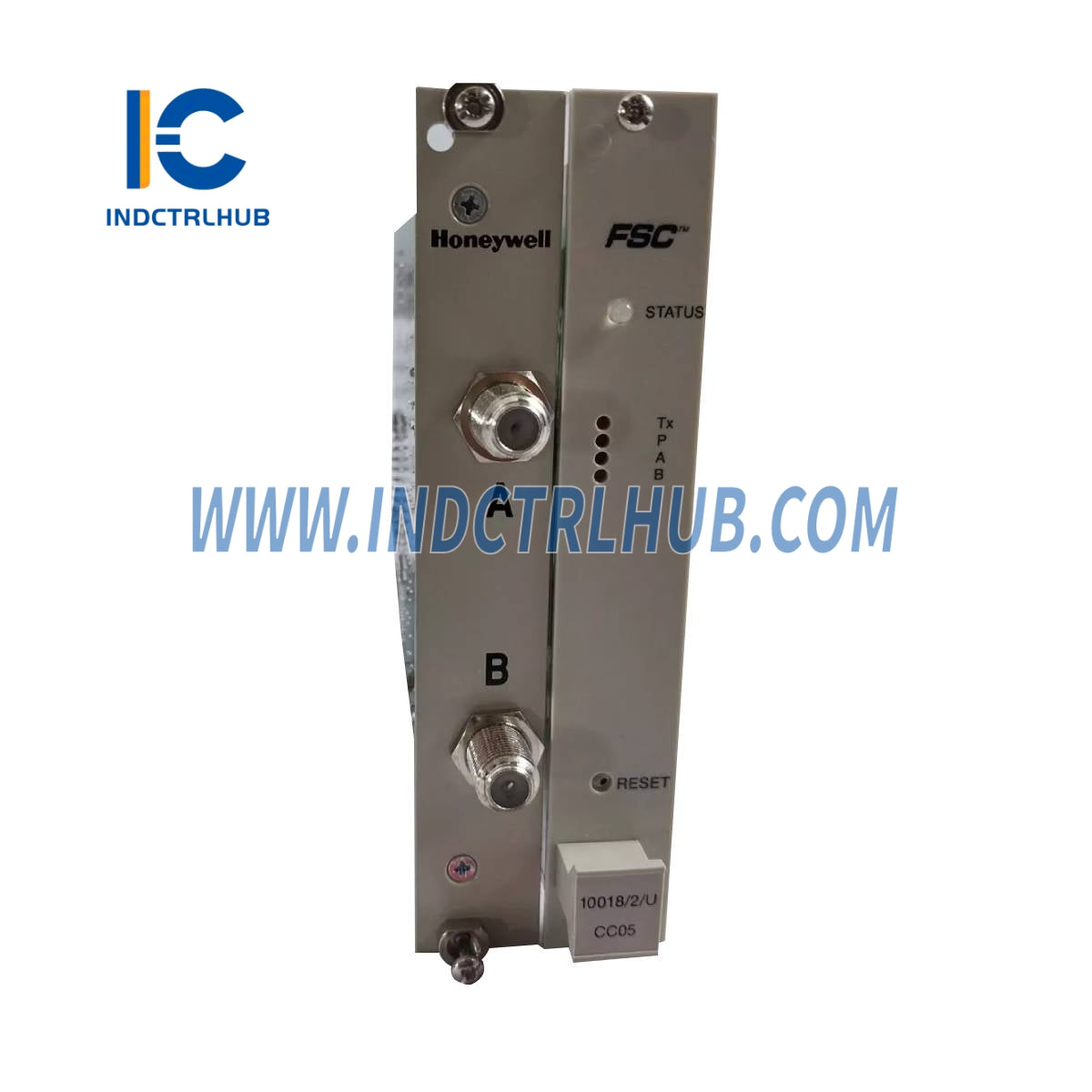

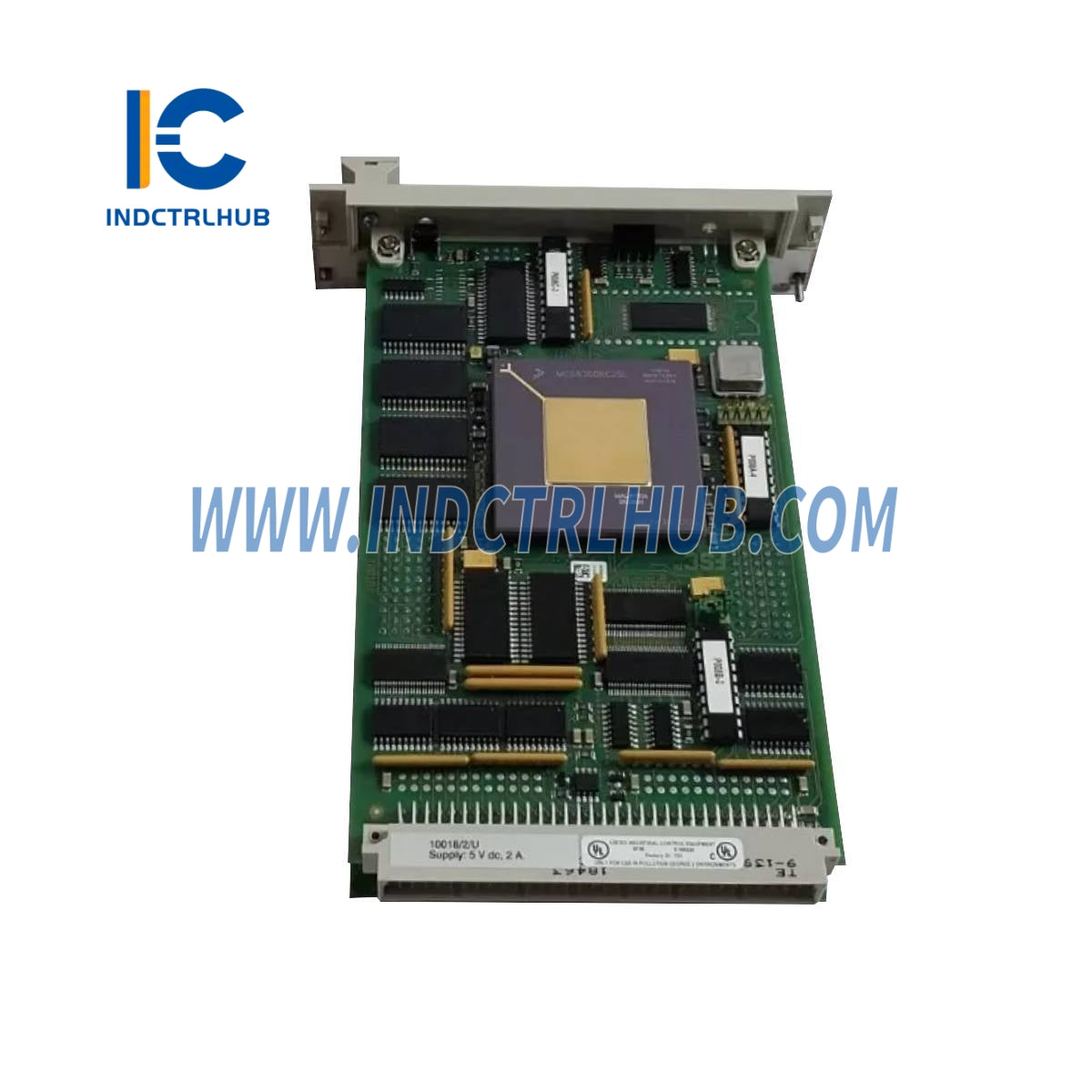

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | 10018/2/U CC |
| Description | Ethernet Module designed for Honeywell FSC (Fail Safe Controller) Safety Systems, providing network connectivity for communication between safety controllers and external systems |
| Key Features | High-speed Ethernet communication, conformal coated for harsh environments, supports Modbus TCP and proprietary protocols, SIL 3 certified, integrates with FSC Safety Manager |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 10018/2/U CC |
| Product Type | Ethernet Module |
| Series | FSC Safety Manager |
| Communication Interface | Ethernet (10/100 Mbps) |
| Protocols | Modbus TCP, proprietary FSC protocols |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Power Supply | 24 VDC (via system backplane) |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Dimensions | Approx. 100 x 35 x 120 mm (3.94 x 1.38 x 4.72 in) |
| Weight | Approx. 0.2 kg (0.44 lbs) |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | RJ45 Ethernet port, terminal blocks for power and system integration, connects to FSC Safety Manager rack |
Functional Features
| Feature | Details |
|---|---|
| Network Communication | Enables data exchange between FSC controllers and DCS/PLC systems |
| Environmental Protection | Conformal coating for resistance to harsh industrial conditions |
| Safety Integration | Ensures SIL 3 compliant communication for safety-critical applications |
| Diagnostics | Built-in diagnostics for network status and module health |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 10018/2/U |
| Configuration | CC: Conformal coated version for enhanced durability |
Applications and Benefits
| Category | Details |
|---|---|
| Applications | Process safety in oil and gas, chemical, power generation, and manufacturing industries |
| Benefits | Reliable network connectivity, SIL 3 safety compliance, durable in harsh environments, seamless integration with FSC systems |
