Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Honeywell |
|
Model/Part Number |
05704-A-0121 |
|
Description |

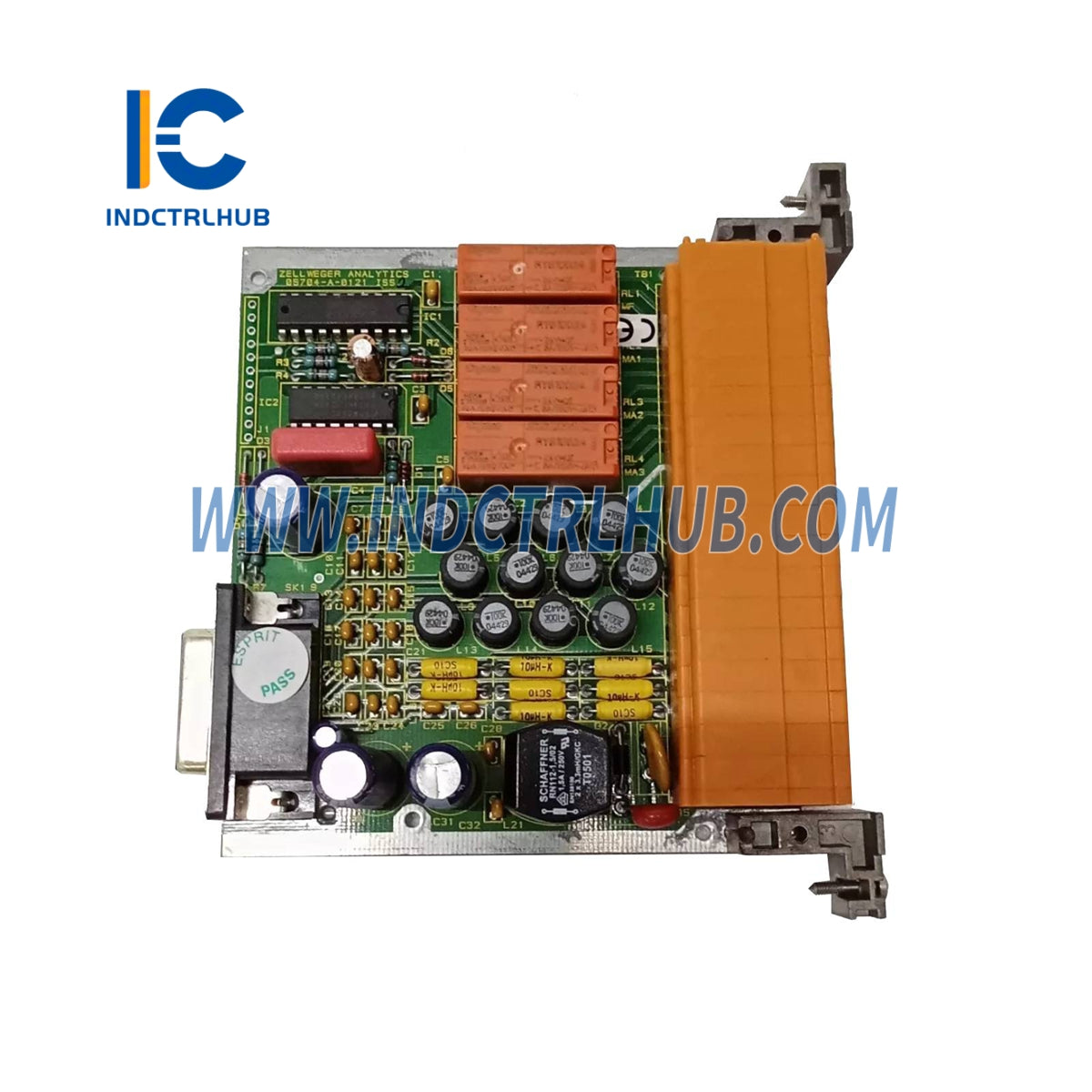

Quad Relay Interface Card that provides connections between four sensors and the control card. Includes four SPCO relays for configurable alarm and control outputs. |
|
Key Features |
4 SPCO relays, voltage-free contacts, selectable relay operation (latching/non-latching), configurable alarm levels (A1, A2, A3), fault/inhibit output options, analog and remote I/O connections. |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
05704-A-0121 |
|
Product Type |
Quad Relay Interface Card |
|
Relay Type |

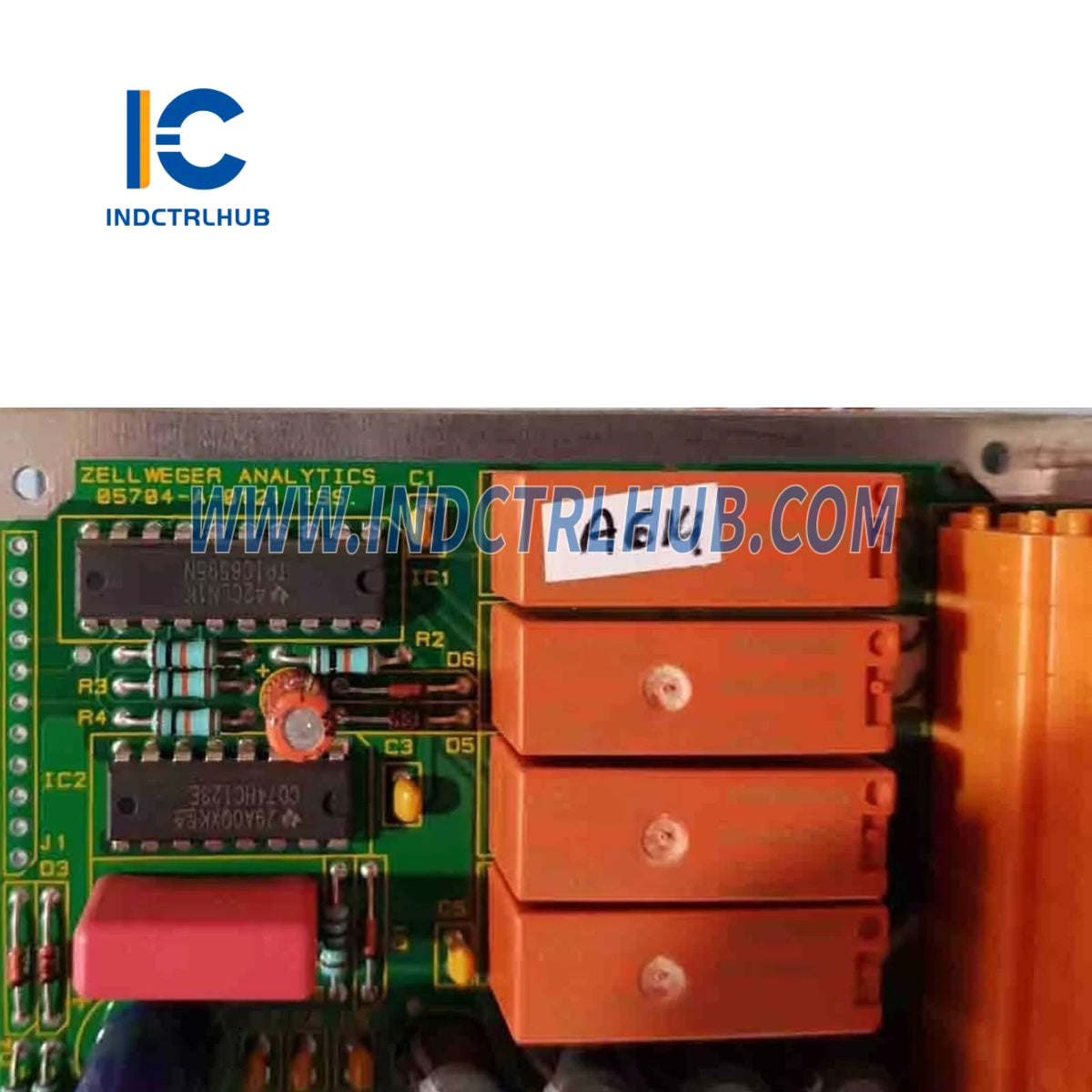

4 x Single Pole Change Over (SPCO) relays |
|
Relay Operation |
Selectable: Latching/Non-Latching, Energised/De-Energised |
|
Relay Contact Rating |
5 A at 110V/250V AC (non-inductive), 5 A at 32V DC (non-inductive) |
|
Power Consumption |
1.7 W (maximum), 1.0 W (typical) |
|

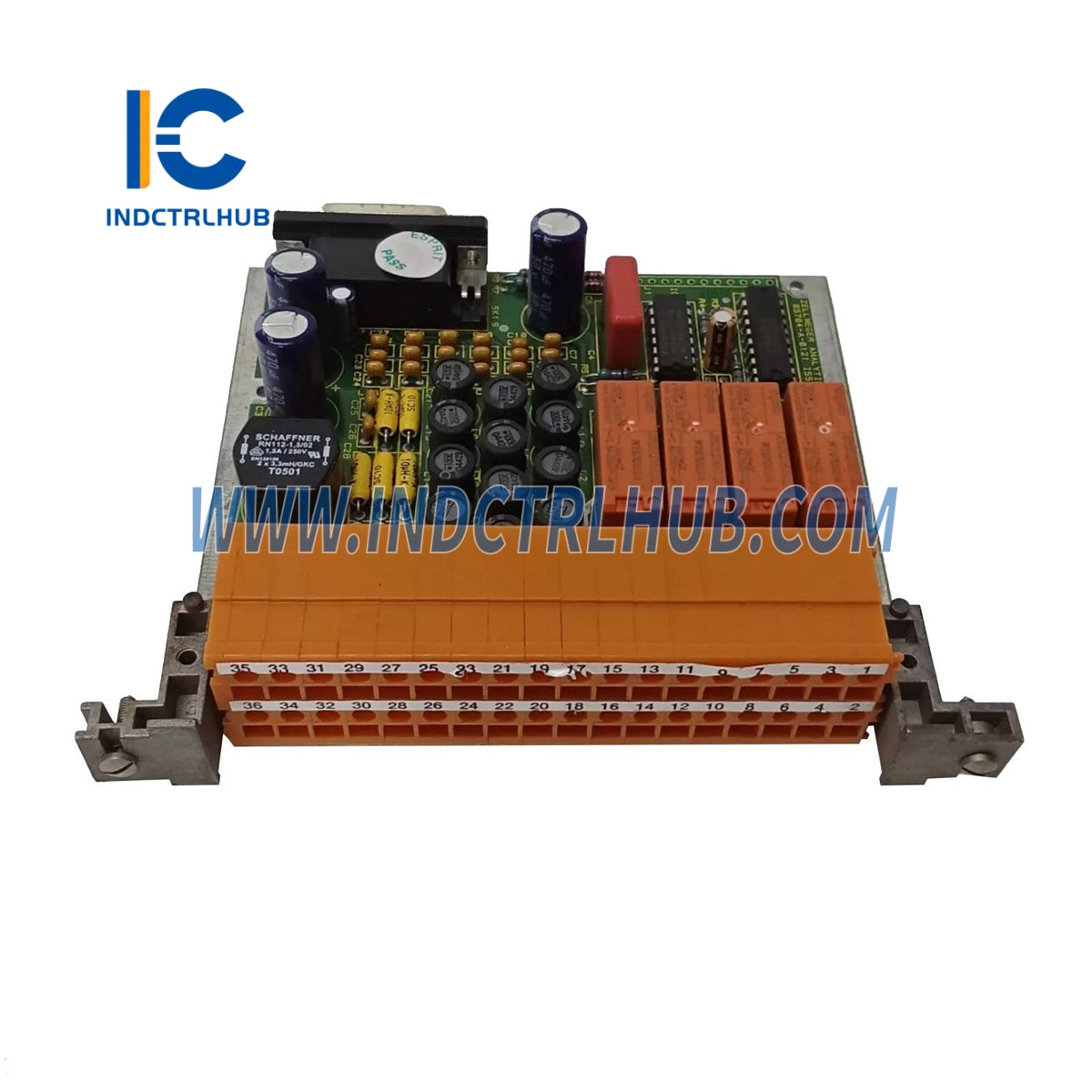

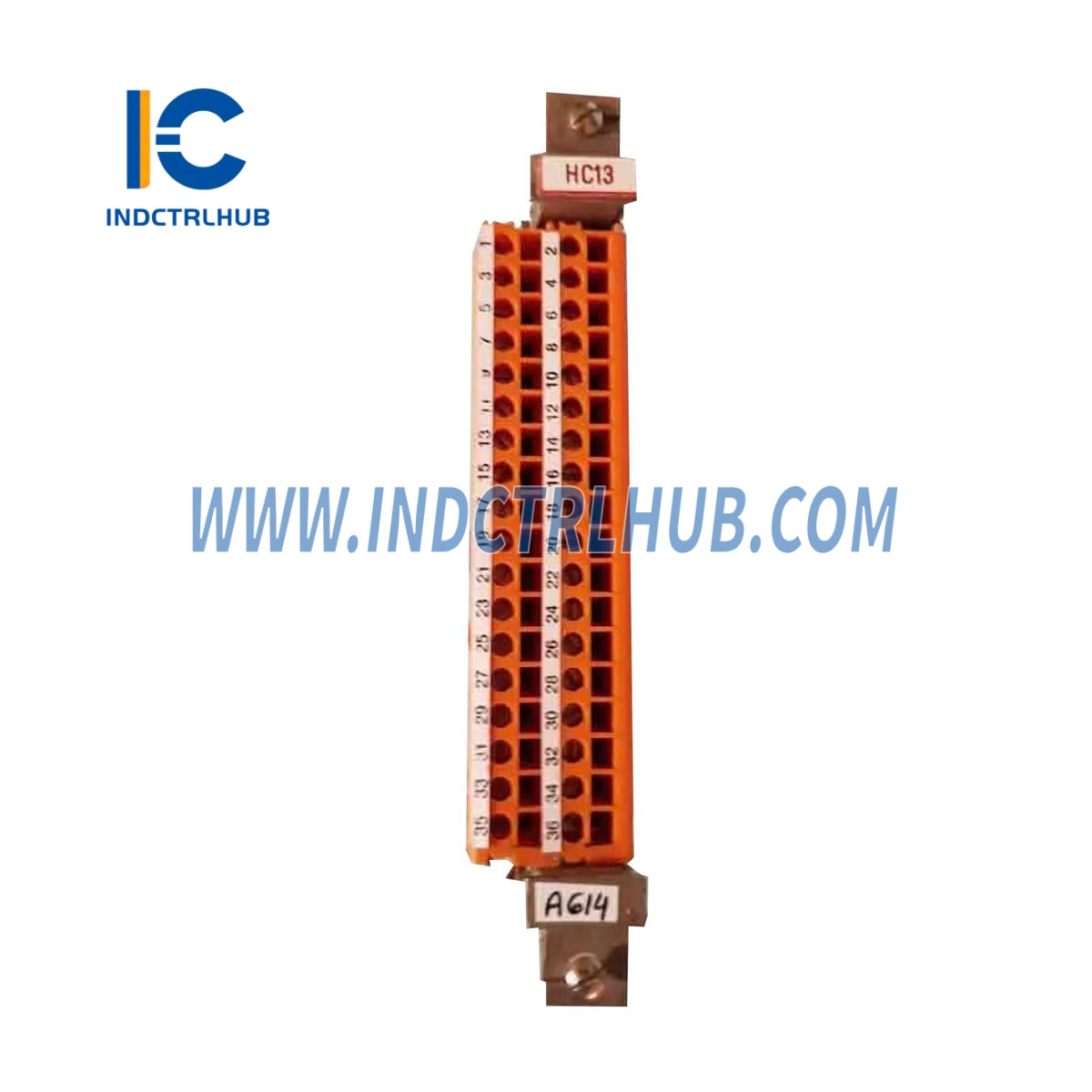

Field Terminal Capacity |
2.5 mm² (14 AWG) |
|
Dimensions (H x W x D) |
132 mm x 25 mm x 119 mm |
|
Weight |
230 g |
Functional Features
|
Feature |
Details |
|---|---|
|
Sensor Connection |
Interfaces with up to 4 sensors |
|
Relay Functions |
Alarms (A1, A2, A3), fault, inhibit, individual or master alarms |
|
Output Type |
Voltage-free contact outputs |
|
I/O Support |
Provides connections for power, remote inputs, and analogue outputs |
