Product Description
05701-A-0325 Parameters
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 05701-A-0325 |

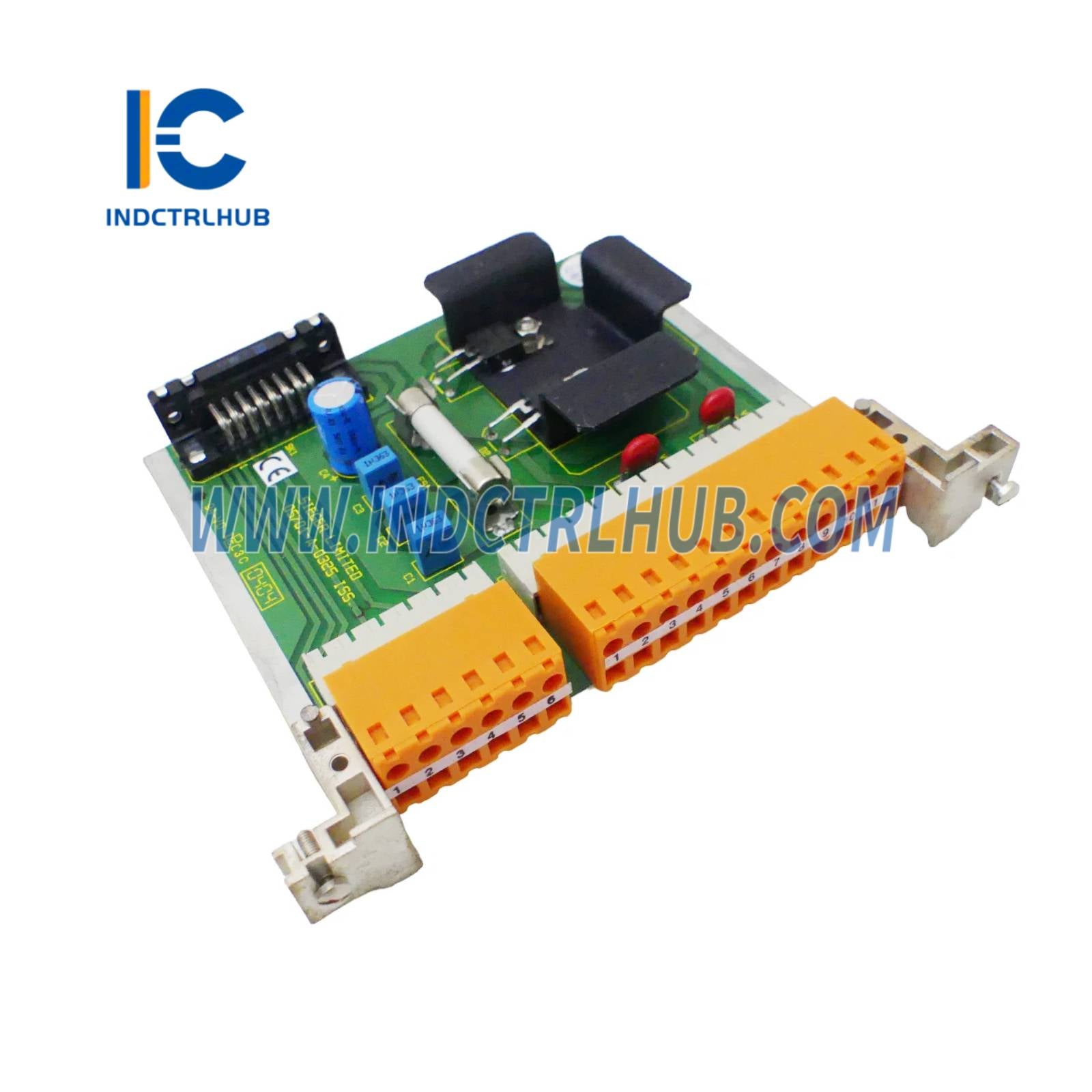

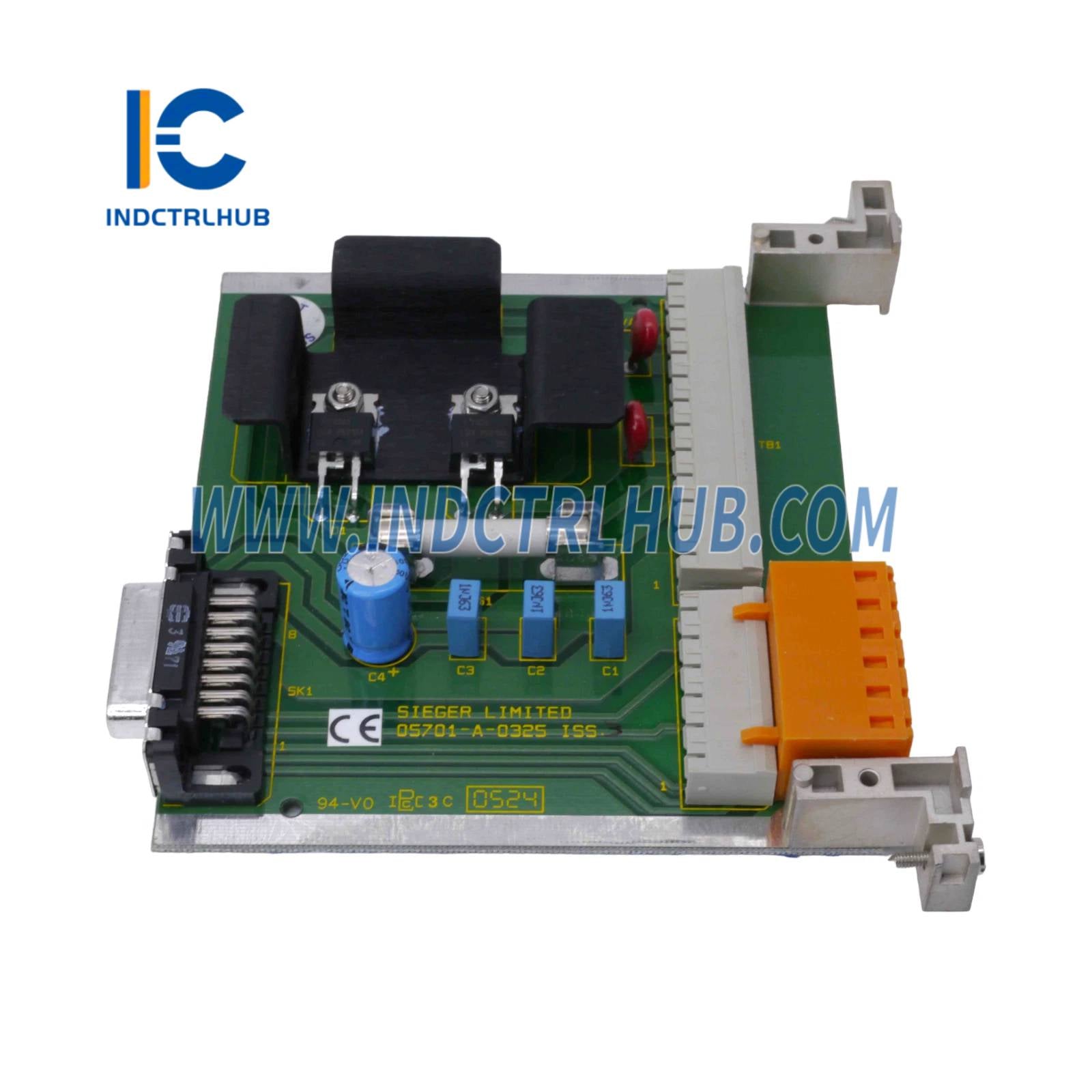

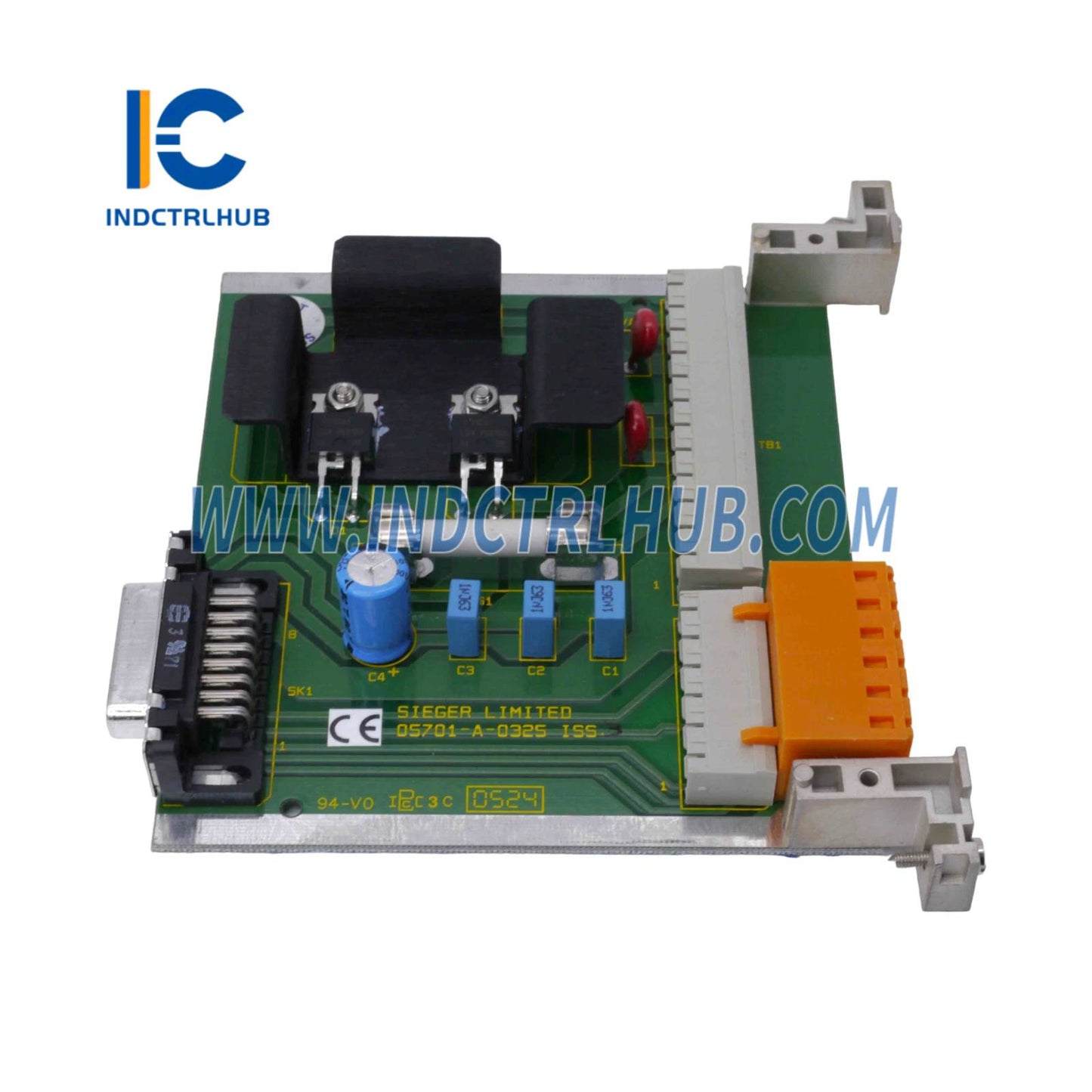

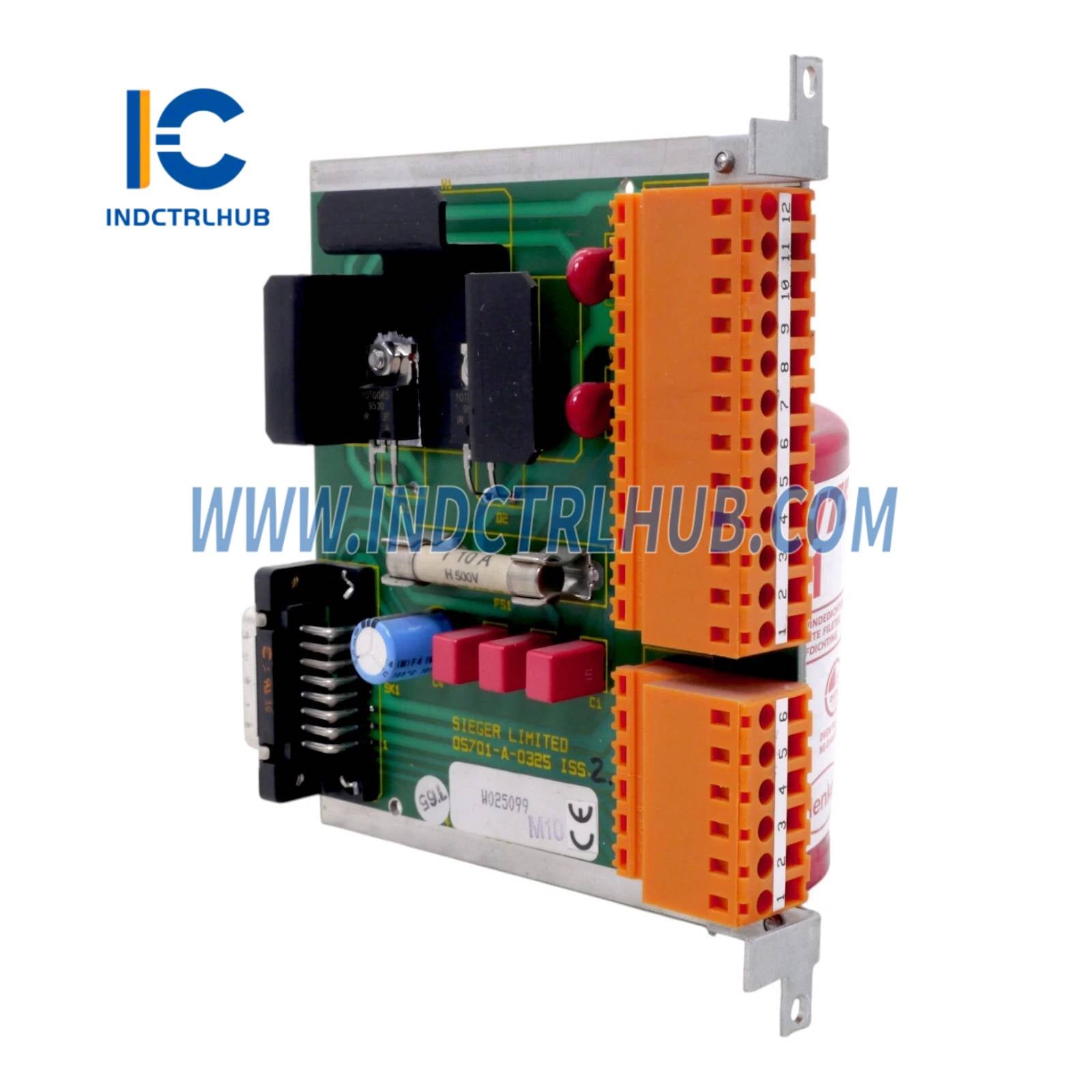

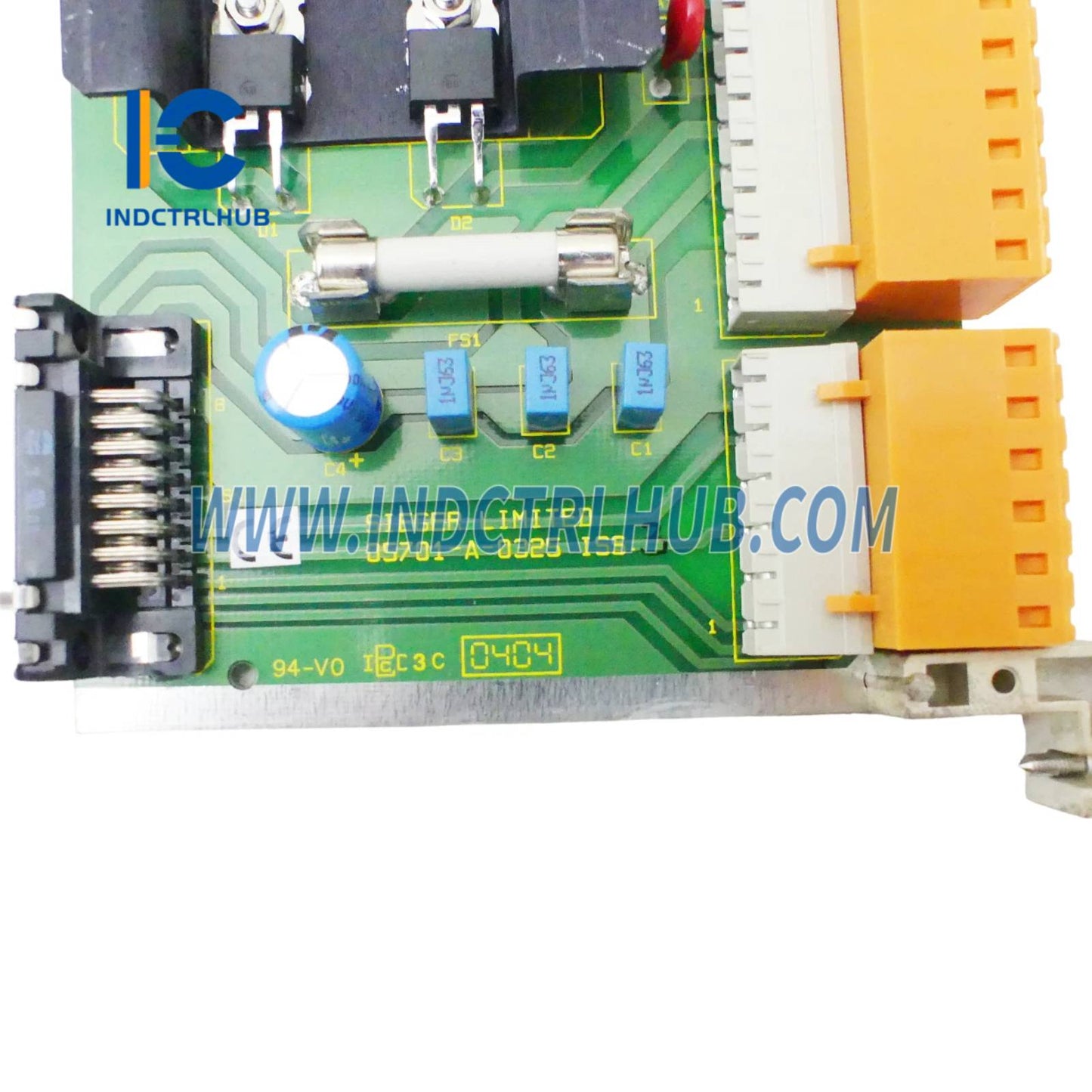

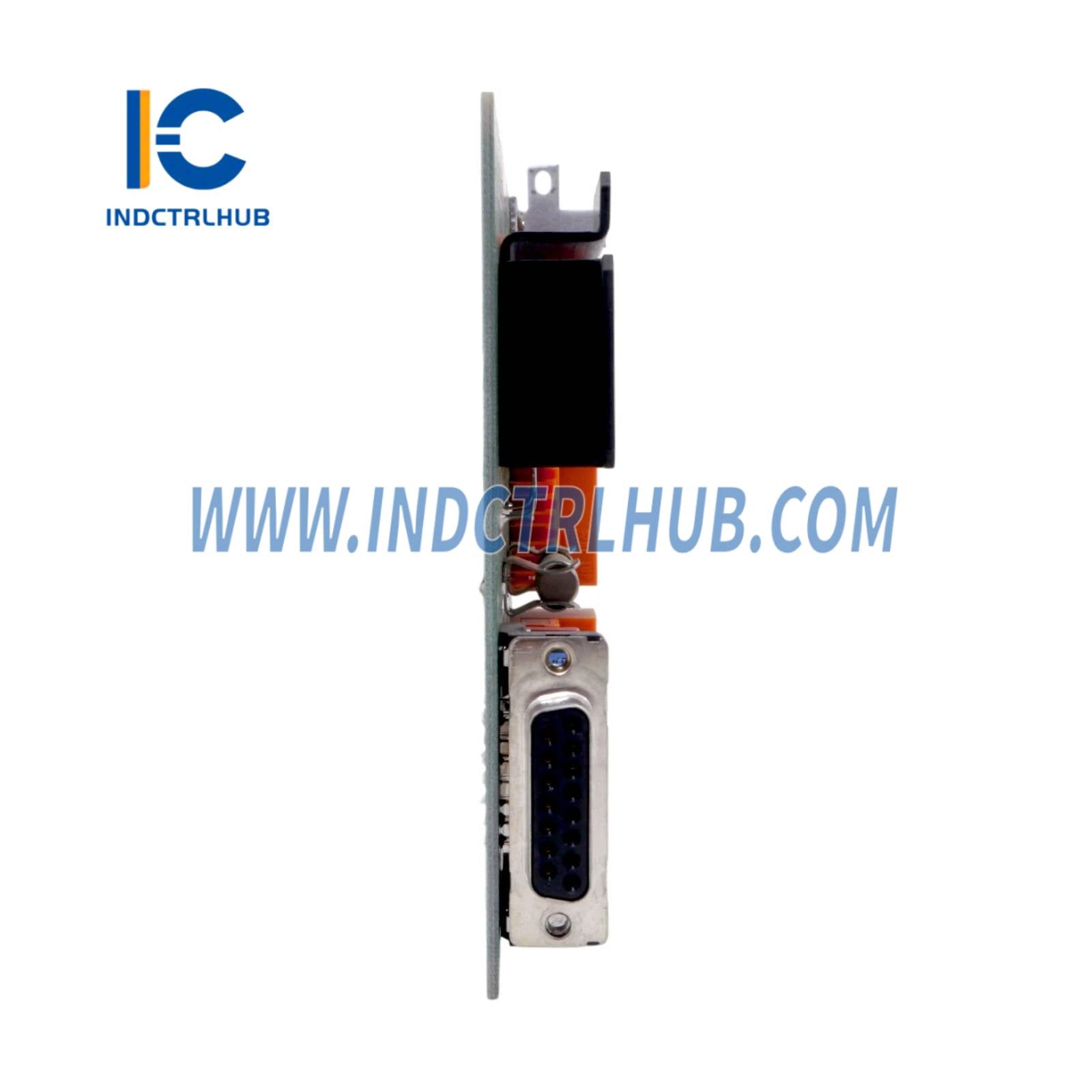

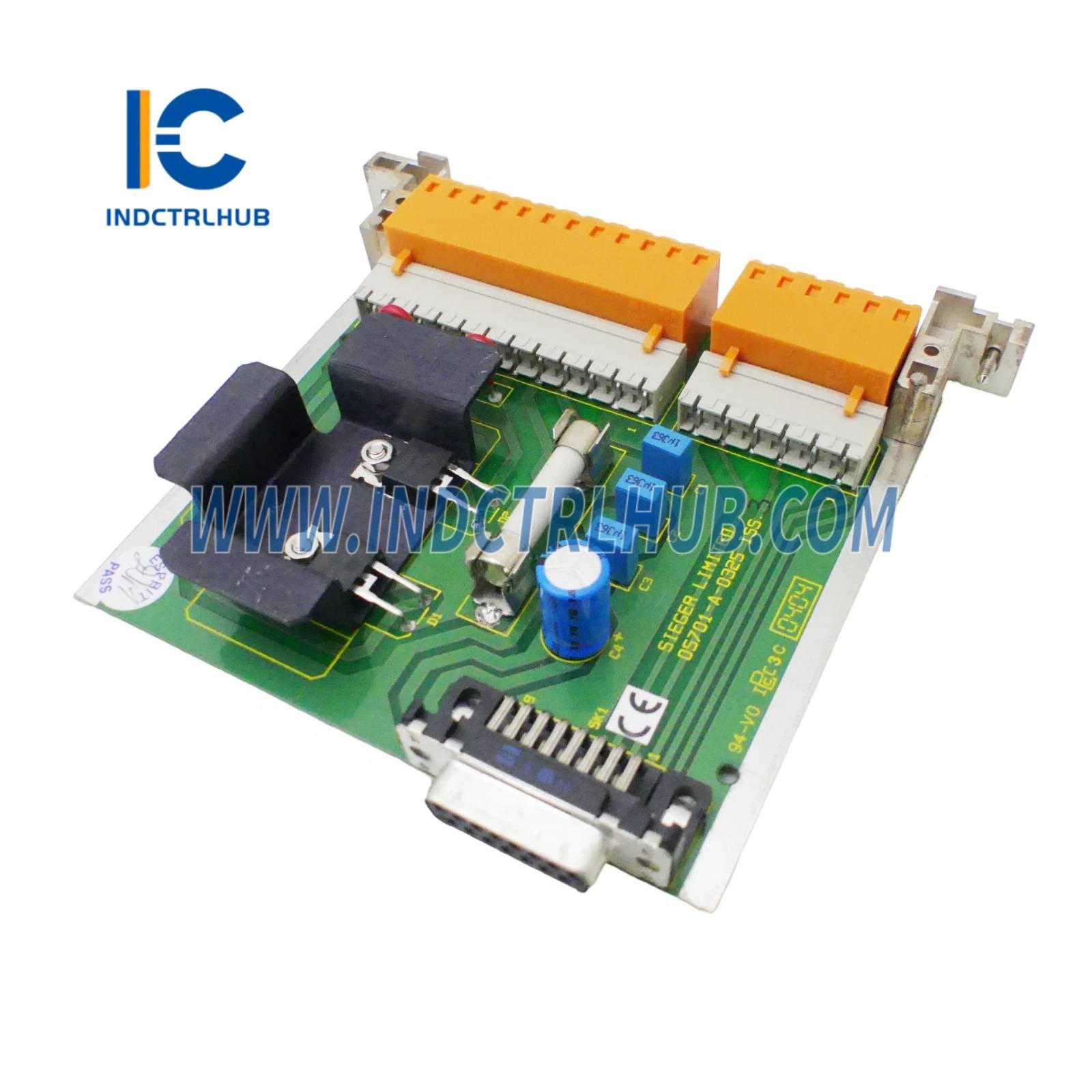

| Product Name | DC Input Card |
| Application | Provides DC power distribution for System 57 Control System |
| Compatibility | Used with 8-way or 16-way rack assemblies |
| Function | Distributes DC power to control cards and sensors, supports auxiliary battery backup |
Functional Specifications
| Parameter | Details |
|---|---|
| Input Voltage Range | 18V to 32V DC |
| Protection | RFI filtering, reverse polarity protection via diodes |
| Power Distribution | Supplies power to control cards and sensors through backplane |

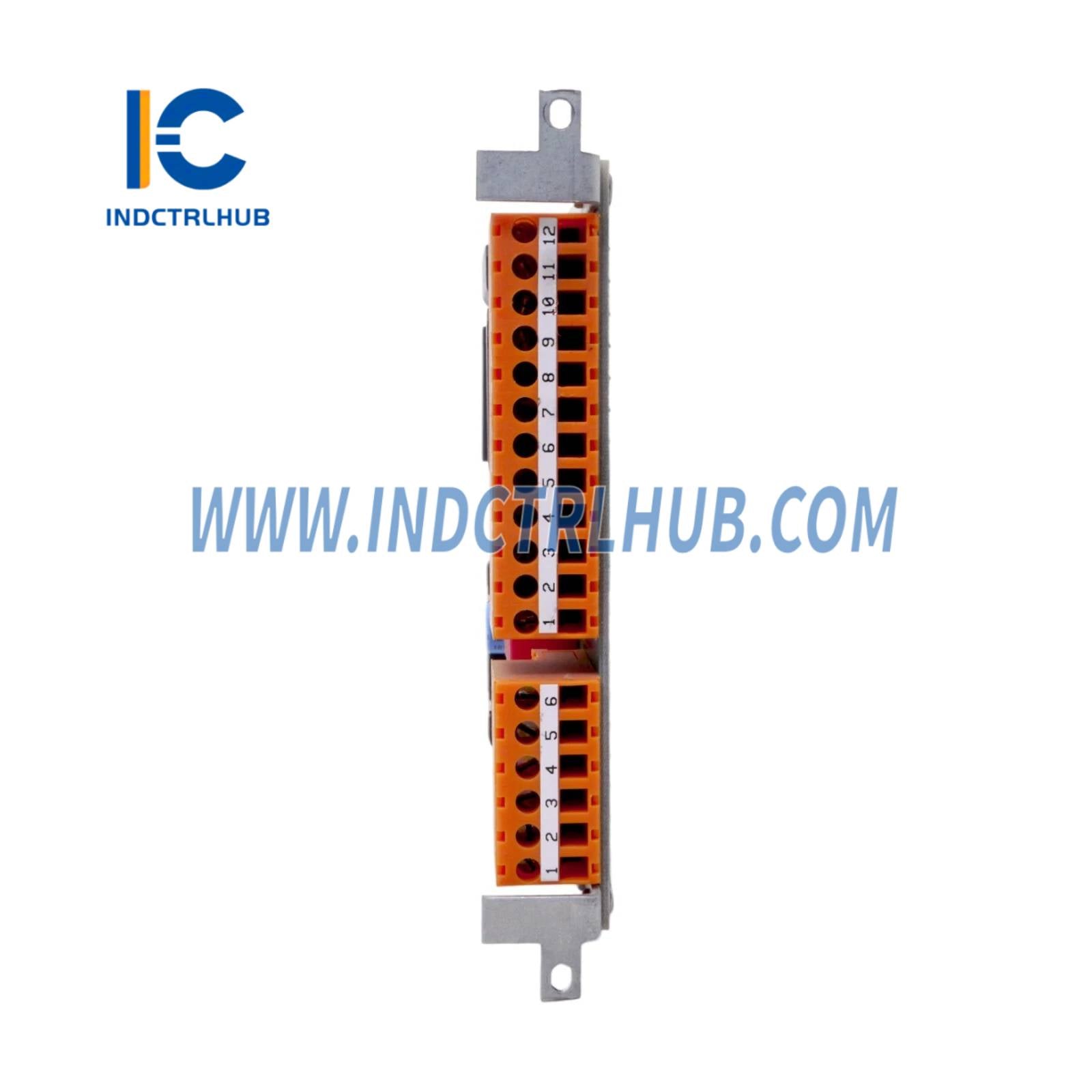

| Connections | Site DC supply and auxiliary battery backup via terminal block (TB1) |
| Cable Entry | Suitable for mounting DIN rails, circuit breakers, relays via accessory plate |
| Dimensions | Fits within System 57 rack assembly |
| Weight | 1 kg |
