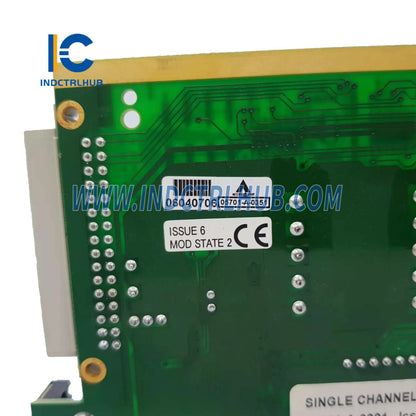

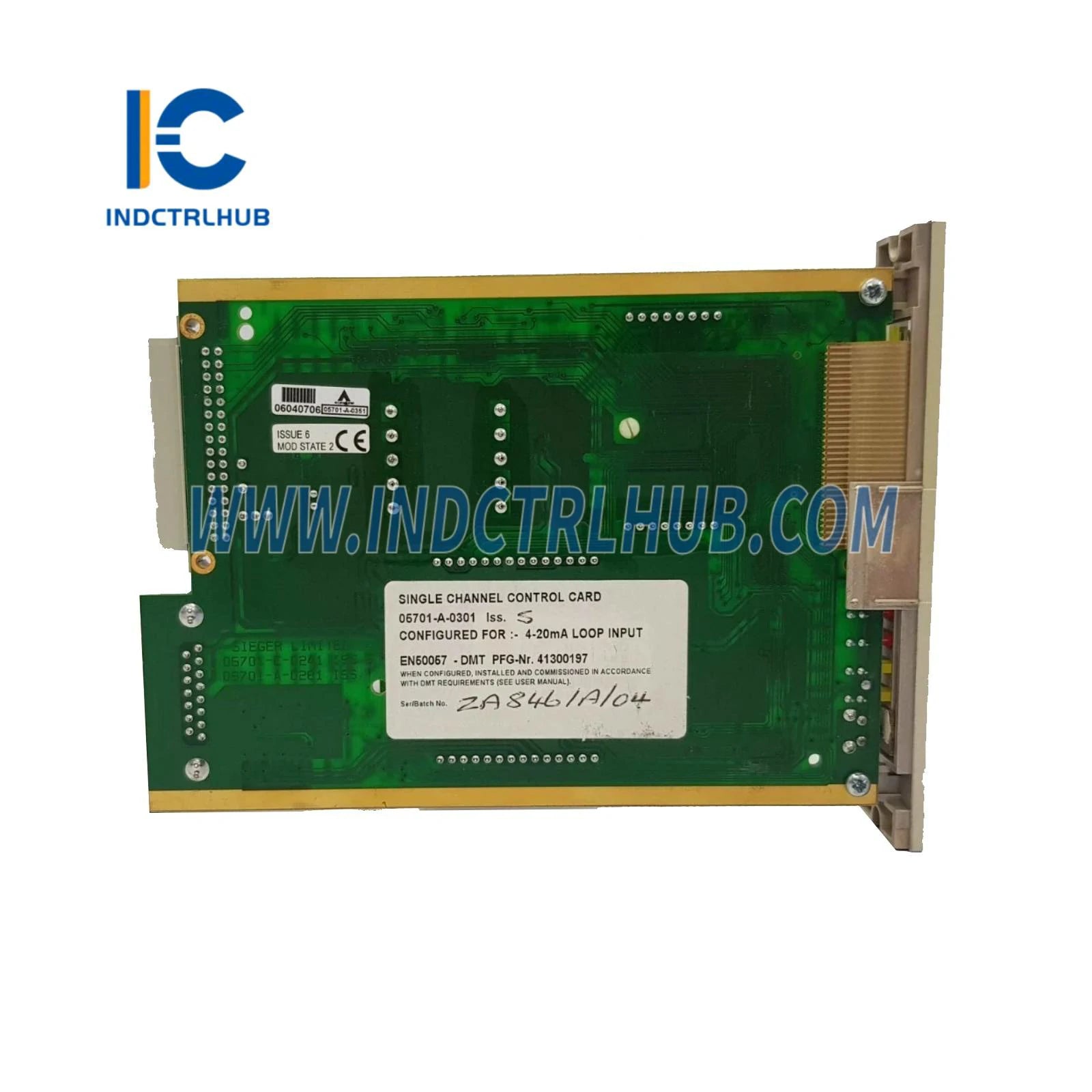

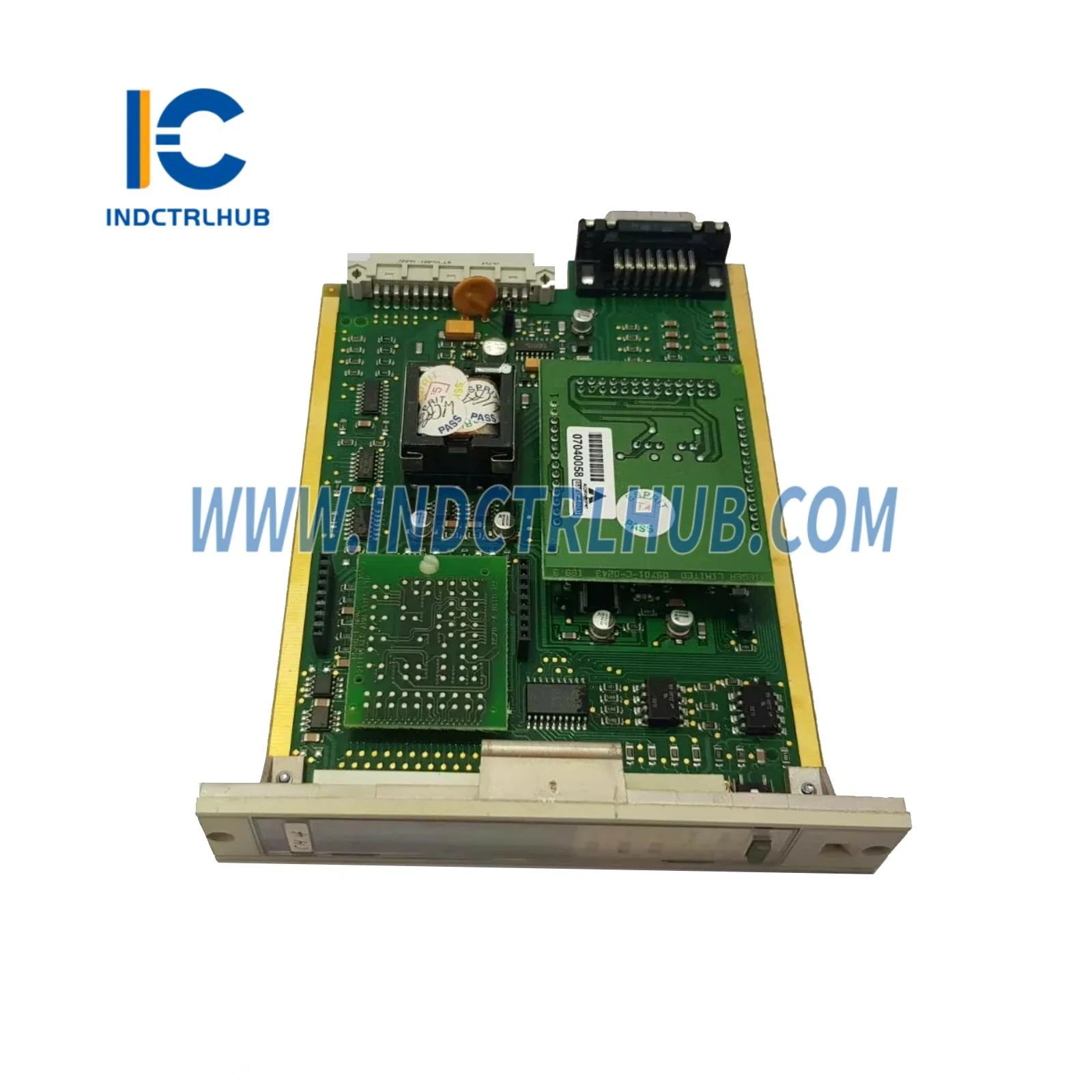

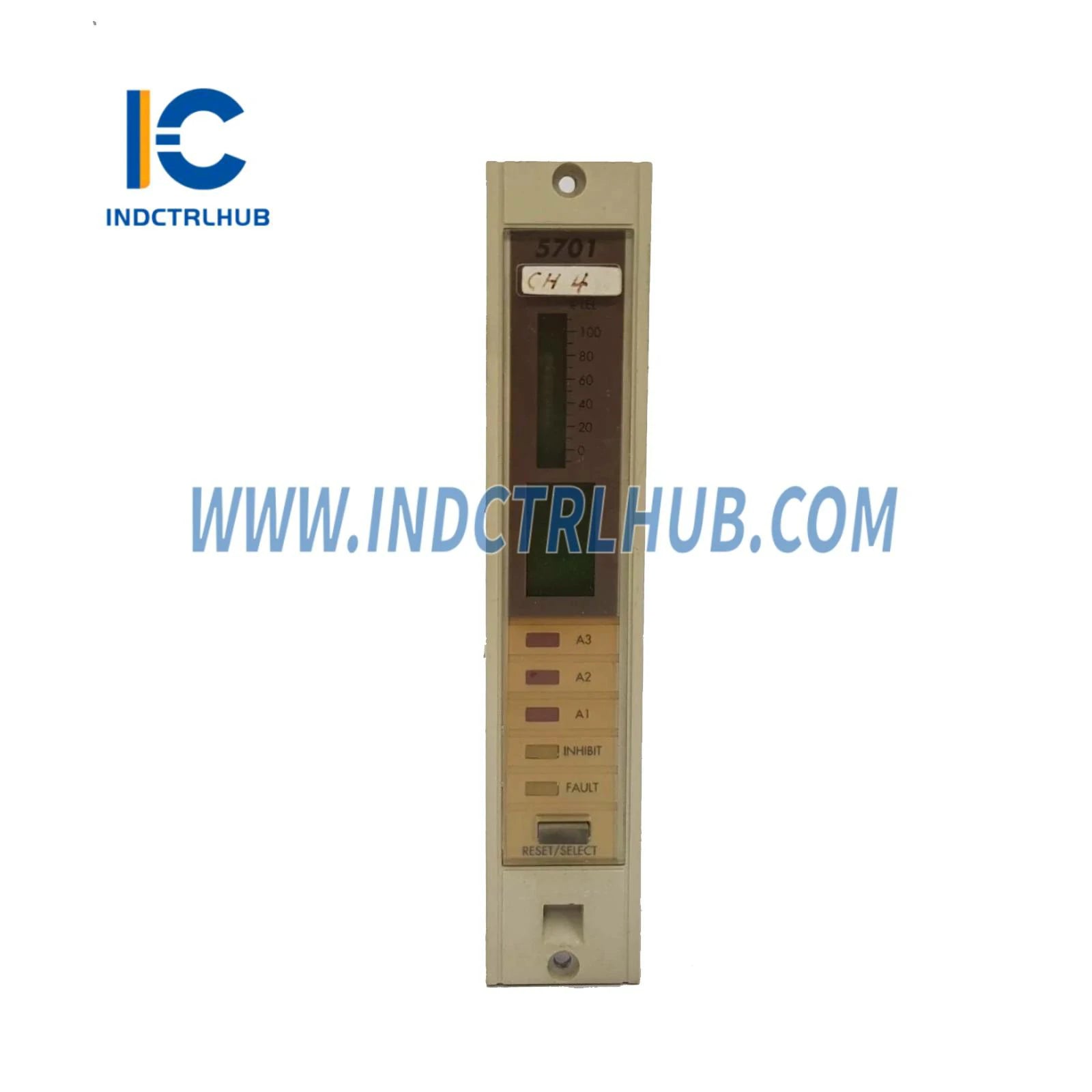

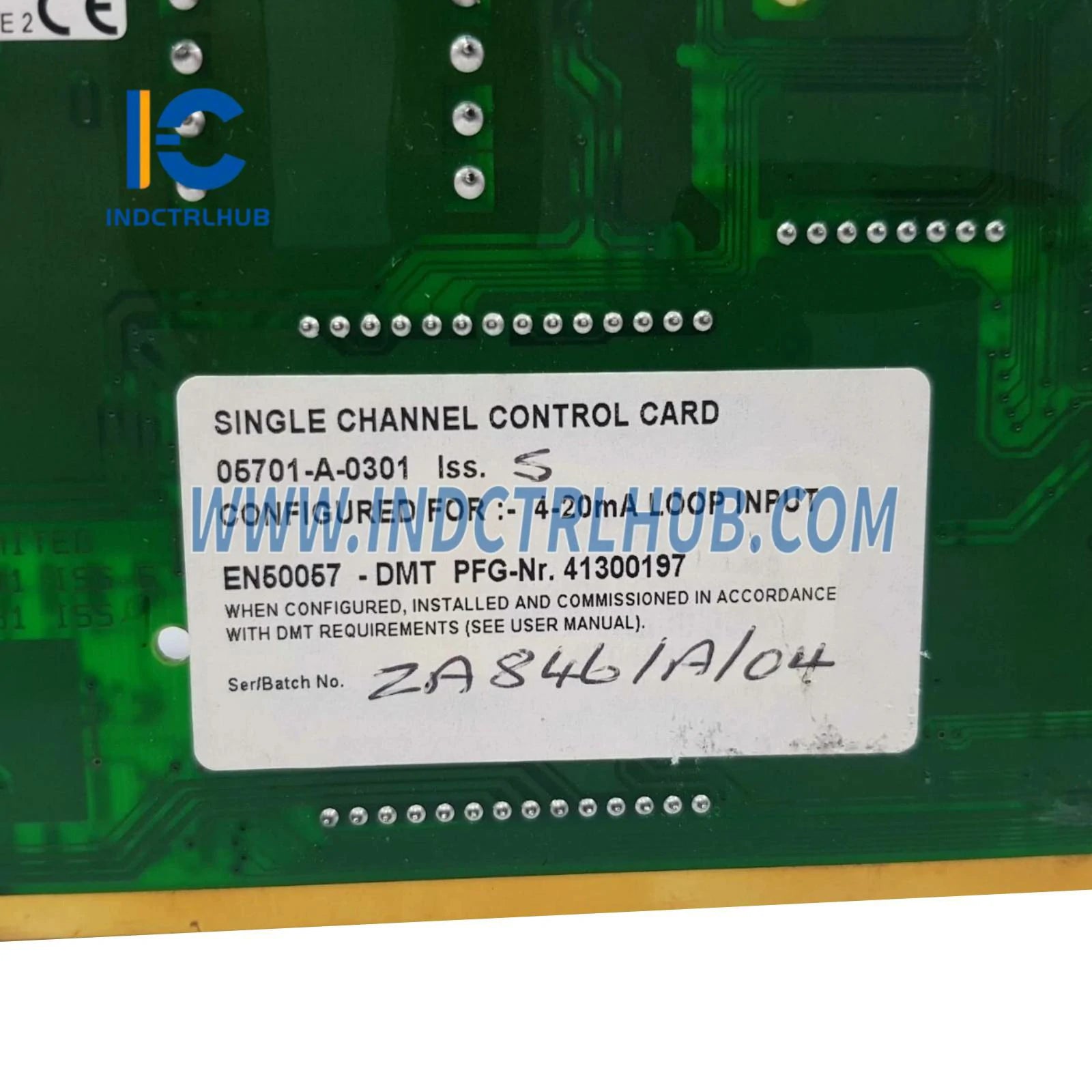

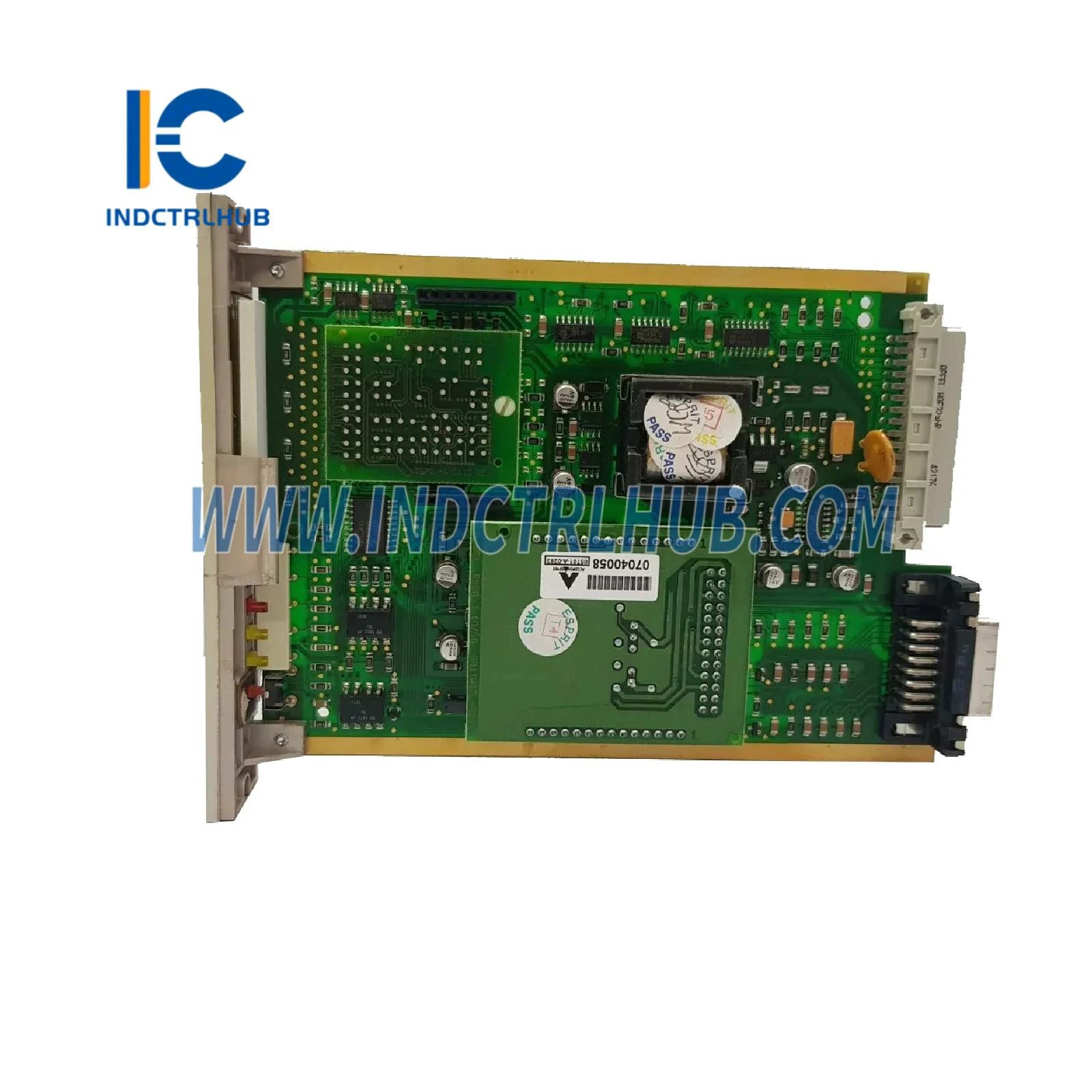

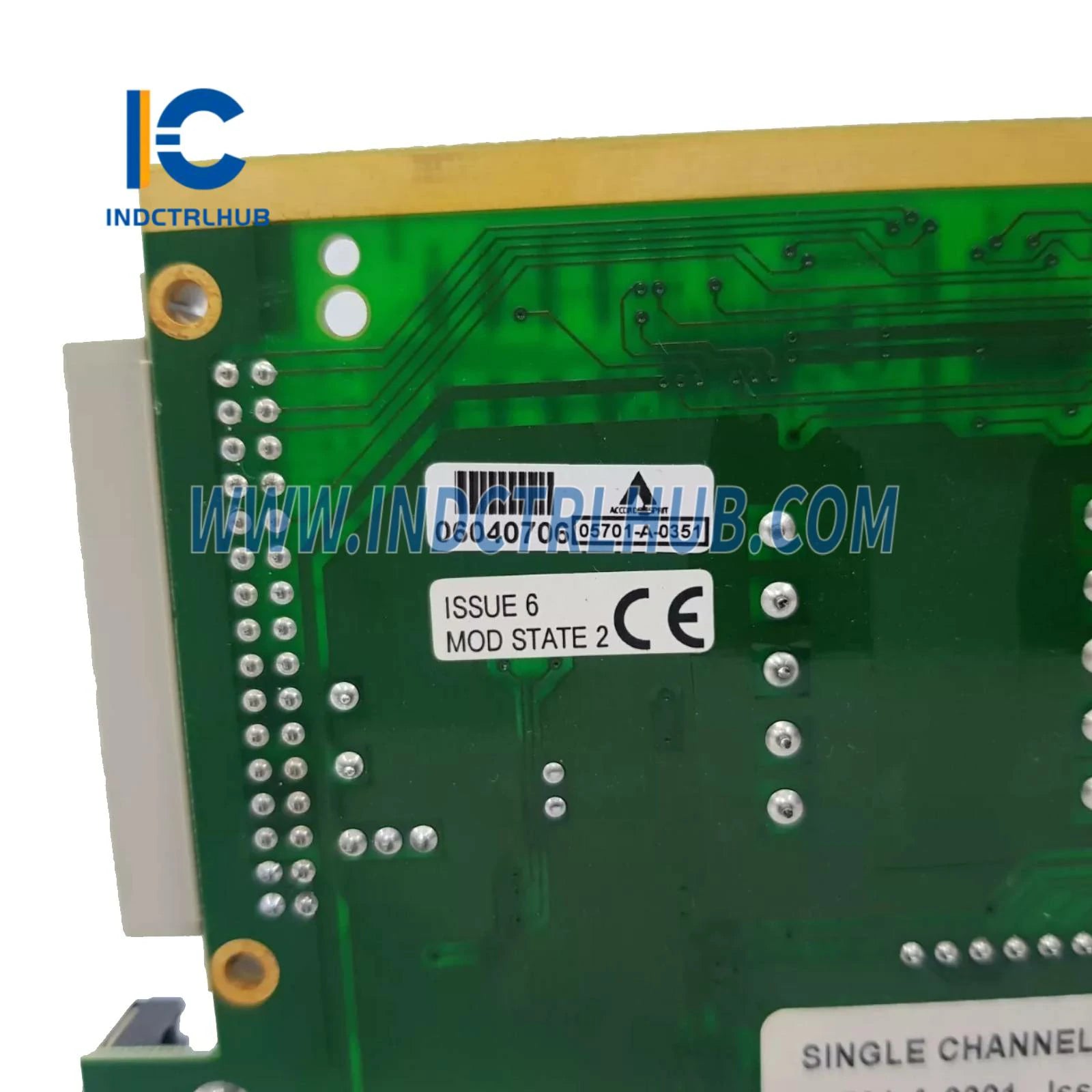

Honeywell 05701-A-0301 Single Channel Control Card, 4-20mA

Honeywell 05701-A-0301 Single Channel Control Card, 4-20mA

  • Manufacturer: Honeywell

  • Product No.: 05701-A-0301

  • Condition:1000 in stock

  • Product Type: Single Channel Control Card, 4-20mA

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 165g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

Parameter Details
Part Number 05701-A-0301
Product Name Single Channel Control Card, 4-20mA
Application Control, display, and alarm facilities for 4-20mA gas detectors
Compatibility Equipped with 4-20mA Sensor Drive Module (05701-A-0283)
Function Processes sensor signals, displays gas levels, and manages alarms

Functional Specifications

Parameter Details

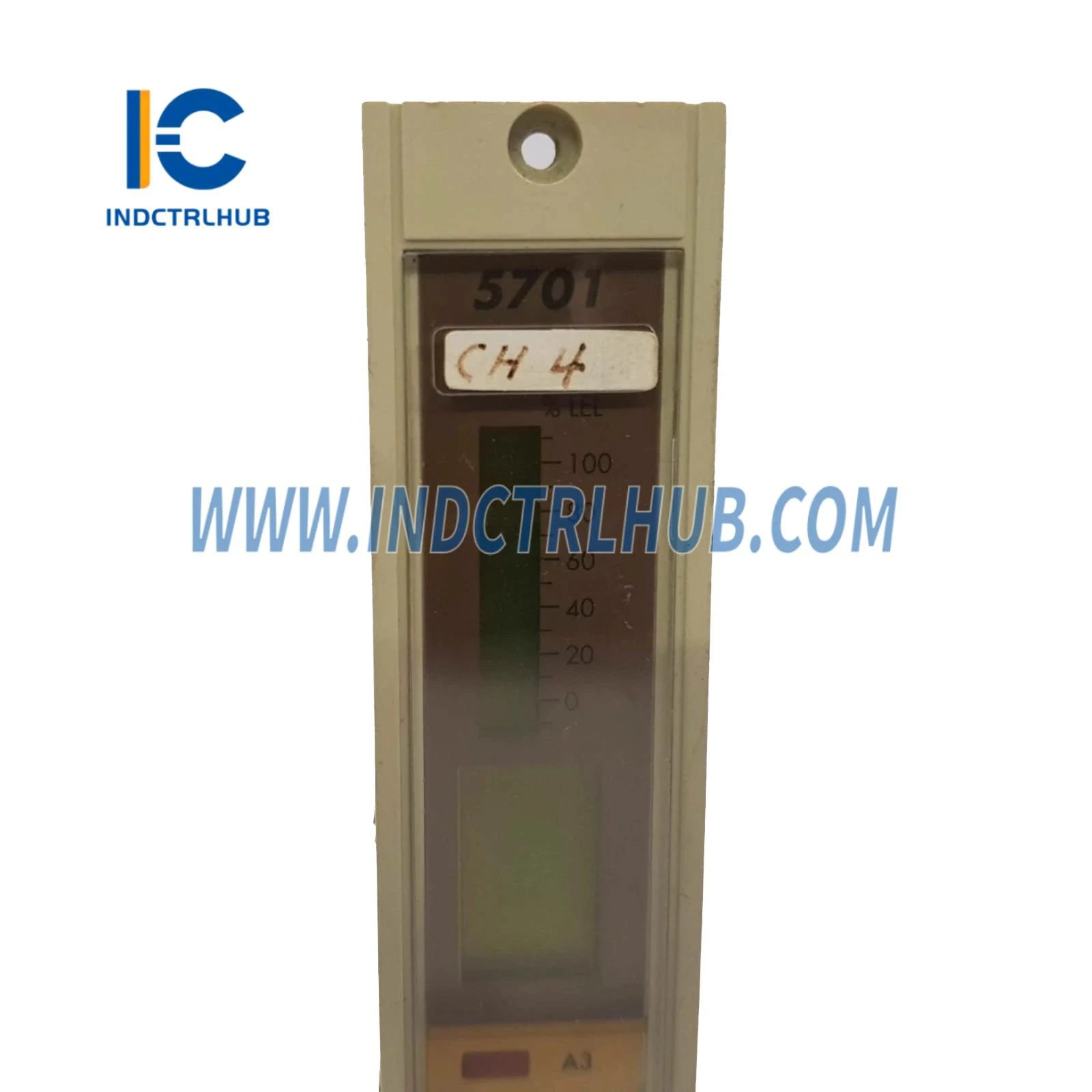

Display Four-part liquid crystal display: 25-segment analogue, four-character digital, four-character message, power on/card select icon

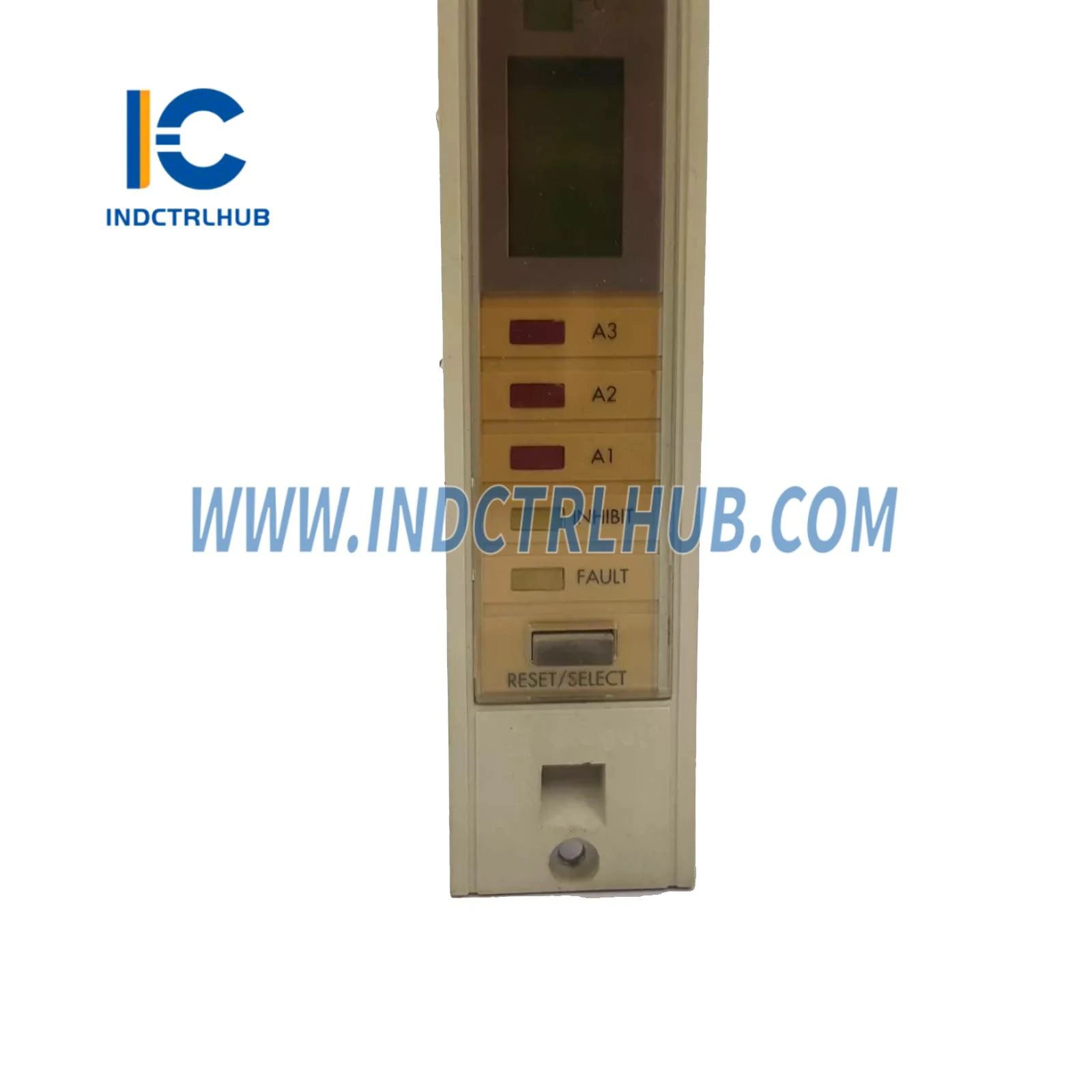

LEDs A1, A2, A3 gas alarms, fault, and inhibit
Push-Button Alarm reset/card select
Alarm Setting Point Resolution 1% full scale deflection (fsd) steps
Display/Alarm Point Linearity ±1% fsd
Display/Alarm Point Repeatability ±1% fsd
Remote Facilities Inhibit/alarm reset
Remote Inhibit/Reset Inputs Active for inputs >2V, max input voltage 32V, max input current 5mA
Power Consumption 3.25W (typical)
DC Supply 18V to 32V DC
Electronic Drift Less than ±2% per 6 months
Dimensions Height: 112mm, Width: 25mm, Depth: 170mm
Weight 165g



View full details

Product Description

Product Overview

Parameter Details
Part Number 05701-A-0301
Product Name Single Channel Control Card, 4-20mA
Application Control, display, and alarm facilities for 4-20mA gas detectors
Compatibility Equipped with 4-20mA Sensor Drive Module (05701-A-0283)
Function Processes sensor signals, displays gas levels, and manages alarms

Functional Specifications

Parameter Details
Display Four-part liquid crystal display: 25-segment analogue, four-character digital, four-character message, power on/card select icon
LEDs A1, A2, A3 gas alarms, fault, and inhibit
Push-Button Alarm reset/card select
Alarm Setting Point Resolution 1% full scale deflection (fsd) steps
Display/Alarm Point Linearity ±1% fsd
Display/Alarm Point Repeatability ±1% fsd
Remote Facilities Inhibit/alarm reset
Remote Inhibit/Reset Inputs Active for inputs >2V, max input voltage 32V, max input current 5mA
Power Consumption 3.25W (typical)
DC Supply 18V to 32V DC
Electronic Drift Less than ±2% per 6 months
Dimensions Height: 112mm, Width: 25mm, Depth: 170mm
Weight 165g



Download PDF file here:

Click to Download PDF
