Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |

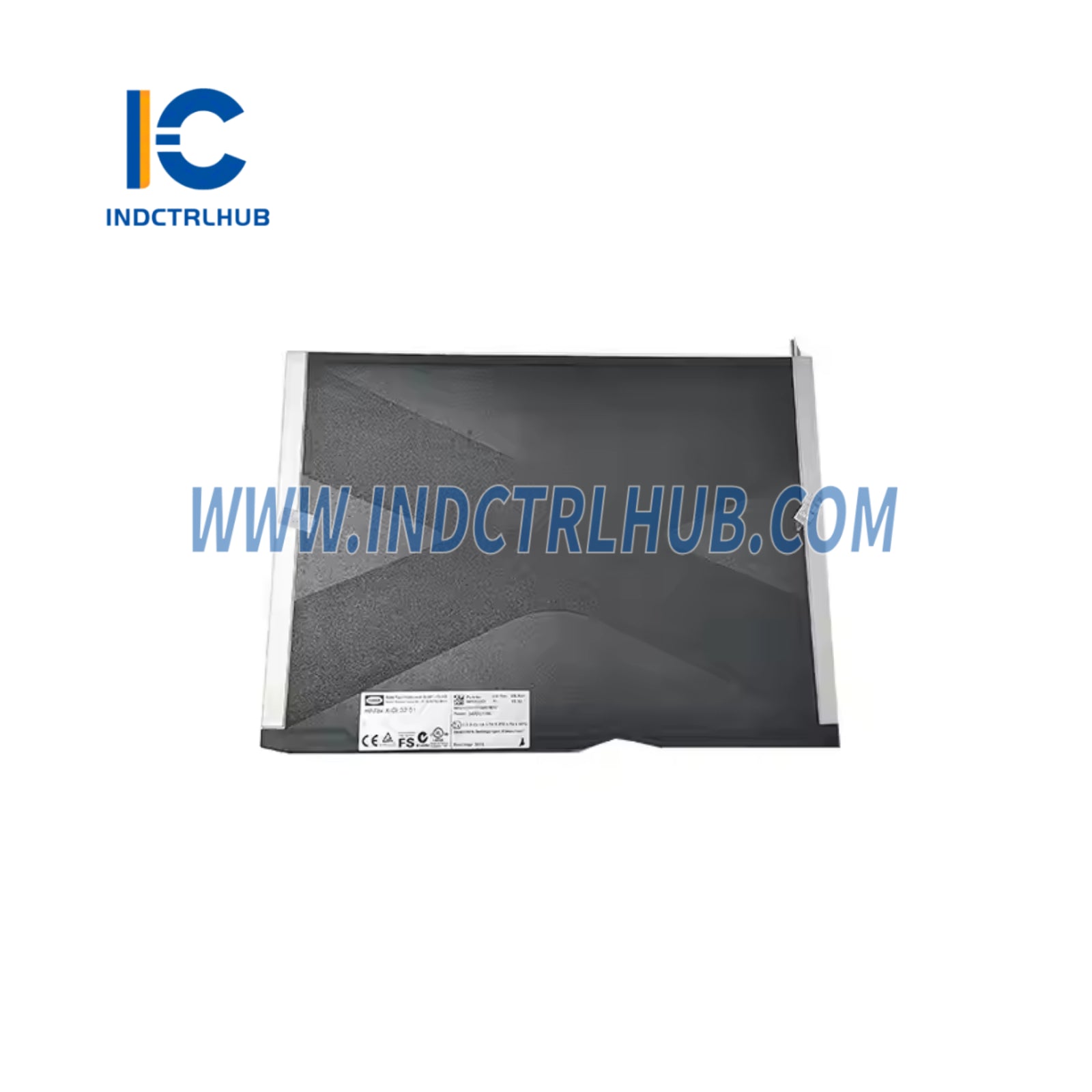

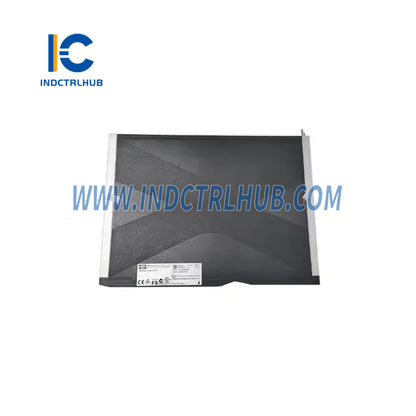

X-DI6451 |
|
Model Type |
Digital Input Module |
|
System Compatibility |
HIMax Programmable Electronic System (PES) |
|
Description |
The X-DI 64 51 is a 64-channel digital input module designed for high-availability and safety-critical applications. It fits into any HIMax baseplate slot (except for those reserved for system bus modules). |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Digital Input Channels |
64 |
|
Current Input per Channel |
Max. 4 mA |
|
Type of Protection |
IP20 |
|
Installation |
Any baseplate slot (except system bus slots) |
🔌
Electrical Characteristics
|
Parameter |
Value |
|---|---|
|
Supply Voltage |
24 VDC ±20% (−15% / +20%), SELV/PELV |
|
Ripple (rP) |
≤ 5% |
|
Total Current Input |
400 mA (min), 800 mA (max) |
🌡️
Environmental Conditions
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
|
Humidity |
Max. 95% RH, non-condensing |
📐
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Dimensions (HxWxD) |
310 × 29.2 × 230 mm |
|
Weight |
Approx. 1.1 kg |
