Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |
X-AO1601 |
|
Model Type |
Analog Output Module |
|
System Compatibility |
HIMax Programmable Electronic System (PES) |
|
Description |

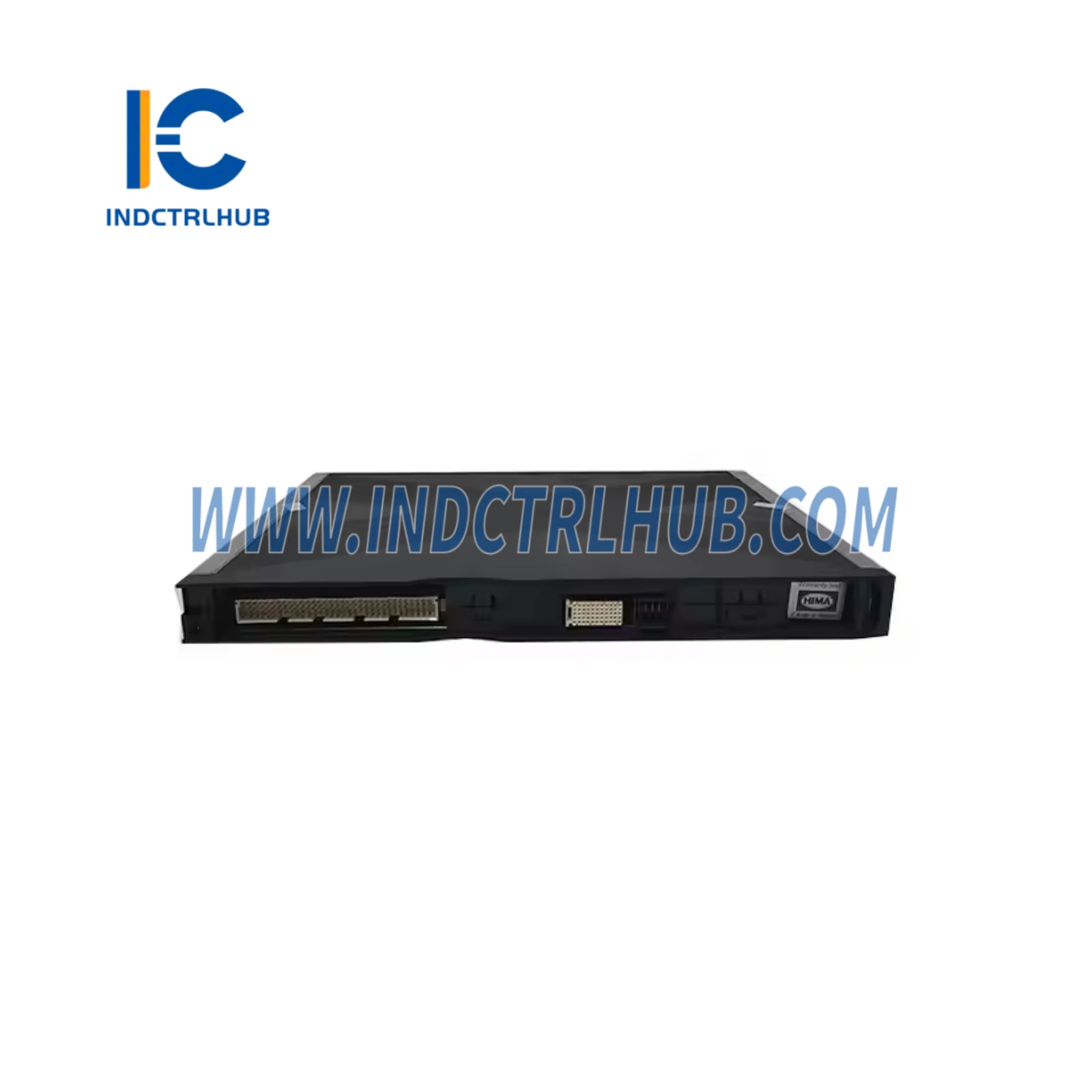

The X-AO1601 is a 16-channel analog output module for use in HIMax systems. Each output delivers a signal in the 4–20 mA range. The module can be inserted into any baseplate slot (except those reserved for system bus modules). Suitable for high-reliability safety applications. |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Analog Output Channels |
16 channels |
|
Signal Range |
4 to 20 mA |
|
Per Channel Pair Current |
80 mA |
|
Type of Protection |
IP20 |
|
Installation |
Slot-in module, any baseplate slot (except system bus slots) |
🔌
Electrical Characteristics
|
Parameter |
Value |
|---|---|
|
Supply Voltage |
24 VDC ± 20% (-15% / +20%), SELV/PELV |
|
Current Consumption (max) |
1.3 A (all channels active) |
|
Current Consumption (min) |
0.6 A (all outputs off) |
🌡️
Environmental Conditions
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
-40 to +85 °C |
|
Humidity |
Max. 95% RH, non-condensing |
📐
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Dimensions (HxWxD) |
310 × 29.2 × 230 mm |
|
Weight |
Approx. 1.2 kg |
