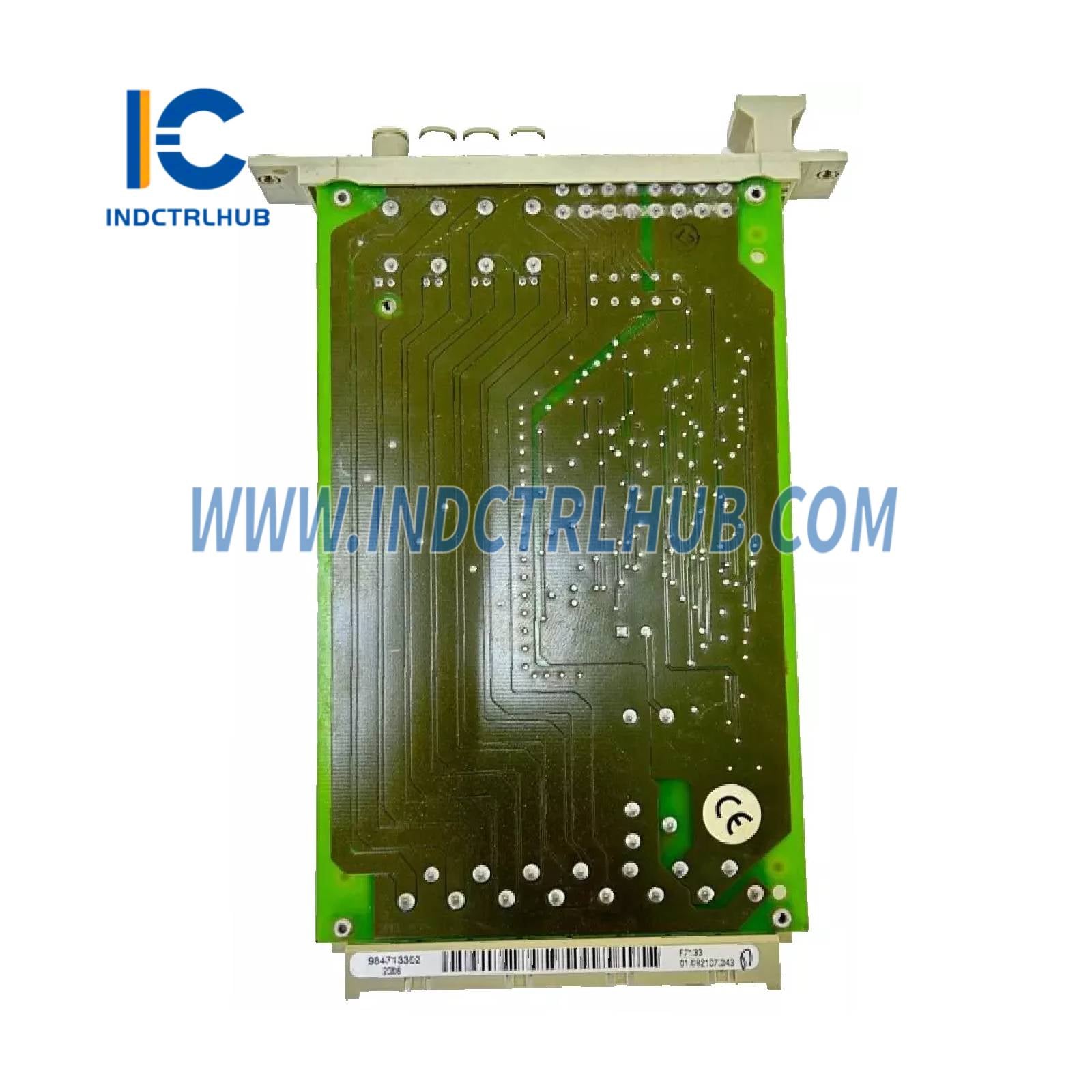

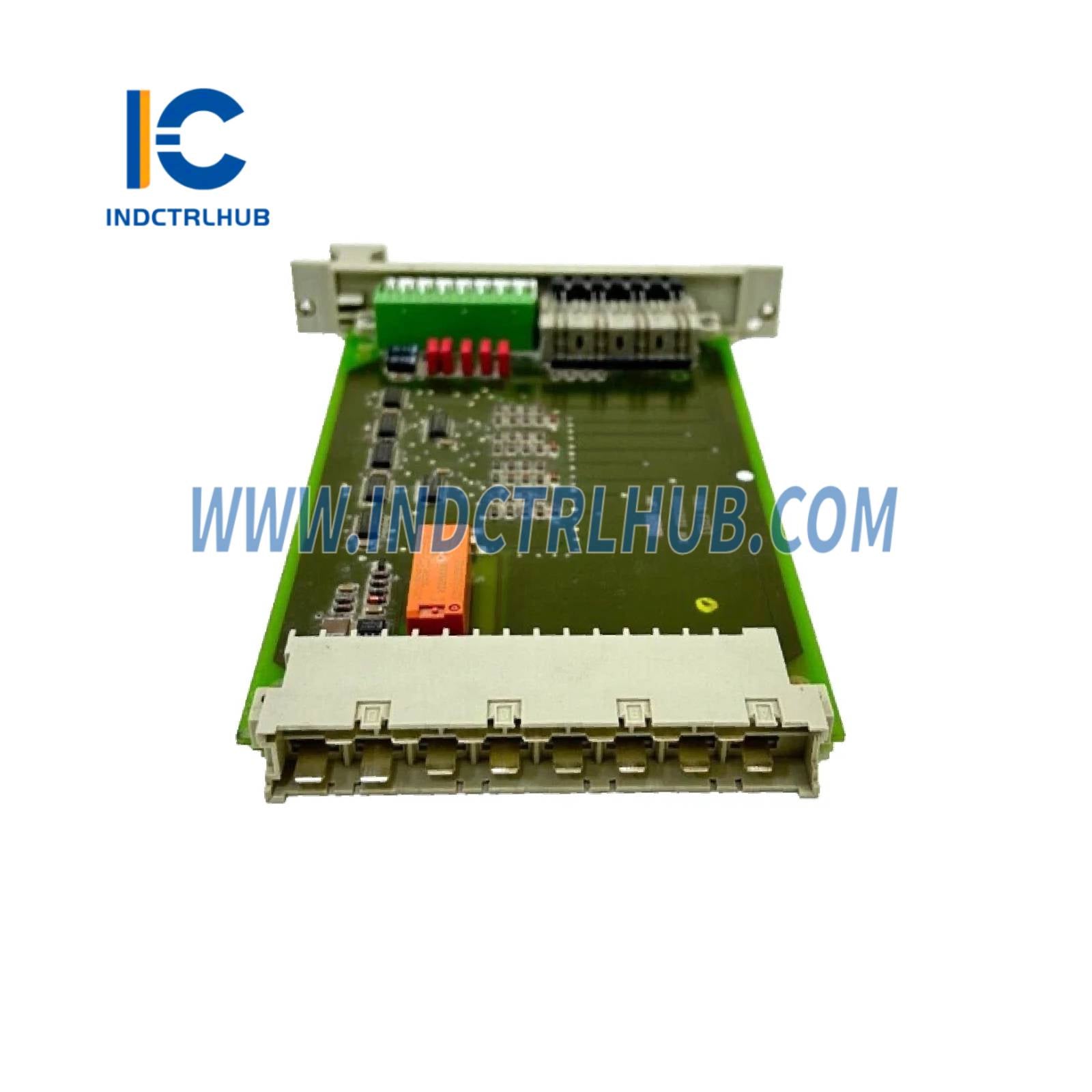

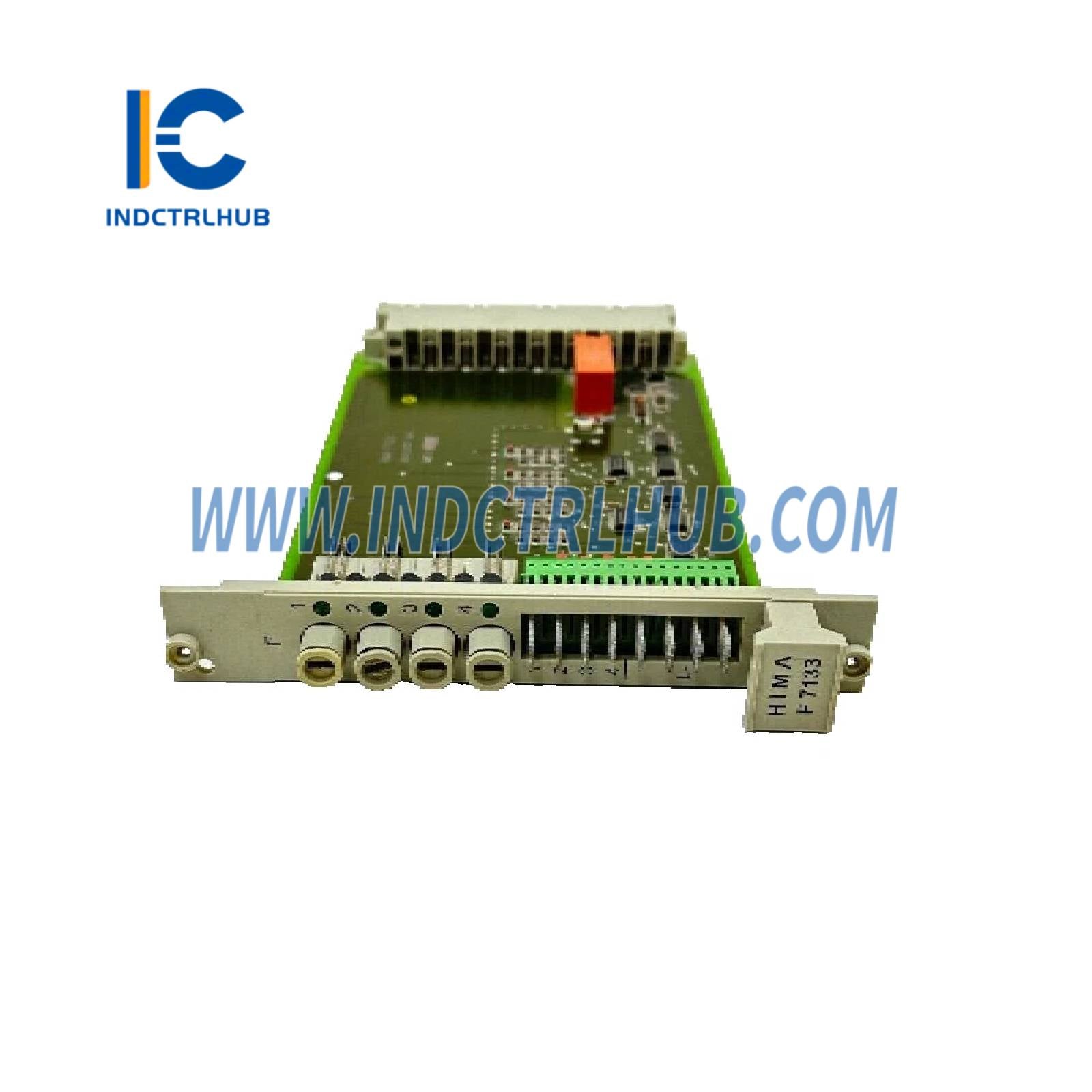

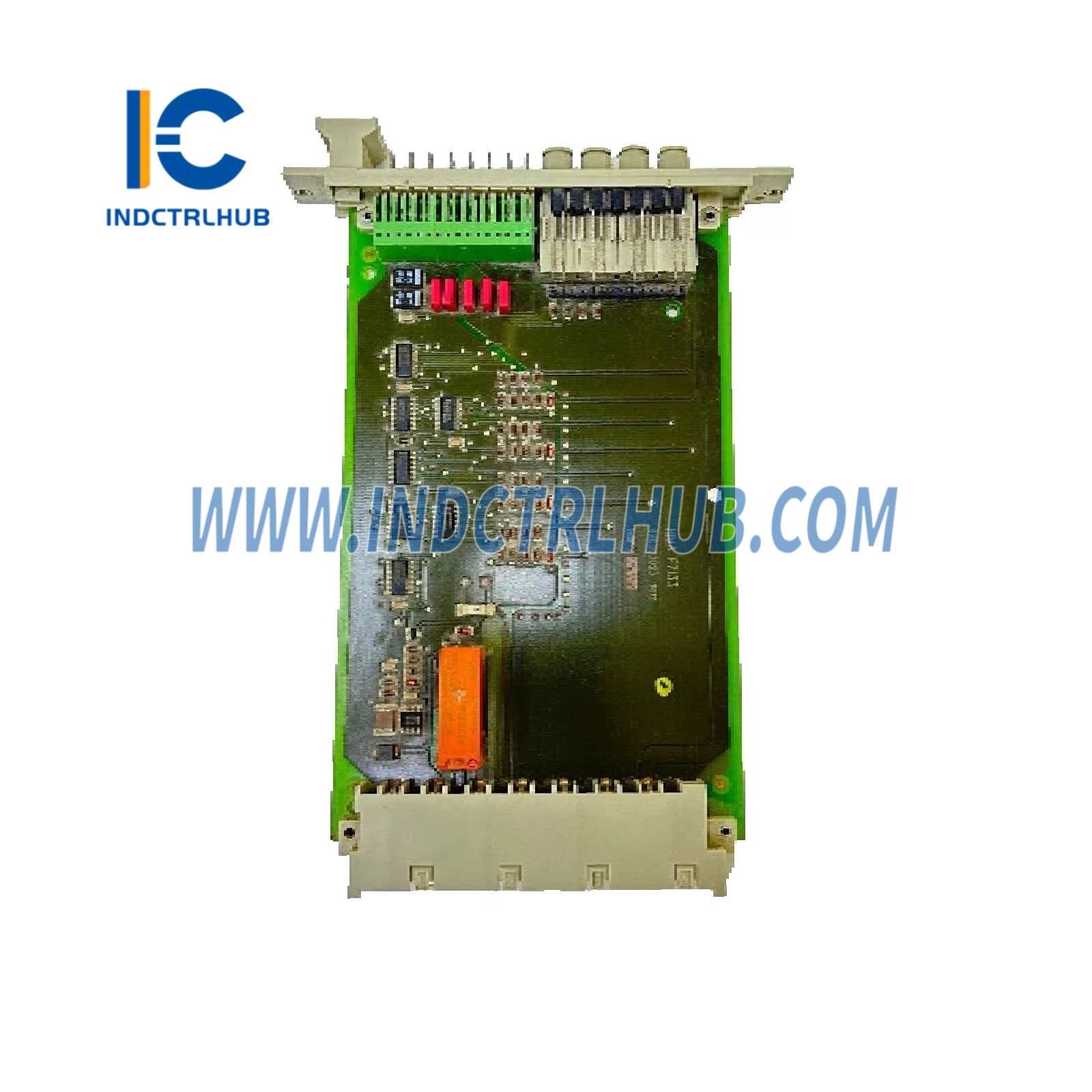

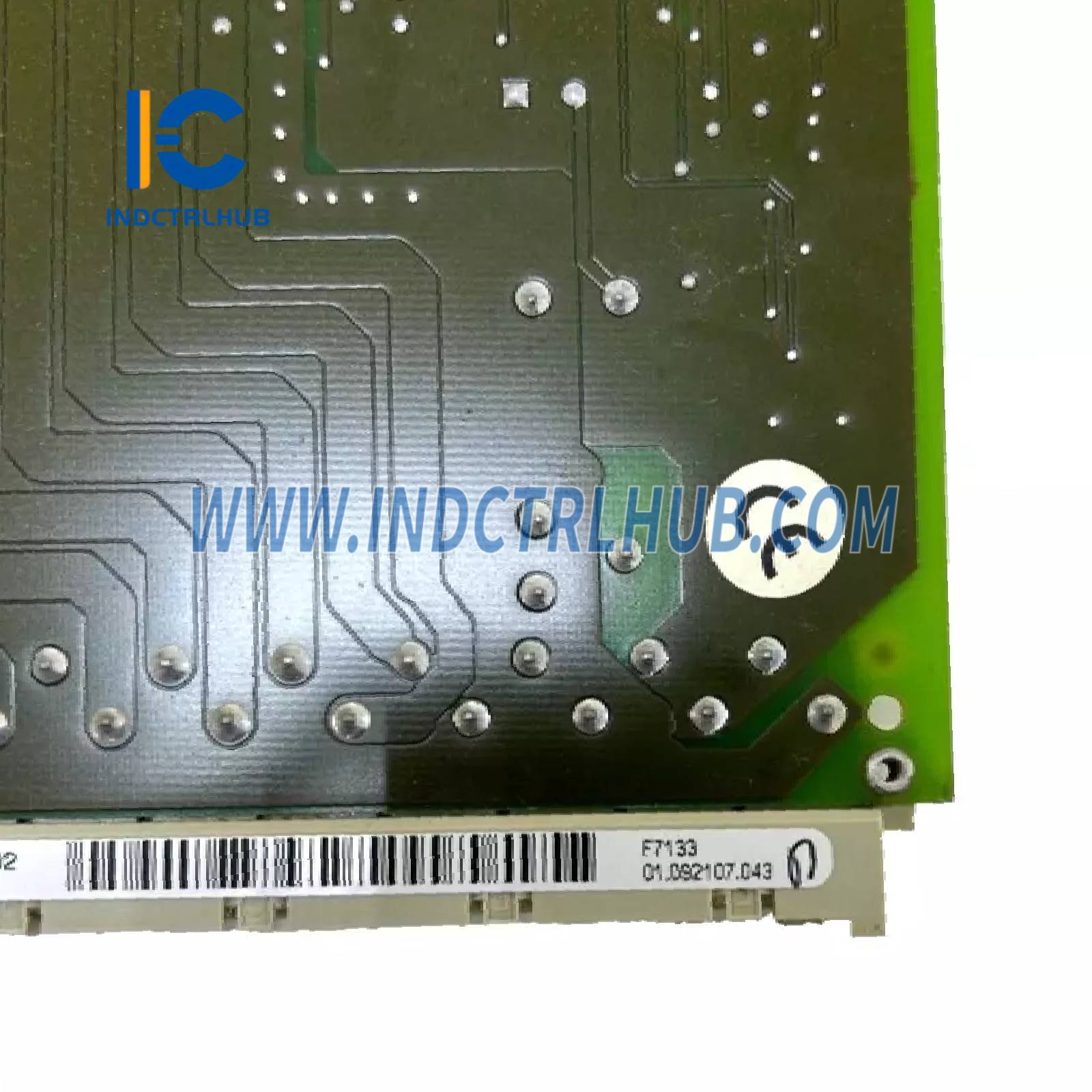

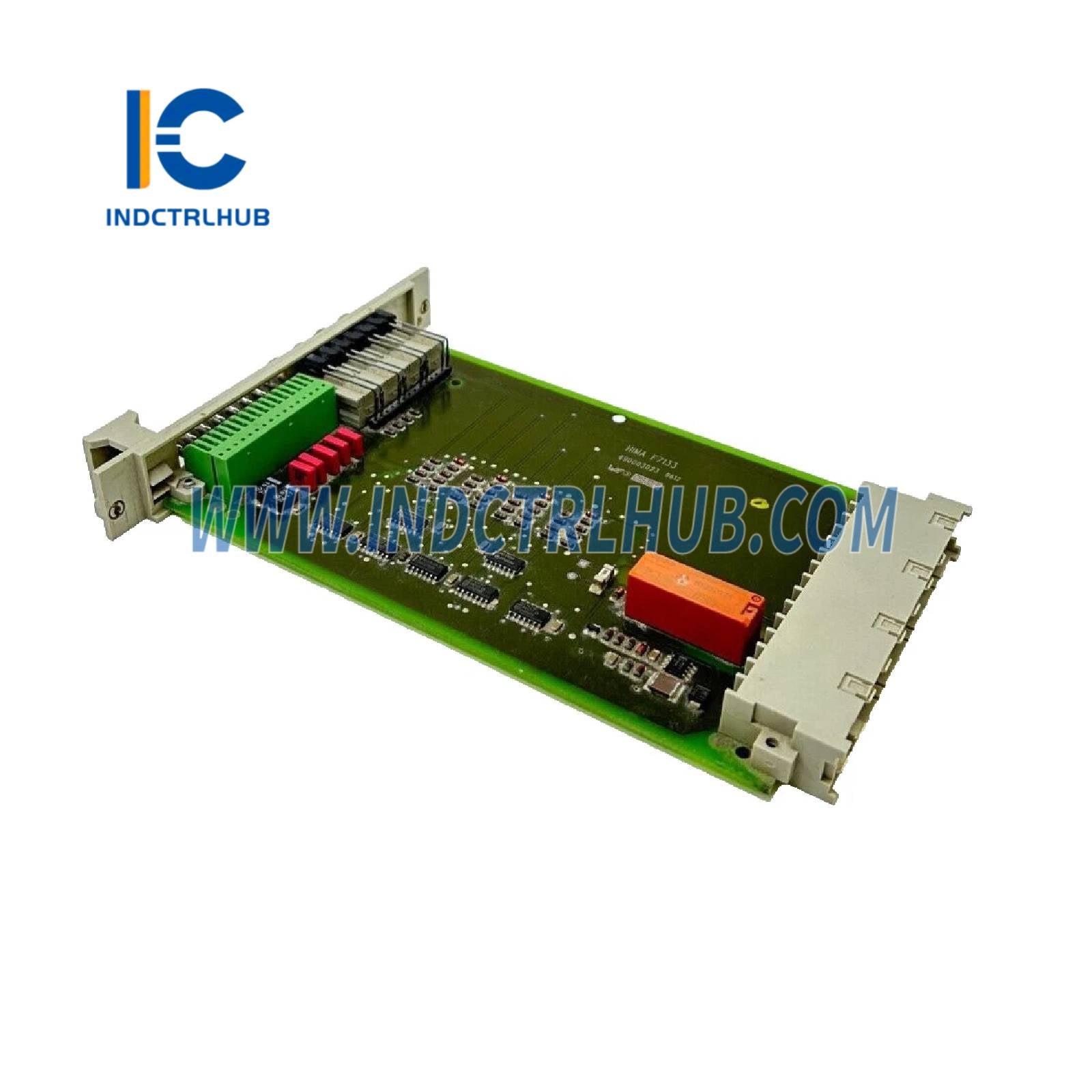

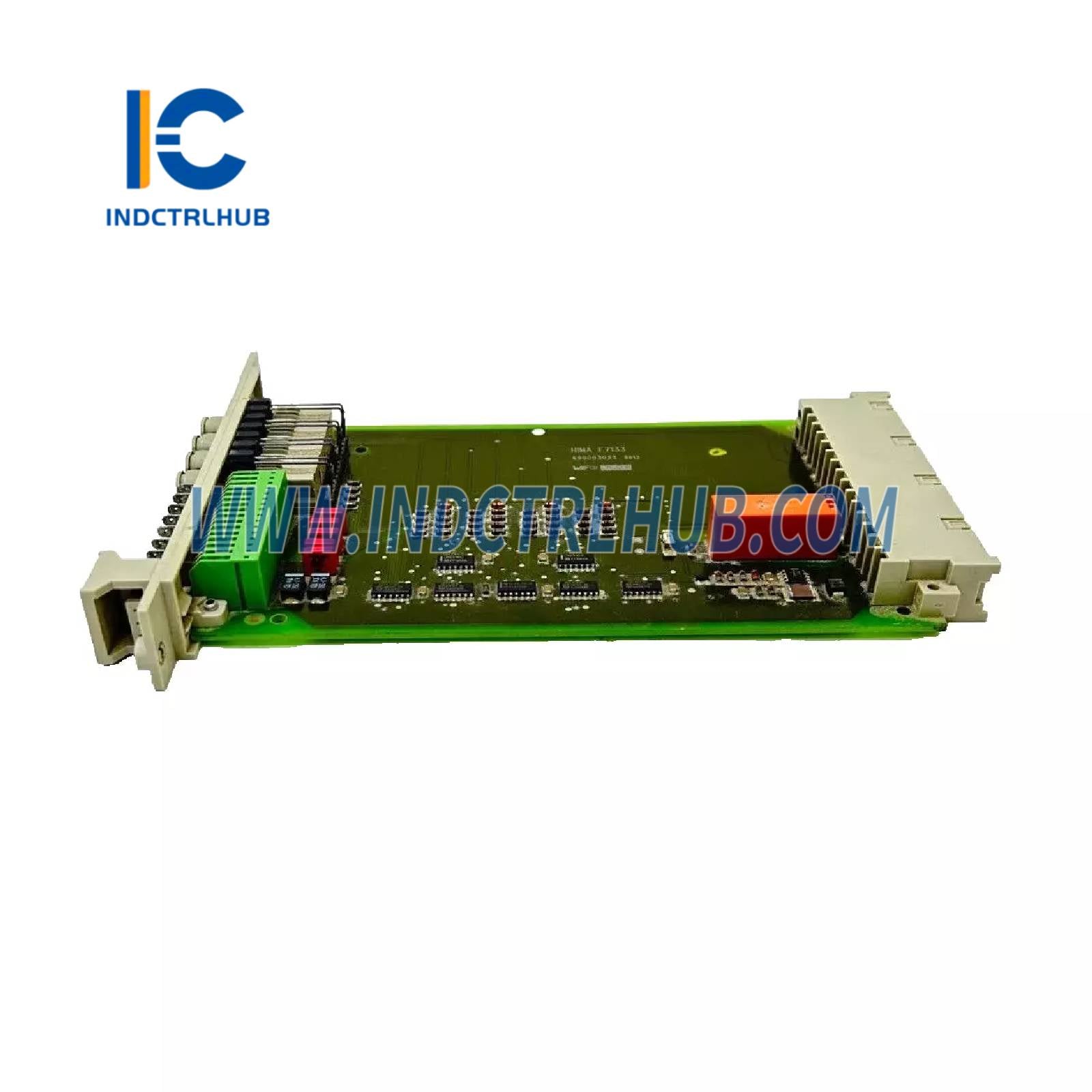

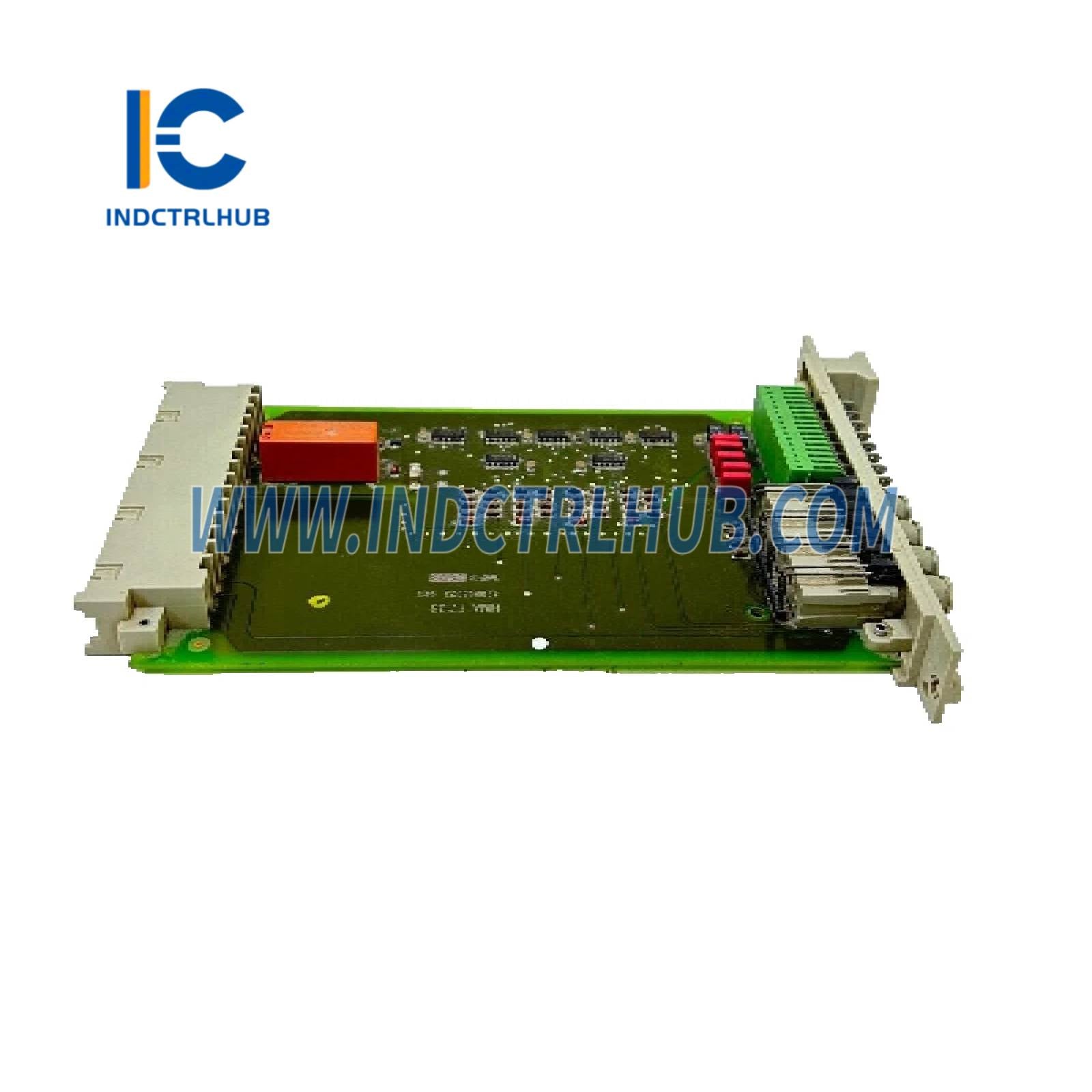

HIMA F7133  98 4713302 4-Fold Power Distribution Module

Manufacturer

HIMA

Model/Part Number

F7133 (98 4713302)

Model Type

4-Fold Power Distribution Module with Fuse Monitoring and L– Distribution

Description

The F7133 module is used for power distribution to I/O modules and sensor contacts. It features 4 individually fused outputs with monitoring functionality. Each fuse is paired with a status LED and monitored via logic to detect faults. A relay output indicates the collective fuse status. Designed to simplify and secure power routing in HIMA safety systems.

Power Inputs/Outputs

4 outputs via miniature fuses (max 4 A, slow-blow)

Power Distribution

L+ / EL+ and L– distributed to connected I/O modules and sensors

Front Terminals

Pins 1, 2, 3, 4 and L–

Rear Terminals

d6, d10, d14, d18 (24 V supply to I/O slots)

Relay Output (Status Monitoring)

d22/z24: closed when all fuses are OK; opens on fuse fault

LED Indicators

One per fuse (on = healthy; off = not wired or fault)

Relay Switching Time

Approx. 100 ms

Relay Load Capacity

30 V / 4 A (continuous load)

Fuse Ratings

Max 4 A (slow blow)

Fuse Tripped

0 V

0 mA

Missing Supply

Max. 3 V

< 1 mA

Space Requirement

4 TE

Power Consumption

24 V DC, 60 mA
