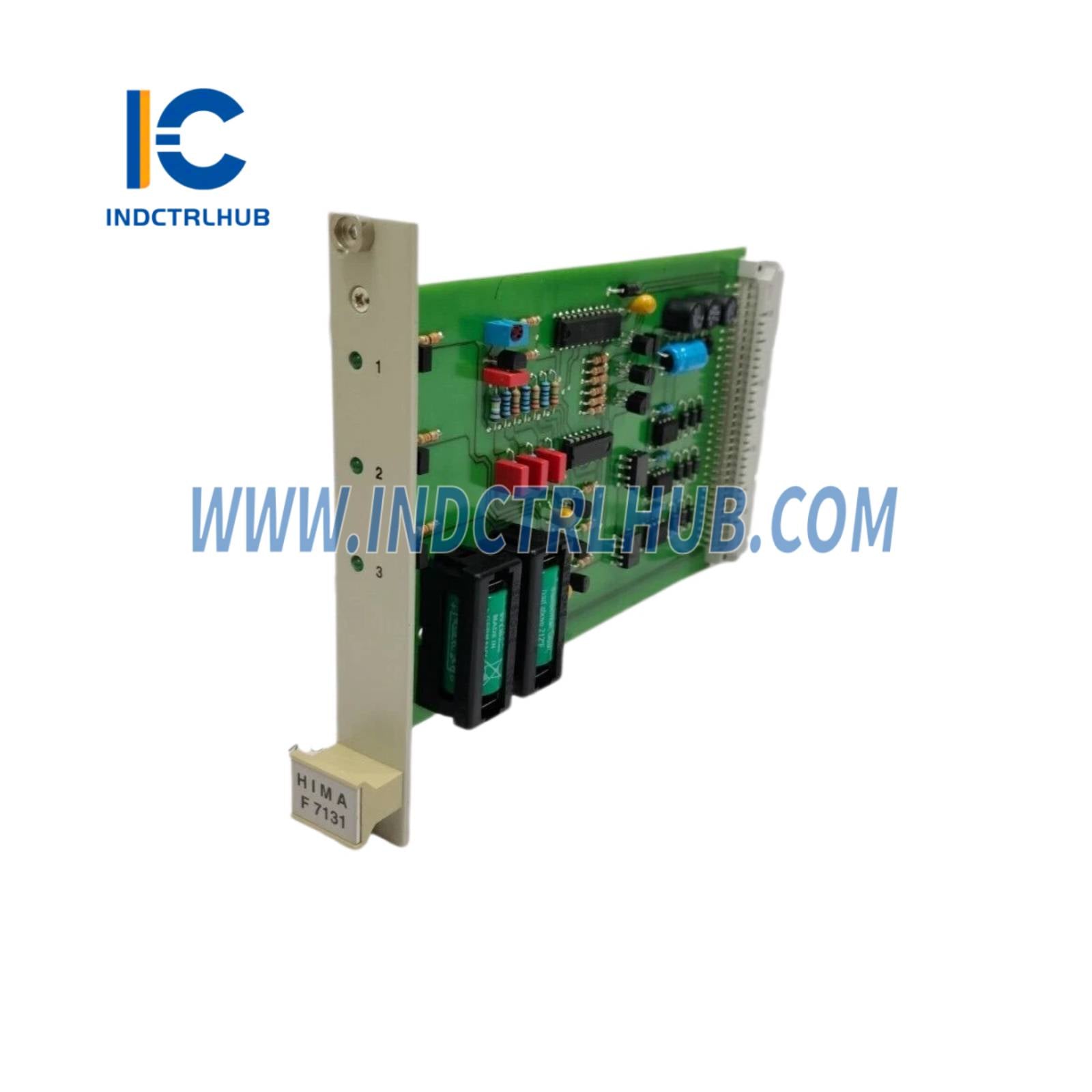

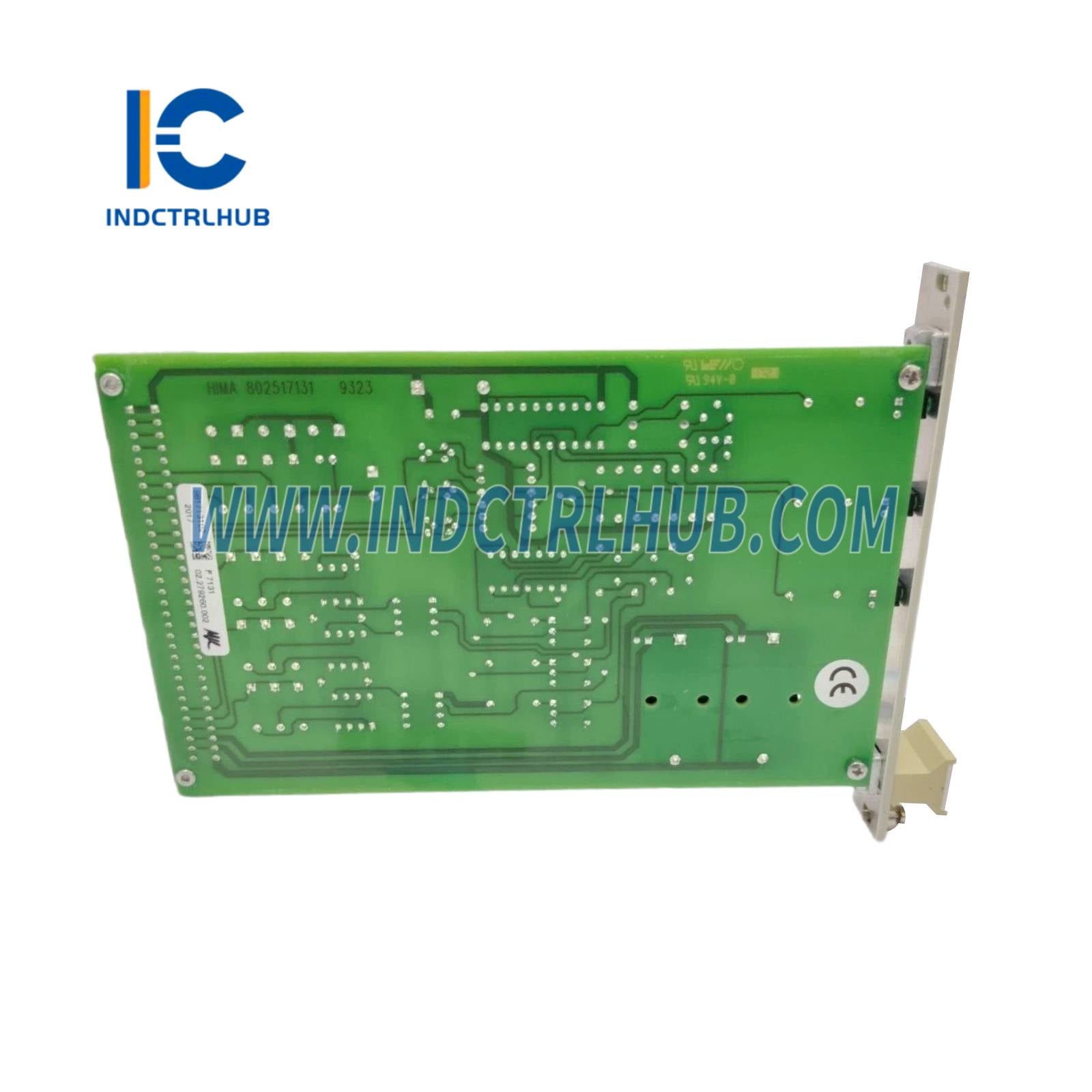

HIMA F7131 98 1713102 Power Supply Monitoring Module
HIMA F7131 98 1713102 Power Supply Monitoring Module
Manufacturer: HIMA
Product No.: F7131
Condition:1000 in stock
Product Type: Power Supply Monitoring Module with Buffer Batteries
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
___
Product Overview
|
Field |
Details_ |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |
F7131 (98 1713102) |
|
Model Type |
Power Supply Monitoring Module with Buffer Batteries |
|
Description |
The F7131 module is designed to monitor the 5V system voltage supplied by up to three power supplies in a_HIMA PES H51q_system. It provides visual status via front LEDs and outputs diagnostics via test bits and 24V outputs. Suitable for integration in additional power supply setups using assembly kit B9361. |
_
_
___
Technical Specifications
|
Specification |
Details |
|---|---|
|
System Compatibility |
HIMA PES H51q |
|
Monitored Voltage |
5 V DC (System Voltage) |
|

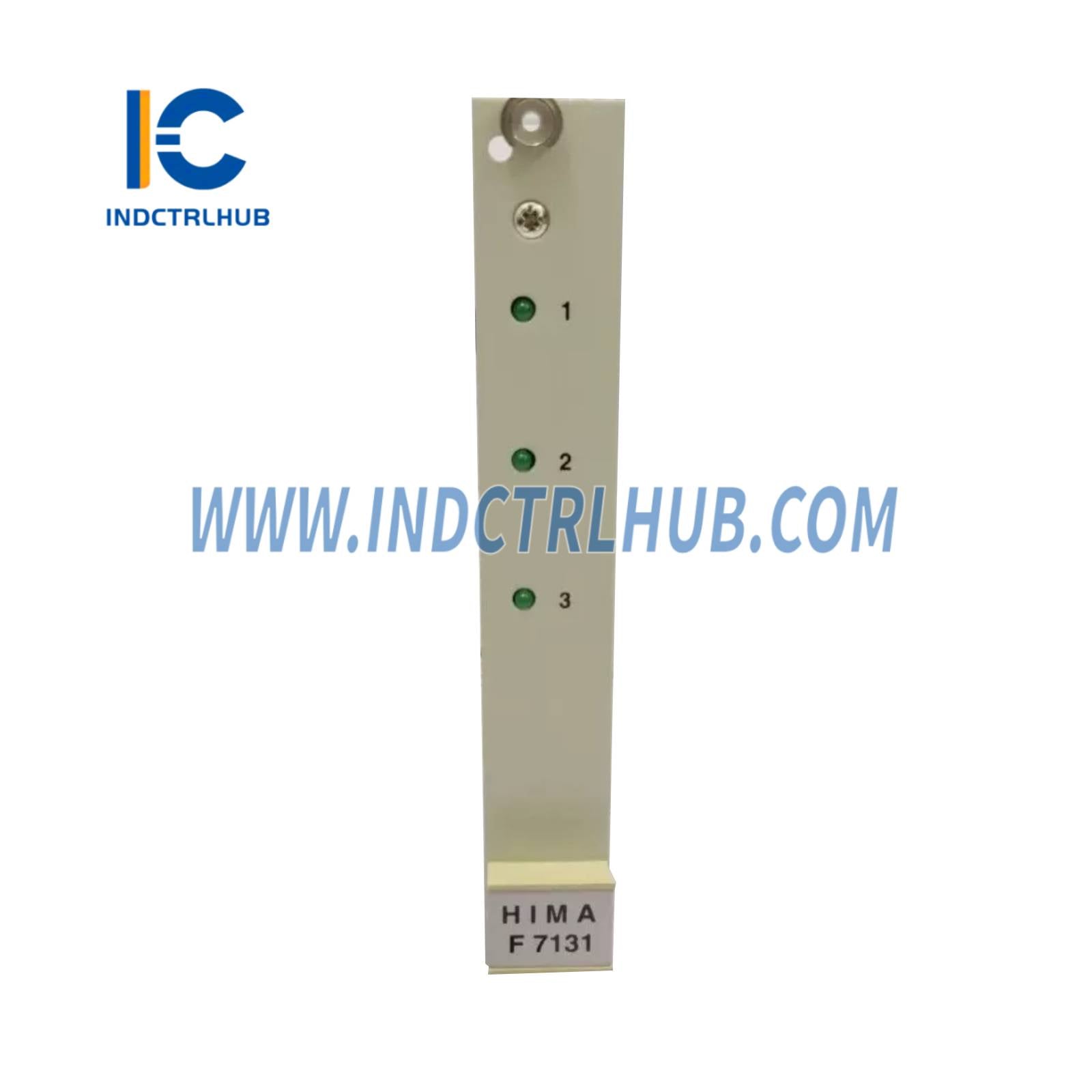

Status Indicators |
3 _ LEDs on front panel |
|
Diagnostic Interface |
3 _ test bits to central modules F8650 or F8651 |
|
Additional Monitoring Outputs |
3 _ 24 V outputs (PS1 to PS3) for external power module monitoring |
|
Recommended Battery |
CR-1/2 AA-CB (HIMA Part No. 44 0000016) |
|
Battery Replacement Interval |
Every 4 years |
|
Power Consumption |
5 V DC: 25 mA24 V DC: 20 mA |
|
Module Width |
4 TE (standard rack width) |
_
