Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |

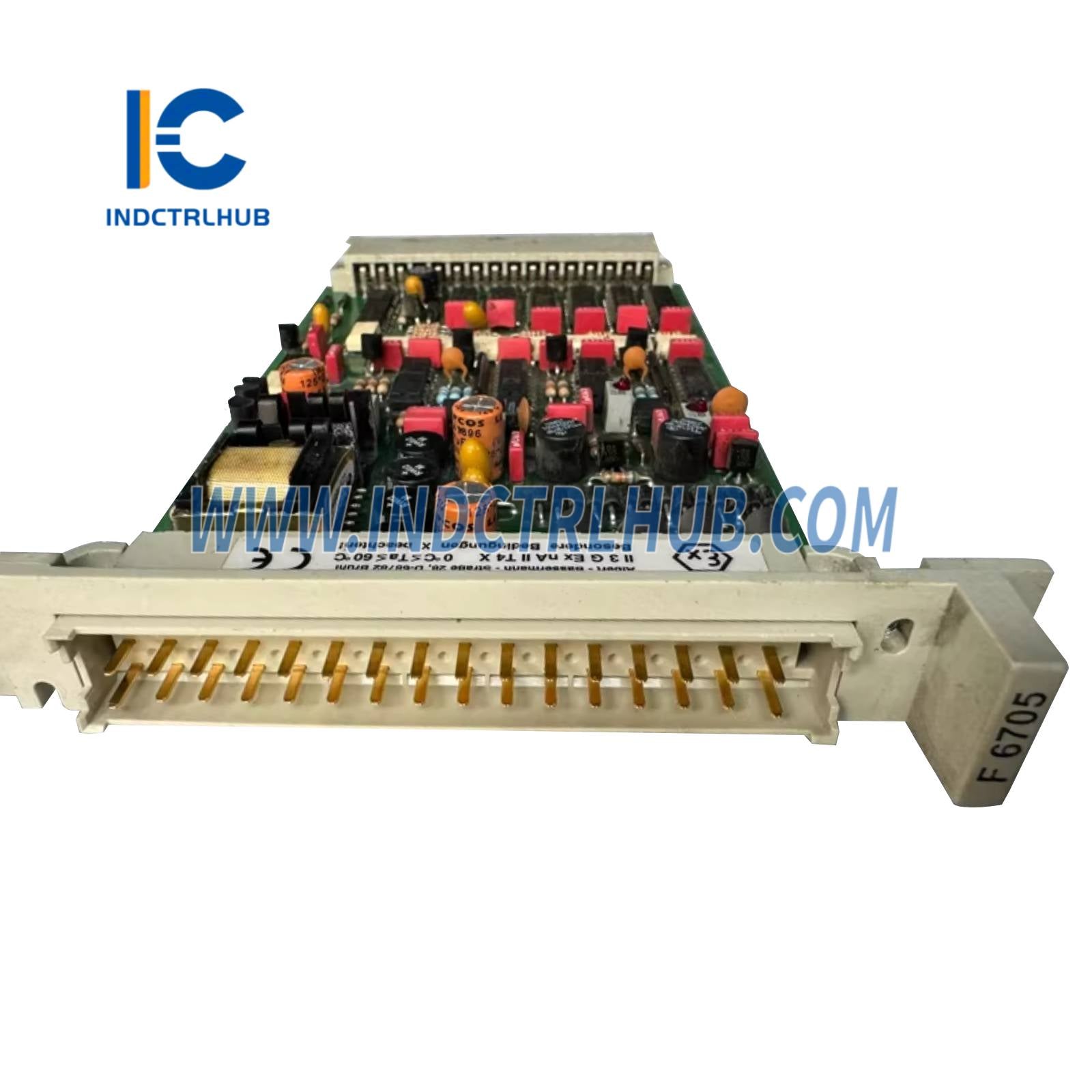

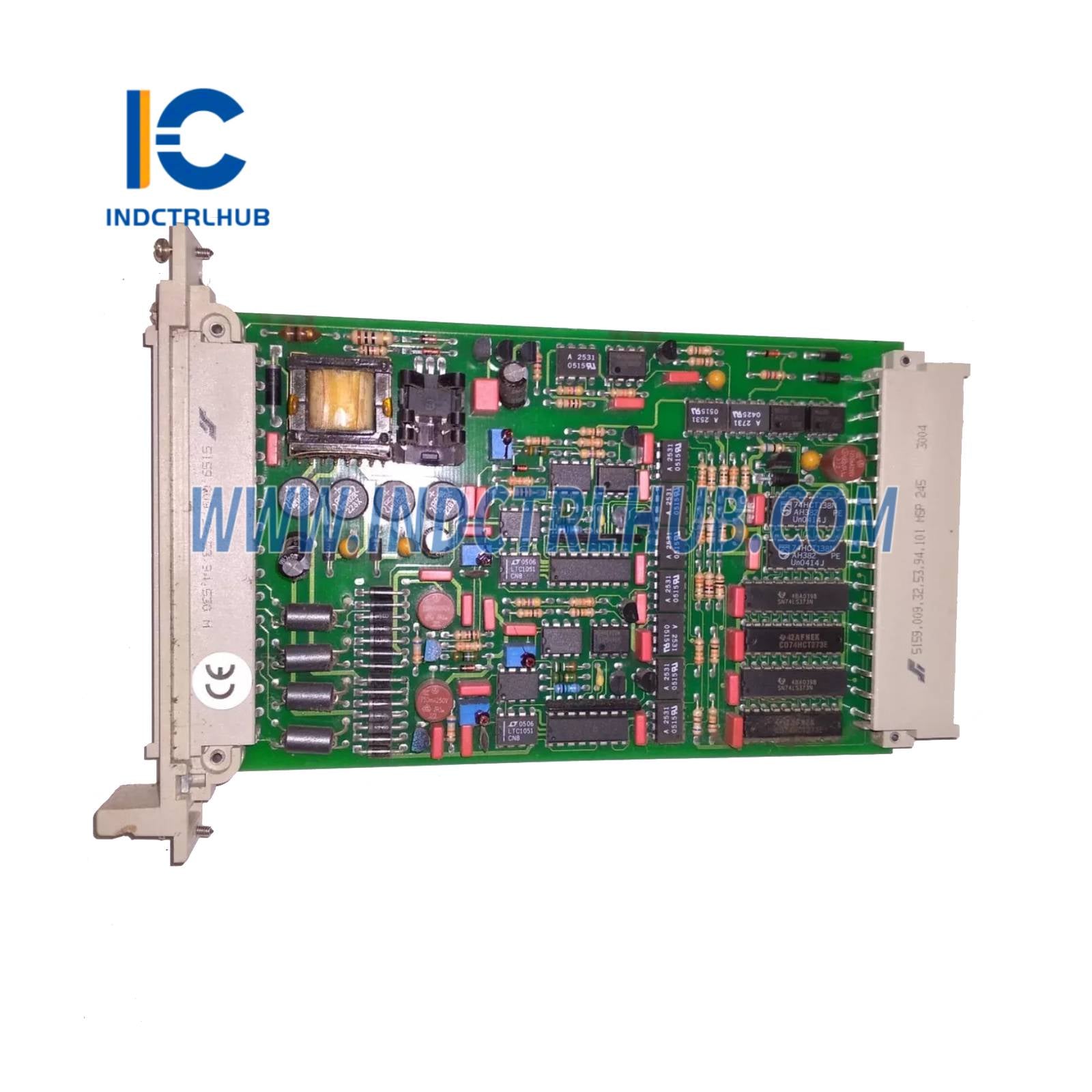

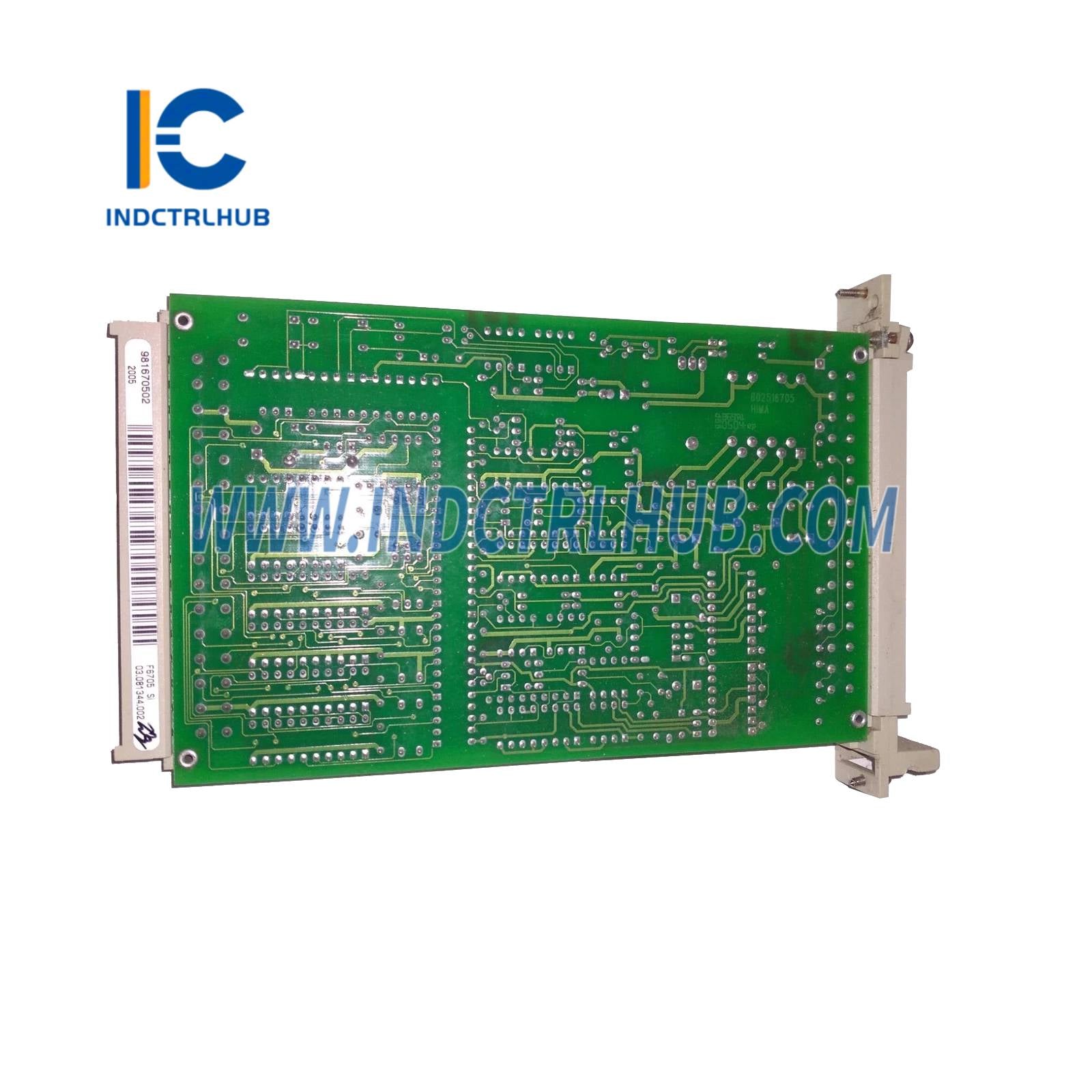

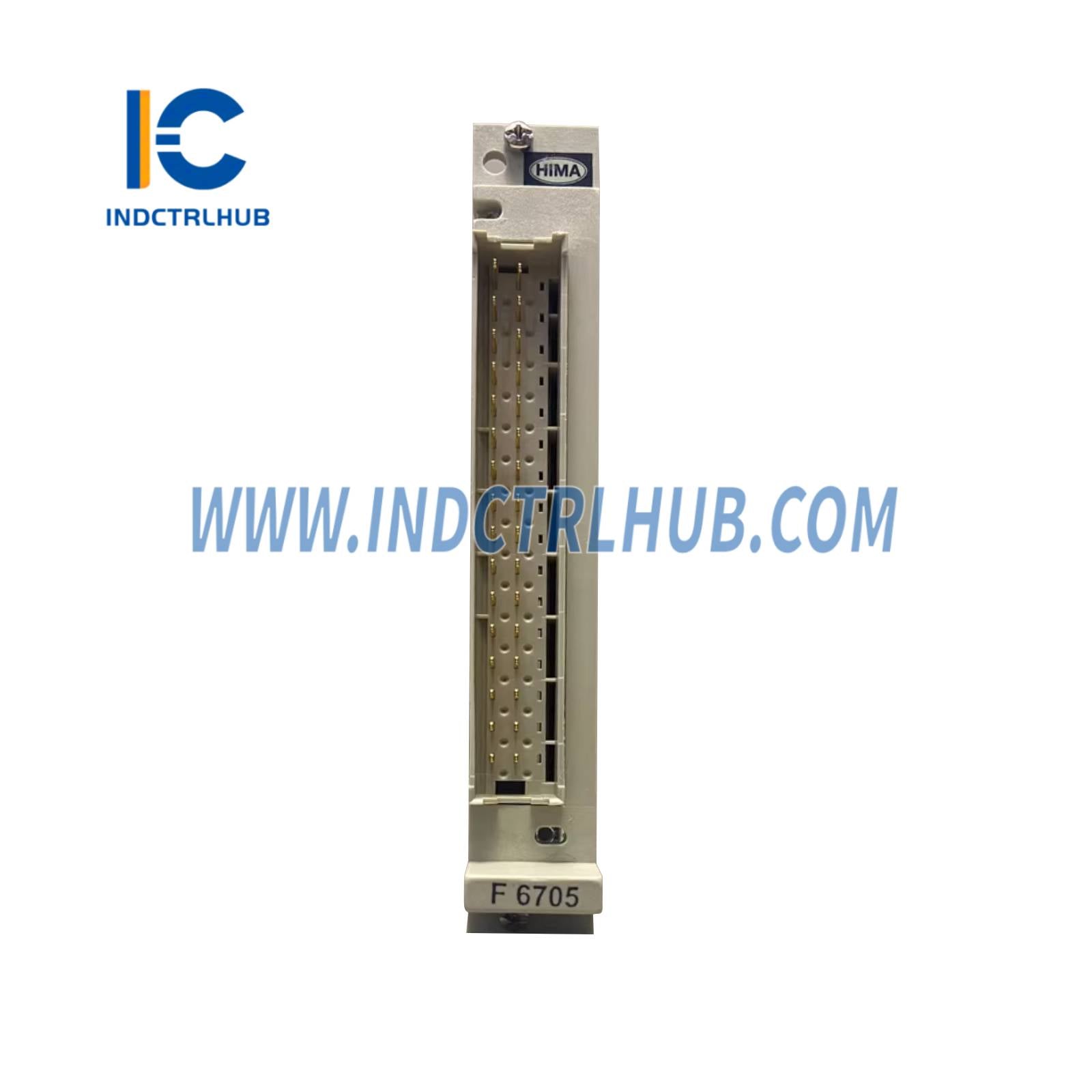

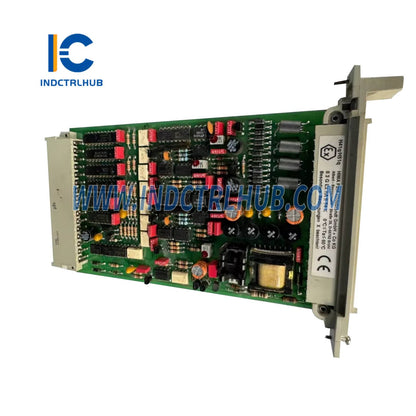

F6705 (98 1670502) |
|
Model Type |
Safety-related 2-channel Digital-to-Analog Converter |
|
Description |
The F6705 is a dual-channel D/A converter with isolated, analog 0/4–20 mA outputs. It supports both source and sink modes with built-in safety shutdown and self-testing mechanisms. It is certified for AK 1 to AK 6 safety applications. |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Number of Outputs |
2 (individually galvanically isolated) |
|
Output Range |
0/4 to 20 mA |
|
Resolution |
12-bit (4095 steps), 0 = 0 mA, 3840 = 20 mA |
|
Requirement Class |
AK 1 to AK 6 |
|
Test Functions |
Linearity, cross-talk, safety shutdown |
🔌
Electrical Characteristics
|
Parameter |
Value |
|---|---|
|
Burden (Source Mode) |
≤ 550 Ω (incl. line resistance to burden) |
|
Burden (Sink Mode) |
≤ (UQ - 10 V) / 21.2 mA |
|
Basic Error |
≤ 0.2% (≈40 µA) @ 25 °C |
|
Operating Error |
≤ 0.4% across 0 to +60 °C |
|
Source Voltage (Sink Mode) |
10 to 30 V DC |
|
Electric Strength (Isolation) |
250 V against Analog-GND |
|
Output Line Length (Max.) |
1000 m (dependent on burden) |
|
Default Current with Plug-in |
≤ 40 µA |
🌡️
Environmental Conditions
|
Condition |
Specification |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
Not specified |
⚡
Power Requirements
|
Voltage |
Current Consumption |
|---|---|
|
5 V DC |
85 mA |
|
24 V DC |
130 mA |
📐
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Space Requirement |
4 TE (modular width) |
