Product Description
General Information
|
Item |
Details |
|---|---|
|
Manufacturer |
HIMA |
|
Model/Part Number |

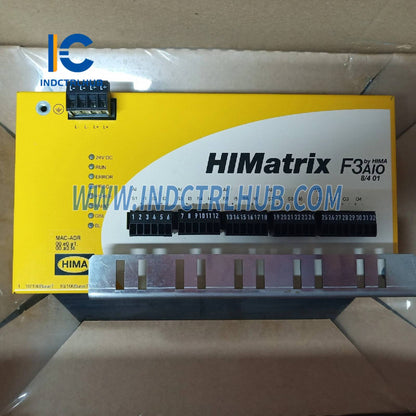

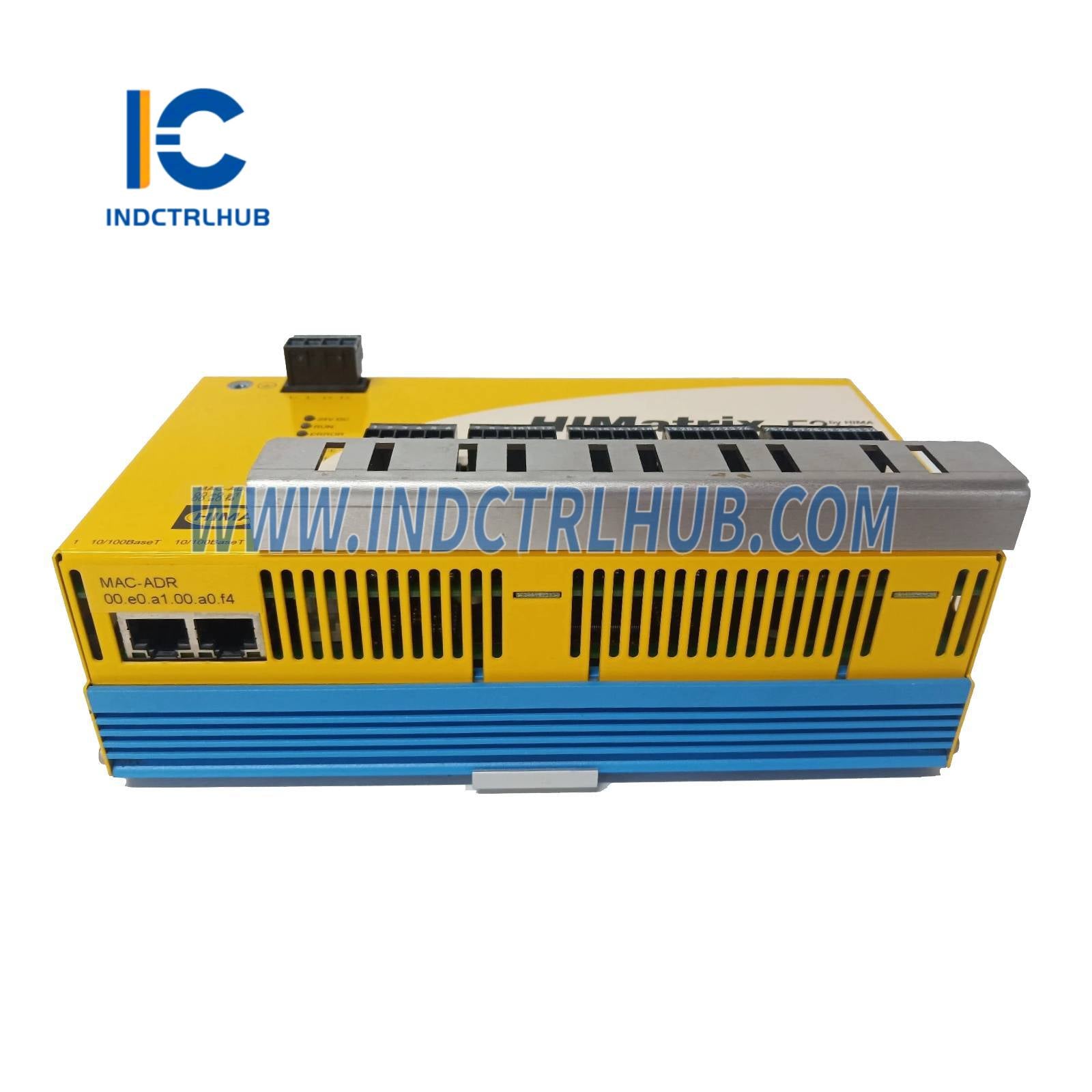

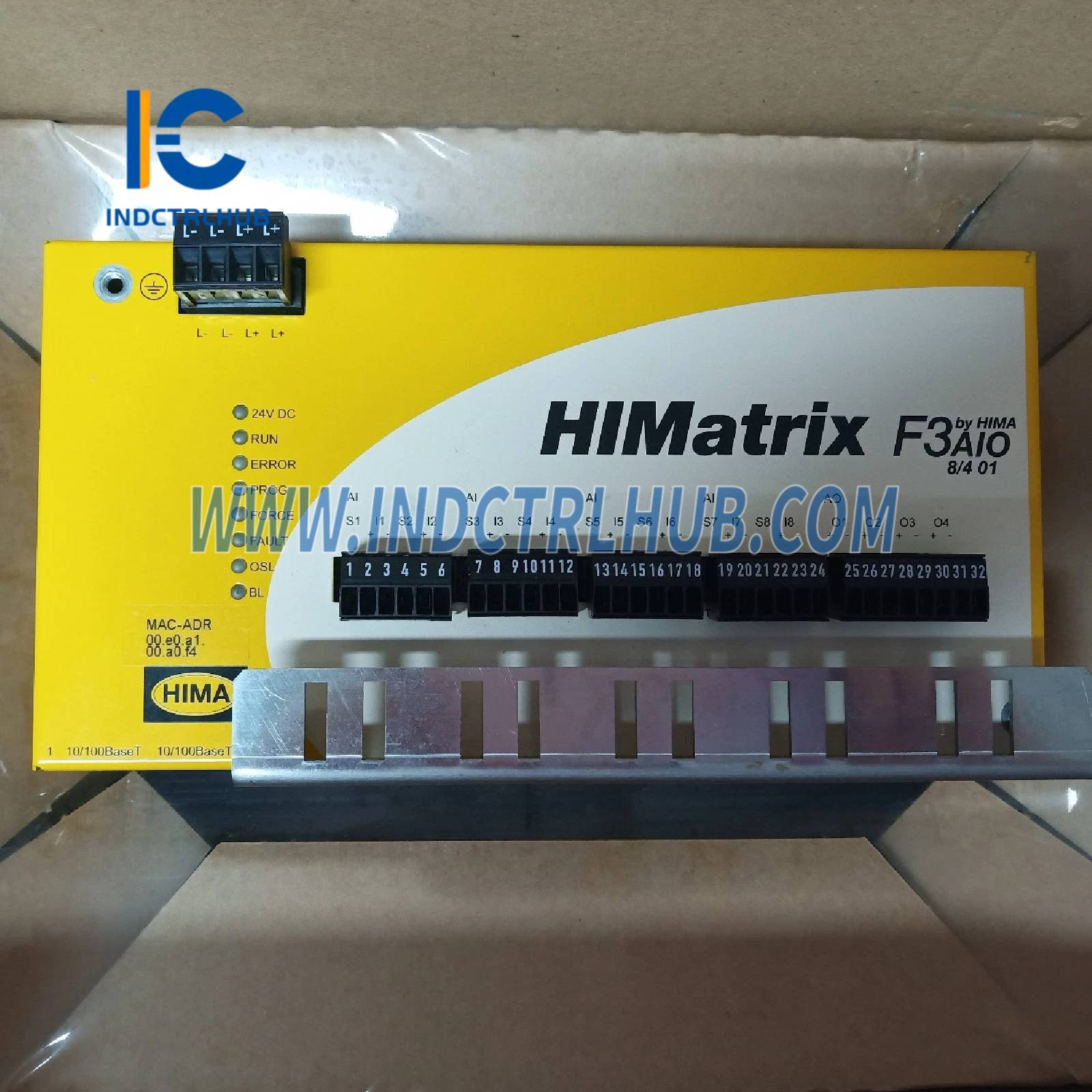

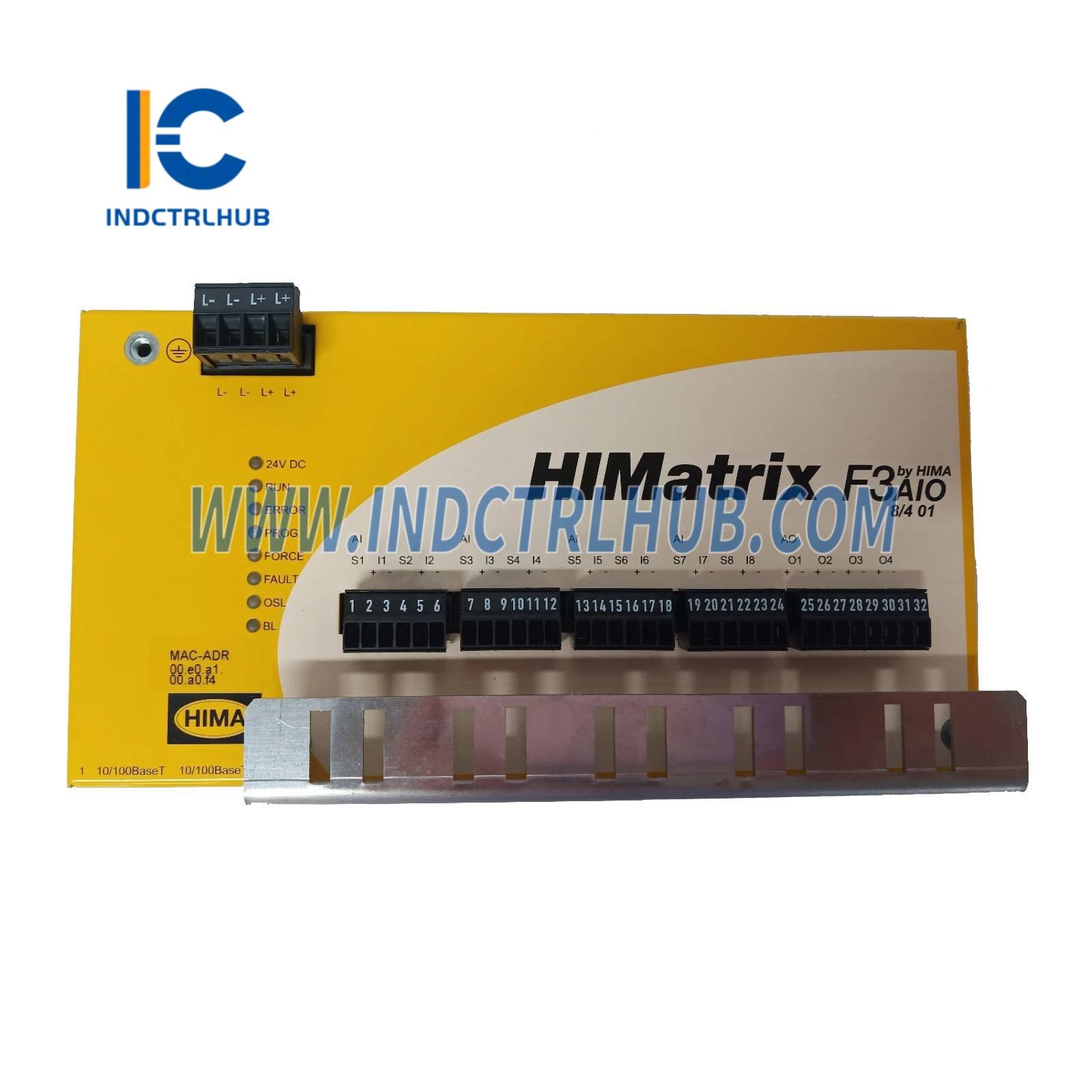

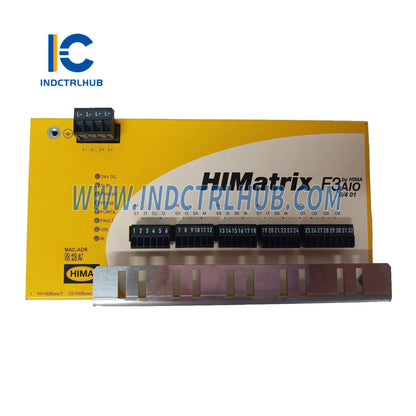

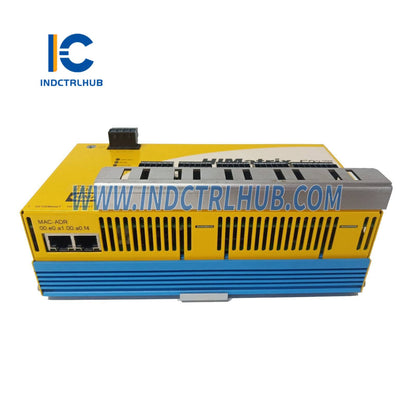

F3AIO8/401 |
Description
|
Item |
Details |
|---|---|
|
Type |
Analog Input/Output Module |
|
Application |
Provides 8 analog input channels and configurable analog output channels for HIMA safety-related automation systems, typically used in HIMax or HIMatrix platforms for process monitoring and control. |
Specifications
|
Category |
Details |
|---|---|
|
Analog Inputs |
8 channels, configurable for 0–20 mA, 4–20 mA, or 0–10 V |
|
Analog Outputs |
Configurable channels, 0–20 mA or 4–20 mA output |
|
Resolution |
12-bit or better |
|
Accuracy |
±0.1 % of full scale (typical) |
|
Input Impedance |
≥ 250 Ω for current inputs |
|
Output Load |
Max 500 Ω for voltage output, typical 0–20 mA load up to 500 Ω |
|
Sampling Rate |
Up to 10 samples per second per channel |
|
Isolation |
Galvanic isolation between channels and system backplane |
|
Diagnostics |
Channel status monitoring, open-loop and fault detection |
|
Power Supply |
24 V DC nominal |
|
Power Consumption |
Approx. 6 W typical |
Environmental Limits
|
Parameter |
Details |
|---|---|
|
Operating Temperature |
0 to +60 °C |
|
Storage Temperature |
–40 to +85 °C |
|
Relative Humidity |
5 to 95 % non-condensing |
|
Vibration |
Meets industrial vibration and shock standards |
|
EMC |
Complies with EN 61000-6-2 and EN 61000-6-4 |
Physical Characteristics
|
Parameter |
Details |
|---|---|
|
Dimensions |
Approx. 128 mm × 25 mm × 120 mm |
|
Mounting |
DIN-rail |
|
Weight |
About 150 g |
|
Connections |
Plug-in terminal blocks for field wiring |
Ordering Information
|
Item |
Details |
|---|---|
|
Model Number |
F3AIO8/401 |
|
Accessories |
Terminal blocks and backplane connectors ordered separately |
