Product Description

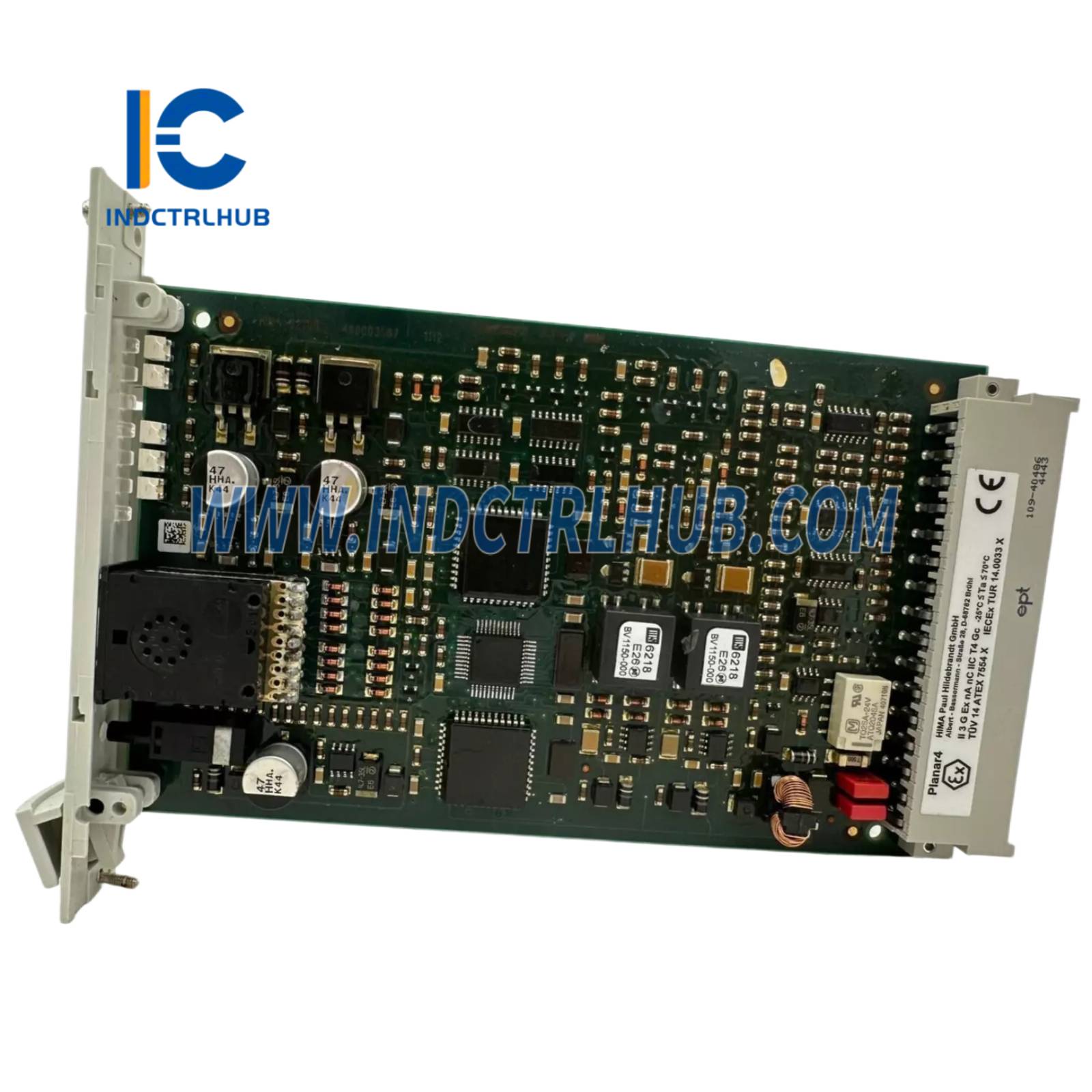

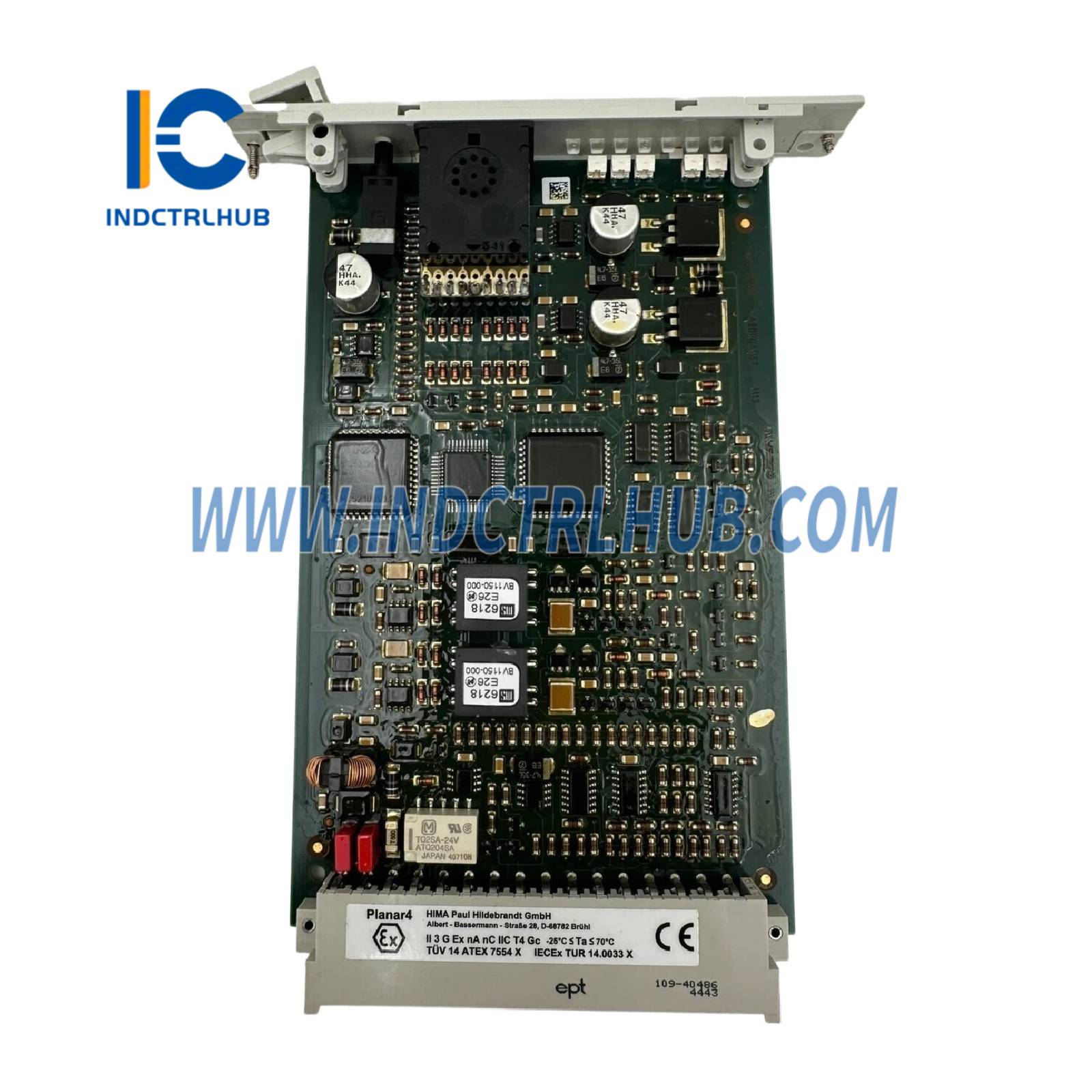

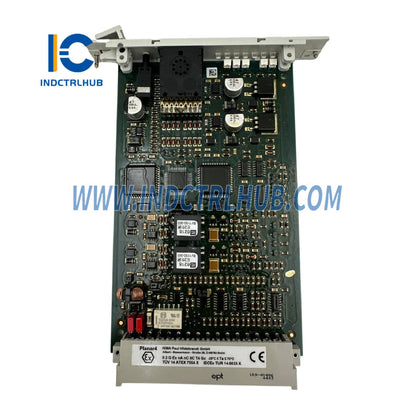

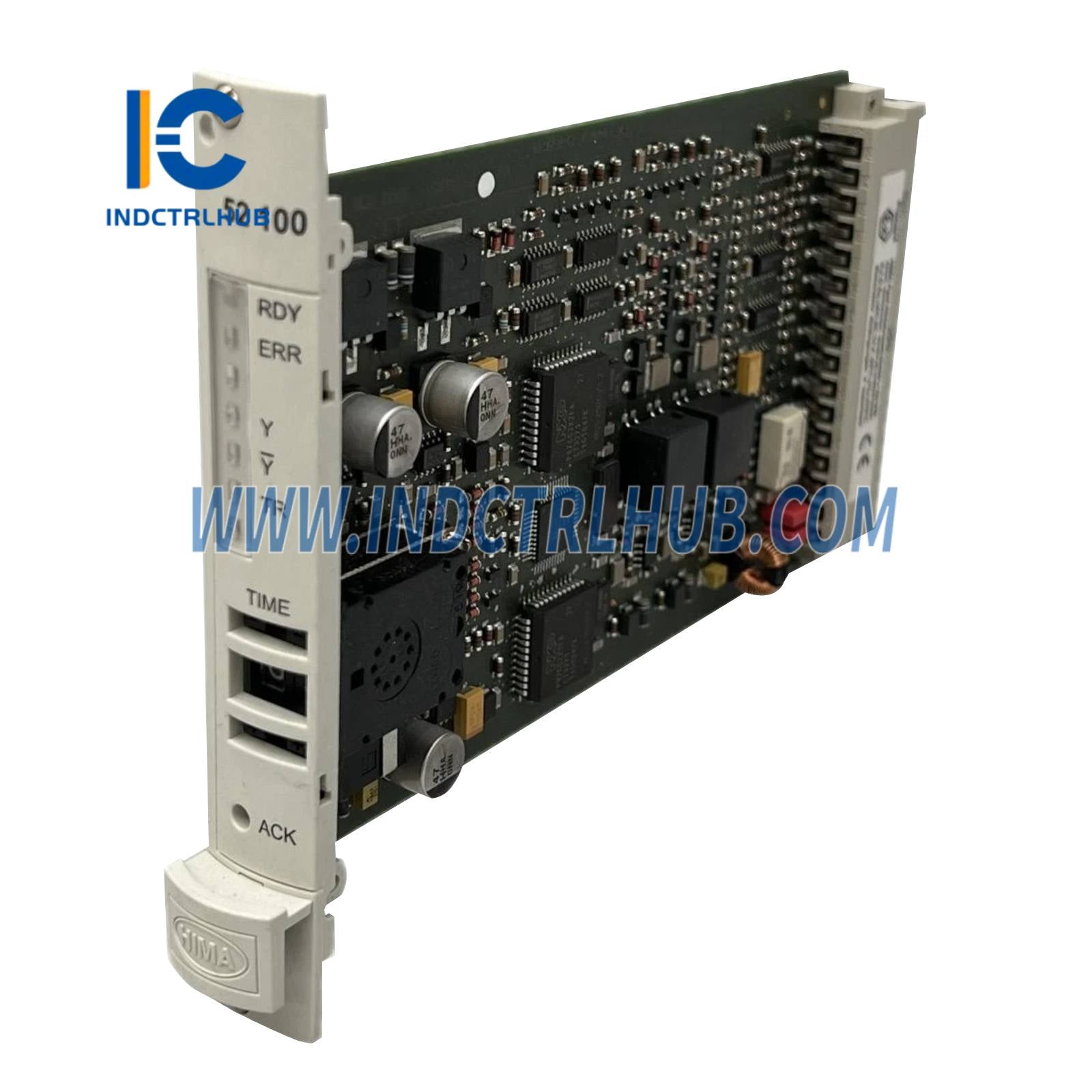

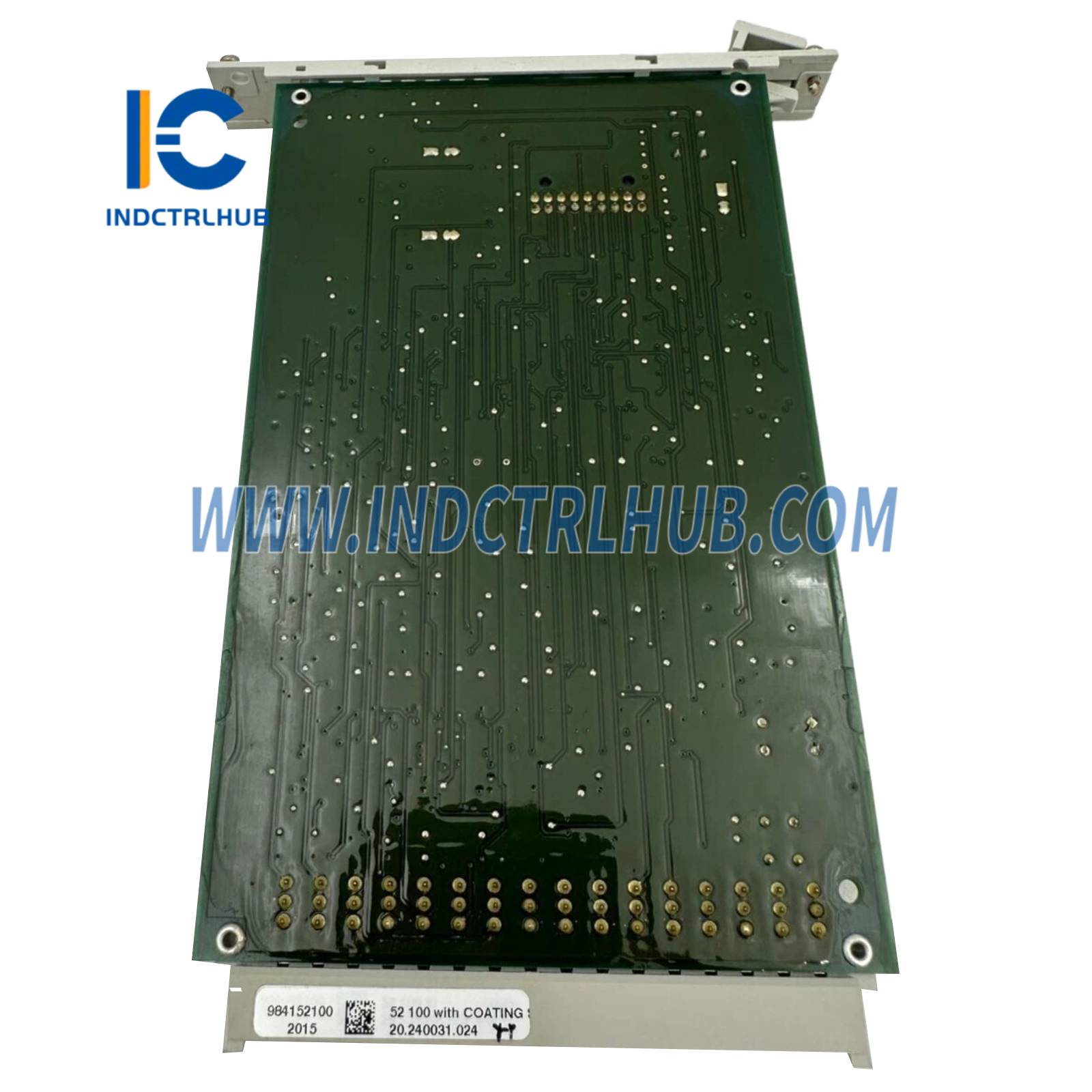

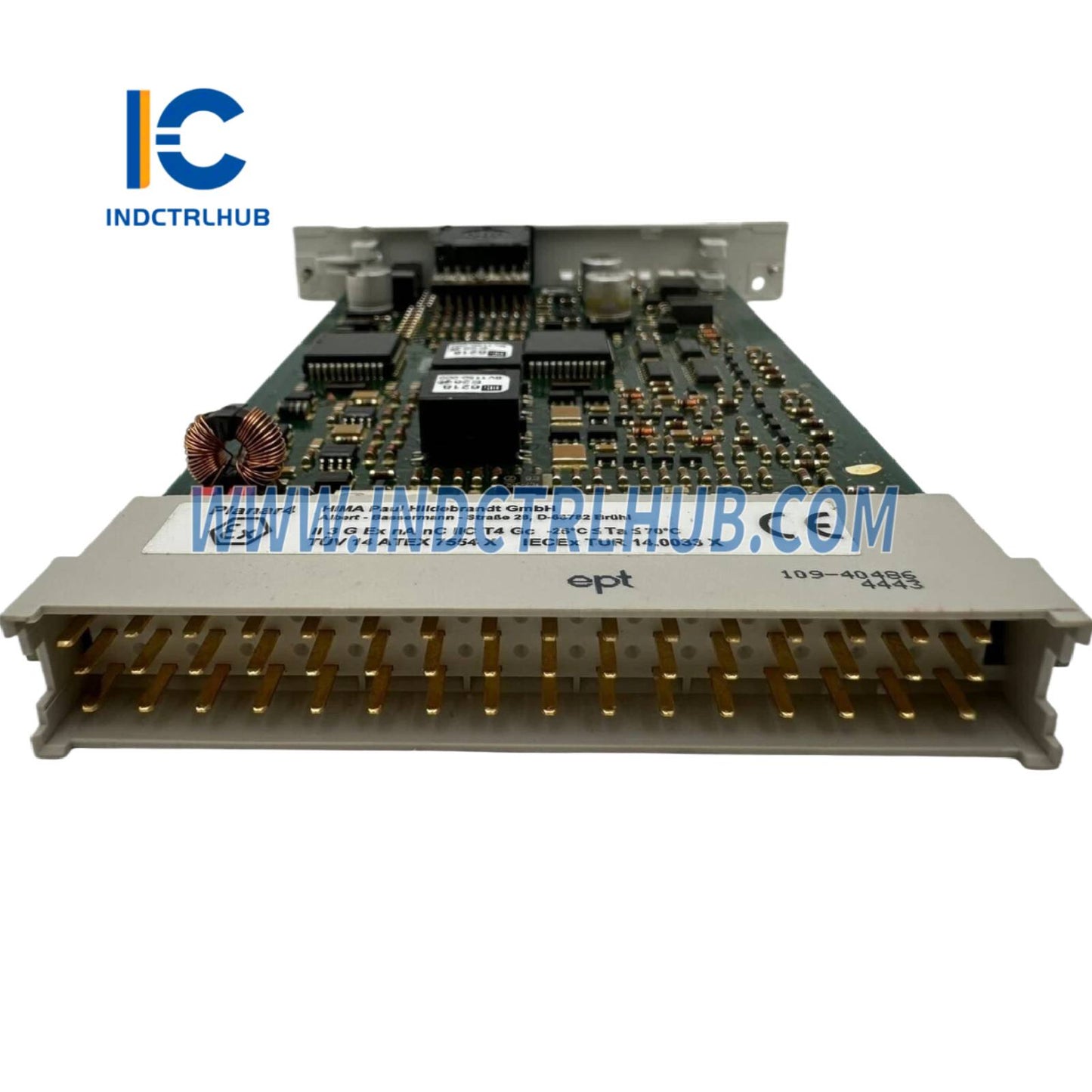

HIMA 52100 98 4152100 Planar4 Time Function Module
Product Overview
- The HIMA 52100 98 4152100, identified as a Planar4 Time Function Module, is a safety-related time delay module designed for HIMA safety instrumented systems (SIS). This module provides precise timing functions, such as time delays, for safety-critical logic operations within HIMA’s programmable electronic systems (PES). It is used in industries like oil and gas, chemical, and power generation, ensuring reliable operation compliant with high safety integrity levels.
Technical Specifications
- The 52100 98 4152100 has the following specifications based on industry documentation for the Planar4 series and HIMA time function modules:
| Specification | Details |
|---|---|
| Model/Part Number | 52100 98 4152100 |
| Manufacturer | HIMA |
| Description | Planar4 Time Function Module (Time Delay Element) |
| Function | Time delay, 0.1–600 seconds, 1 function |
| Safety Integrity Level | SIL 3 / AK 6 |
| Operating Voltage | 24 VDC |
| Input Current | Approx. 100 mA |
| Time Accuracy | <0.1% of set value |
| Reference Error | -10 to +90 ms |
| Space Requirement | 3 HE, 4 TE (4 HP, Horizontal Pitch) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approx. 0.2 kg |
Additional Details
- The 52100 98 4152100 includes the following additional information based on its standard use and documentation for the Planar4 series:
