Product Description

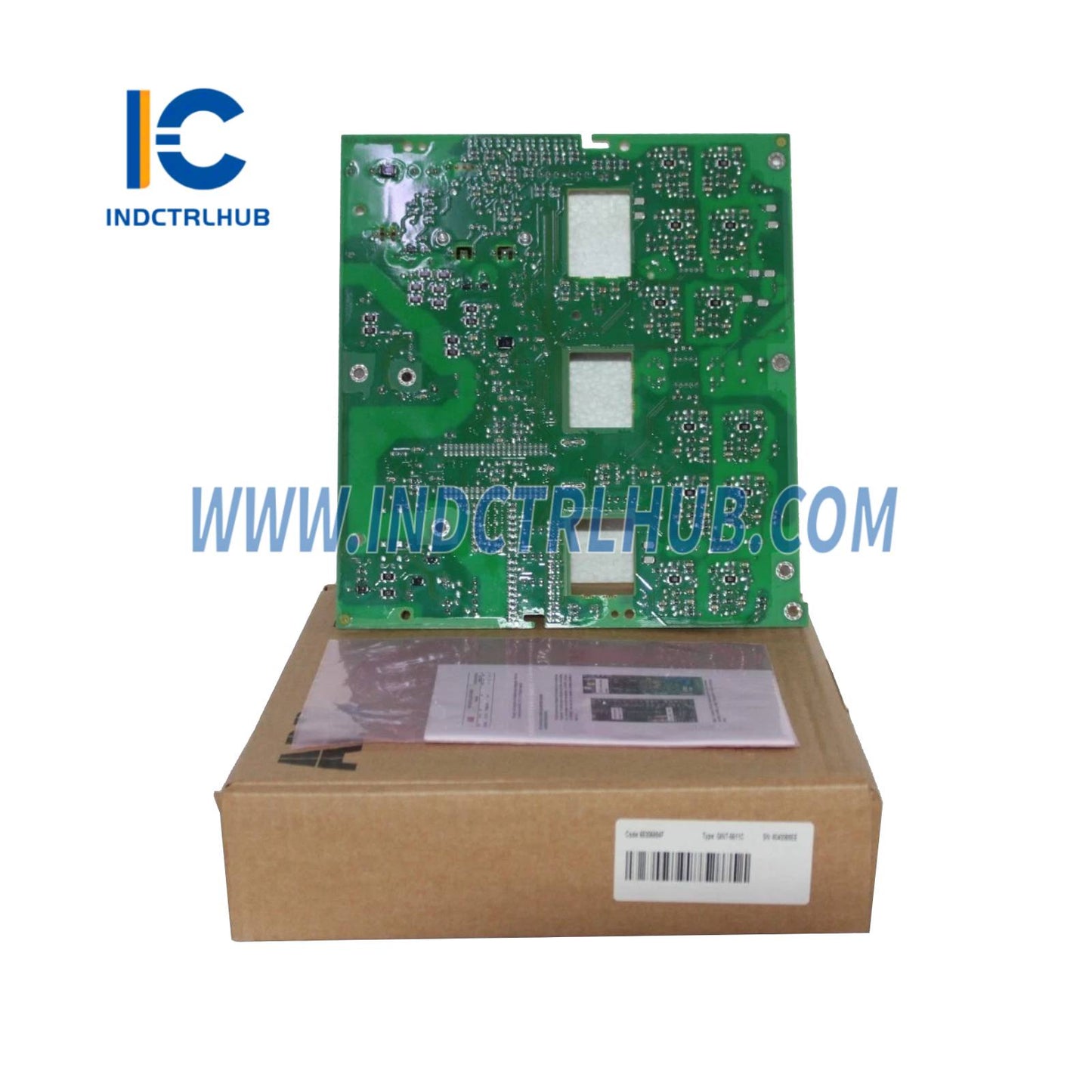

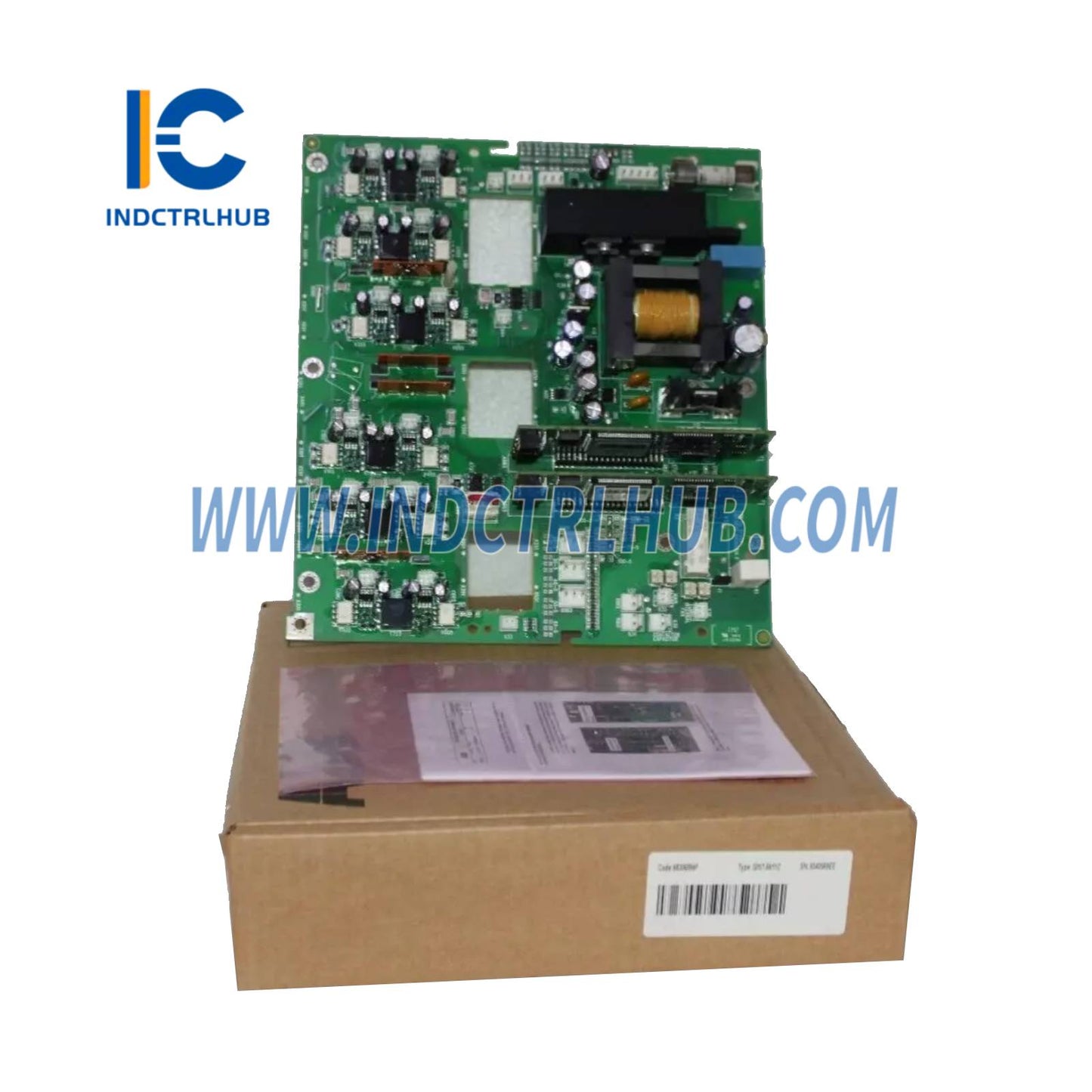

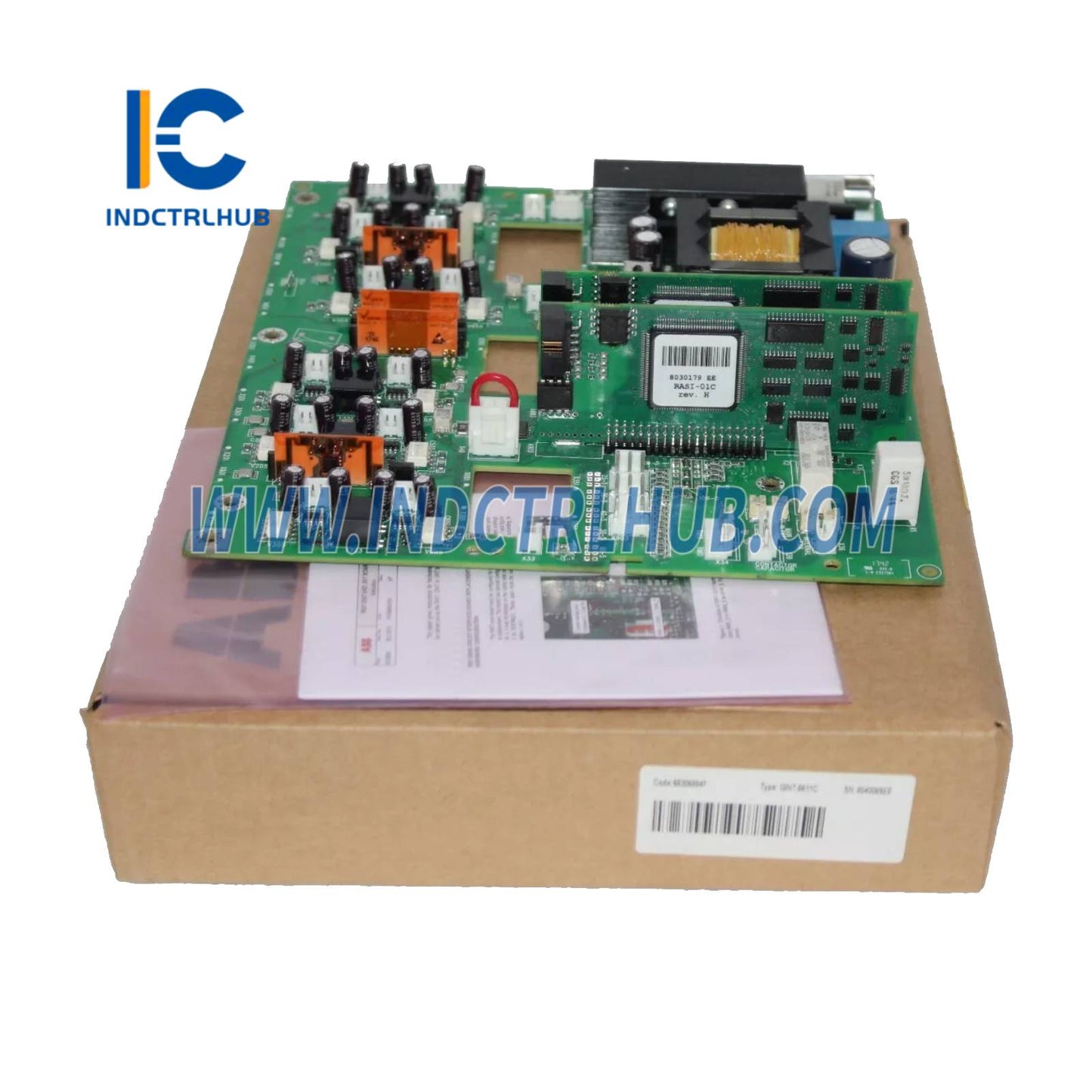

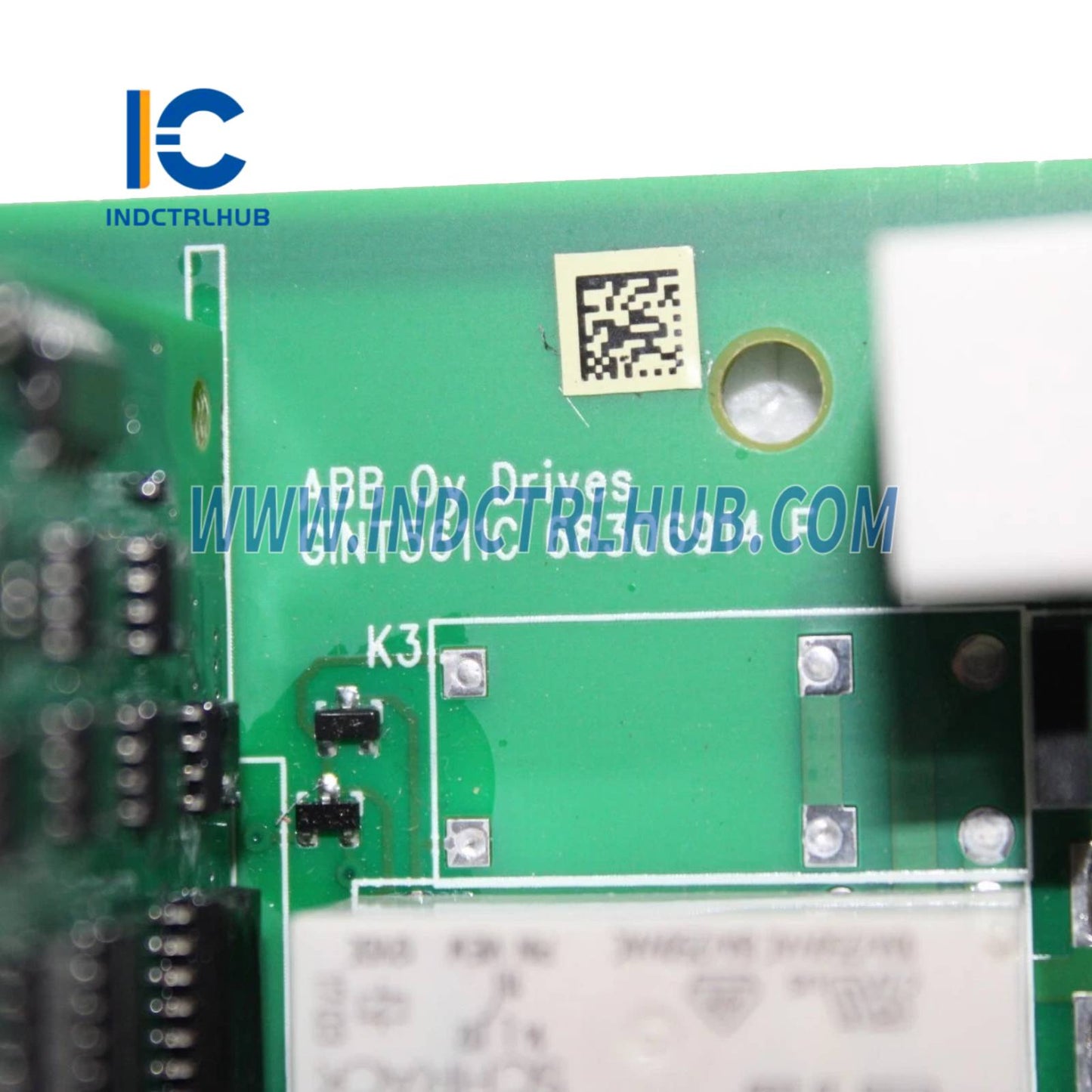

ABB GINT5611C Interface Module
Product Overview
- The ABB GINT5611C is an Interface Module designed for use in ABB’s industrial automation systems, specifically within distributed control systems (DCS) or programmable logic controller (PLC) environments. This module serves as a communication interface, facilitating data exchange between field devices, controllers, and other system components using ABB’s proprietary protocols or standard industrial communication protocols. It is commonly used in industries such as power generation, oil and gas, chemical processing, and manufacturing to ensure reliable connectivity and control in automation applications. The GINT5611C is known for its robust design, compatibility with ABB’s automation platforms, and reliable performance in industrial environments.
Technical Specifications
- The GINT5611C has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | GINT5611C |
| Manufacturer | ABB |
| Description | Interface Module for Industrial Automation Systems |
| Series | ABB DCS/PLC Systems (e.g., Advant OCS, System 800xA) |
| Function | Facilitates communication between controllers, I/O modules, and field devices |
| Communication Interfaces | Supports ABB proprietary protocols (e.g., Advant Fieldbus, MasterBus) or standard protocols (e.g., Modbus, PROFIBUS) |
| Data Rate | Up to 12 Mbps (protocol-dependent) |
| Connection Type | Serial (e.g., RS-485) or bus connections (e.g., DIN-rail terminals) |
| Supported Devices | ABB controllers (e.g., Advant Controller 450), S800 I/O modules, System 800xA components |
| Diagnostics | Communication status, fault detection, link errors |
| Compatibility | ABB Advant OCS, System 800xA, and related DCS/PLC systems |
| Power Supply | 24 VDC (via system backplane) |
| Power Consumption | Approx. 3–6 W |
| Environmental Specifications | Operating Temperature: 0°C to +55°C (32°F to +131°F) Storage Temperature: -25°C to +70°C (-13°F to +158°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP20 (installed in control cabinet) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 120 mm (D) |
| Weight | Approx. 0.3–0.5 kg |
| Mounting | Plugs into DCS/PLC system rack or DIN-rail mounting |
| Certifications | CE, UL, CSA, complies with IEC 61131 standards |
