Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
General Electric (GE Multilin) |
|
Model/Part Number |

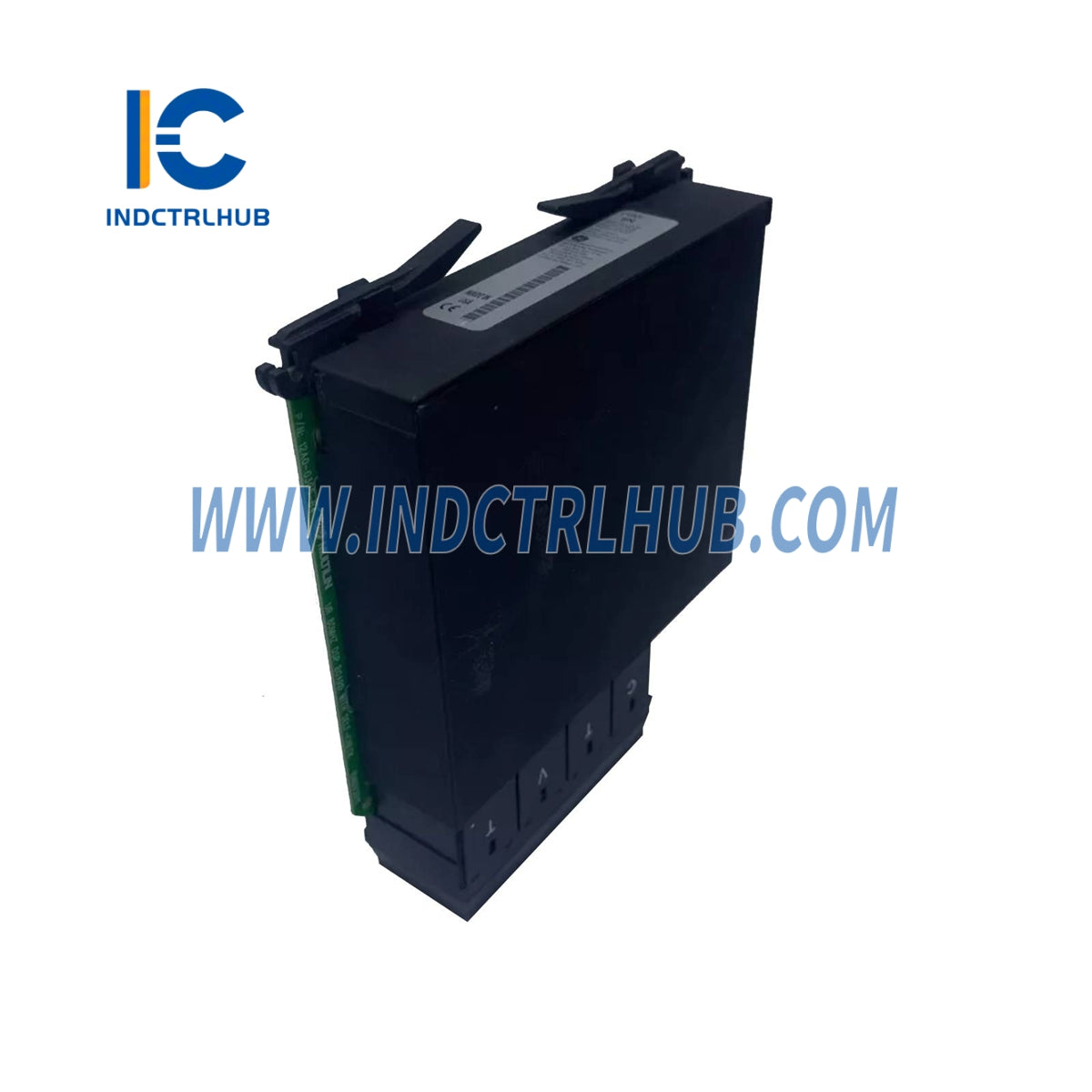

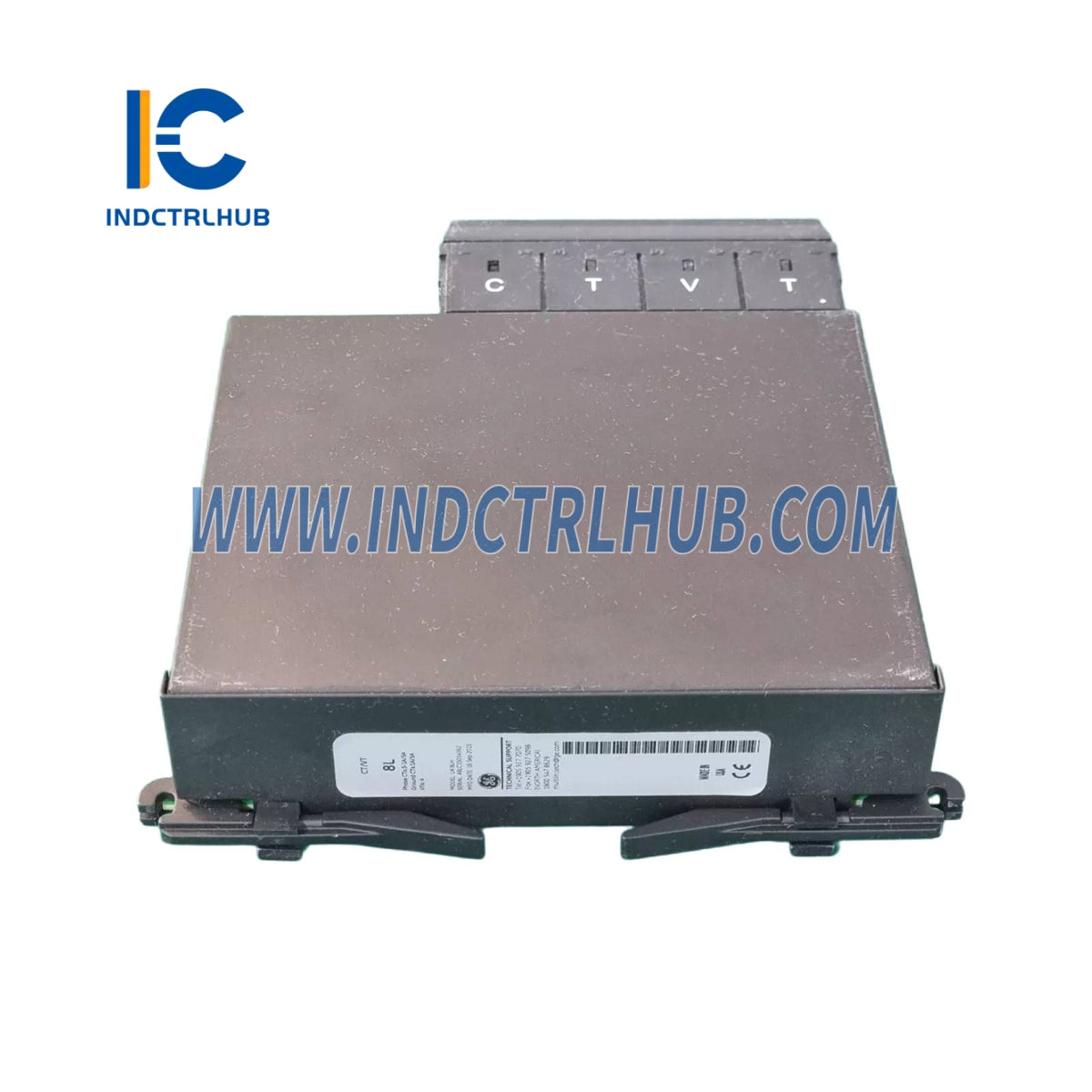

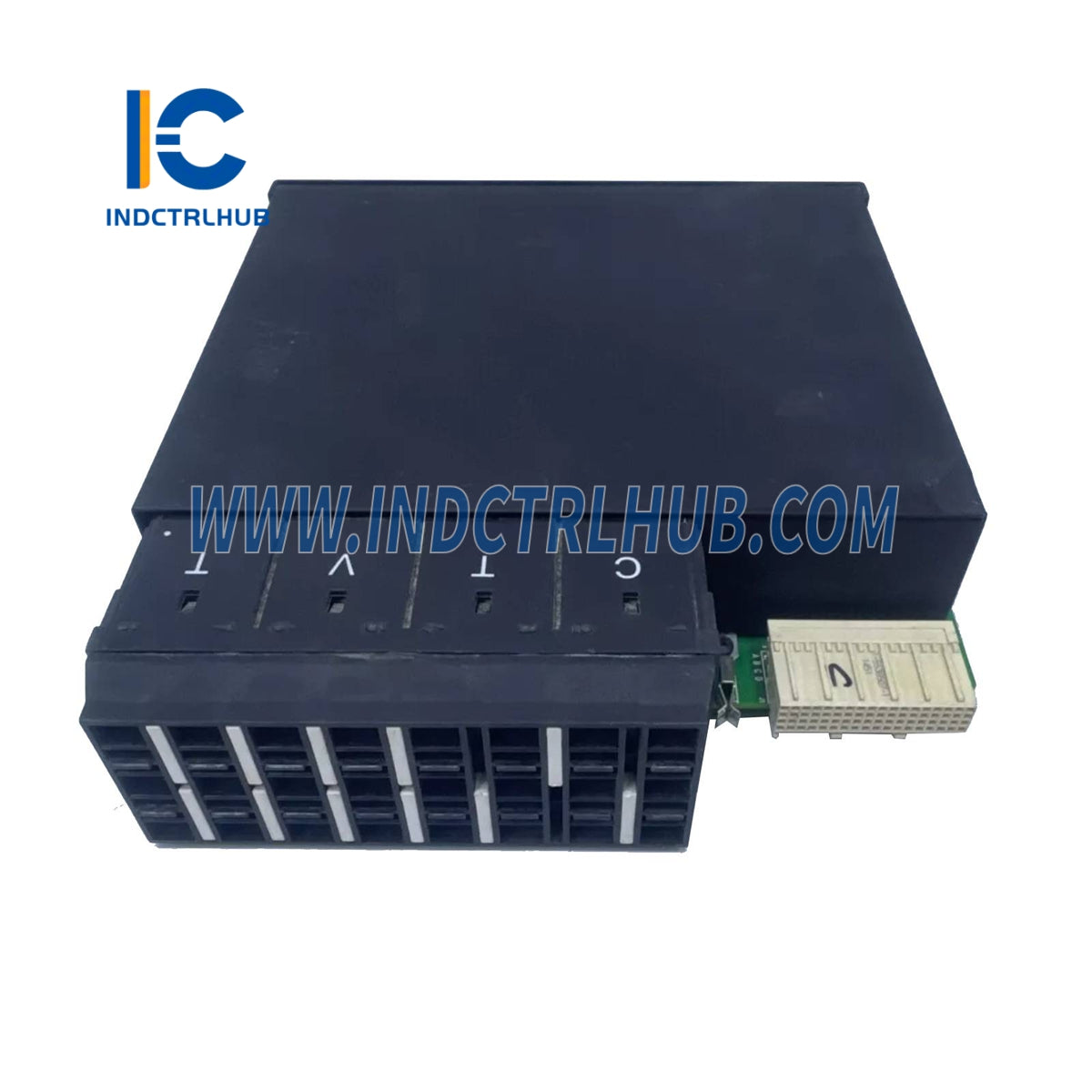

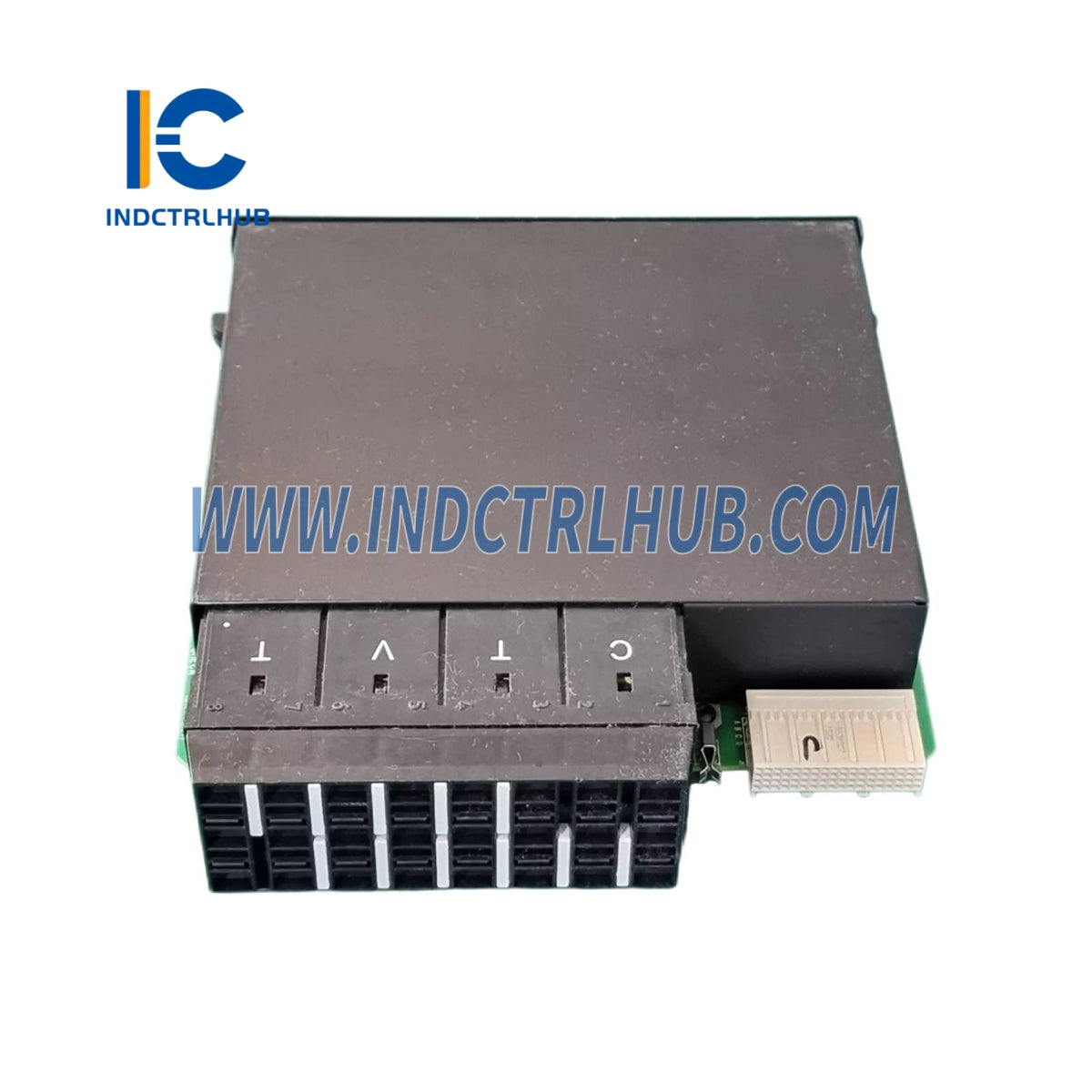

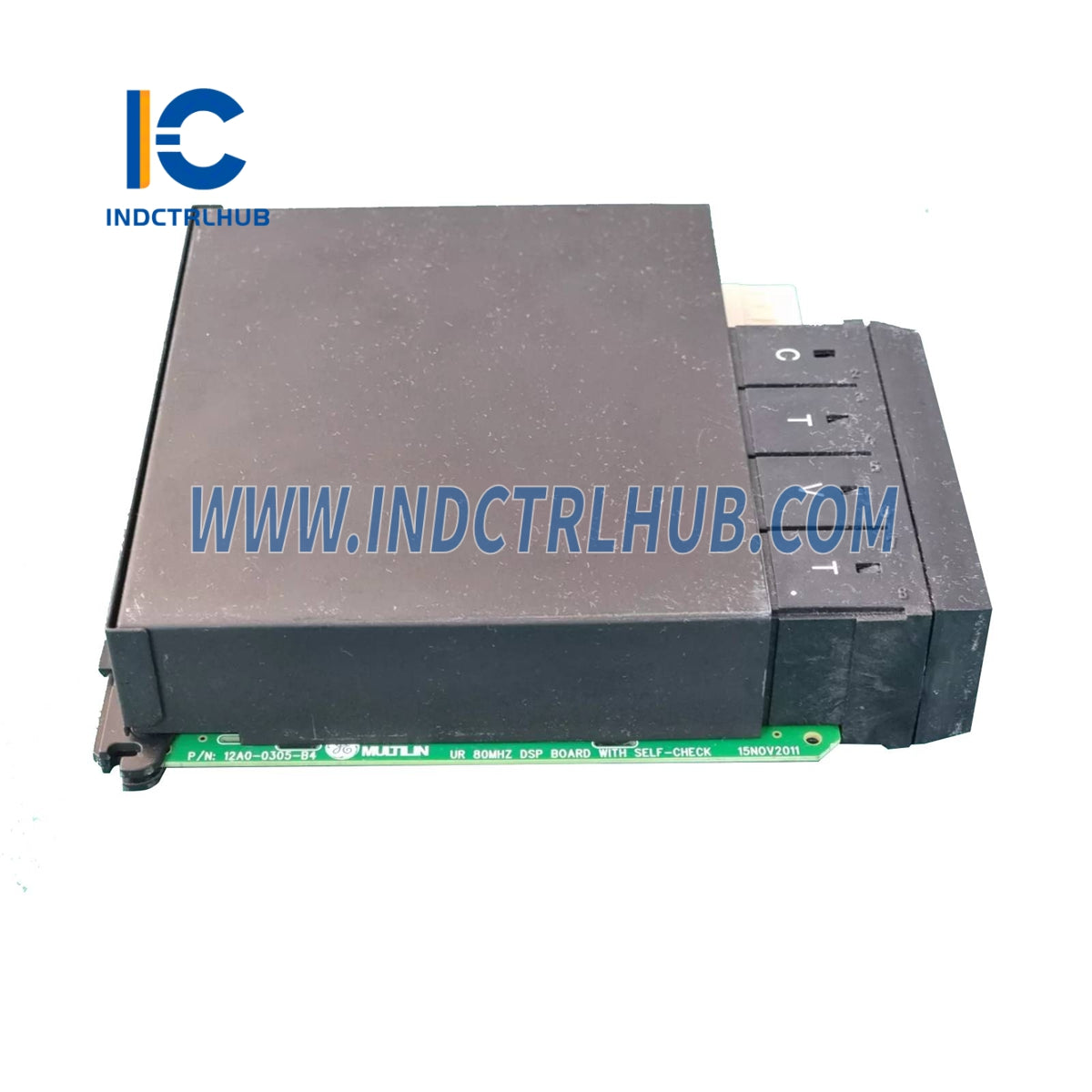

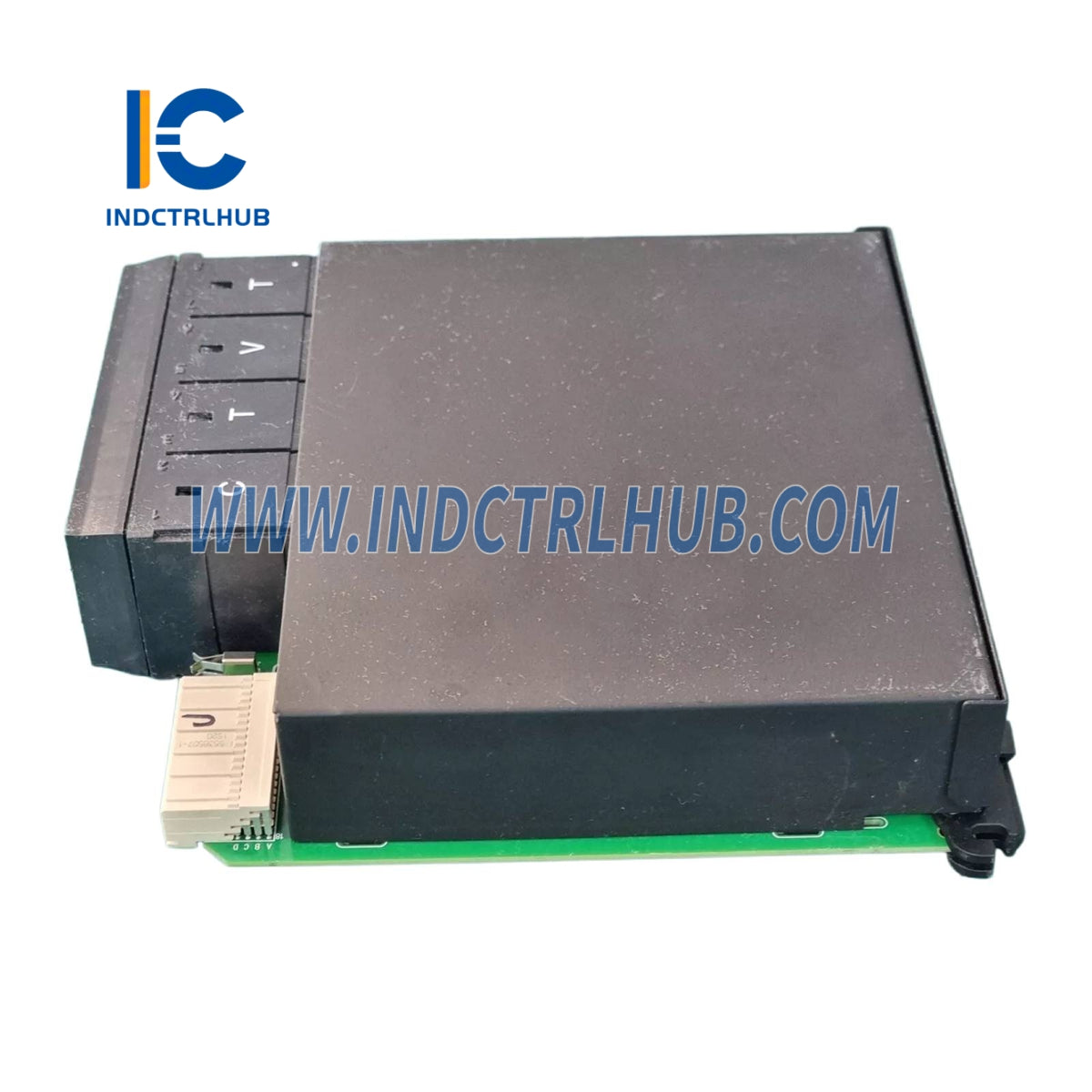

UR8LH |
|
Description |
Digital I/O Module designed for the GE Multilin Universal Relay (UR) Series, providing eight Form-A outputs with optional monitoring for enhanced control and feedback in distributed control systems |
|
Key Features |
8 Form-A outputs, optional voltage/current monitoring, high-speed operation, UR series compatibility, robust design for industrial applications |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
UR8LH |
|
Product Type |
Digital Input/Output Module |
|
Series |
Multilin Universal Relay (UR) |
|
Output Type |
8 Form-A outputs (mechanically latching or non-latching, with optional monitoring) |
|
Contact Rating |
30 A make, 10 A carry at 250 VAC/300 VDC |
|
Activation Speed |
≤ 4 ms |
|
Monitoring |
Optional voltage and current monitoring per output |
|
Operating Temperature |
-40°C to 60°C (-40°F to 140°F) |
|
Weight |
Approx. 0.2 kg (0.44 lbs) |
External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |
Interfaces with UR series relay via internal slot; connects to external power system equipment for control and monitoring |
Functional Features
|
Feature |
Details |
|---|---|
|
Digital Outputs |
8 Form-A outputs for reliable control of external devices |
|
Monitoring Capability |
Optional voltage/current monitoring for feedback and diagnostics |
|
Compatibility |
Designed for UR series relays (e.g., L90, D60, T60) |
|
Installation |
Slot-based, hot-swappable in UR relay chassis |
Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
UR8LH (Digital I/O Module) |
|
Configuration |
8L: 8 Form-A outputs with optional monitoring; H: High-performance variant |
