Product Description

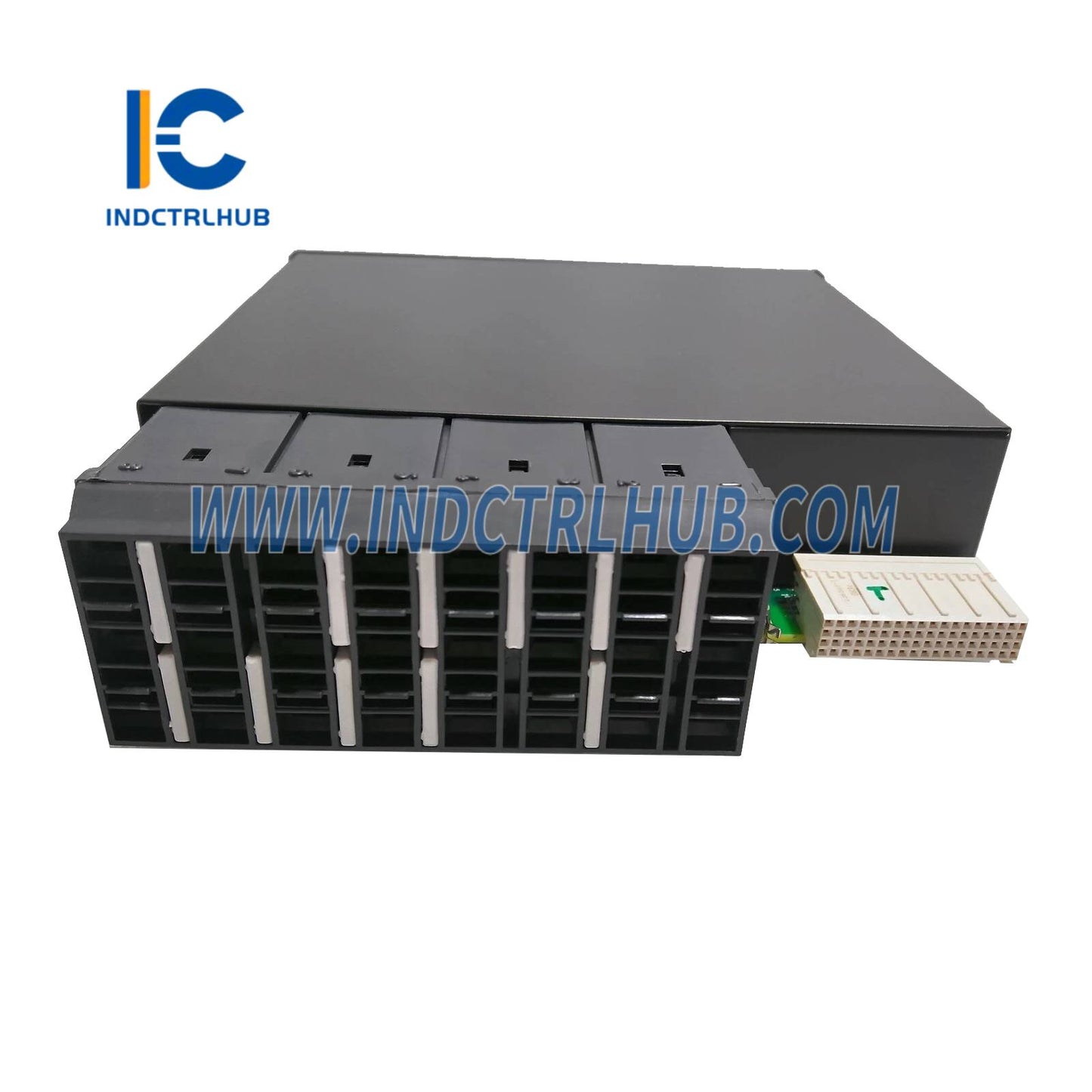

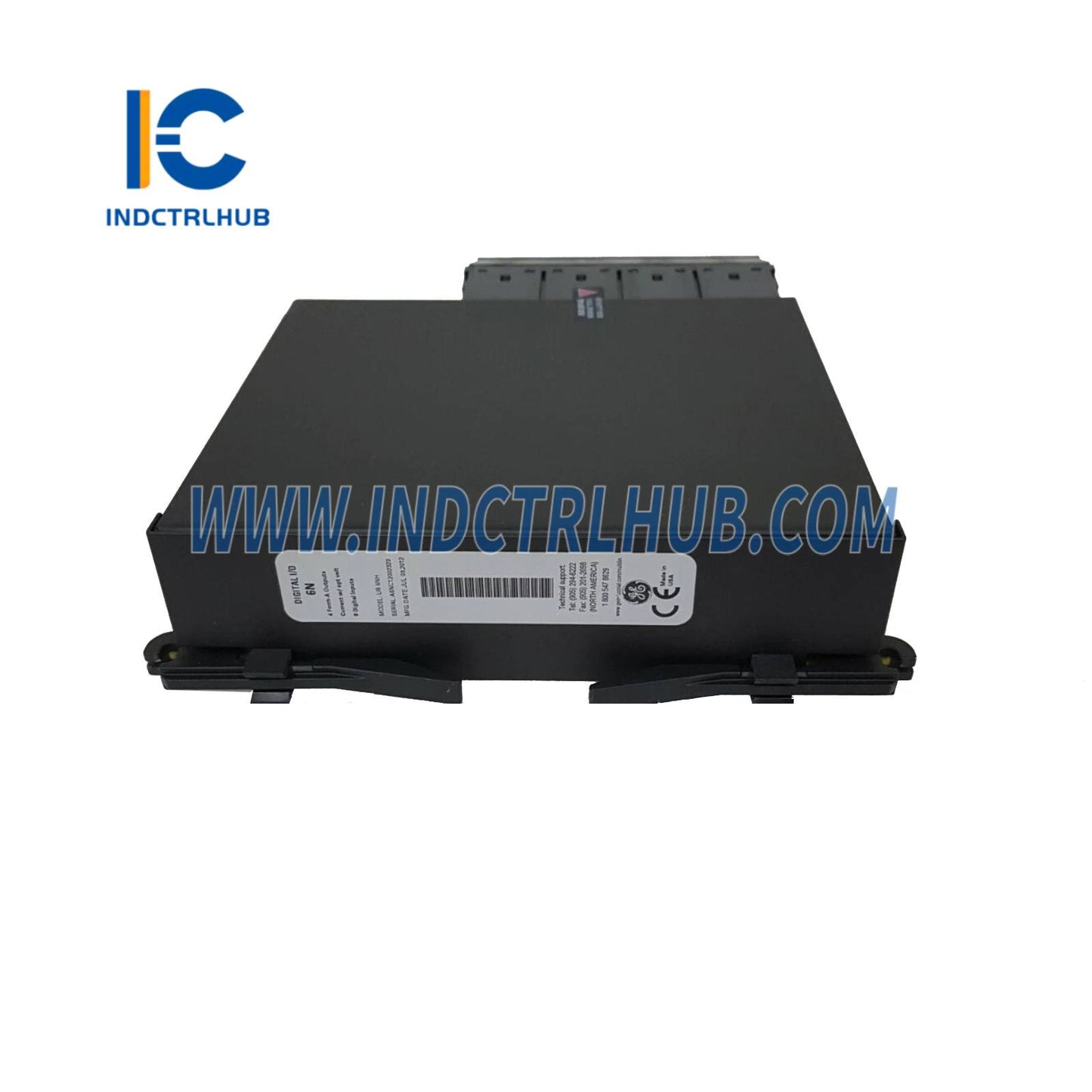

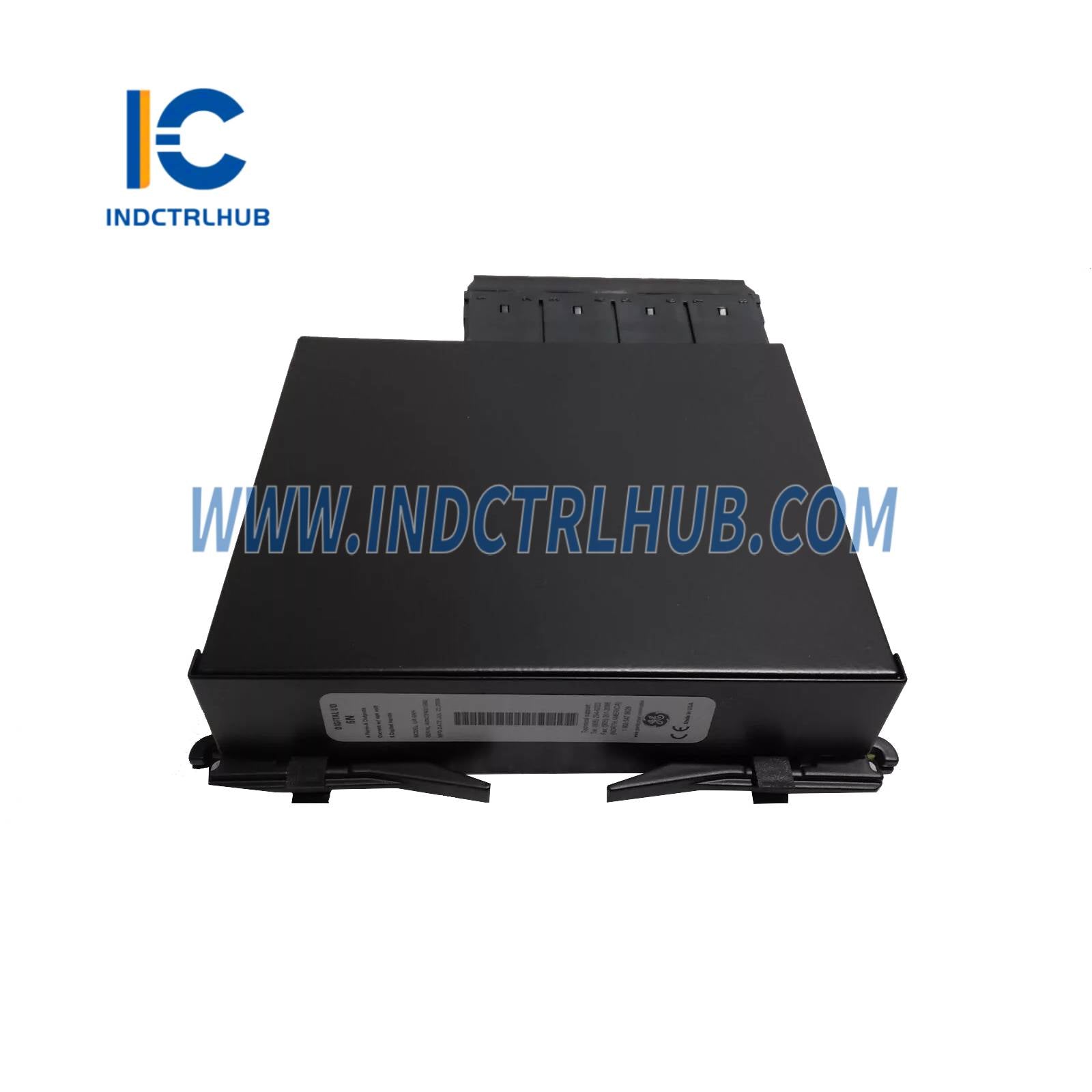

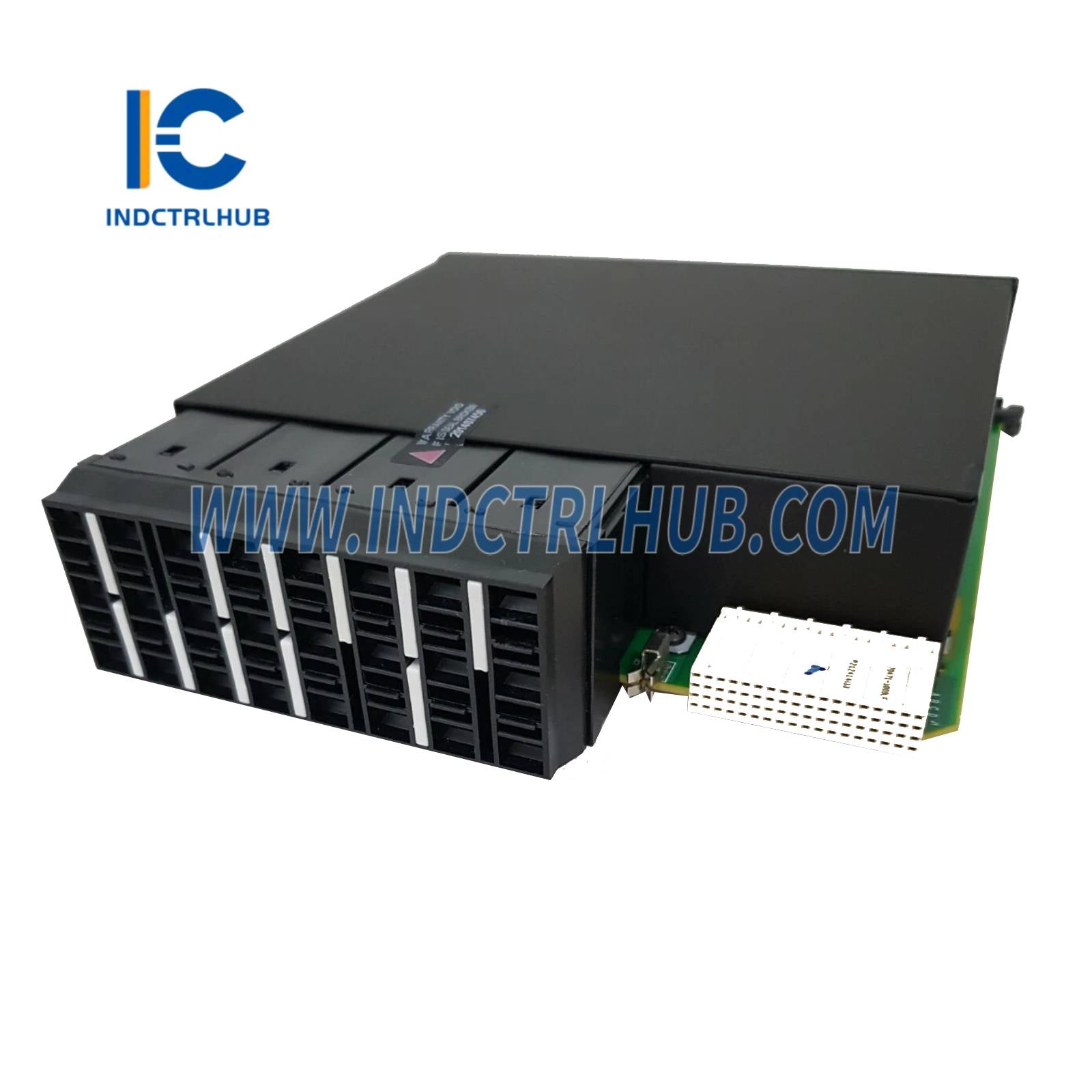

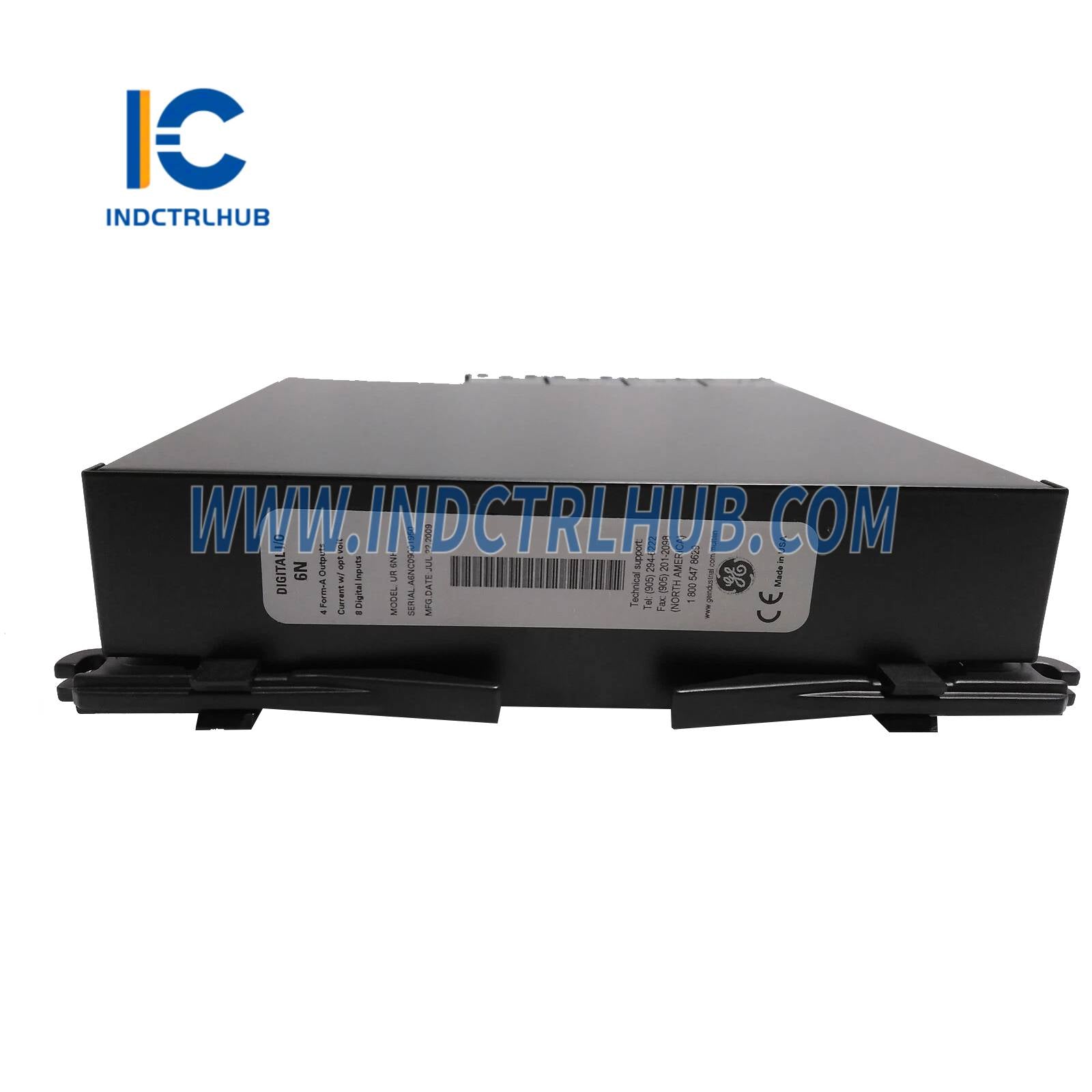

General Electric UR6NH Multilin Universal Relay Digital I/O Module
- Manufacturer: General Electric (now under GE Vernova)
- Series: Multilin Universal Relay (UR)
- Model/Part Number: UR6NH
- Description: Digital Input/Output Module for Multilin Universal Relay series
Overview
The General Electric UR6NH is a Digital Input/Output (I/O) Module from the Multilin Universal Relay (UR) series, manufactured by GE and now managed by GE Vernova. Designed to enhance the connectivity of UR relays, it provides digital inputs and outputs to interface with auxiliary equipment such as fans, valves, alarms, and circuit breakers in power systems. The module is used in industrial and utility applications for protection, control, and monitoring of electrical systems, including transformers, generators, and feeders.
Technical Specifications
| Specification | Details |
|---|---|
| Model | UR6NH |
| Series | Multilin Universal Relay (UR) |
| Type | Digital Input/Output Module |
| Function | Provides digital inputs/outputs for interfacing with auxiliary equipment |

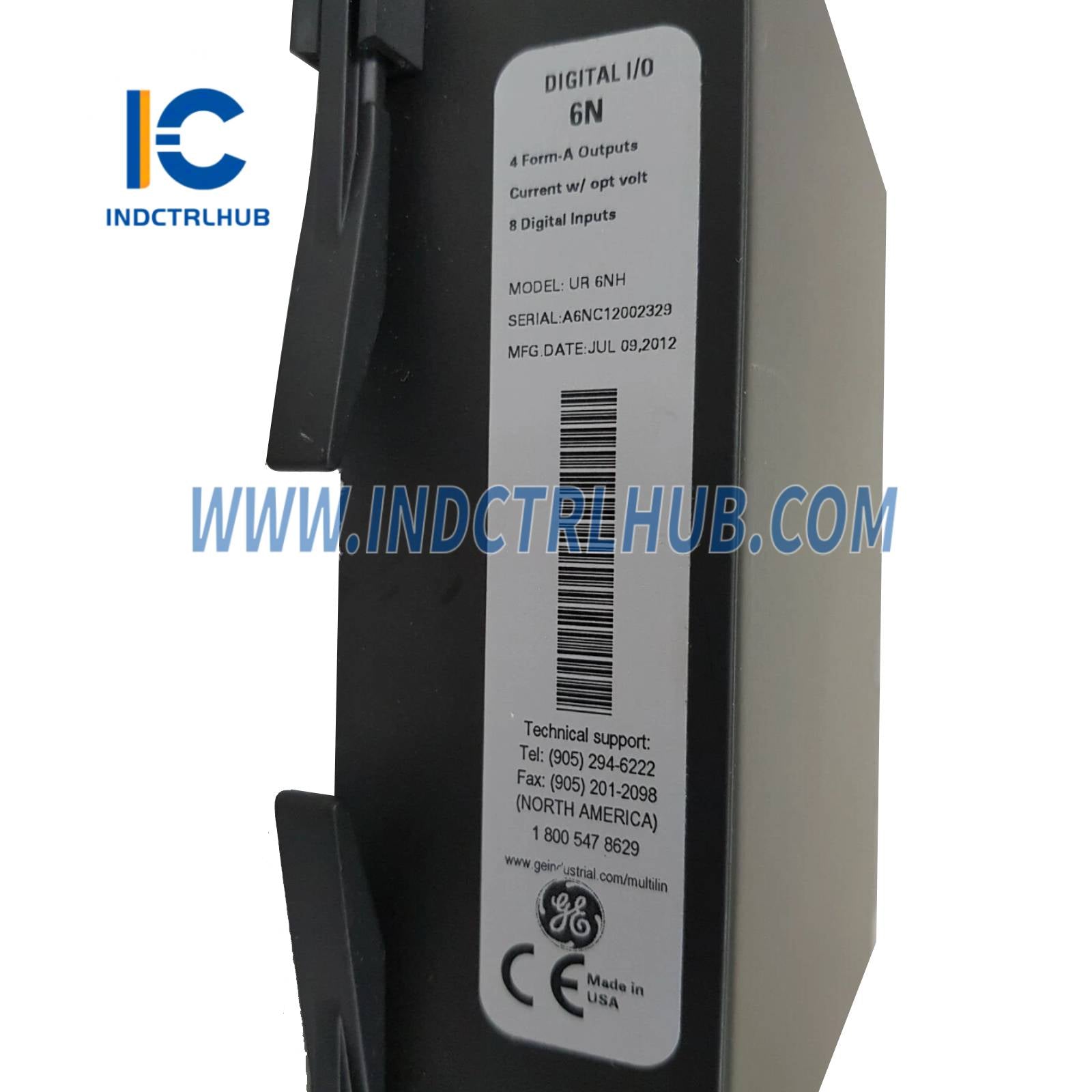

| Digital Inputs | 8 contact inputs (wet or dry, 24–250 VDC) |
| Digital Outputs | 4 Form-A outputs (no monitoring) |
| Contact Types | Form-A (normally open, high-current capability) |
| Output Rating | Up to 10 A at 250 VDC/AC (consult manual for specific ratings) |
| Connectors | Terminal blocks for input/output wiring |
| Compatibility | UR series relays (e.g., T60, G60, B30, C60, L90) |
| Installation | Plug-and-play modular design, slots into UR relay chassis |
| Configuration | Via EnerVista UR software or relay front panel |
| Dimensions | Approx. 15.2 cm x 17.8 cm x 3.8 cm (6 x 7 x 1.5 in) |
| Weight | Approx. 1.13 kg (2.5 lbs) |
| Environmental Protection | Conformal coating optional for harsh environments |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Temperature | -40°C to +80°C (-40°F to +176°F) |
| Relative Humidity | Up to 95% (non-condensing) |
| Certifications | CE, UL, CSA, IEC |
| Manual | GEK-113000 (UR Series Manual) |
