Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
General Electric (GE Multilin) |
|
Model/Part Number |
UR4LH |
|
Description |

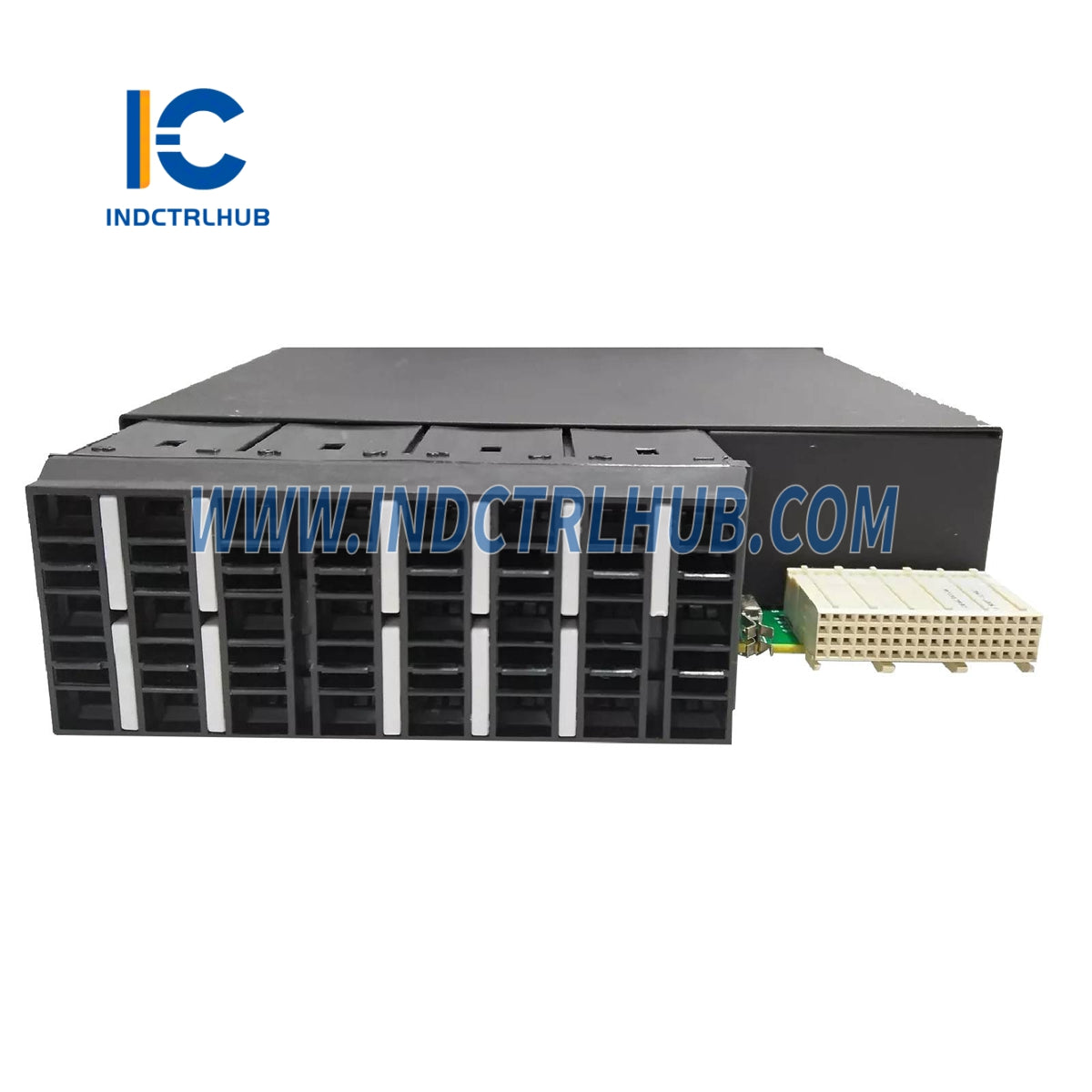

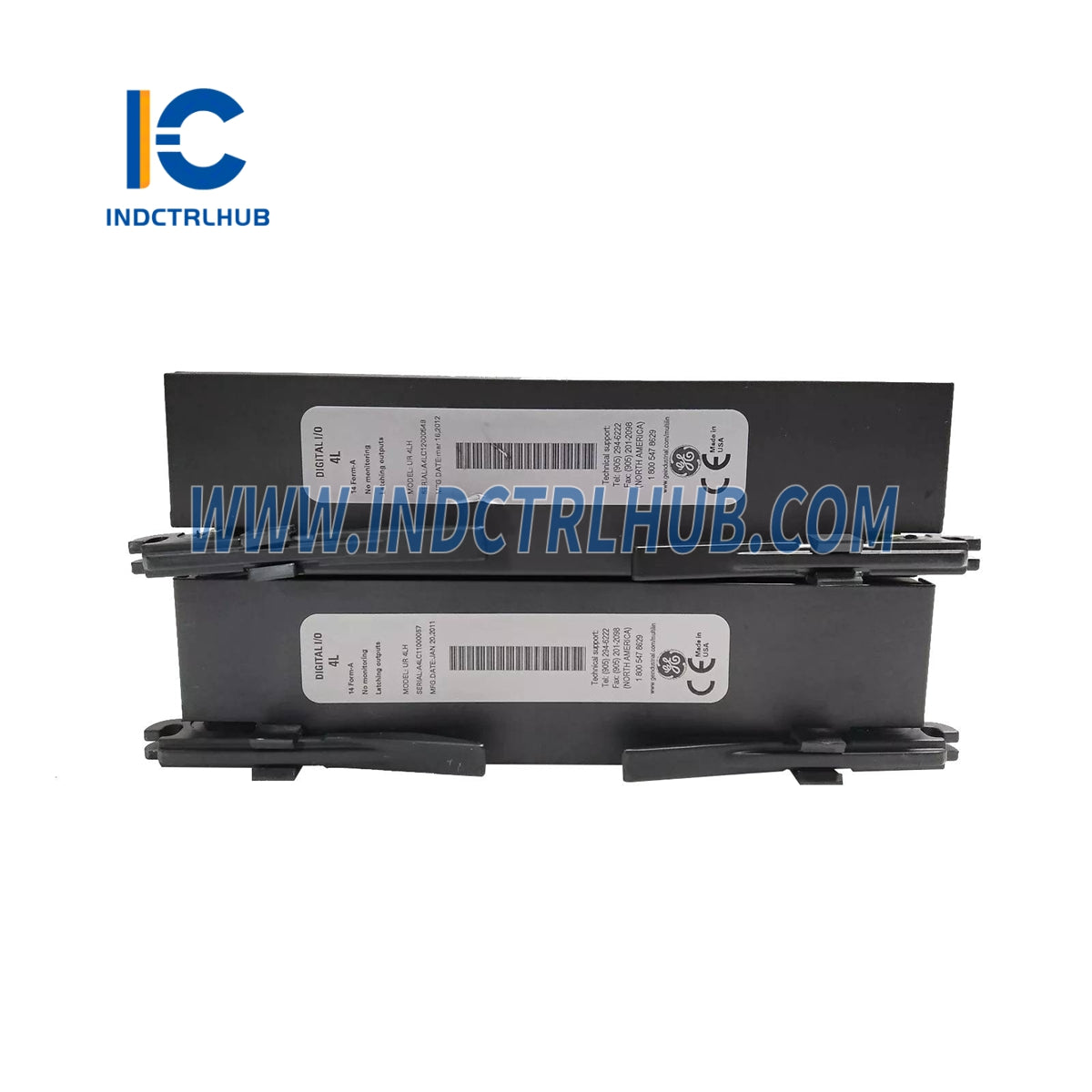

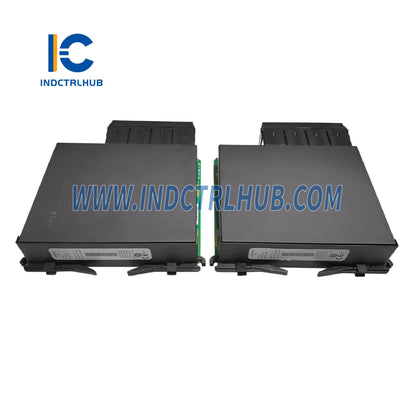

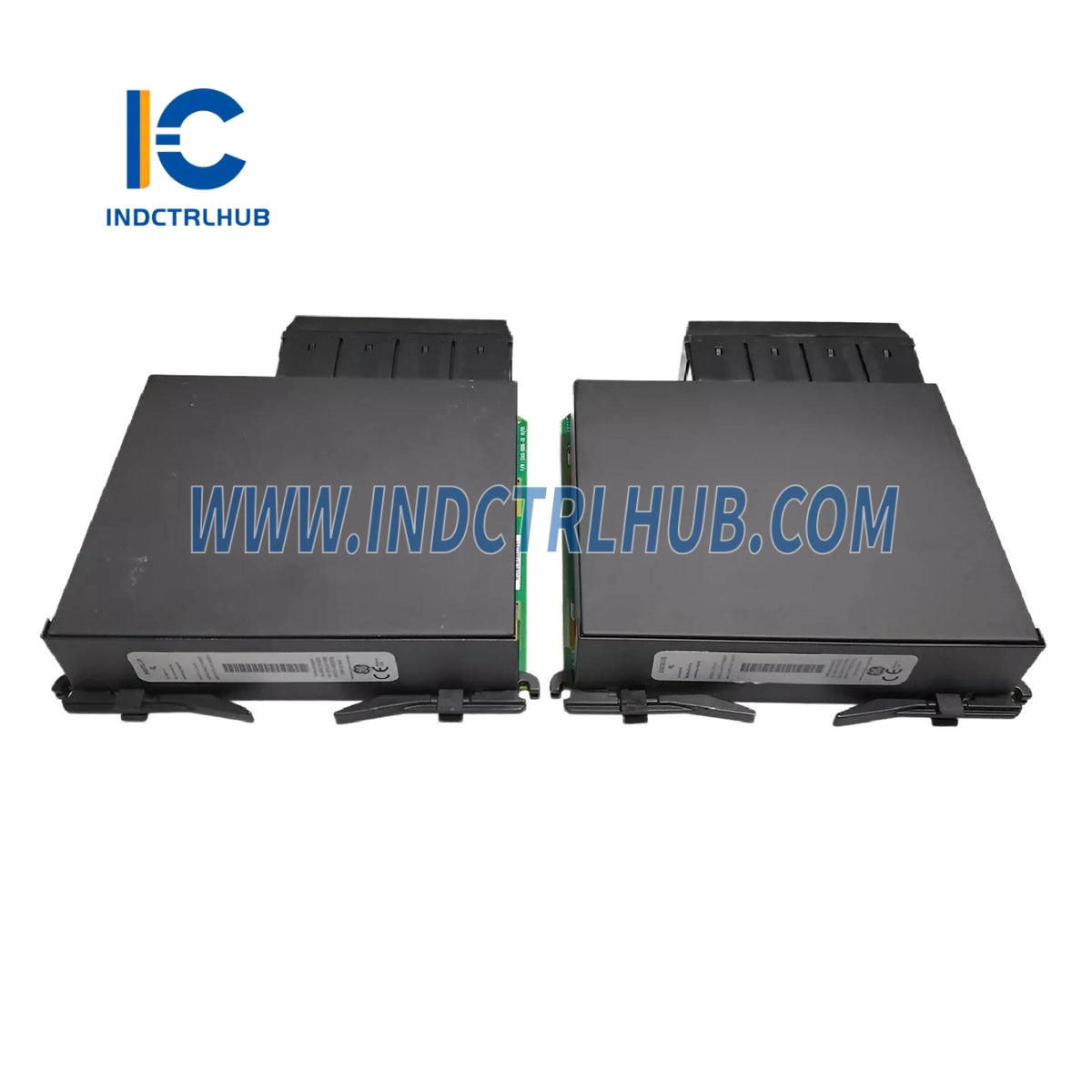

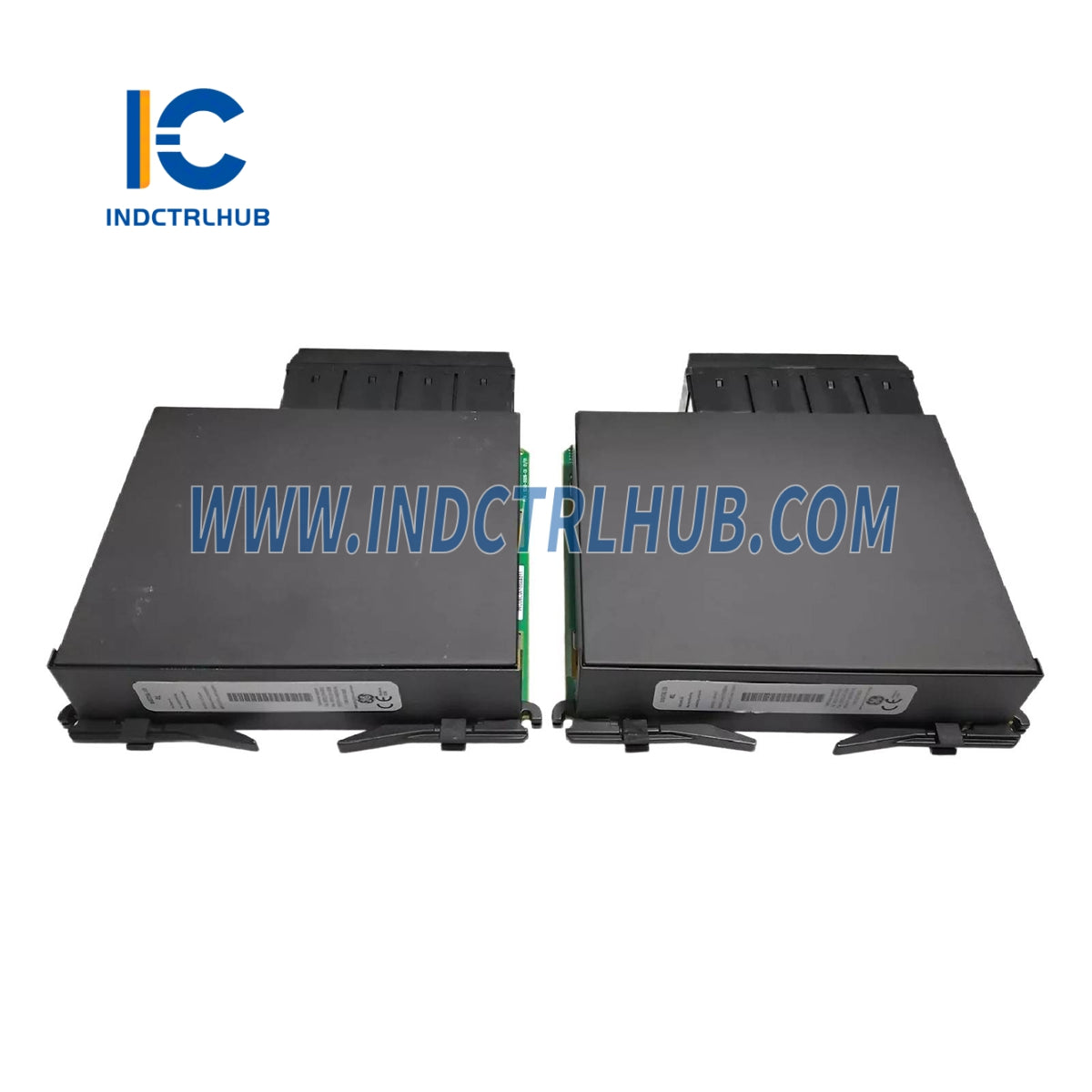

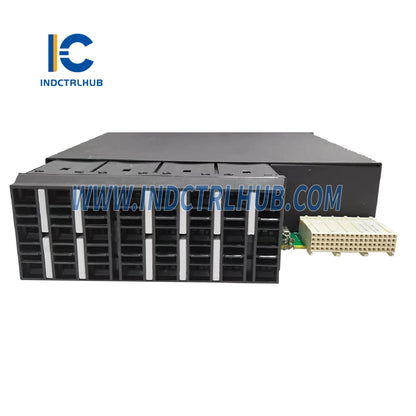

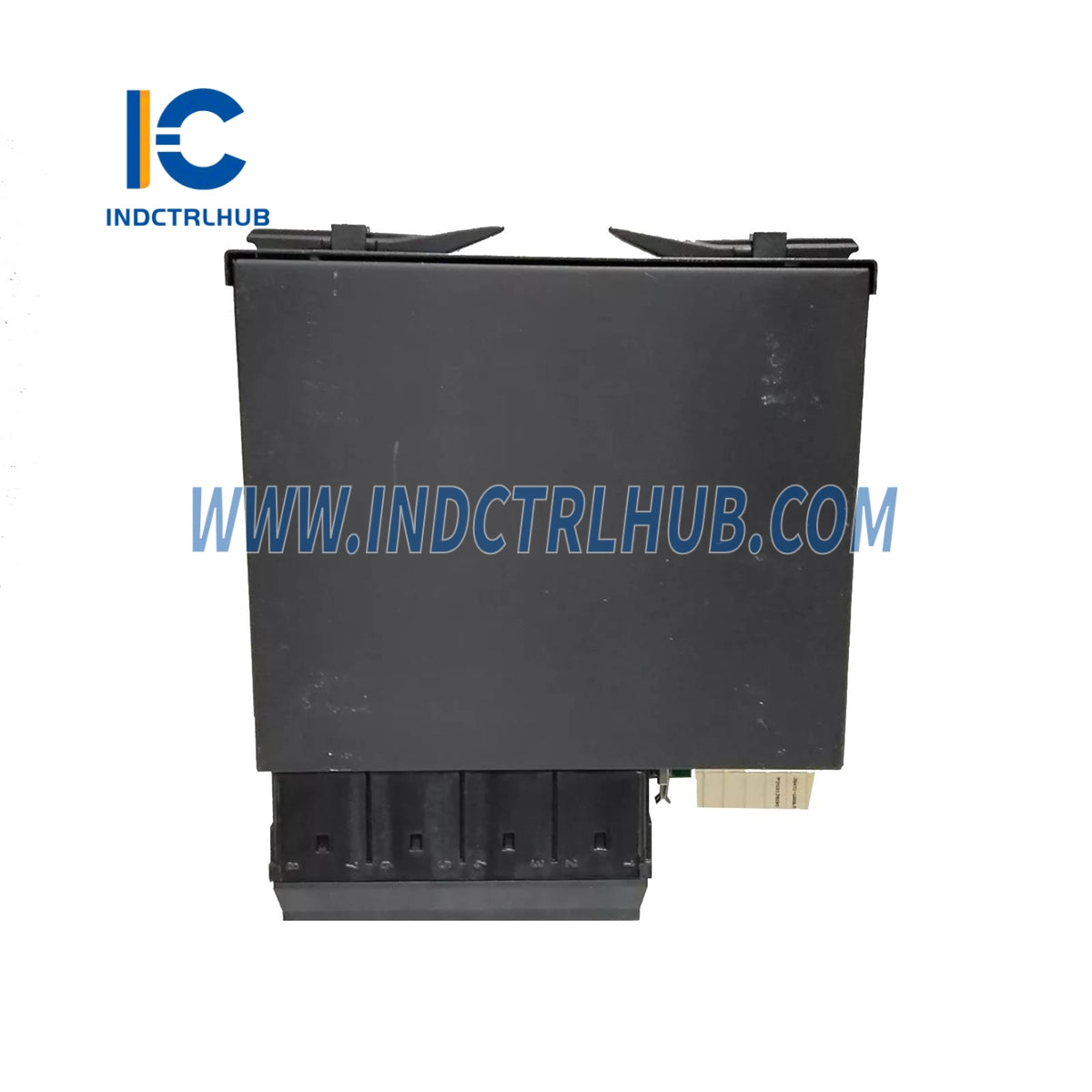

Digital I/O Module designed for the GE Multilin Universal Relay (UR) Series, providing 14 latchable Form-A outputs for interfacing with power system equipment in distributed control systems |
|
Key Features |
14 Form-A latchable outputs, high power operation, no monitoring capabilities, fast activation (4 ms), UR series compatibility |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
UR4LH |
|
Product Type |
Digital Input/Output Module |
|
Series |
Multilin Universal Relay (UR) |
|
Output Type |
14 Form-A latchable outputs (no monitoring) |
|
Power Rating |
High power |
|
Activation Speed |
≤ 4 ms (wet or dry contacts) |
|
Operating Temperature |
-40°C to 60°C (-40°F to 140°F) |
|
Weight |
Approx. 0.2 kg (0.44 lbs) |
External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |
Interfaces with UR series relay via internal slot; connects to external power system equipment |
Functional Features
|
Feature |
Details |
|---|---|
|
Digital Outputs |
14 latchable Form-A outputs for secure interlocking applications |
|
Compatibility |
Designed for UR series relays (e.g., L90, D60, T60) |
|
Installation |
Slot-based, hot-swappable in UR relay chassis |
|
Cost Efficiency |
Reduces need for auxiliary relays or mechanical switches |
Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
UR4LH (Digital I/O Module) |
|
Configuration |

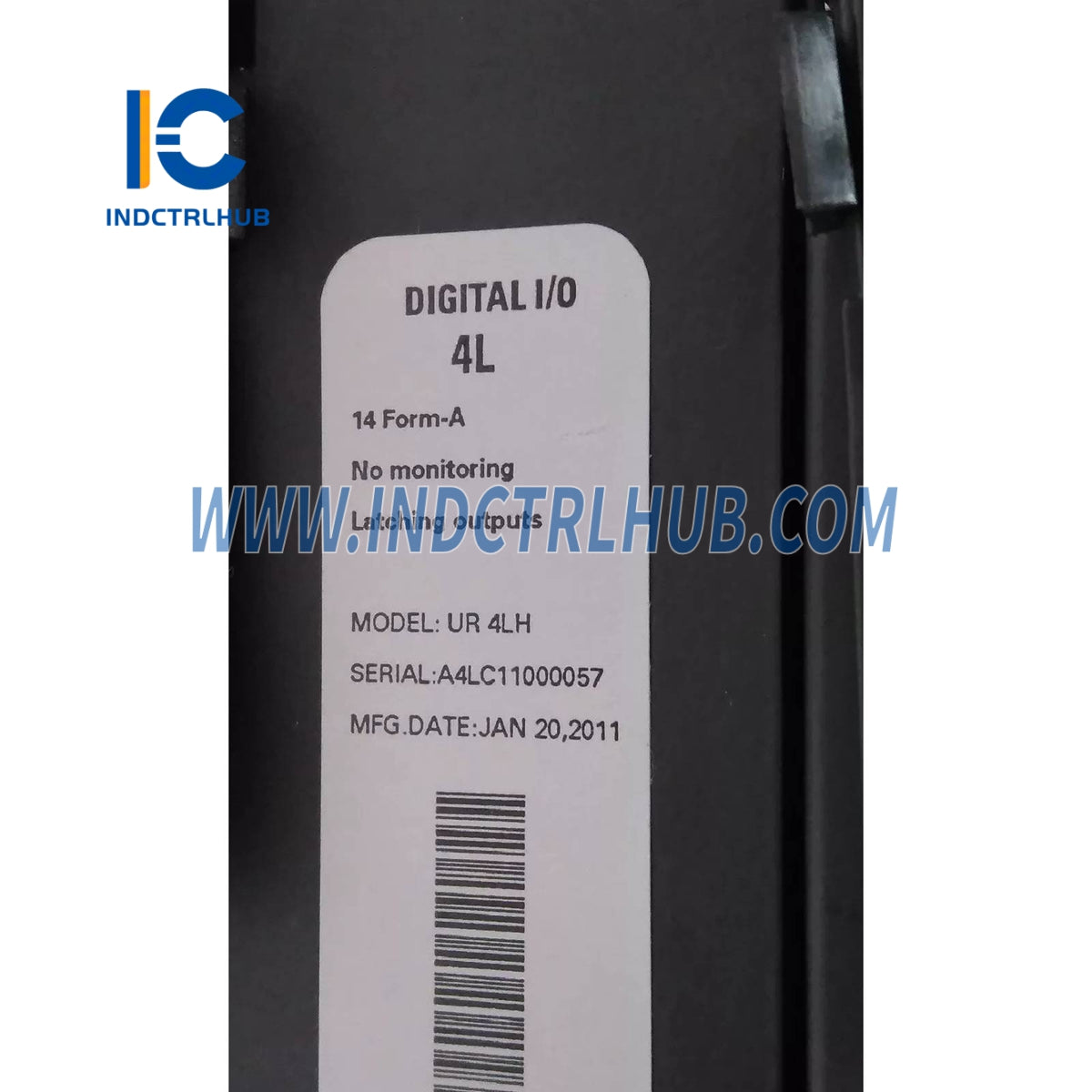

4L: 14 Form-A latchable outputs, high power, no monitoring |
