Product Description

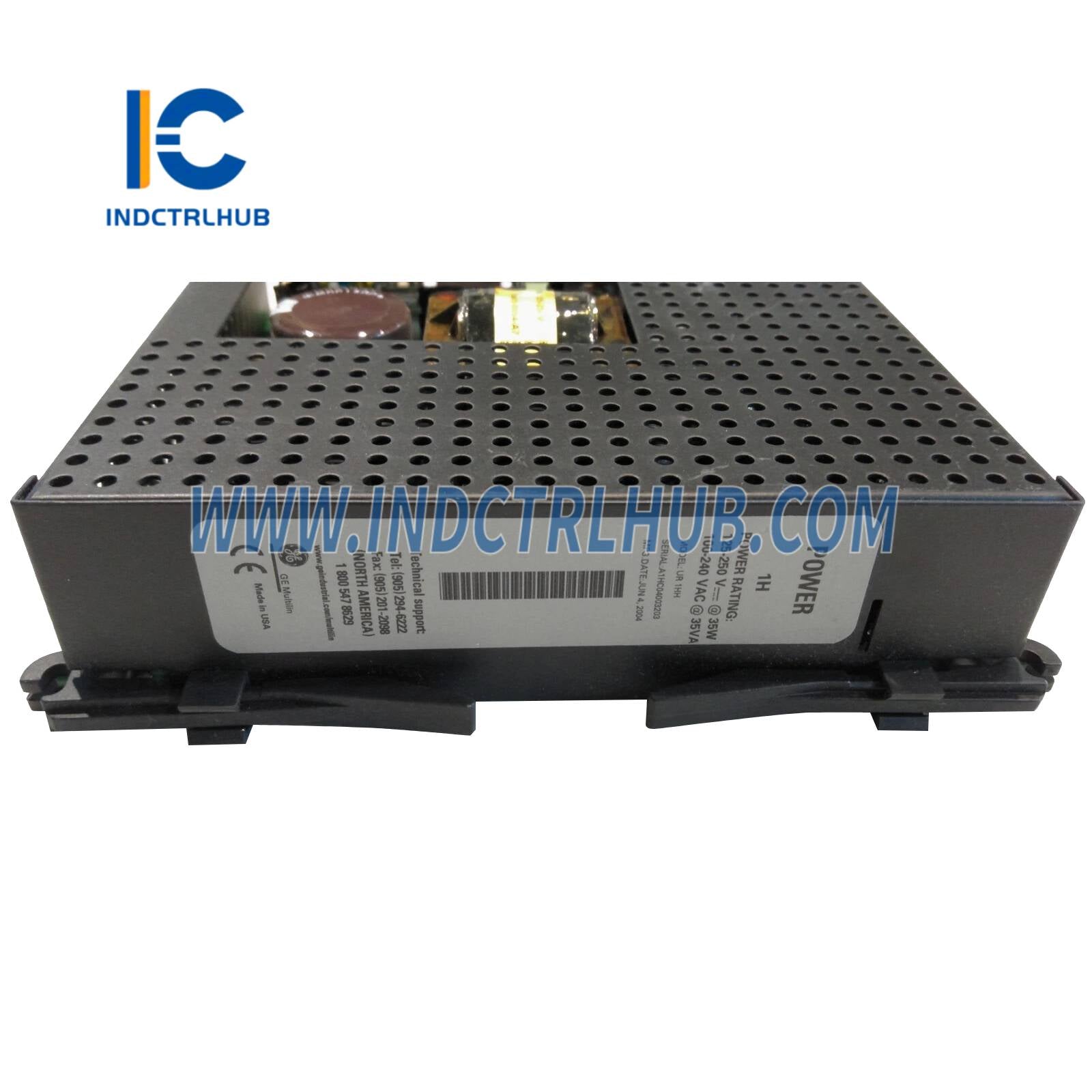

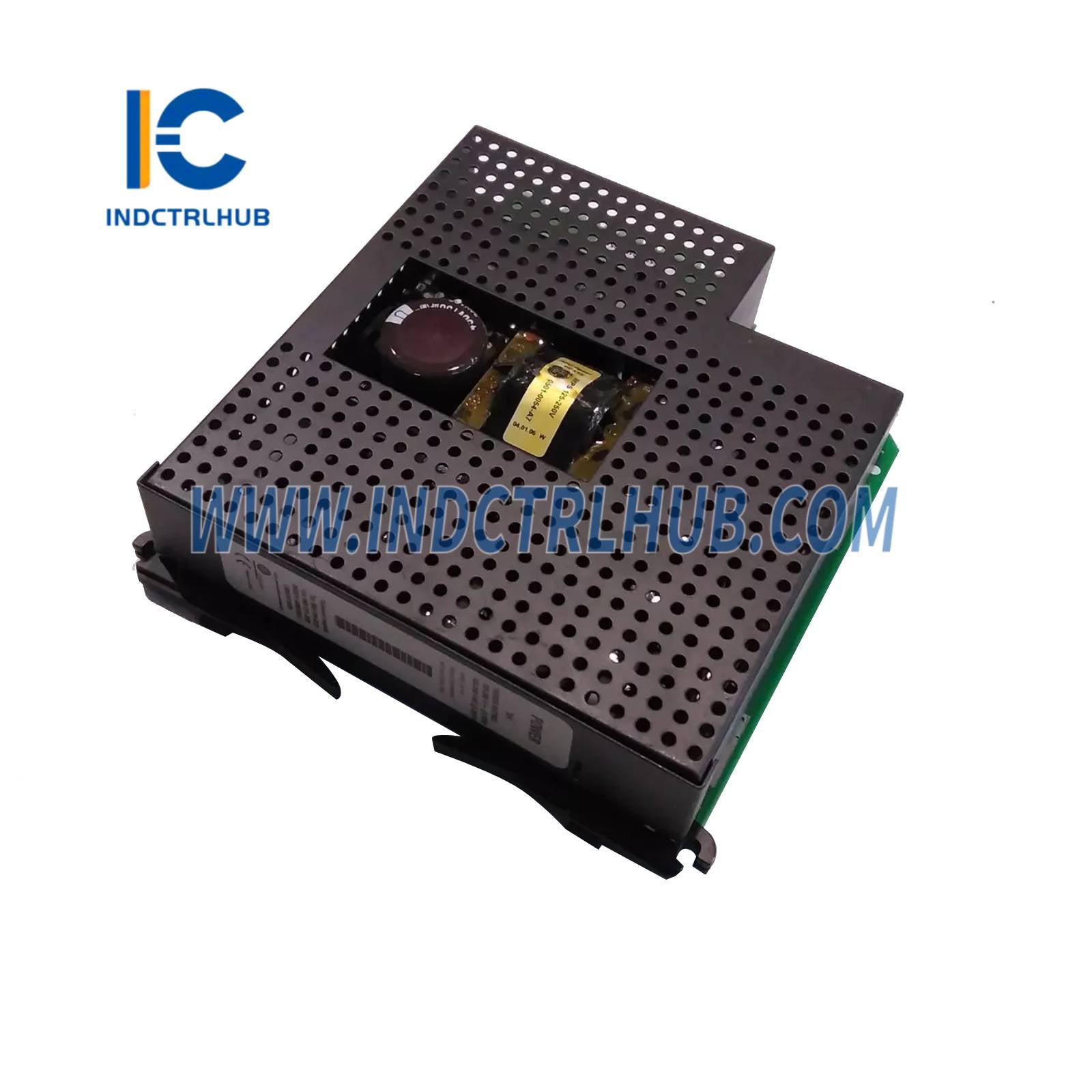

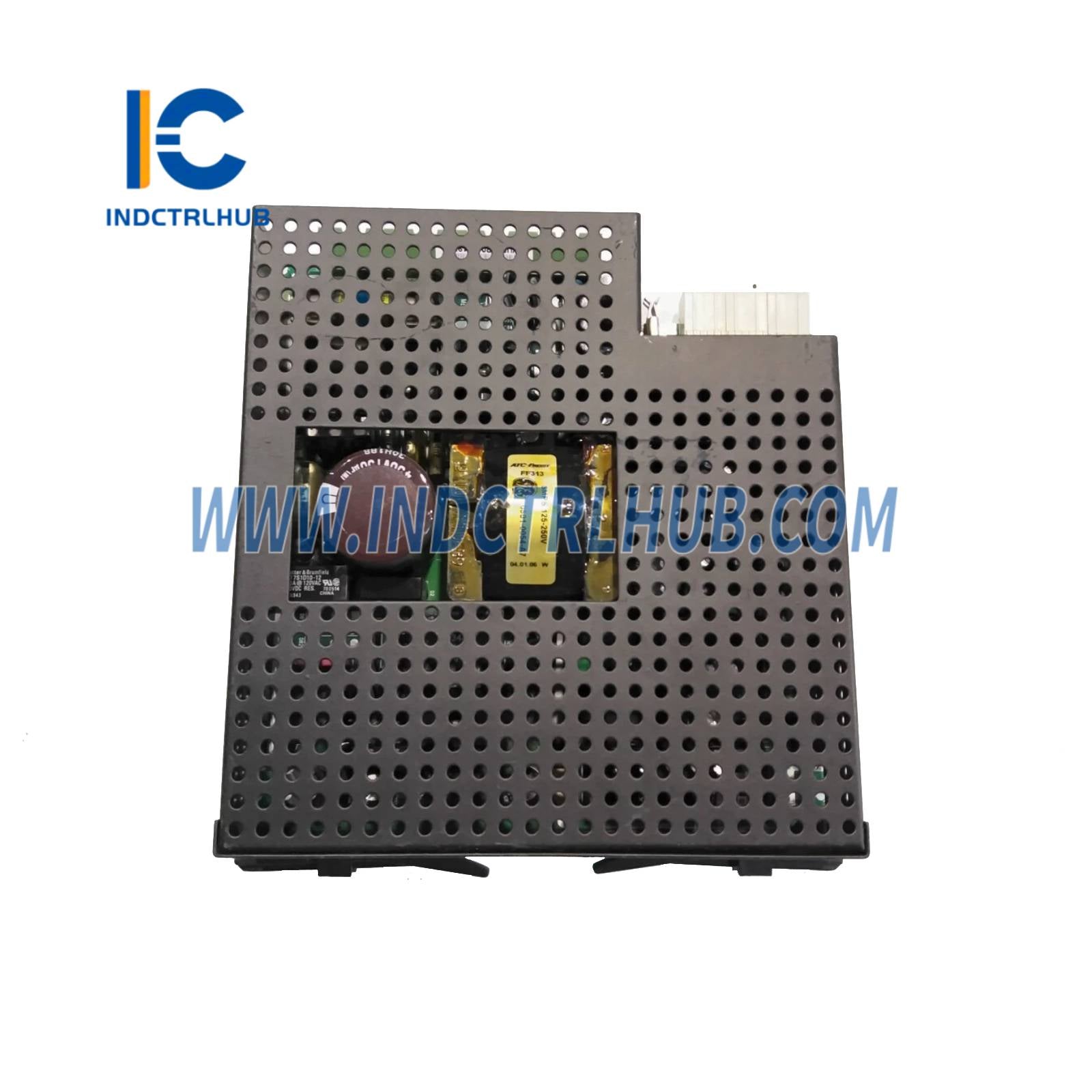

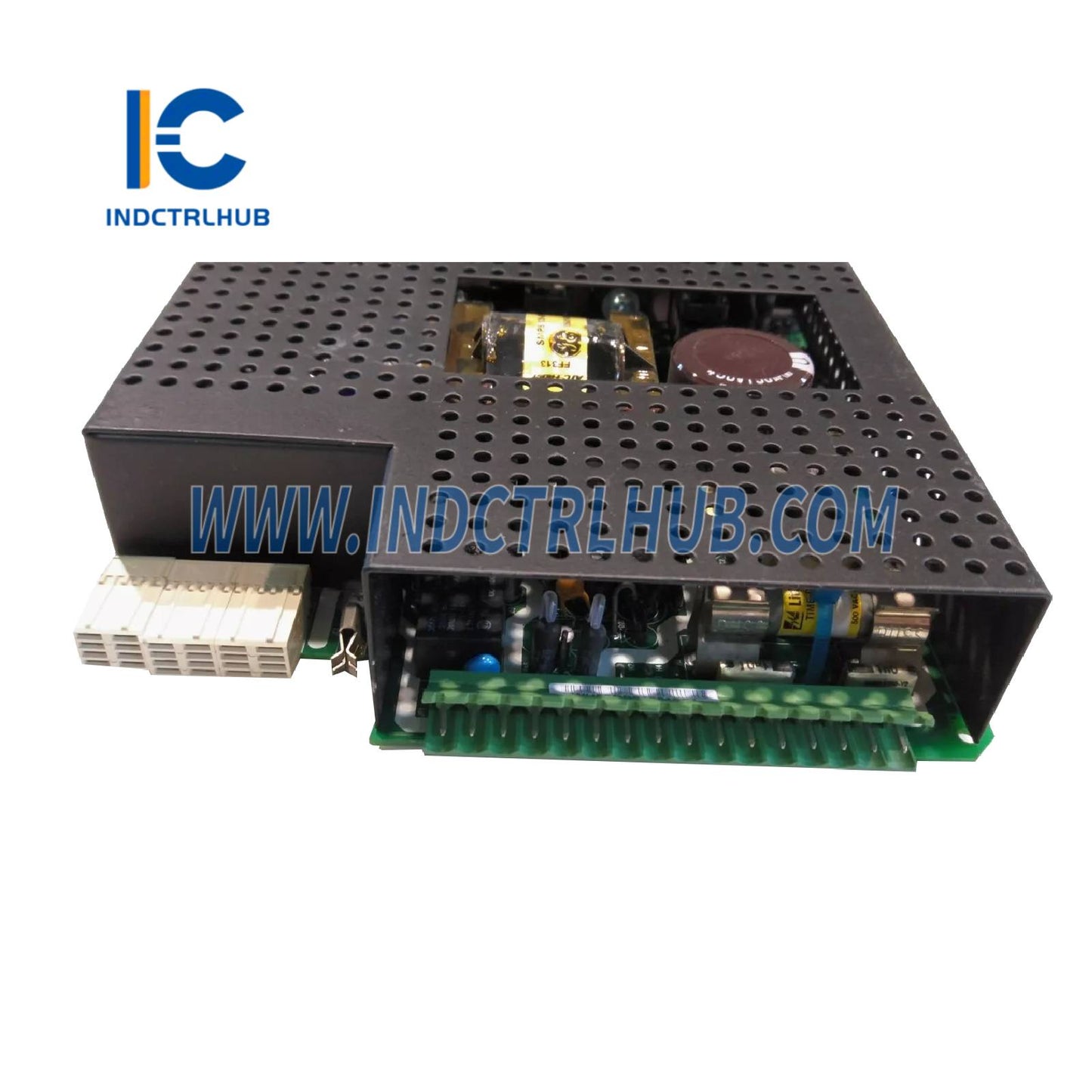

General Electric UR1HH Multilin Universal Relay Power Supply Module
Product Overview
- Description: The General Electric UR1HH is a power supply module designed for use in GE’s Multilin Universal Relay (UR) series, such as the T60, L90, or D60 relays.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Multilin Universal Relay (UR) |
| Model/Part Number | UR1HH |
| Model Type | Power Supply Module |
| Function | Provides power to Multilin UR series relay components |
| Display | LED indicator (power status) |
| Inputs | 125–250 VDC or 100–240 VAC (high voltage input) |
| Outputs | Regulated DC voltages (e.g., 5 VDC, 24 VDC for relay operation) |
| Communication Interfaces | Not applicable (interfaces via relay backplane) |
| Signal Conditioning | Internal voltage regulation, overcurrent/overvoltage protection |
| Accuracy | ±5% voltage regulation (typical) |
| Redundancy | Supports redundant power supply configurations in UR relays |
| Diagnostics | LED status indicator, fault reporting via relay diagnostics |
| Compatibility | Multilin UR series relays (e.g., T60, L90, D60, F60) |
| Power Supply | 125–250 VDC or 100–240 VAC (input) |
| Power Consumption | 15 W typical, 25 W max (depending on relay load) |
| Environmental Specifications | Operating Temperature: -40°C to +60°C Storage Temperature: -40°C to +80°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP40 (when installed in relay chassis) |
| Dimensions | Approx. 100 mm (H) x 50 mm (W) x 150 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Multilin UR relay chassis |
| Certifications | CE, UL, cULus, IEC 60255 |
