Product Description

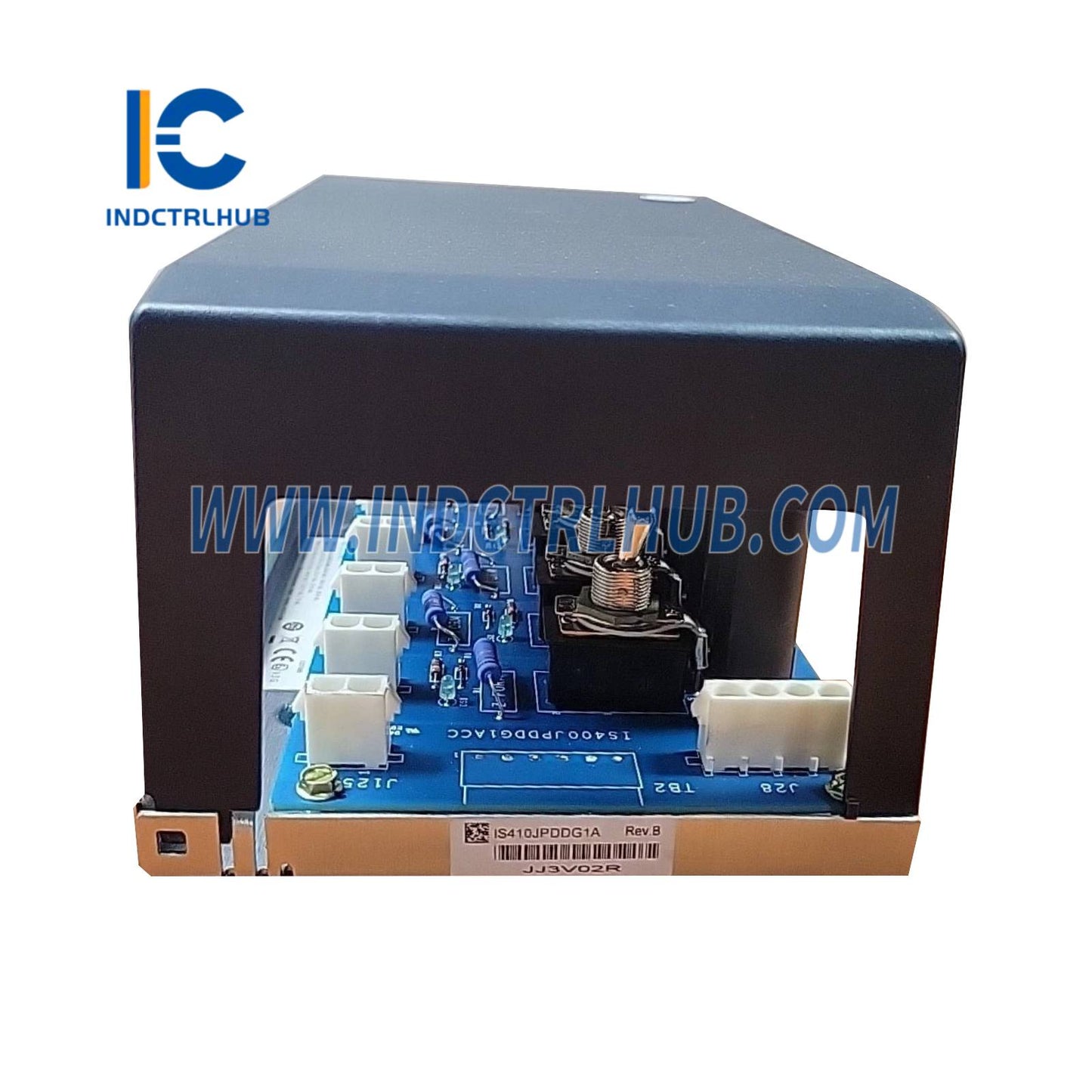

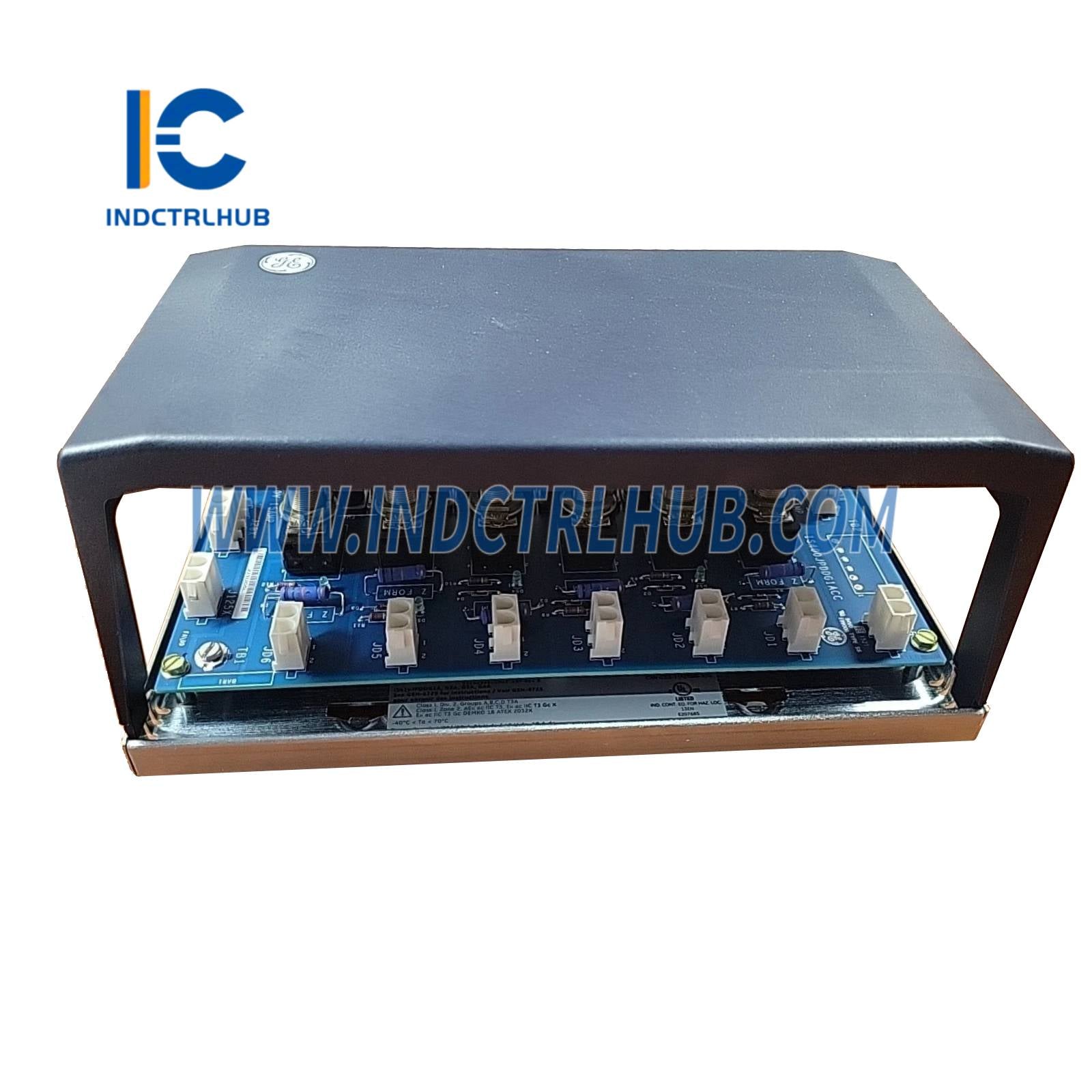

General Electric IS410JPDDG1A Mark VIe DC Power Distribution Board
- Manufacturer: General Electric (now under GE Vernova)
- Series: Mark VIe Speedtronic
- Model/Part Number: IS410JPDDG1A
- Description: DC Power Distribution Board for turbine control in Mark VIe Speedtronic systems
Overview
The General Electric IS410JPDDG1A is a DC Power Distribution Board from the Mark VIe Speedtronic series, manufactured by GE and now managed by GE Vernova. Designed for industrial automation, it distributes various DC power supplies within turbine control systems, supporting gas, steam, and wind turbines. It facilitates reliable power delivery for control and wetting functions and is used in power generation, oil and gas, and renewable energy applications to ensure stable system operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IS410JPDDG1A |
| Series | Mark VIe Speedtronic |
| Type | DC Power Distribution Board (JPDD) |
| Function | Distributes 28 VDC for control, 48 VDC/24 VDC for wetting power |
| Power Outputs | 28 VDC (control), 48 VDC/24 VDC (wetting), monitors 2 AC distribution channels |
| Input Voltage | 18–30 VDC |
| Output Current | Up to 10 A continuous, 15 A peak |
| Connectors | Terminal blocks for power distribution, multi-pin for feedback |
| Communication | Voltage feedback via PPDA module for ground fault detection |
| Protection Features | Short circuit, overload, reverse polarity protection |
| Grounding | Floating DC wetting power bus, centered via resistors |
| Components | Surface-mount technology, resistors, capacitors, diodes, integrated circuits |
| Board Size | 16.51 cm high x 17.8 cm wide (6.5 x 7.0 in) |
| Coating | Conformal coating for environmental protection |

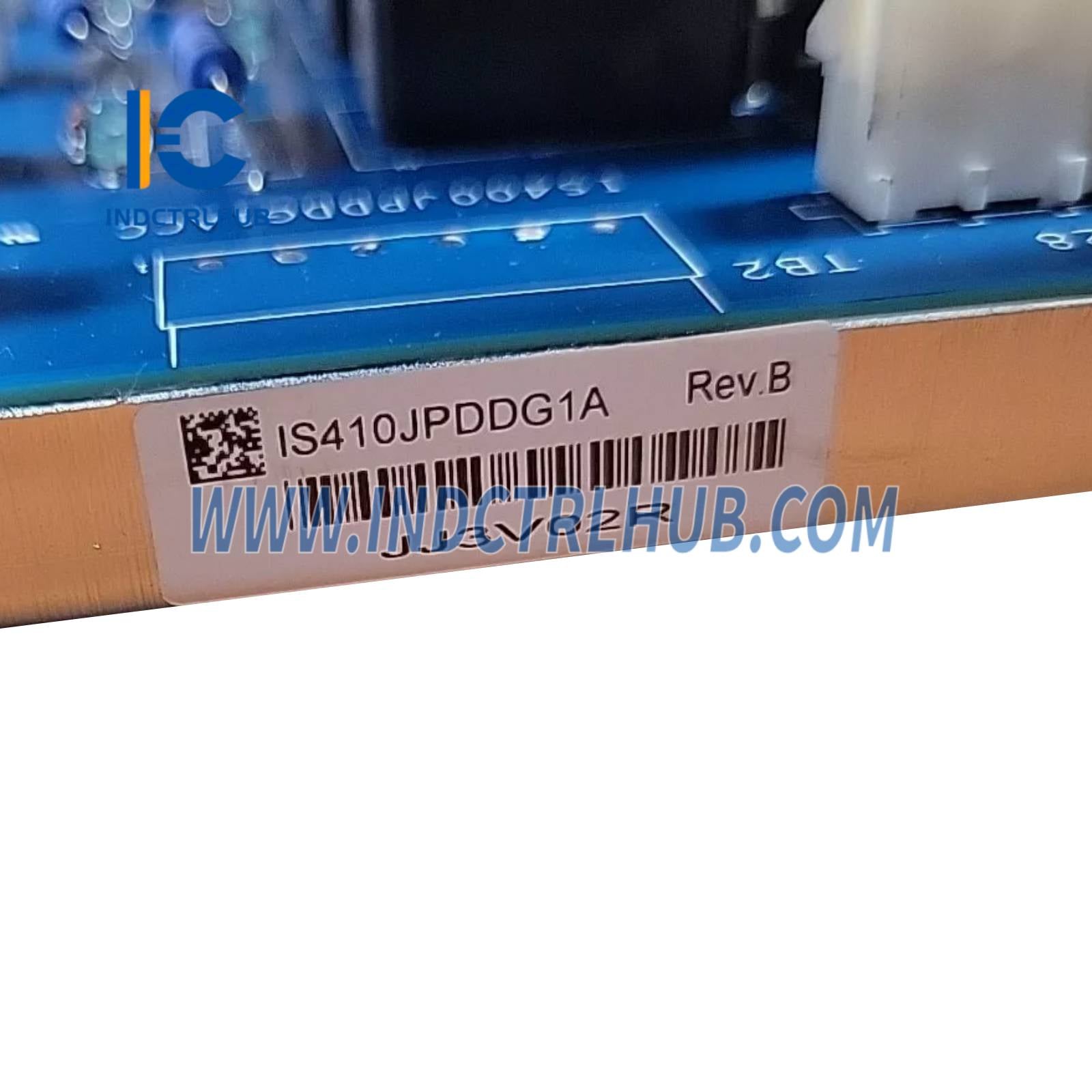

| Board Markings | GE logo, IS410JPDDG1A, 6BA01 code |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Weight | Approx. 0.6 kg (1.32 lbs) |
| Mounting | DIN-rail mountable |
| Certifications | CE, UL, CSA, Class I Div 2 |
| Compatibility | Mark VIe/Mark VIeS Turbine Control System, ToolboxST software |
| Manual | GEH-6721L |
