Product Description

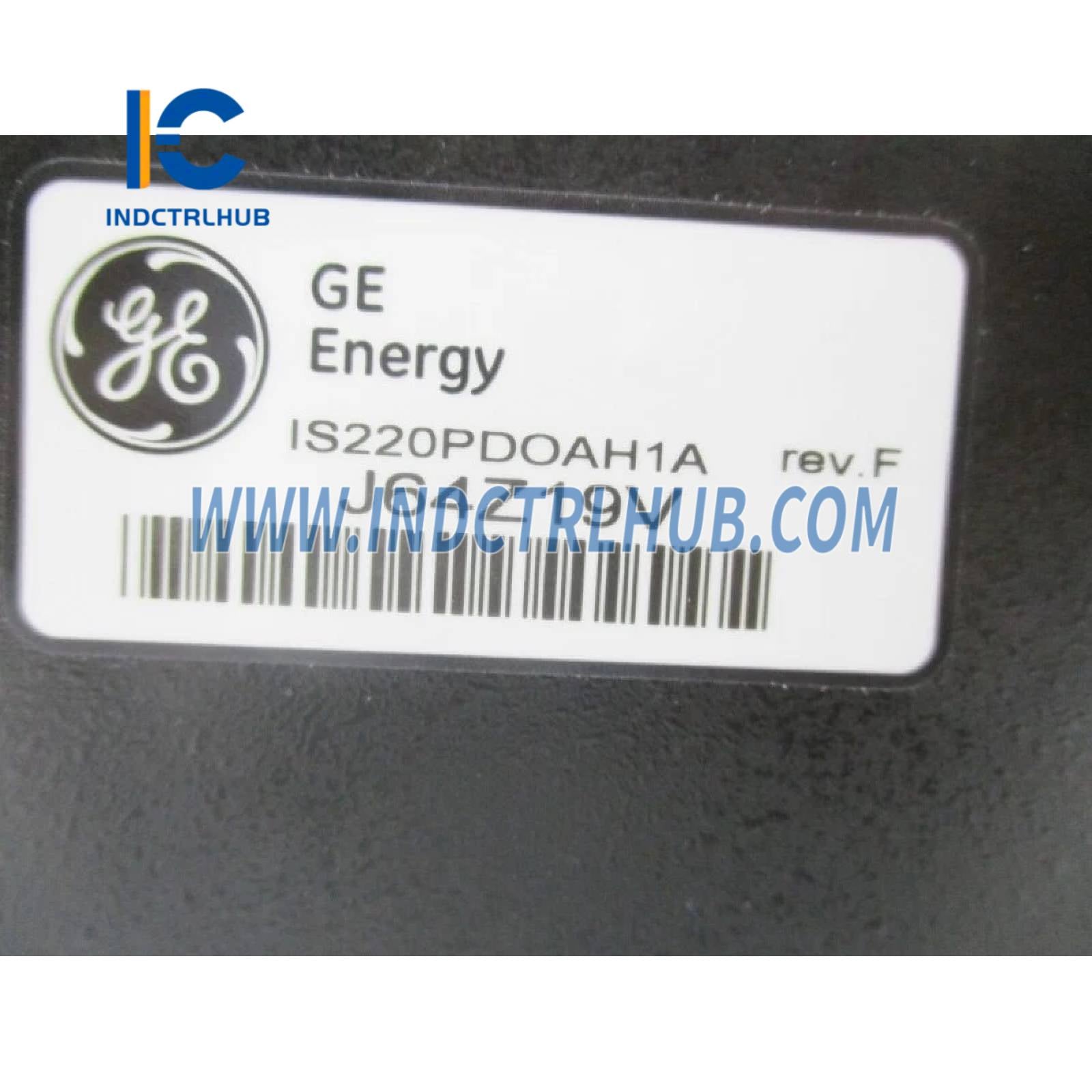

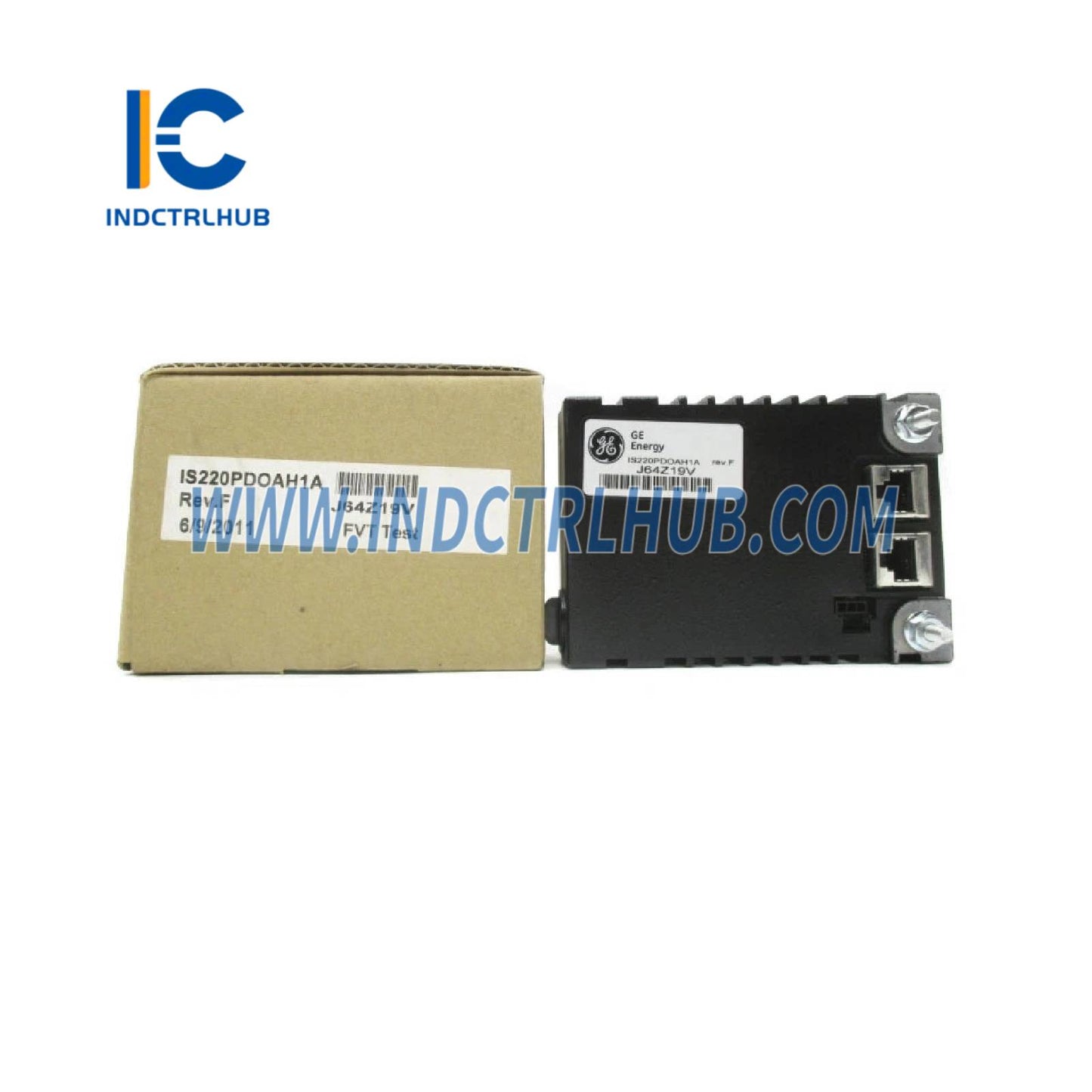

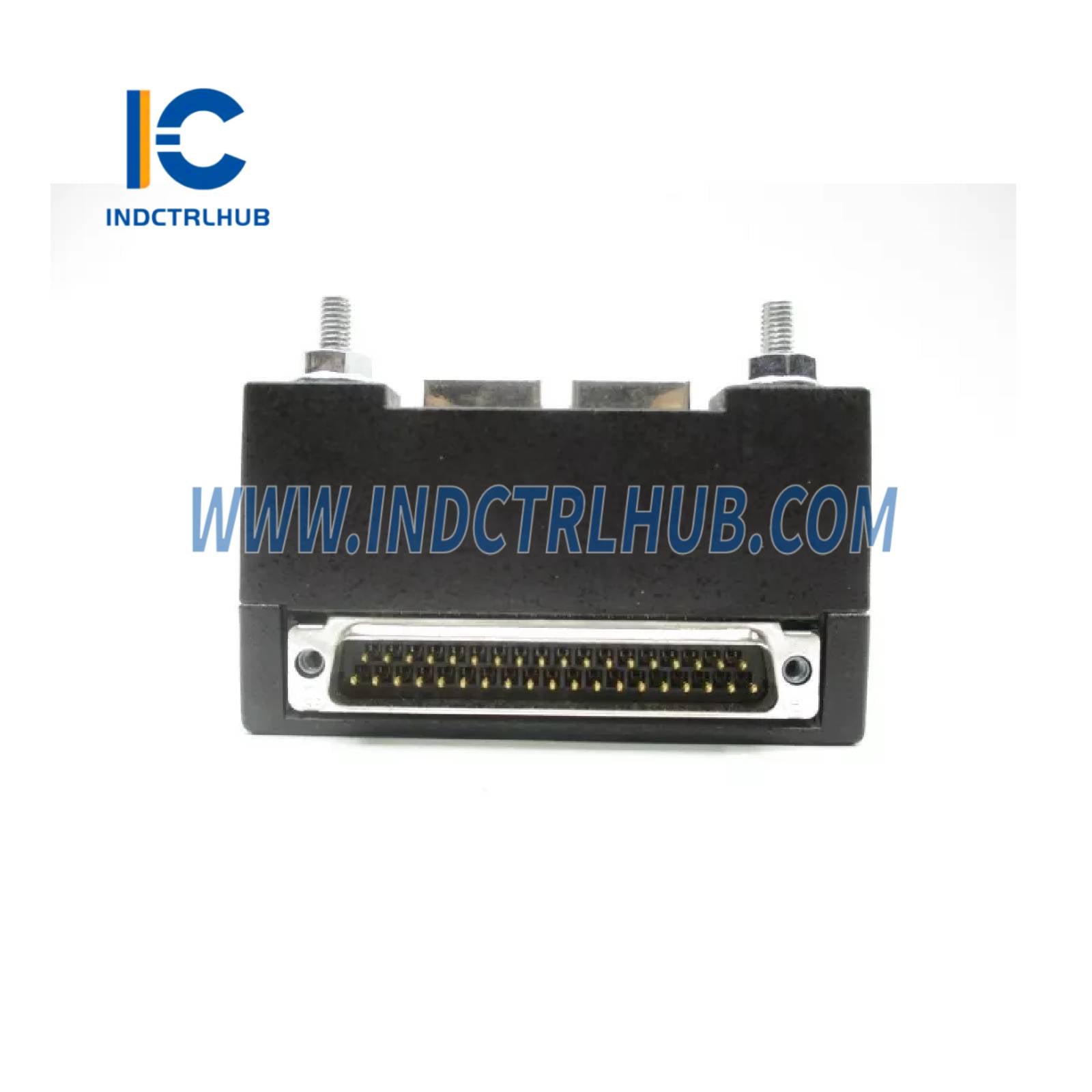

General Electric IS220PDOAH1A Discrete Output Module
Product Overview
- Description: The General Electric IS220PDOAH1A is a discrete output module designed for use in GE’s Mark VIe turbine control systems. It provides discrete (digital) output signals to control external devices such as relays, solenoids
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS220PDOAH1A |
| Model Type | Discrete Output Module |
| Function | Provides discrete output signals for controlling external devices |
| Display | LED indicators (status, power, output state) |
| Inputs | Digital control signals from Mark VIe system |
| Outputs | 12 discrete outputs (relay or solid-state, configurable, typically 24 VDC or 125 VDC) |
| Communication Interfaces | Mark VIe system backplane, IONet |
| Signal Conditioning | Internal signal isolation, output driver circuitry |
| Accuracy | Not applicable (discrete signal control) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane), external power for outputs |
| Power Consumption | 6 W max (typical, excluding external output power) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 100 mm (H) x 70 mm (W) x 40 mm (D) |
| Weight | 0.3 kg (approx.) |
| Mounting | Plugs into Mark VIe control panel or DIN rail |
| Certifications | CE, UL, cULus, RoHS |
