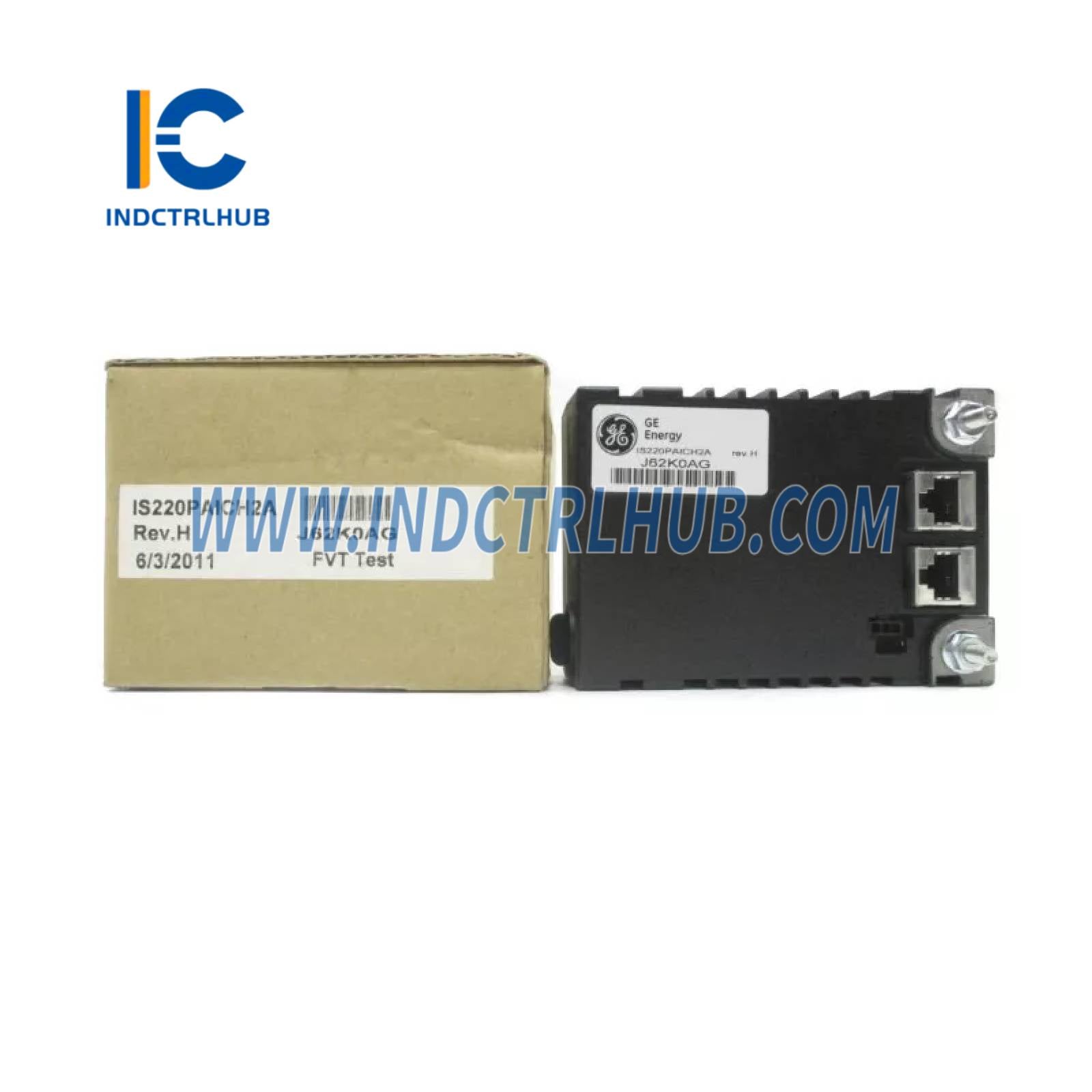

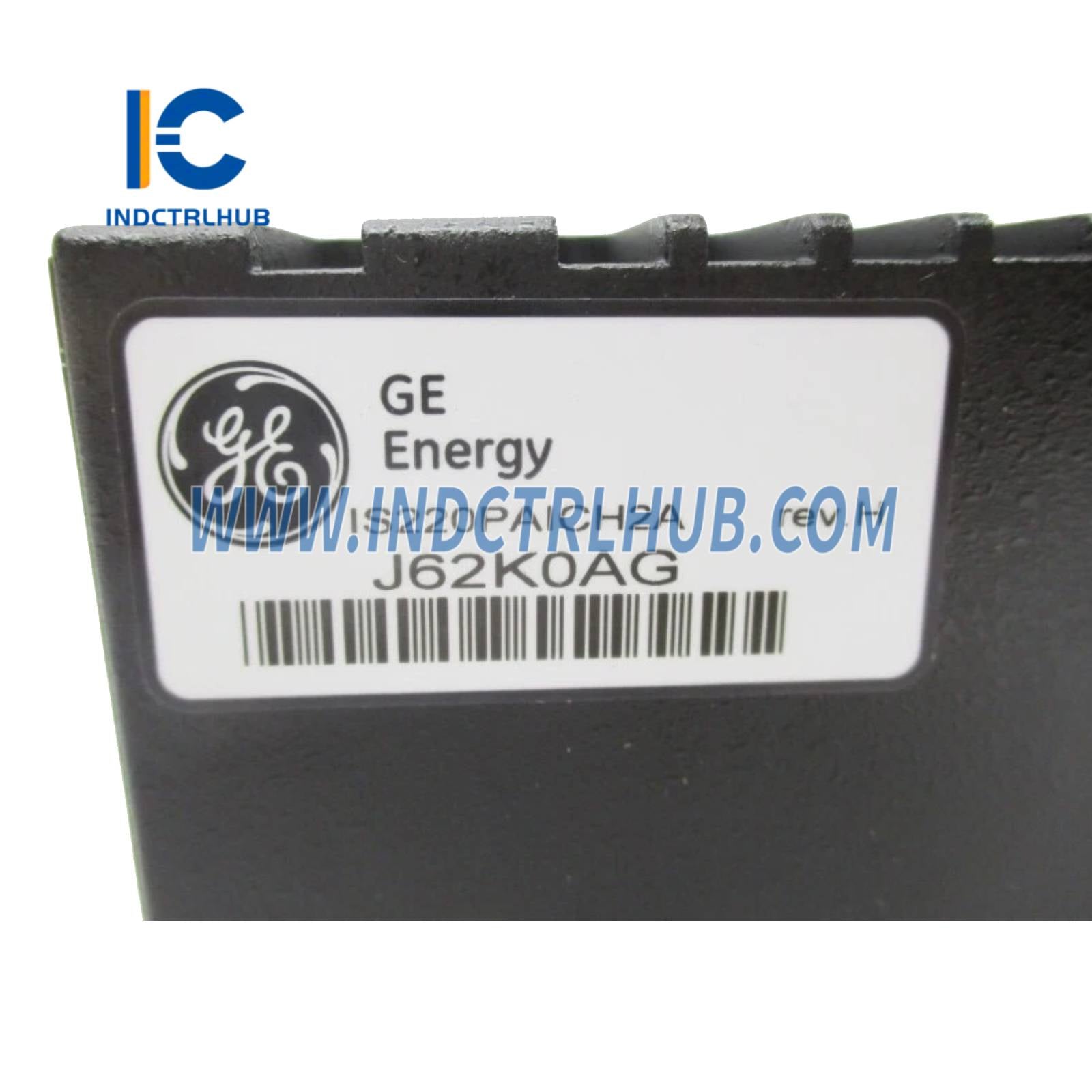

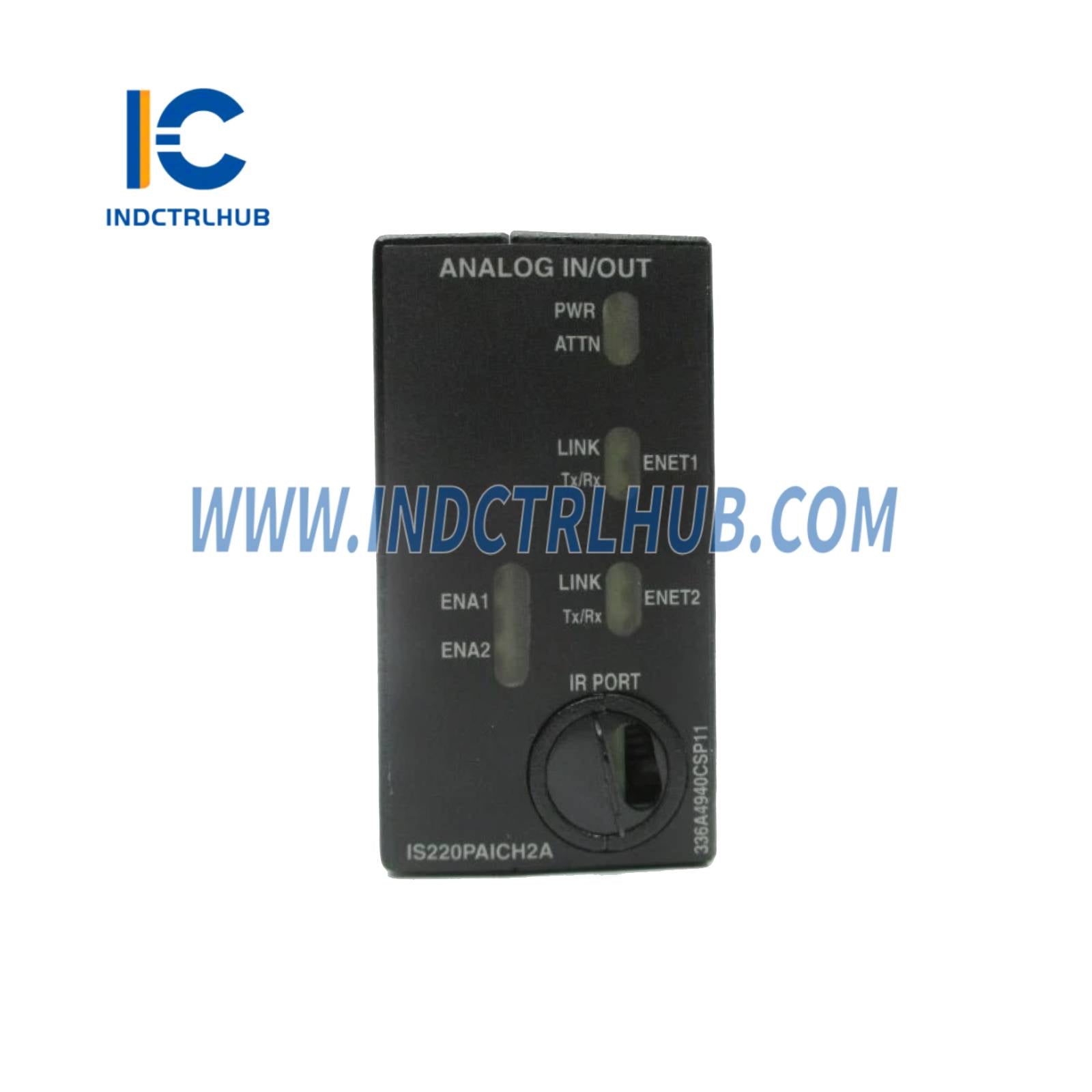

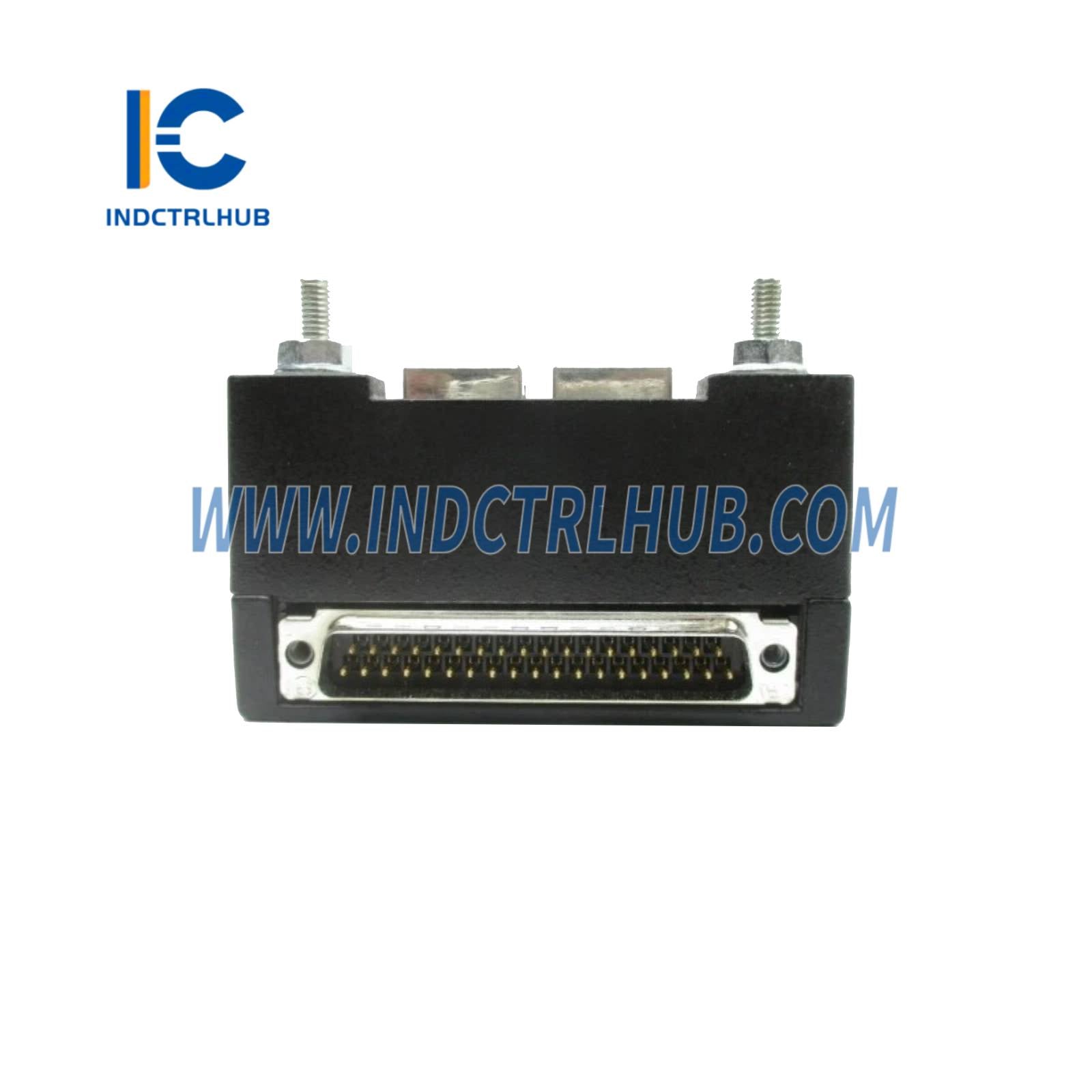

General Electric IS220PAICH2A Analog Input/Output Module
Product Overview
- Description: The General Electric IS220PAICH2A is an analog input/output module designed for use in GE’s Mark VIe turbine control systems. It processes analog signals for both input
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS220PAICH2A |
| Model Type | Analog Input/Output Module |
| Function | Processes analog input/output signals for turbine control |
| Display | LED indicators (status, power, fault) |
| Inputs | 10 analog inputs (configurable, typically 4–20 mA or 0–10 V) |
| Outputs | 2 analog outputs (configurable, typically 4–20 mA or 0–10 V) |
| Communication Interfaces | Mark VIe system backplane, IONet |
| Signal Conditioning | Internal analog-to-digital and digital-to-analog conversion, signal isolation |
| Accuracy | ±0.1% of full scale (typical) |
| Resolution | 16 bits (typical) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane) |
| Power Consumption | 6 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 100 mm (H) x 70 mm (W) x 40 mm (D) |
| Weight | 0.3 kg (approx.) |
| Mounting | Plugs into Mark VIe control panel or DIN rail |
| Certifications | CE, UL, cULus, RoHS |
