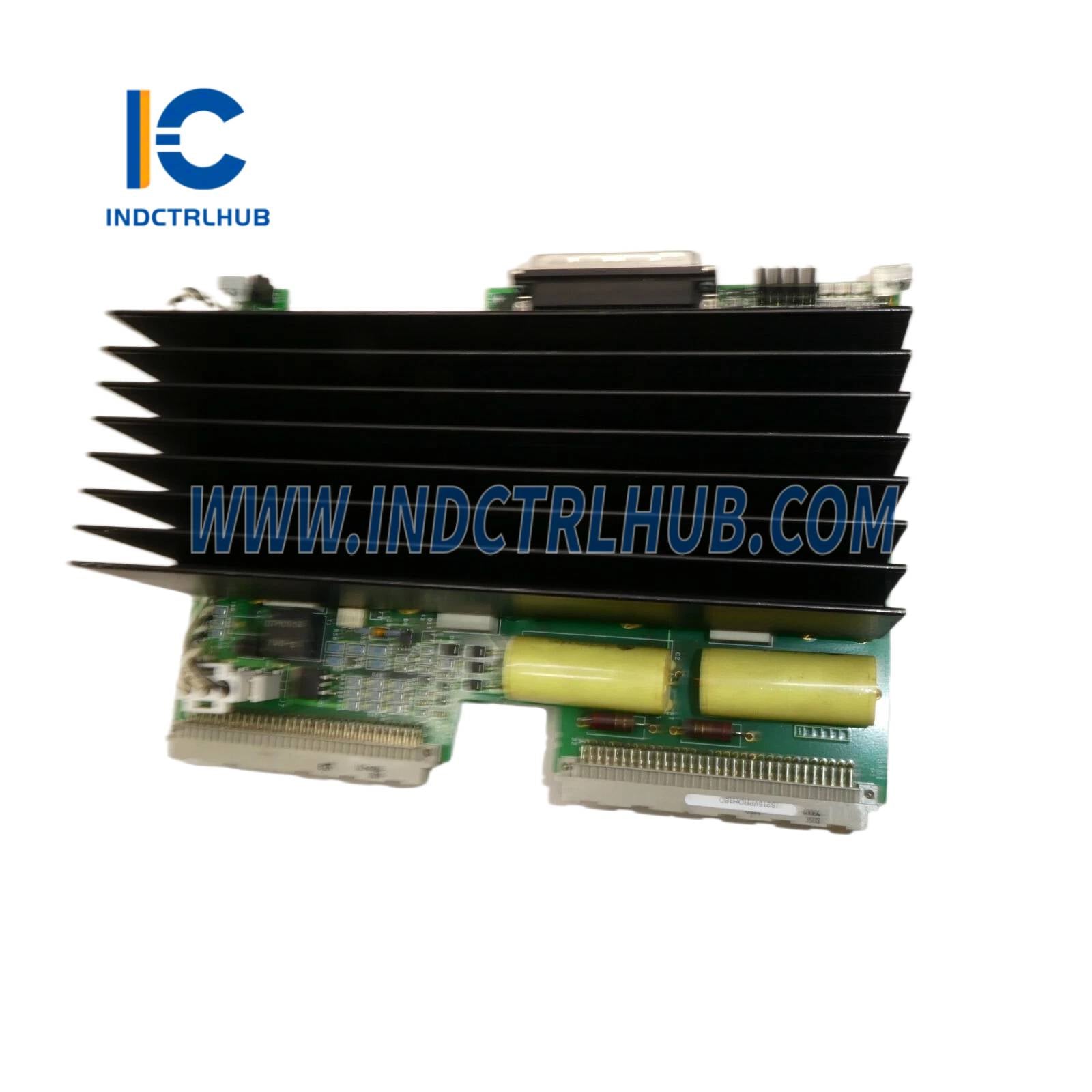

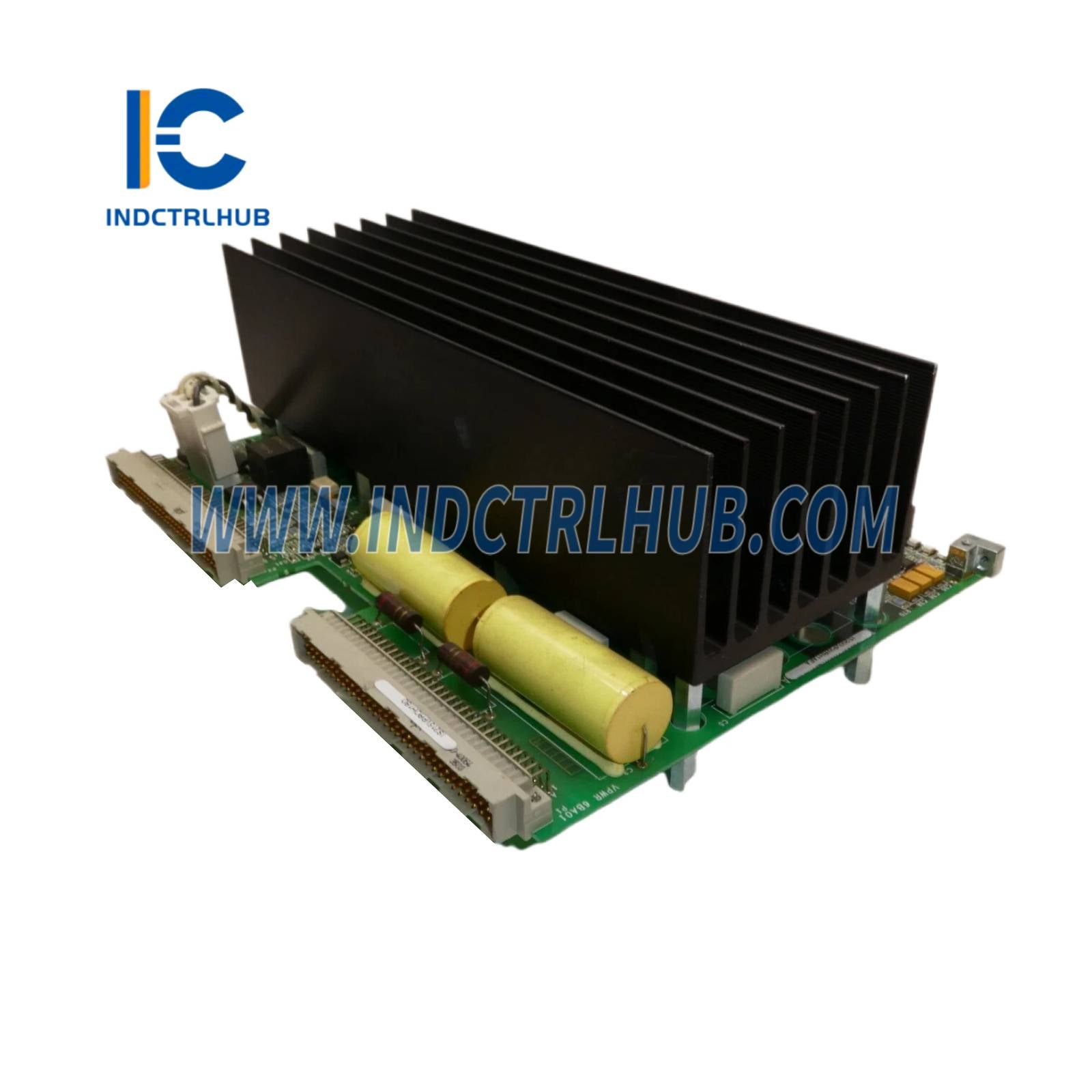

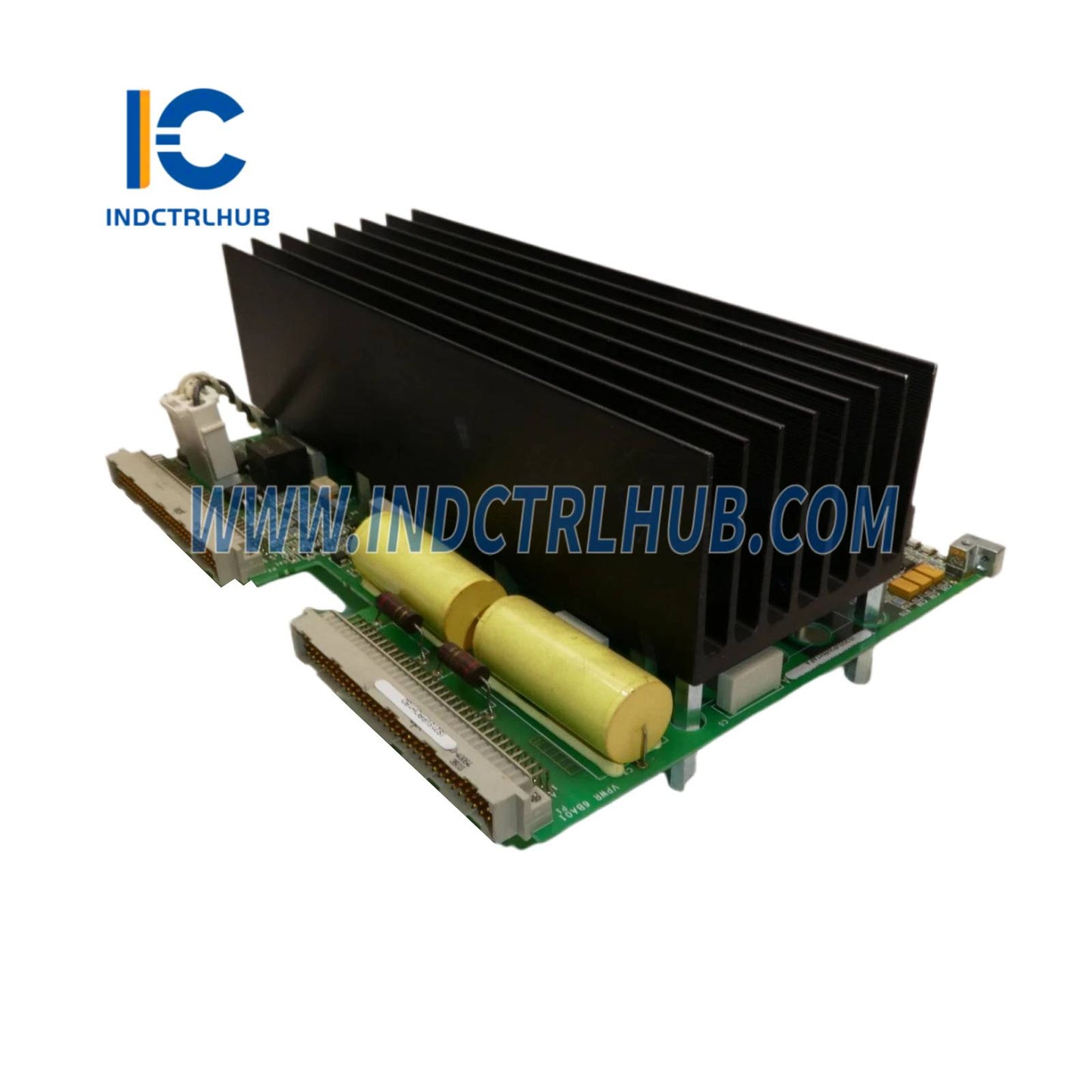

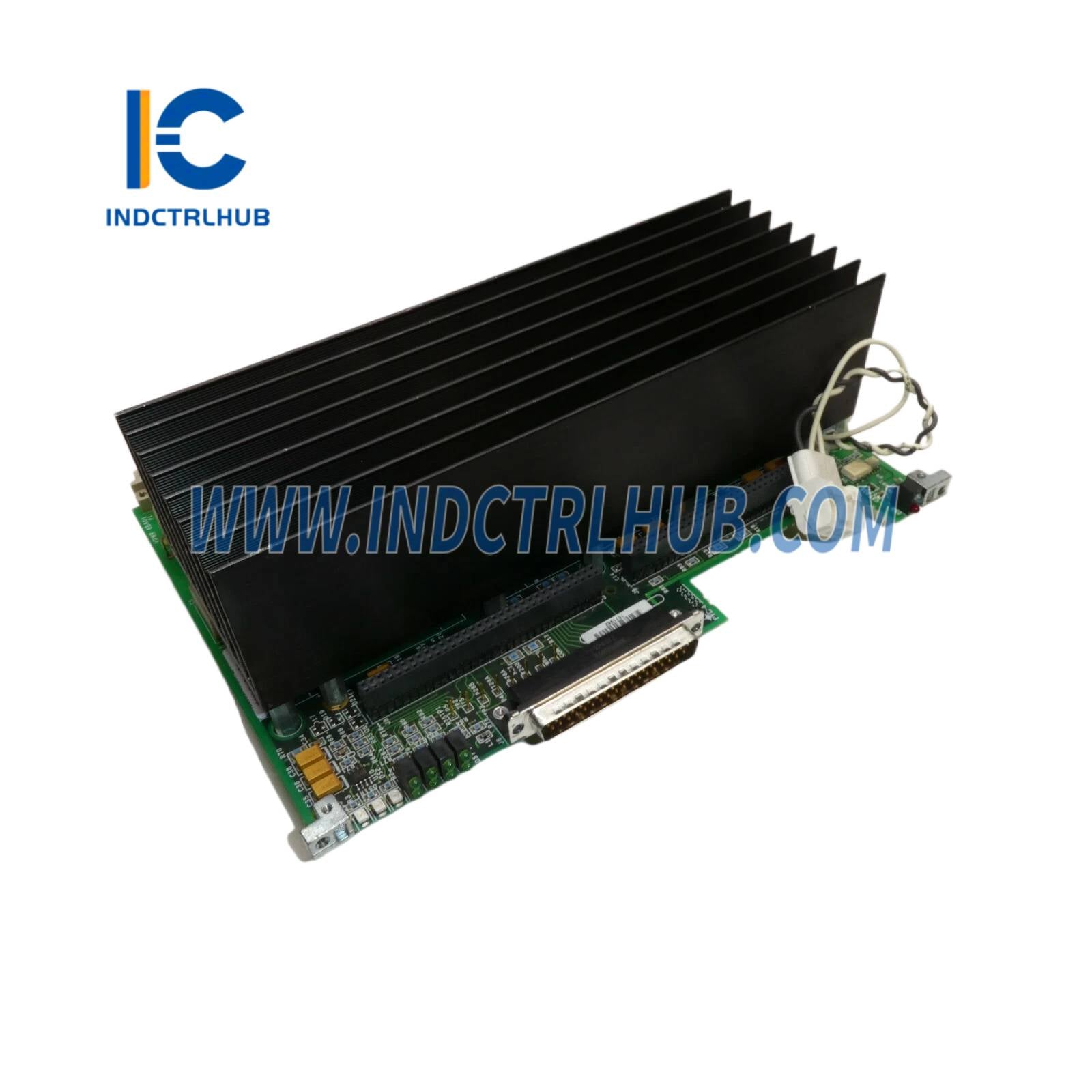

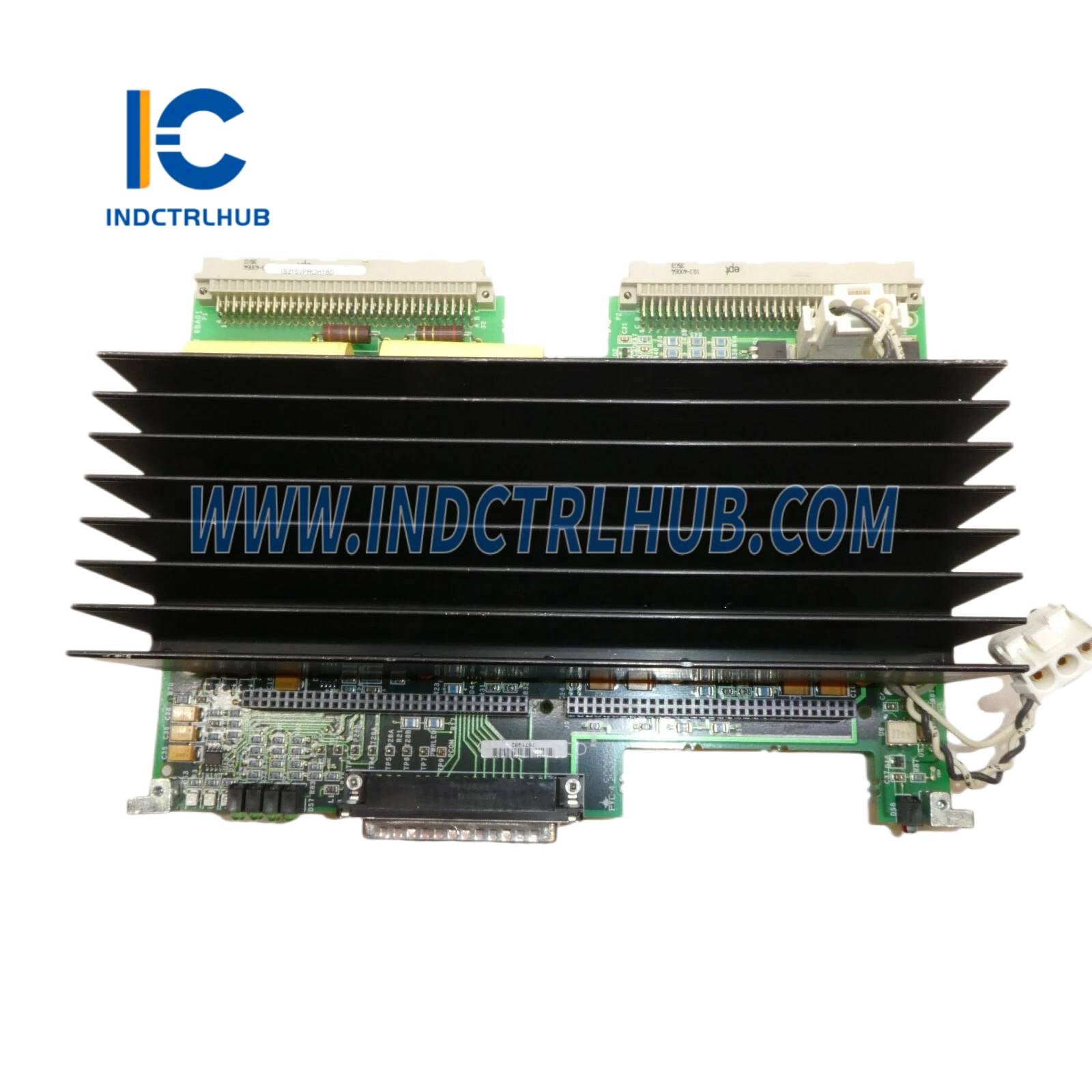

General Electric IS215VPROH1BD Protection Module Board
Product Overview
- Description: The General Electric IS215VPROH1BD is a protection module board designed for use in GE’s Mark VIe turbine control systems. It serves as a critical component for turbine protection, processing signals from sensors to monitor conditions like overspeed, over-temperature
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS215VPROH1BD |
| Model Type | Protection Module Board |
| Function | Monitors turbine parameters and initiates protective actions |
| Display | LED indicators (status, power, fault, trip status) |
| Inputs | Analog and digital signals from sensors (e.g., speed, temperature, vibration) |
| Outputs | Control signals to trip relays or shutdown systems |
| Communication Interfaces | Mark VIe system backplane, IONet, Ethernet (for ControlST) |
| Signal Conditioning | Internal signal processing, analog-to-digital conversion |
| Accuracy | ±0.1% of full scale (typical for analog signals) |
| Resolution | 16 bits (typical) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane) |
| Power Consumption | 8 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 40 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
