Product Description

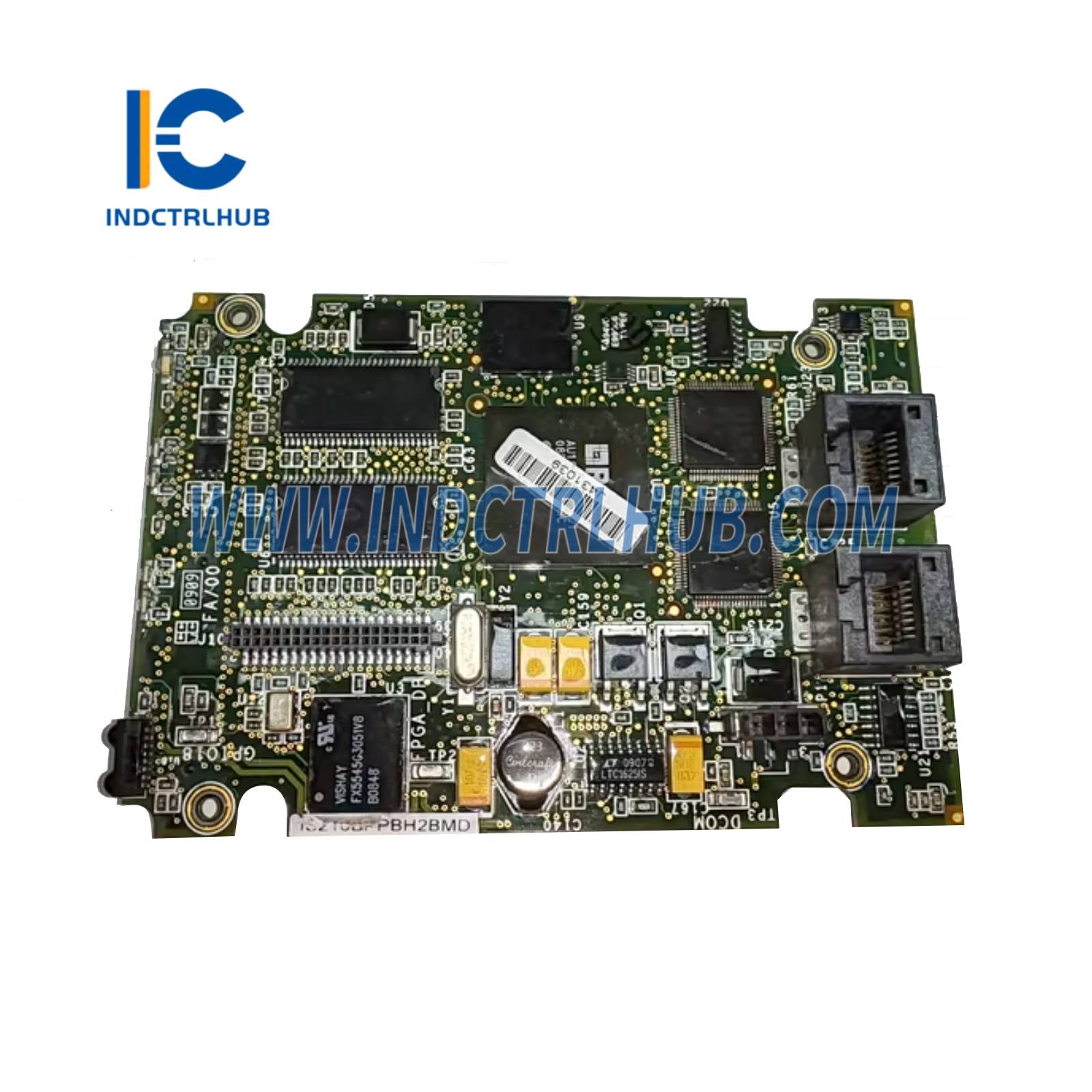

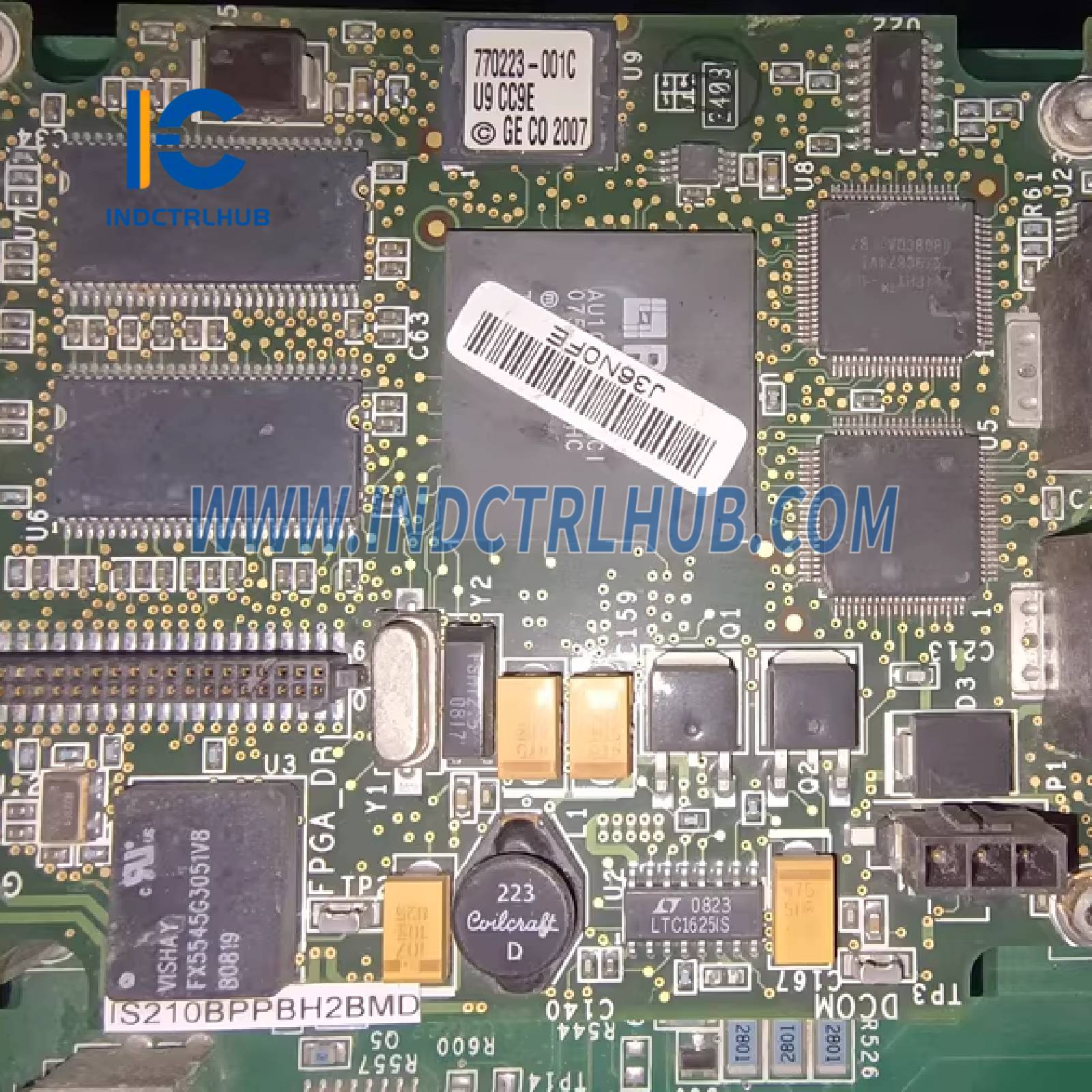

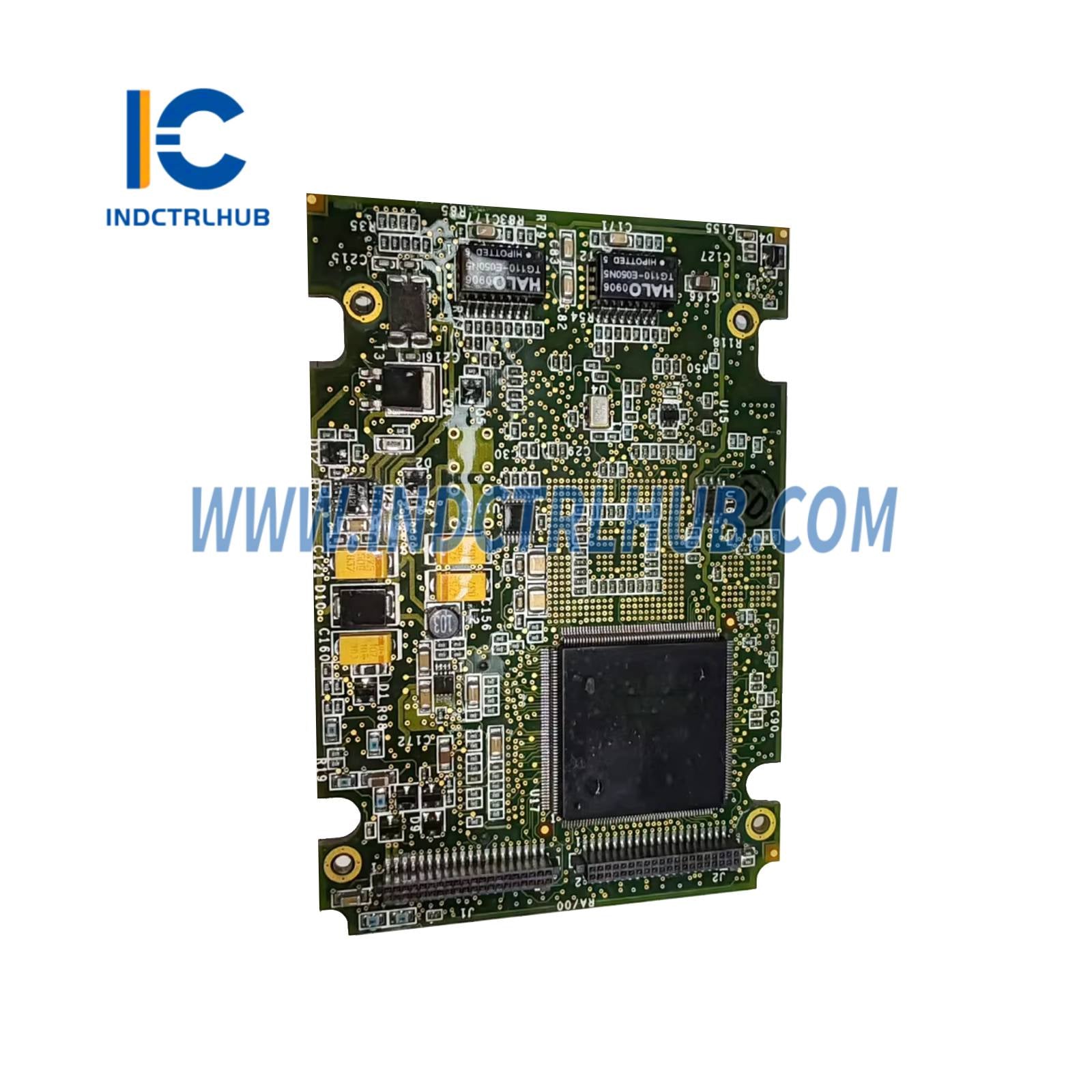

General Electric IS210BPPBH2BMD Processor Board
Product Overview
- Description: The General Electric IS210BPPBH2BMD is a processor board designed for use in GE’s Mark VIe turbine control systems. It serves as a control module, executing control logic and processing data for turbine and generator applications. This board is used in industrial settings such as power generation, oil and gas, and heavy industry.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS210BPPBH2BMD |
| Model Type | Processor Board |
| Function | Executes control logic and processes data for turbine control |
| Display | LED indicators (status, power, fault) |
| Inputs | Digital and analog signals via Mark VIe I/O modules |
| Outputs | Control signals to Mark VIe I/O modules and actuators |
| Communication Interfaces | Mark VIe system backplane, Ethernet (for ControlST), IONet |
| Signal Conditioning | Internal digital signal processing |
| Accuracy | Not specified (application-dependent, high precision) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Processor | High-performance microprocessor (specific model not publicly disclosed) |
| Memory | Onboard flash and RAM (specific capacity not publicly disclosed) |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane) |
| Power Consumption | 8 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 40 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
