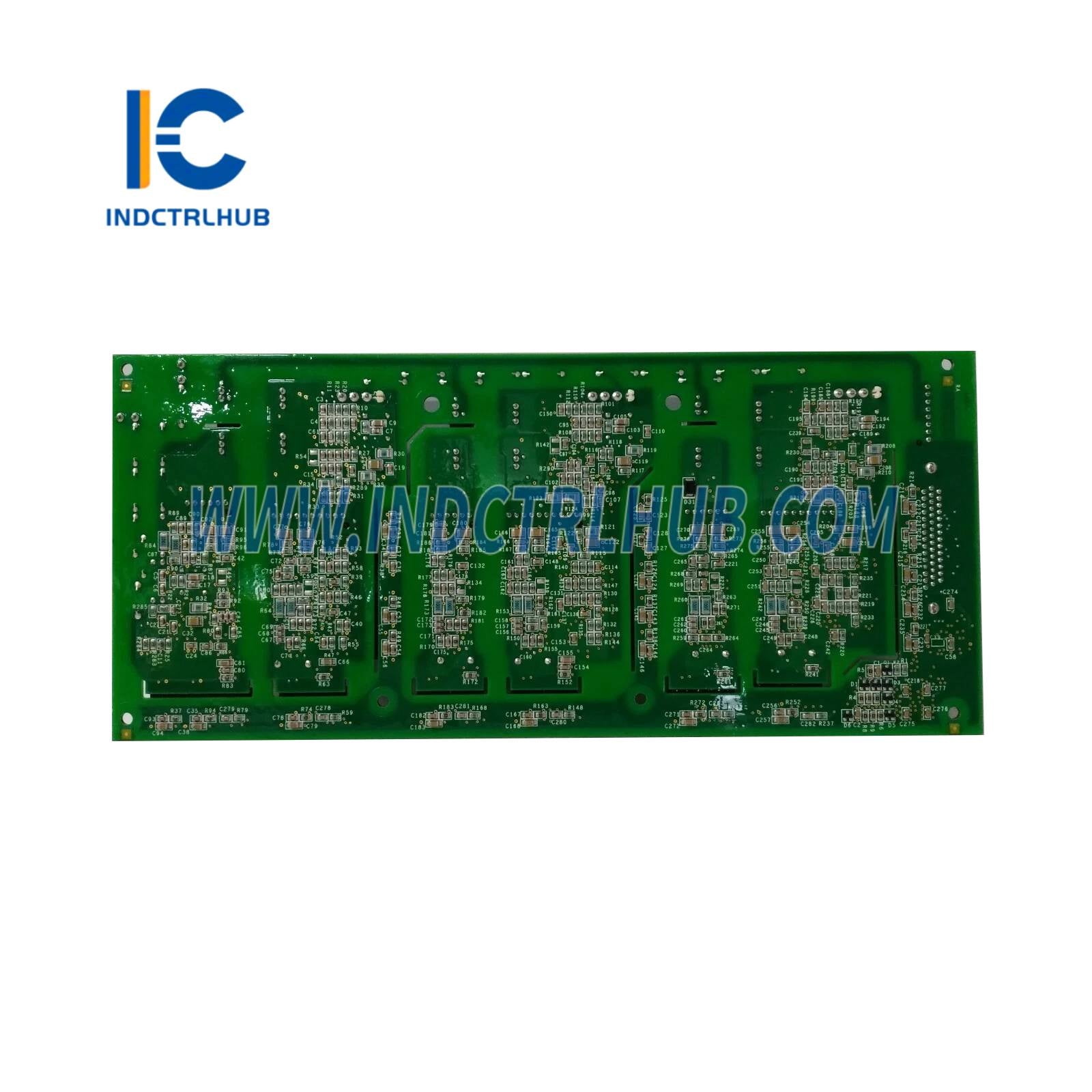

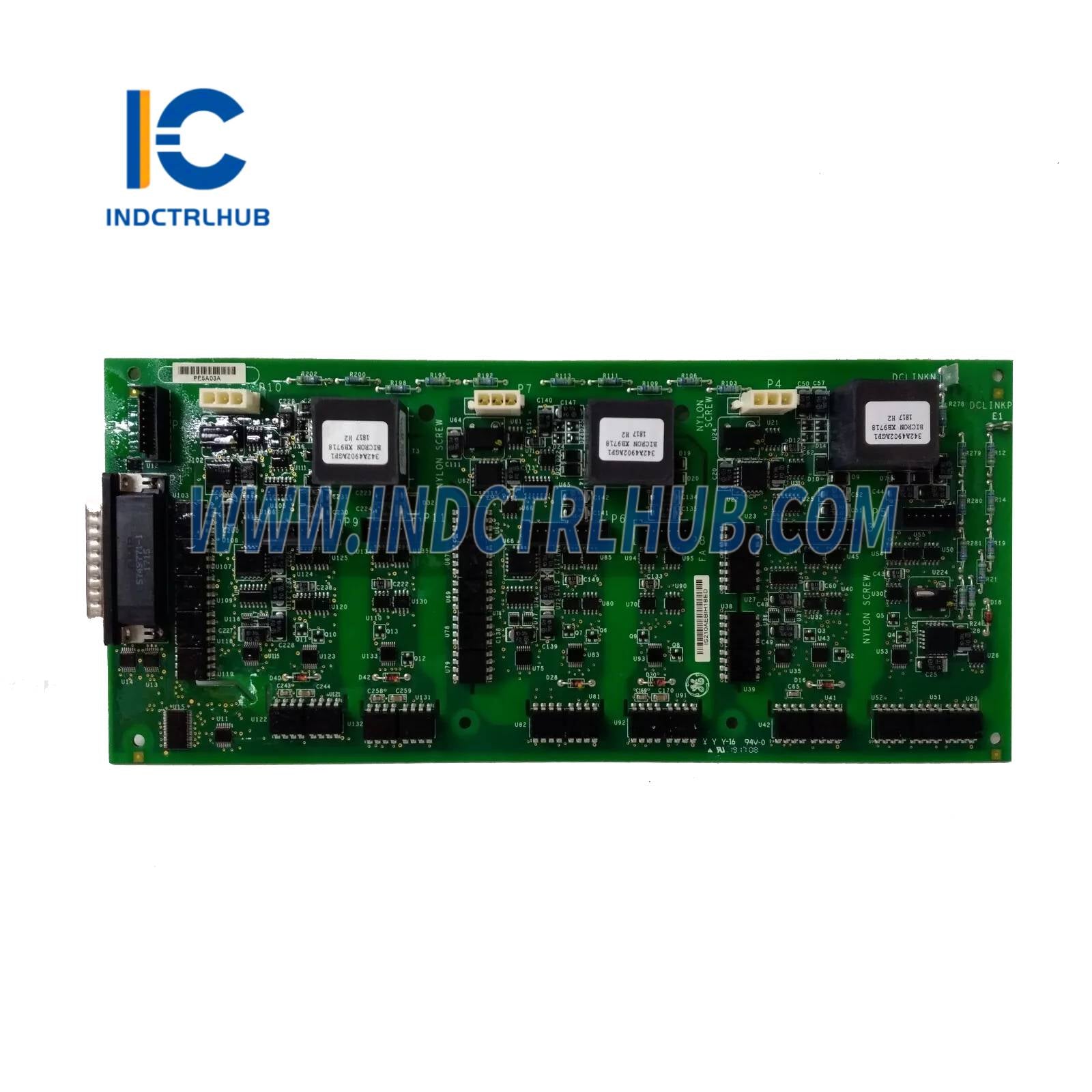

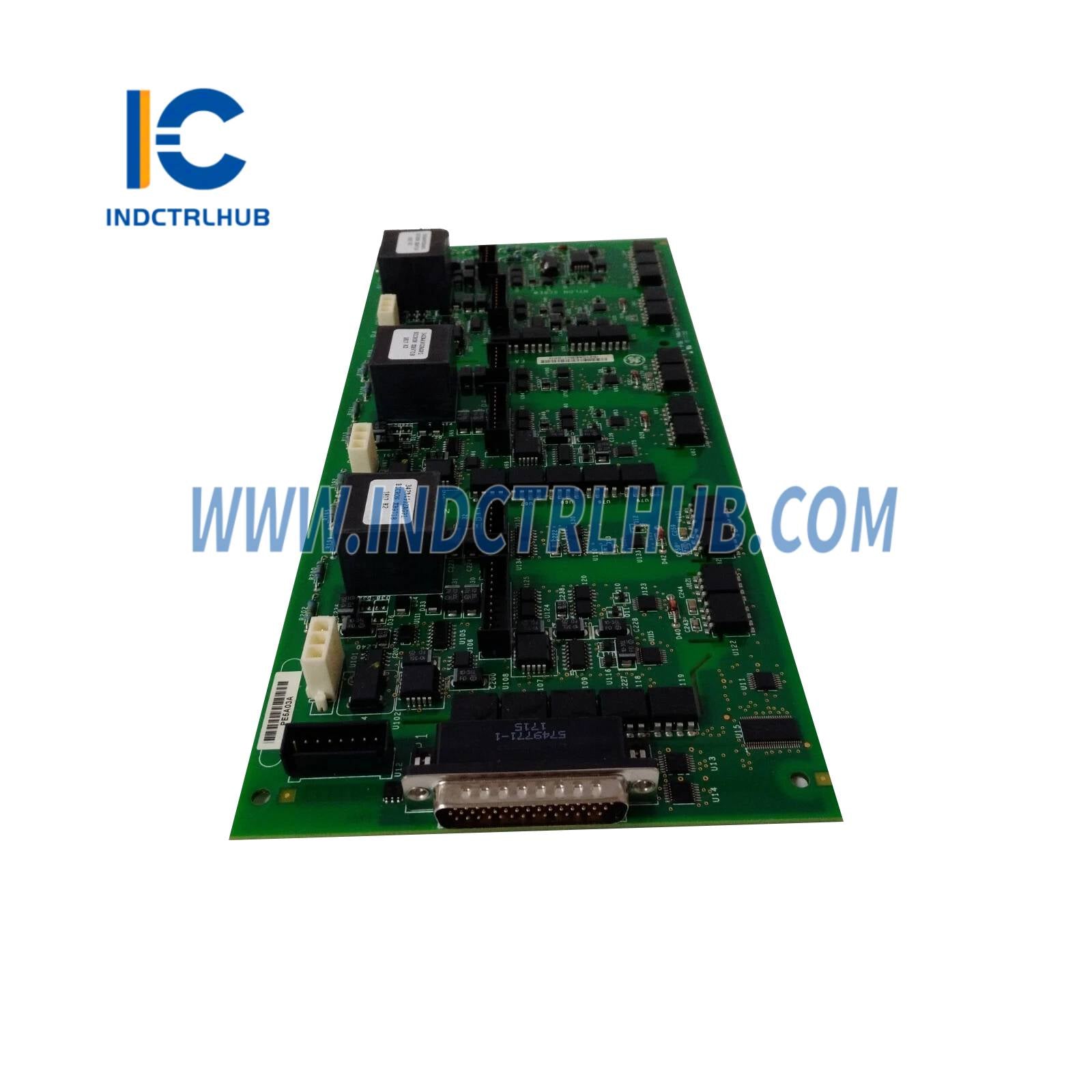

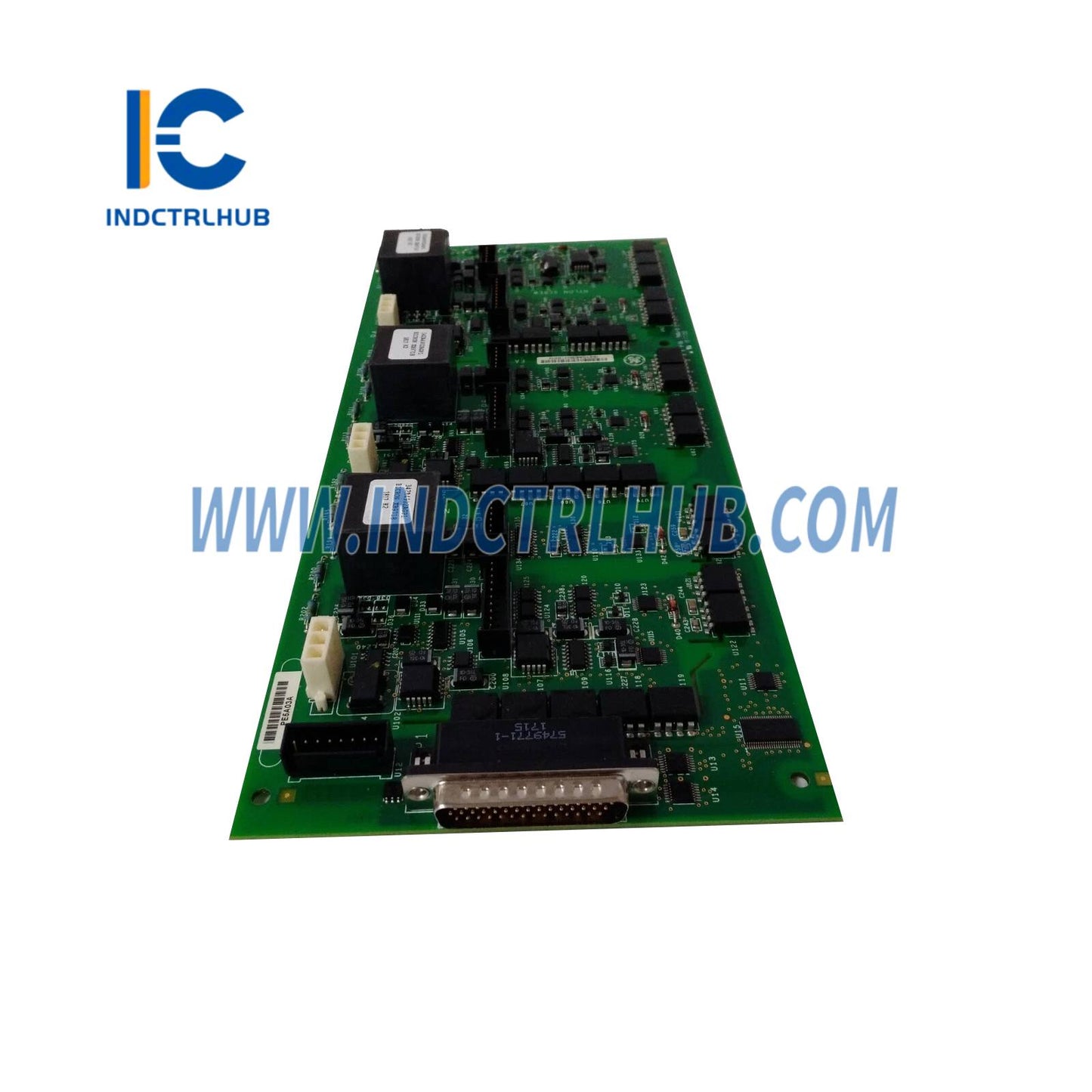

GE IS210AEBIH1BED Mark VIe AE Bridge Interface Card

GE IS210AEBIH1BED Mark VIe AE Bridge Interface Card

  • Manufacturer: General Electric

  • Product No.: IS210AEBIH1BED

  • Condition:1000 in stock

  • Product Type: Mark VIe AE Bridge Interface Card

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric IS210AEBIH1BED Mark VIe AE Bridge Interface Card

  • Manufacturer: General Electric (now under Emerson Automation)
  • Series: Mark VIe Speedtronic
  • Model/Part Number: IS210AEBIH1BED
  • Description: AE Bridge Interface Card for wind turbine control in Mark VIe Speedtronic systems

Overview

  • The General Electric IS210AEBIH1BED is an AE Bridge Interface Card from the Mark VIe Speedtronic series, manufactured by GE Energy and now managed by Emerson Automation. Designed for wind turbine control systems, it facilitates communication and integration between various subsystems within the turbine control architecture. It supports both simplex and Triple Modular Redundant (TMR) configurations and is used in renewable energy applications, particularly wind power generation, to ensure reliable and efficient turbine operation.

Technical Specifications

Specification Details
Model IS210AEBIH1BED
Series Mark VIe Speedtronic
Type AE Bridge Interface Card (AEBI)
Function Interfaces and integrates subsystems for wind turbine control
Inputs/Outputs Digital and analog I/O for subsystem communication
Connectors Right-angled connector, seven vertical pin connectors, three-position plugs, stab-on connectors for DC-links
Components Integrated circuits, diodes, capacitors, resistors, transistors, transformers
Power Supply Typically 24 VDC, supplied by Mark VIe system
Coating Conformal coating for environmental protection
Mounting 8 screw holes for nylon screw mounting, single slot in Mark VIe rack
Board Size Approx. 29 cm x 13 cm x 2.7 cm (11.4 x 5.1 x 1.1 in)
Weight Approx. 0.32 kg (0.7 lbs)

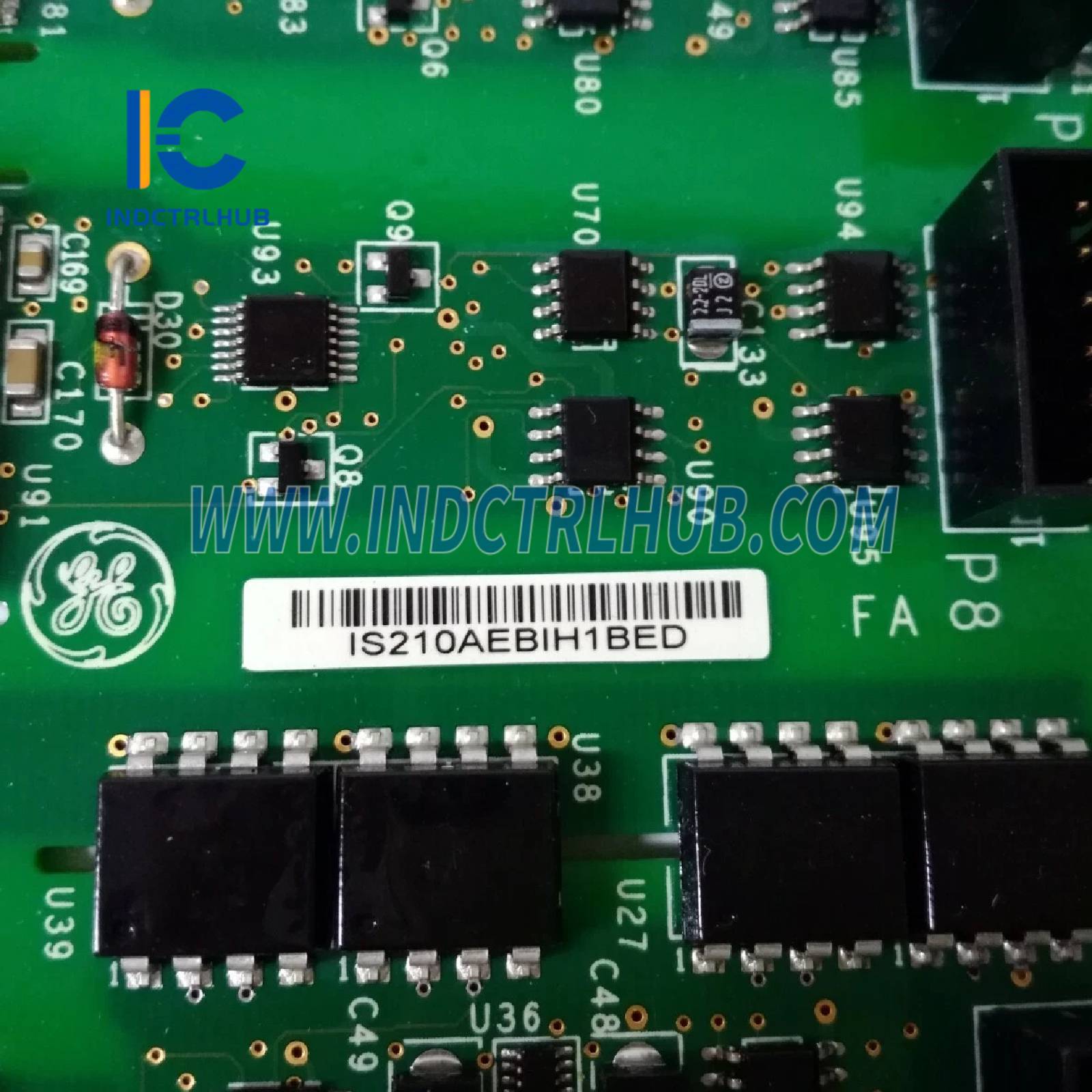

Board Markings GE logo, IS210AEBIH1BED, component abbreviations etched on surface
Operating Temperature -30°C to +65°C (-22°F to +149°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5% to 95% (non-condensing)
Certifications CE, UL, CSA, Class I Div 2
Compatibility Mark VIe/Mark VIeS Turbine Control System, ToolboxST software
Manual GEH-6721L
