Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | IS200VVIBH1CAB |

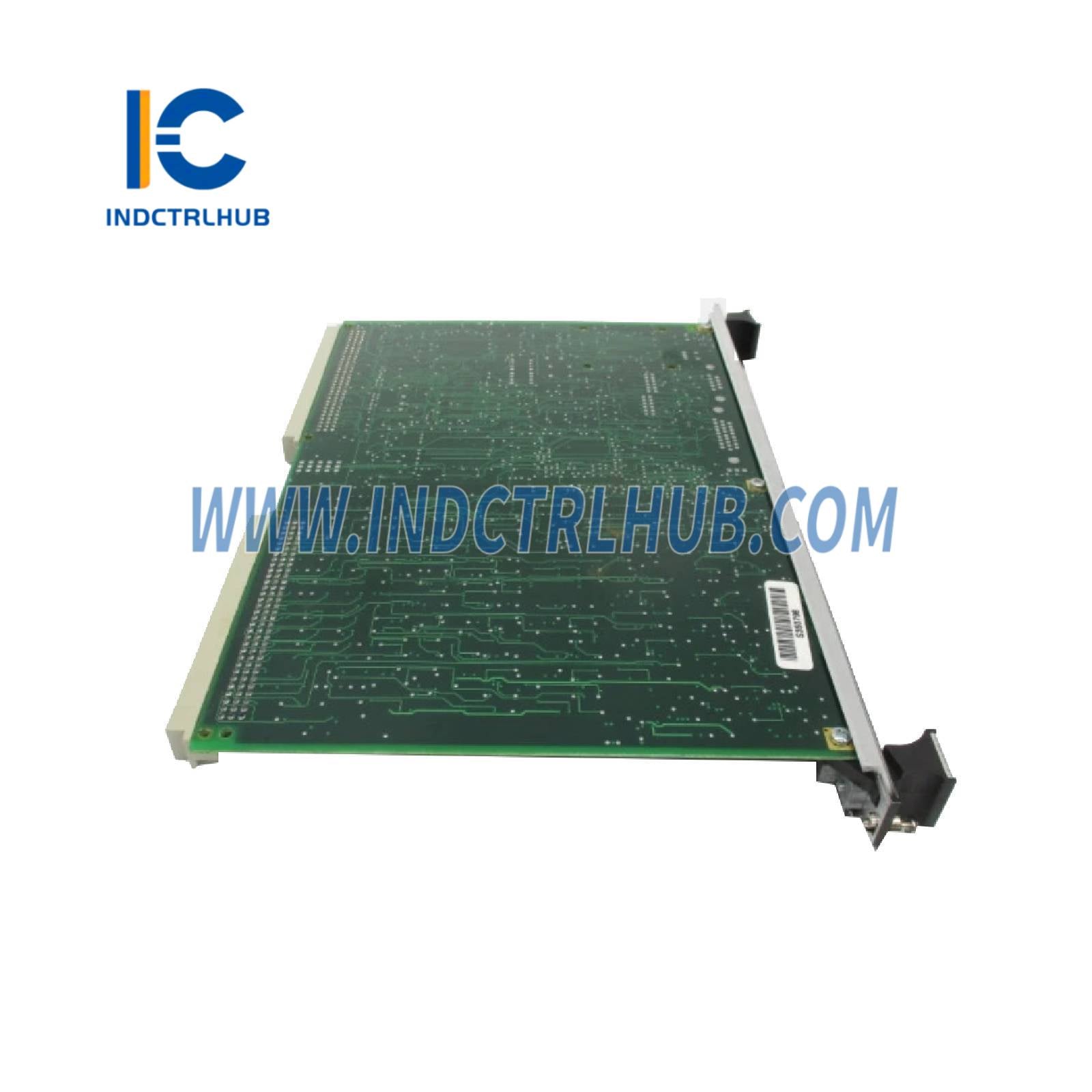

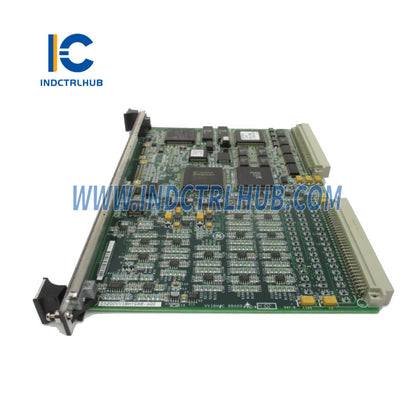

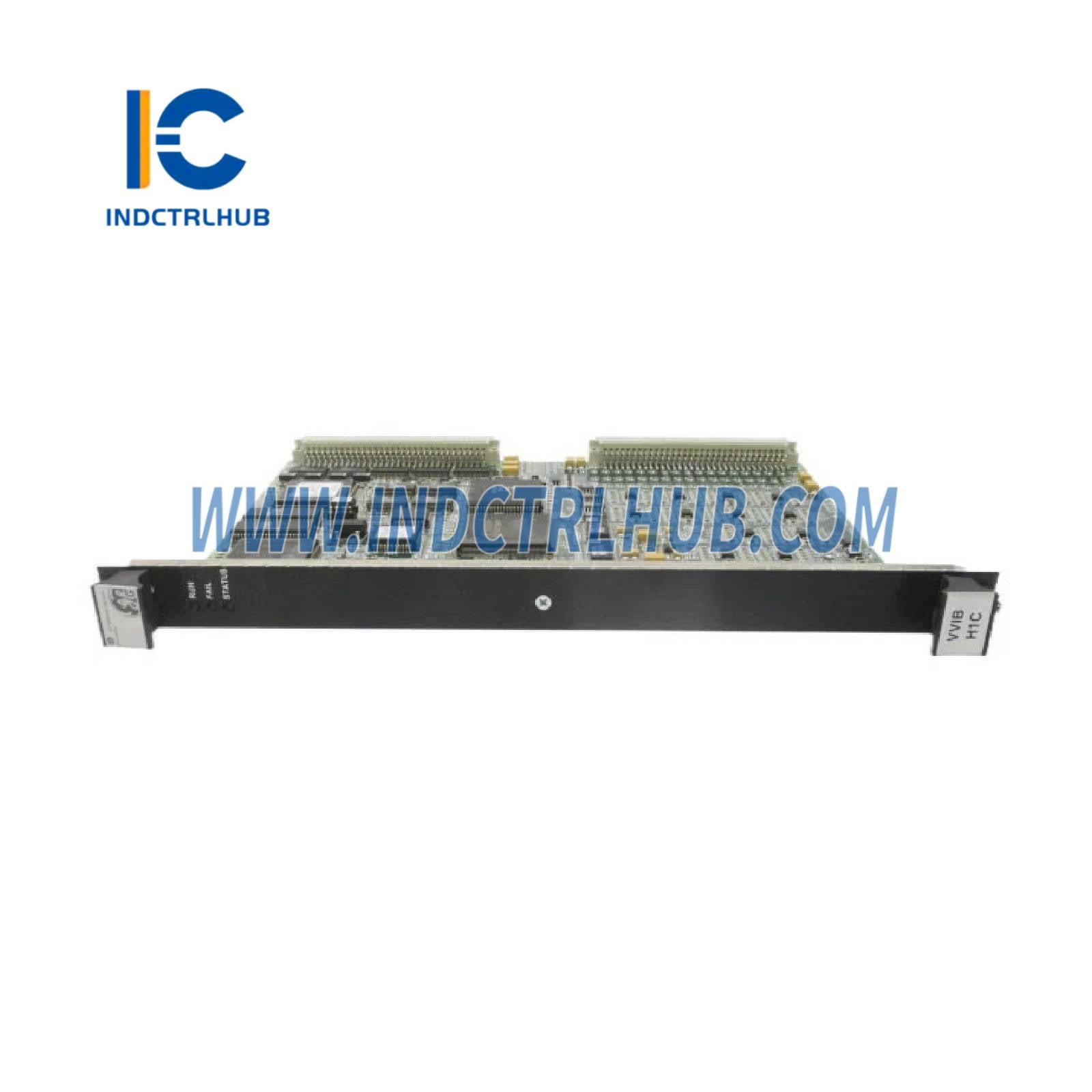

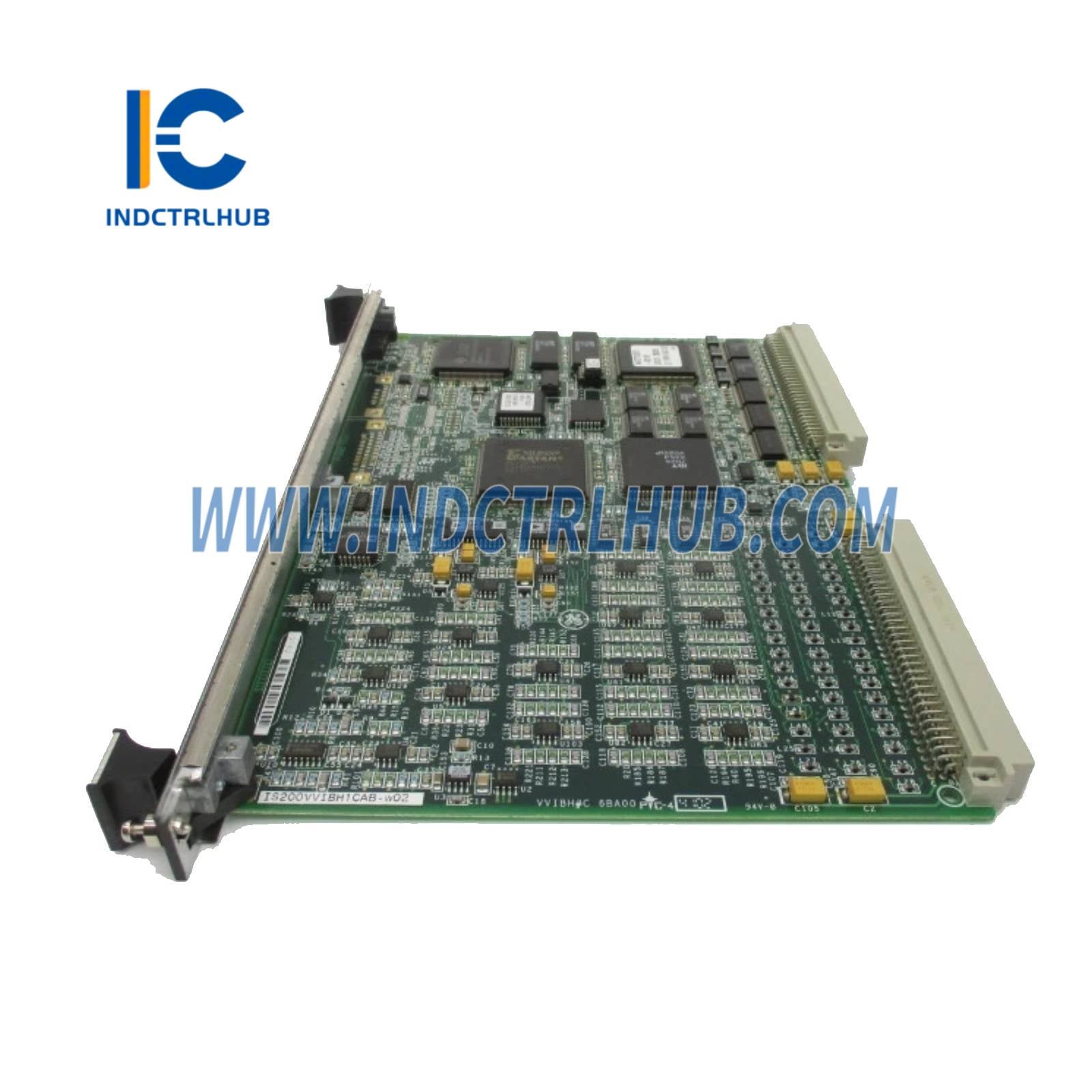

| Description | VMEbus Interconnect Board |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | IS200VVIBH1CAB |
| Product Name | IS200VVIBH1CAB VME Interconnect Module |
| Application | Interconnect board for VMEbus in turbine control and excitation systems |
| Compatibility | Designed for GE Mark VI and Mark VIe control systems; interfaces with VME chassis and I/O modules |
| Function | Provides high-speed data transfer and signal routing between VMEbus components in control architectures |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | VMEbus interconnect board with fiber optic and copper interfaces |
| Bus Standard | VME64 compliant |
| Interfaces | 2x fiber optic ports, multiple VME P1/P2 connectors |
| Data Rate | Up to 160 MB/s peak bandwidth |
| Power Supply | 5 V DC from VME backplane |
| Operating Temperature Range | -30°C to +70°C |
| Mounting | VME chassis slot mount |
| Dimensions | 6U VME form factor (233 mm x 160 mm x 20 mm) |
| Weight | 0.5 kg |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
