| Specification |
Details |
| Model |

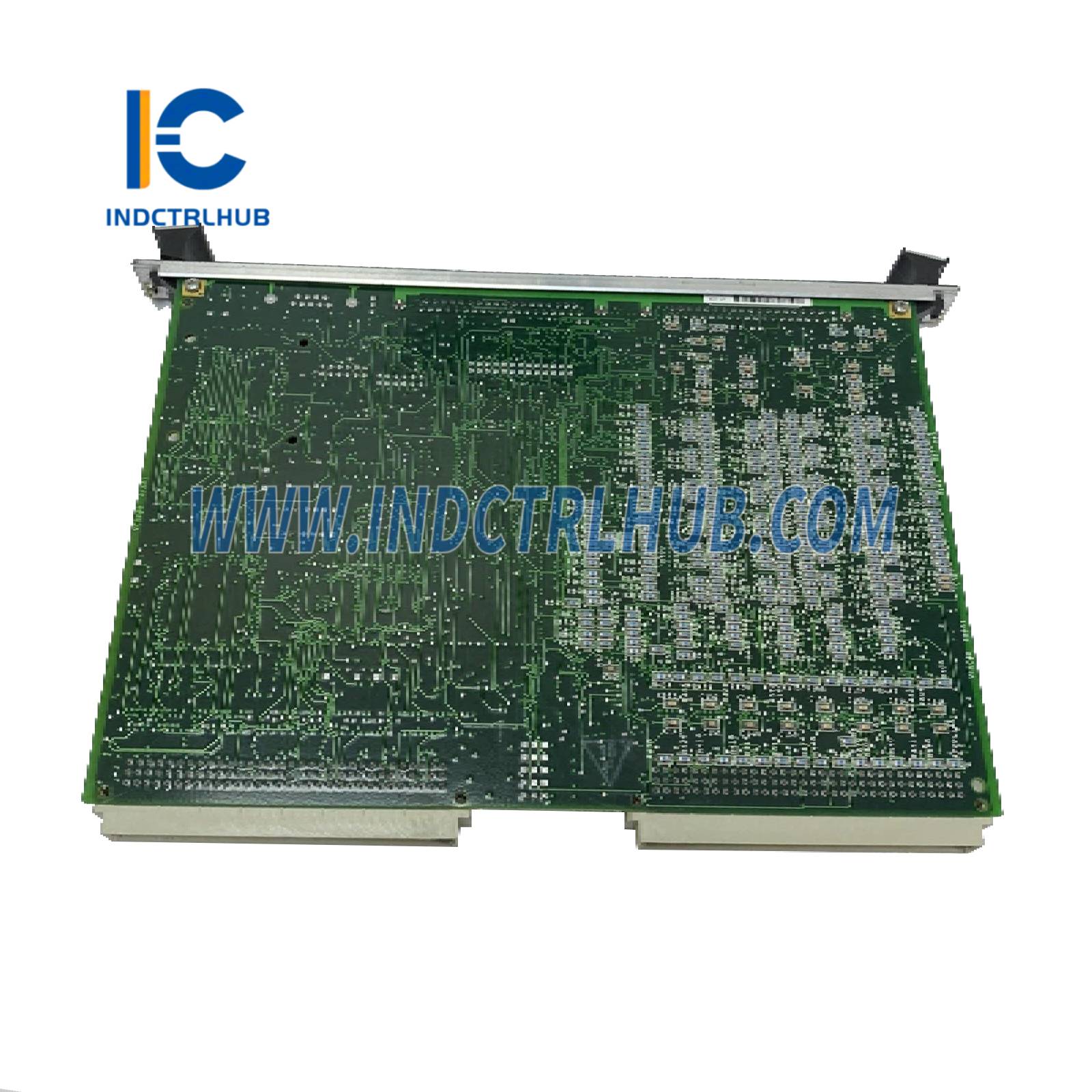

IS200VTURH2BAB |
| Series |
Mark VI Speedtronic |
| Type |
Turbine Control Terminal Board (VTUR) |
| Function |
Processes speed, vibration, and other inputs for turbine protection and control |
| Inputs |
4 magnetic speed pickups, proximity probes for vibration, flame detectors |
| Outputs |
Relay outputs for trip signals, interfaces with control modules |
| Compatible Module |
VTUR (IS200VTURH1) control board |
| Connectors |
Two terminal blocks (TB1, TB2 for field connections), multi-pin connectors for VTUR module |
| Power Supply |
24 VDC or 125 VDC, supplied by Mark VI control system |
| Signal Protection |
Surge suppression, EMI filtering, noise reduction |
| Components |
Surface-mount technology, terminal blocks, resistors, capacitors, integrated circuits |
| Power Consumption |
Approx. 1–2 A at 5 VDC (typical for Mark VI modules, not publicly specified) |
| Board Size |
Approx. 15.9 cm high x 17.8 cm wide (6.26 x 7.01 in) |
| Coating |
Conformal coating for environmental protection |
| Board Markings |
GE logo, IS200VTURH2BAB, 6BA01 code |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Mounting |
Single slot in Mark VI VME rack, flat or DIN-rail mount |
| Certifications |
CE, UL, CSA, Class I Div 2 |
| Compatibility |
Mark VI Turbine Control System, Proficy Machine Edition |
| Manual |
GEH-6421 |
