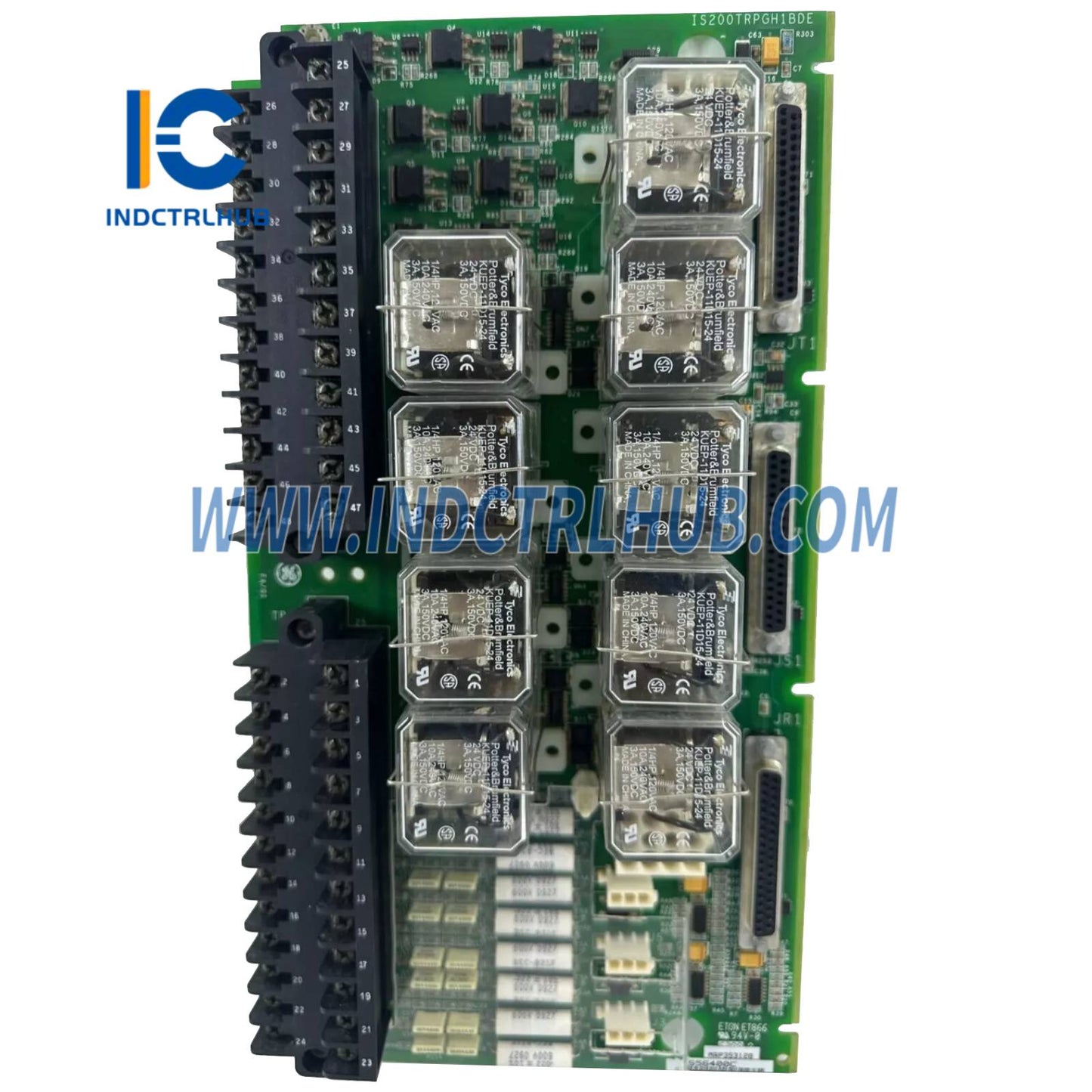

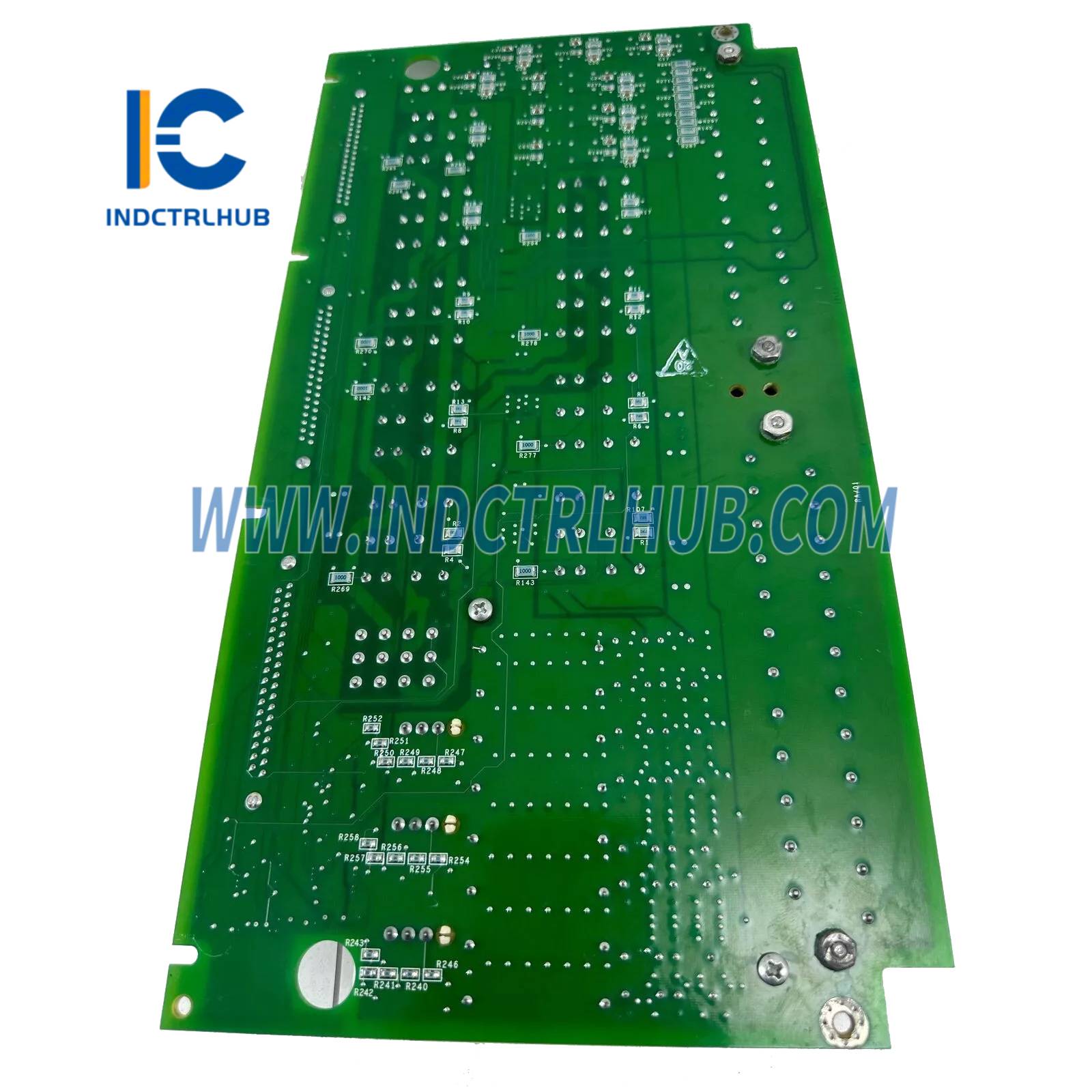

| Specification |
Details |
| Model |
IS200TRPGH1BDE |
| Series |
Mark VIe Speedtronic |
| Type |
Primary Trip Terminal Board (TRPG) |
| Function |
Manages emergency trip logic and interfaces with trip solenoids for turbine shutdown |
| Inputs |
High-precision inputs for speed, vibration, and temperature monitoring |
| Outputs |
3 fail-safe relay outputs for emergency trip solenoids |
| Trip Parameters |
Configurable for overspeed, over-temperature, excessive vibration |
| I/O Pack Compatibility |
PTUR (IS220PTURH1A) or PPRF (IS220PPRFH1A) I/O packs |

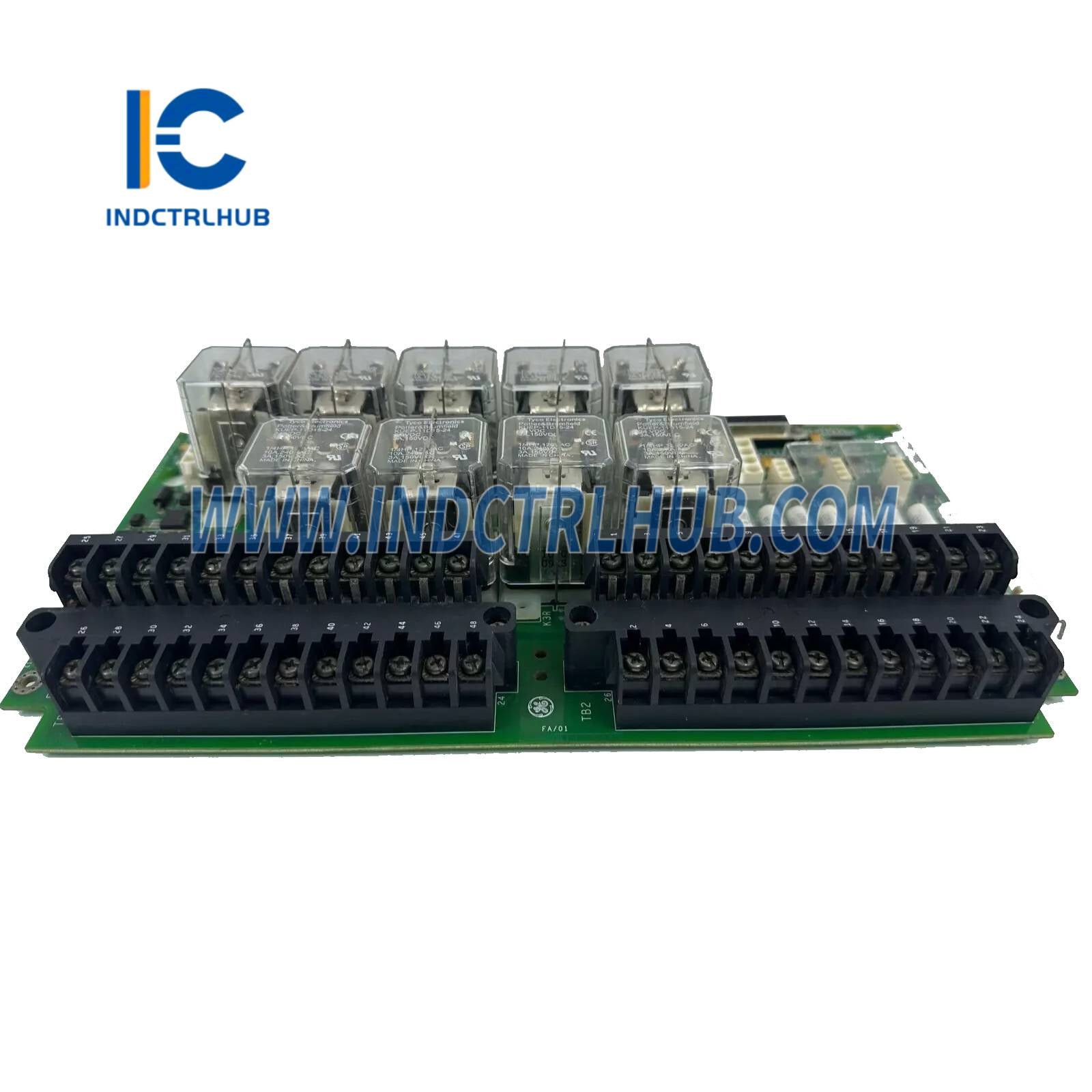

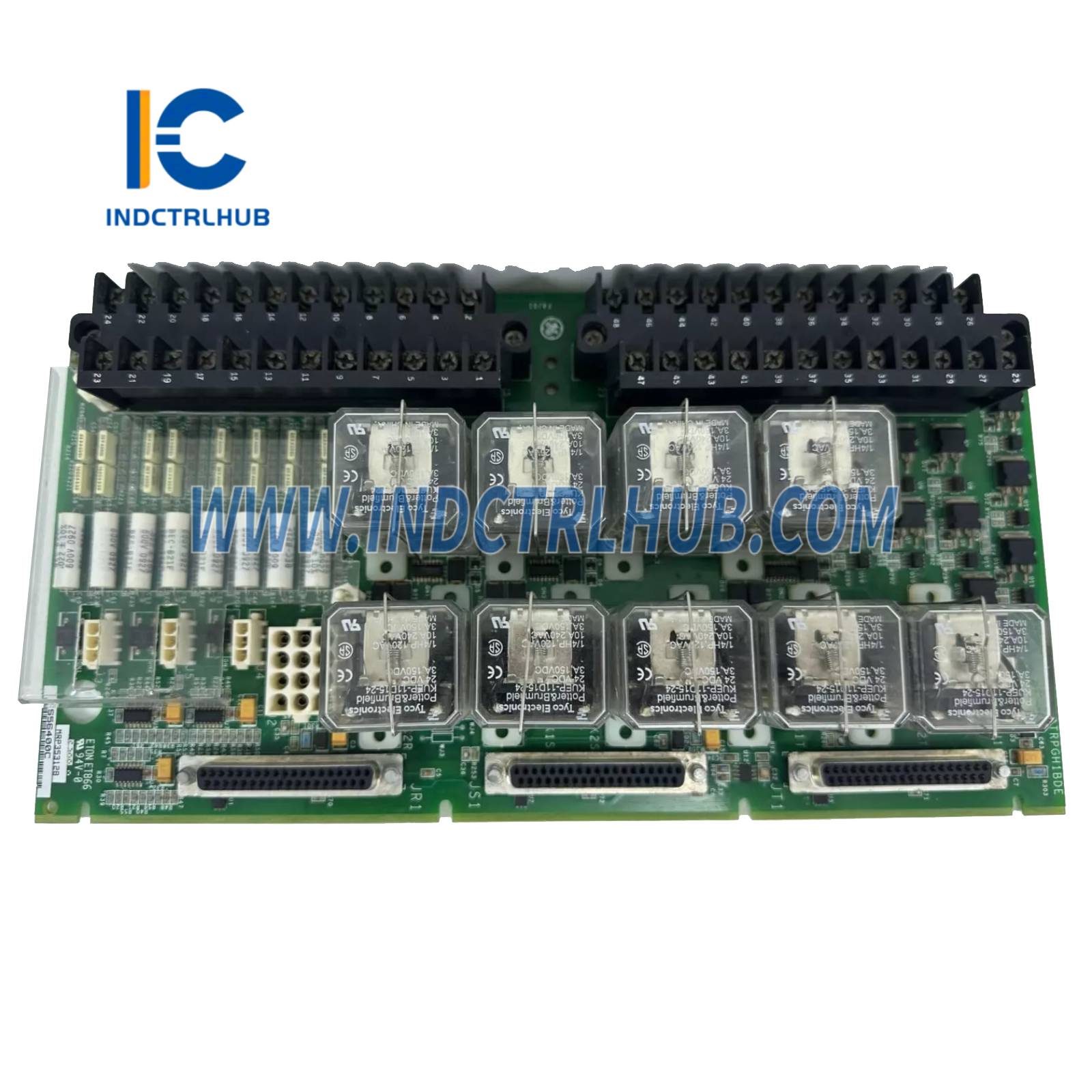

| Connectors |
Terminal blocks for field connections, multi-pin connectors (JR1, JS1, JT1 for TMR) |
| Power Supply |
Dual redundant power supplies, typically 24 VDC or 125 VDC |
| Signal Protection |
Surge suppression, EMI shielding |

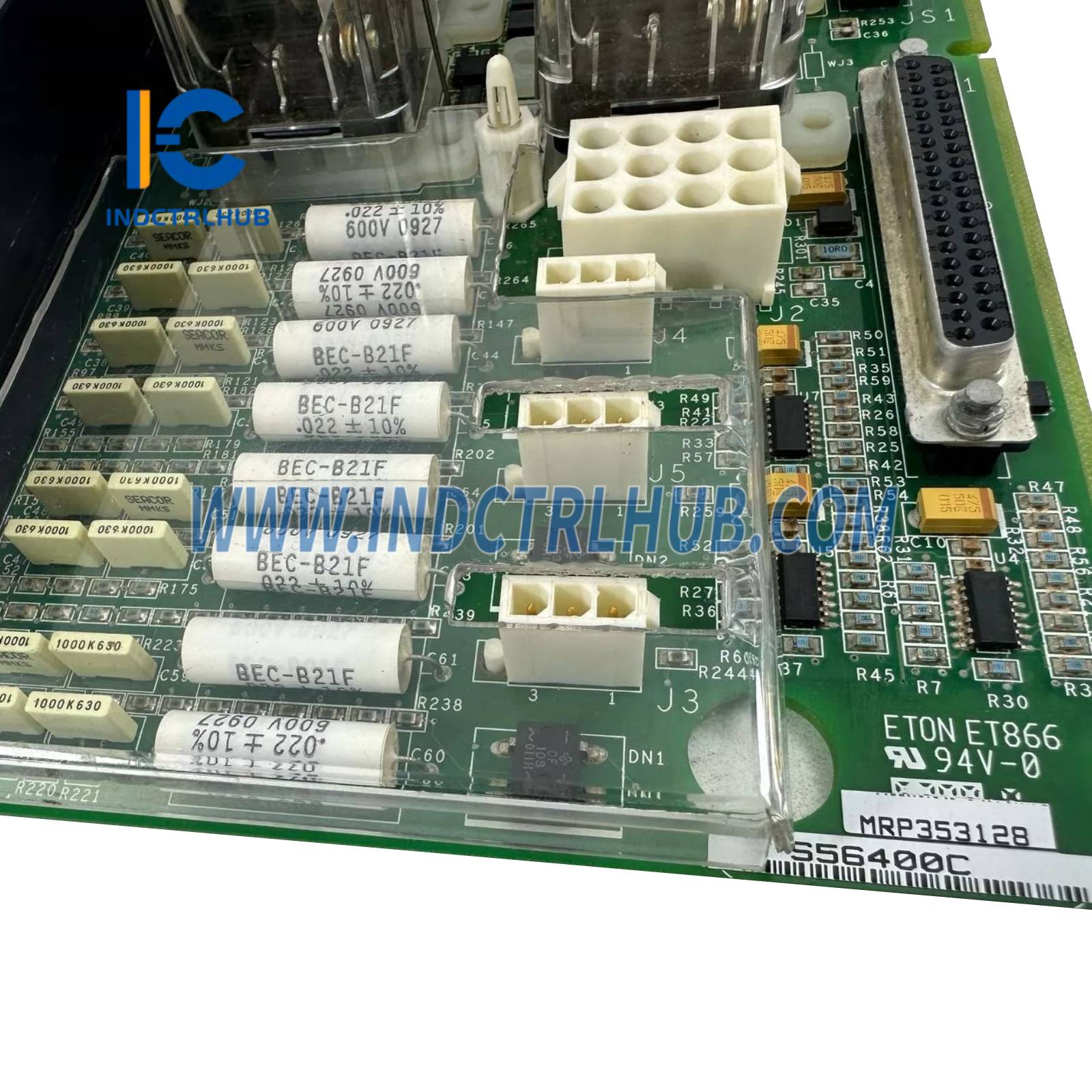

| Components |
Surface-mount technology, relays, terminal blocks, resistors, capacitors, integrated circuits |
| Power Consumption |
Approx. 1–2 A at 5 VDC (typical for Mark VIe modules, not publicly specified) |
| Board Size |
15.9 cm high x 17.8 cm wide (6.26 x 7.01 in) |
| Coating |
Conformal coating for environmental protection |

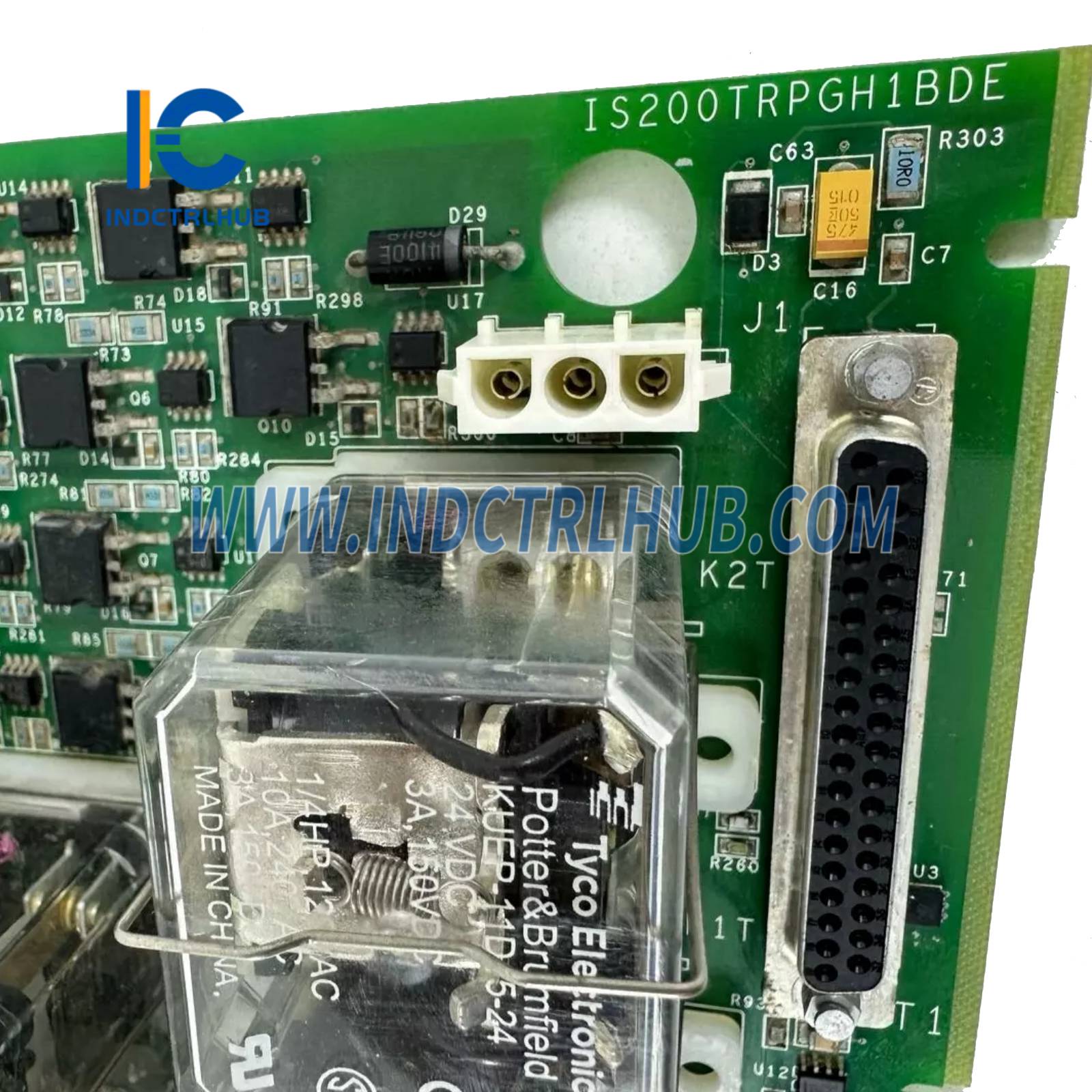

| Board Markings |
GE logo, IS200TRPGH1BDE, 6BA01 code |
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Mounting |
Single slot in Mark VIe rack, flat or DIN-rail mount |
| Certifications |
CE, UL, CSA, Class I Div 2 |
| Compatibility |
Mark VIe Turbine Control System, ToolboxST software |
| Manual |
GEH-6721L |
