| Specification |
Details |
| Model |

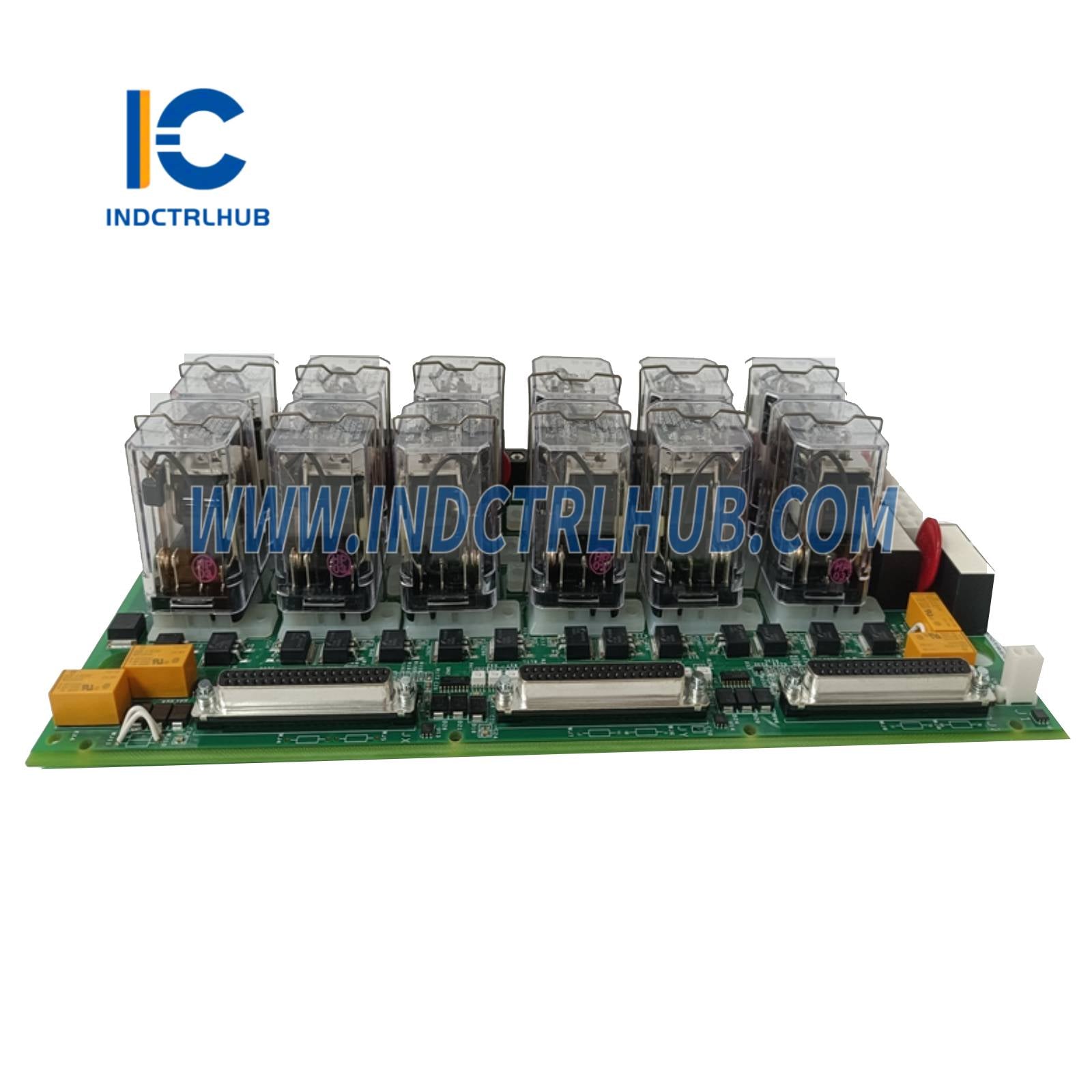

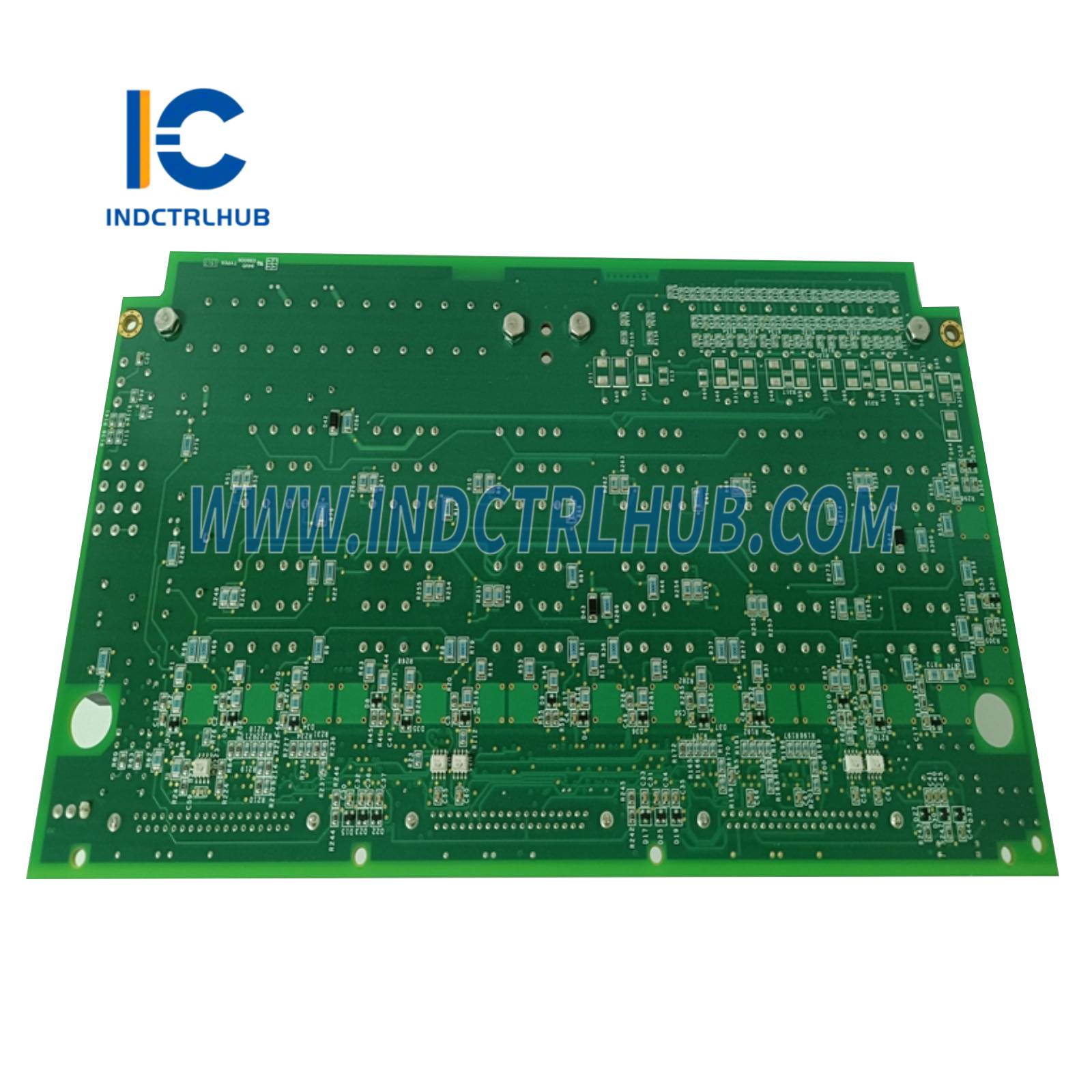

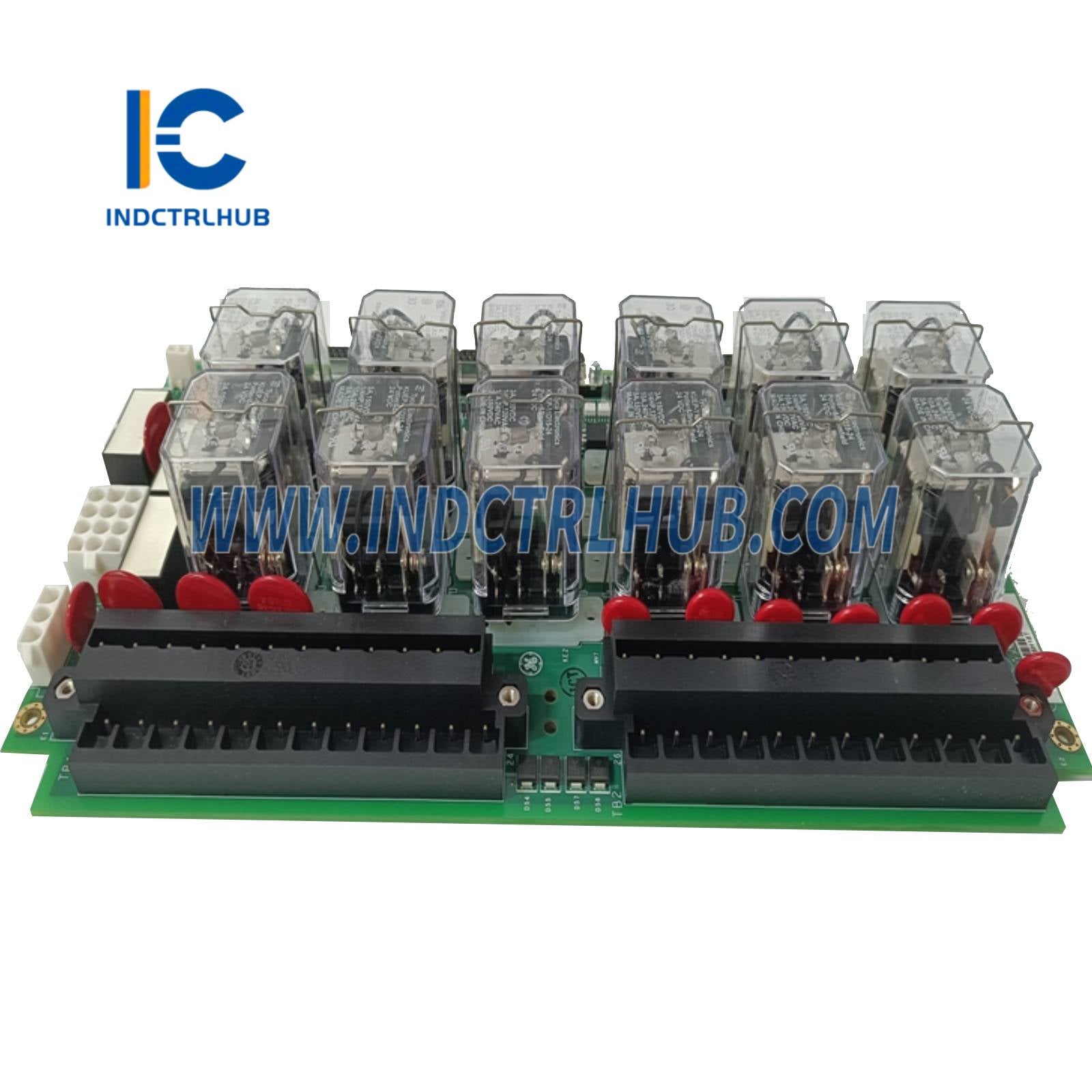

IS200TREGH1BDC |
| Series |
Mark VIe Speedtronic |
| Type |
Turbine Emergency Trip Terminal Board (TREG) |
| Function |
Monitors turbine parameters and executes emergency trip logic for shutdown |
| Inputs |
High-precision analog inputs for shaft speed, bearing temperature, vibration |
| Outputs |
Fail-safe relay outputs for emergency shutdown (ESD) |
| Trip Parameters |
Configurable for overspeed, vibration, thermal overload |
| Power Supply |
Dual redundant power supplies, typically 24 VDC or 125 VDC |
| Connectors |
Terminal blocks for field connections, multi-pin connectors (JR1, JS1, JT1) for TMR |
| I/O Pack Compatibility |
PTUR (IS220PTURH1A) or similar I/O packs |
| Signal Protection |
Surge suppression, EMI shielding |
| Components |
Surface-mount technology, relays, terminal blocks, resistors, capacitors, integrated circuits |
| Power Consumption |
Approx. 1–2 A at 5 VDC (typical for Mark VIe modules, not publicly specified) |
| Board Size |
15.9 cm high x 17.8 cm wide (6.26 x 7.01 in) |
| Coating |
Conformal coating for environmental protection |
| Board Markings |
GE logo, IS200TREGH1BDC, 6BA01 code |
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Mounting |
Single slot in Mark VIe rack, flat or DIN-rail mount |
| Certifications |
CE, UL, CSA, Class I Div 2 |
| Compatibility |
Mark VIe Turbine Control System, ToolboxST software |
| Manual |
GEH-6721L |
