Product Description

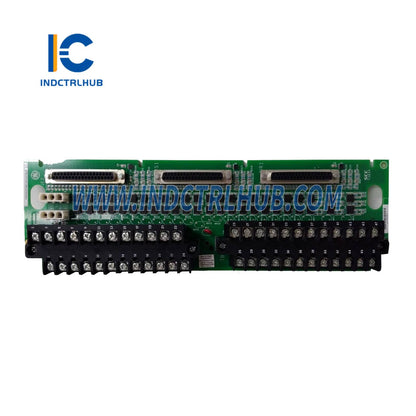

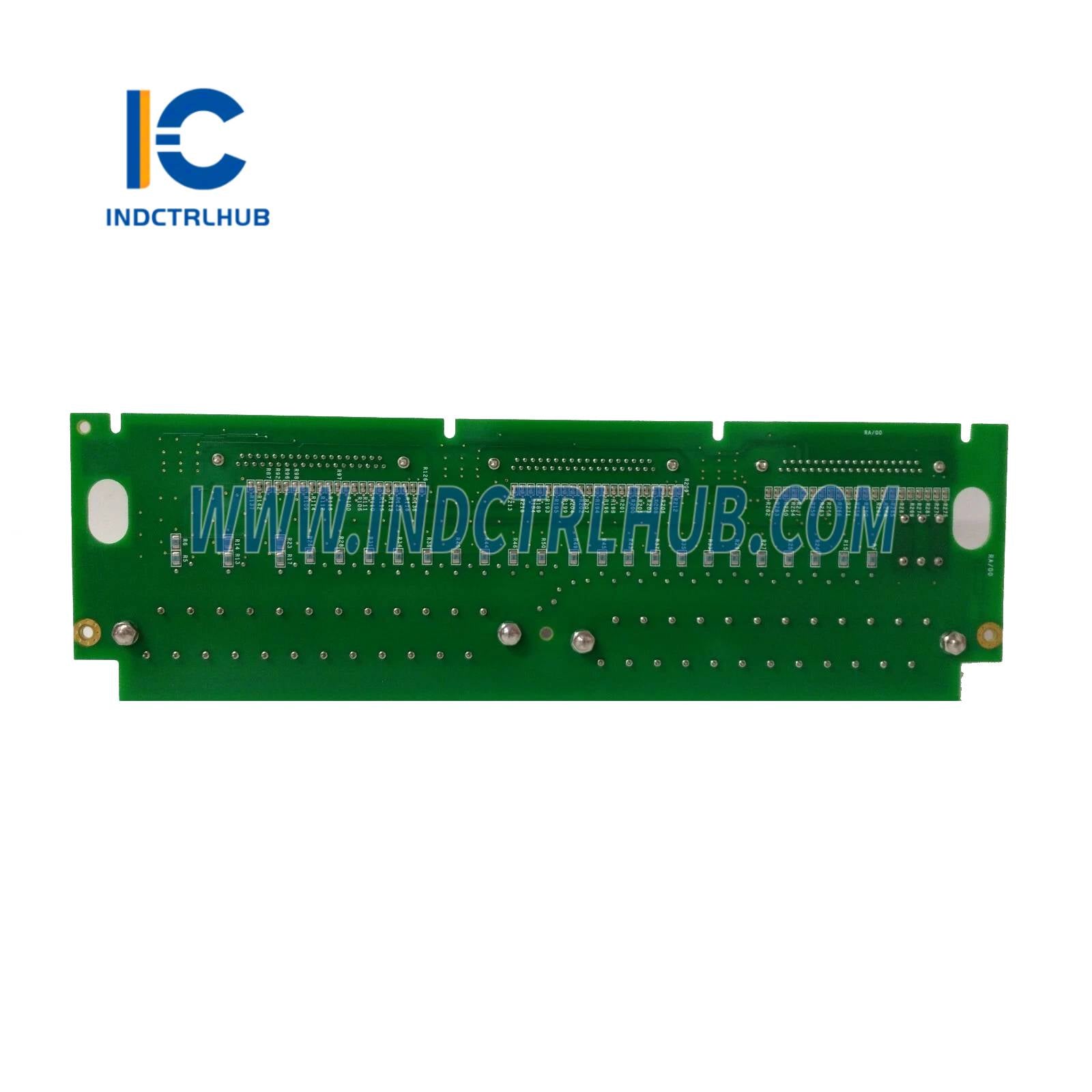

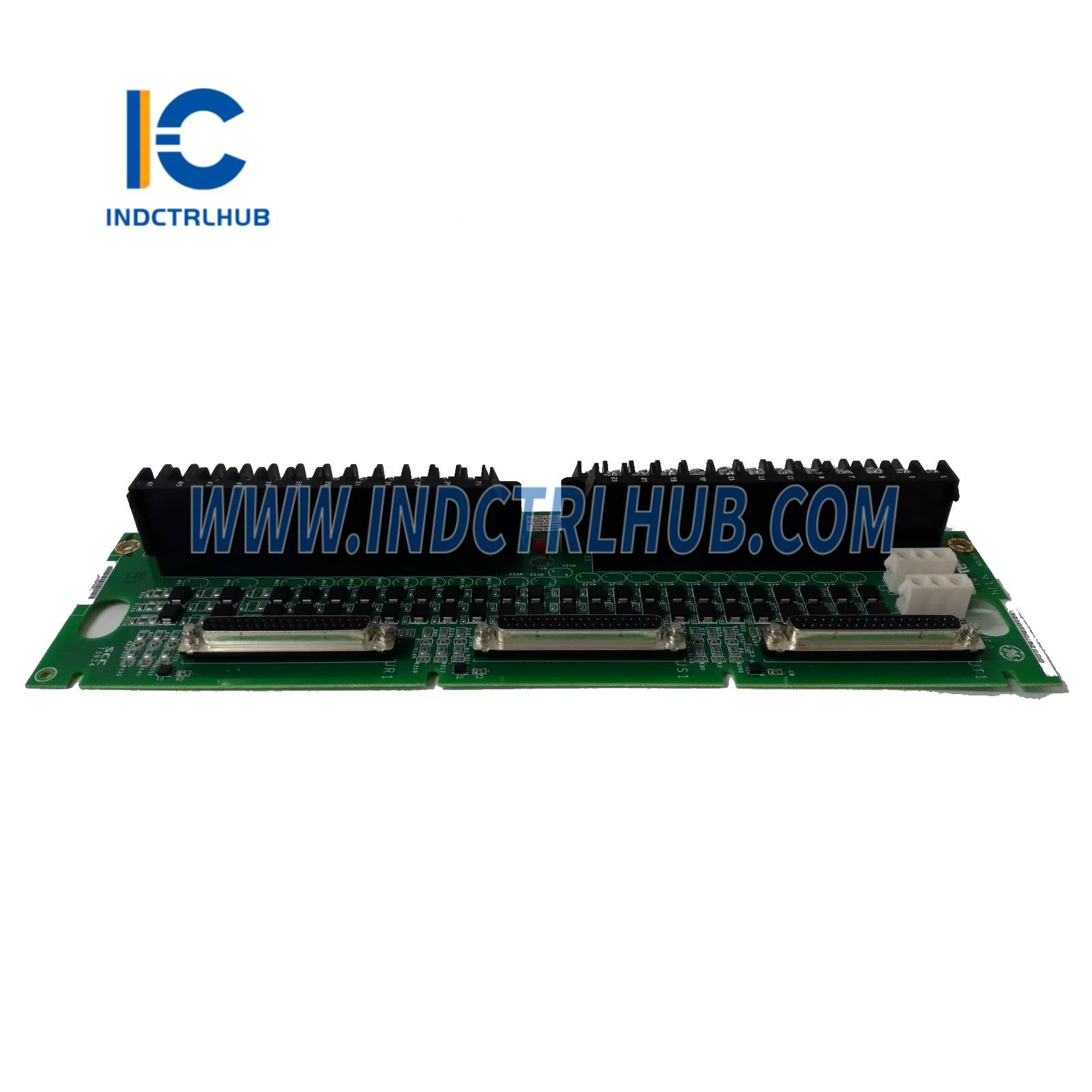

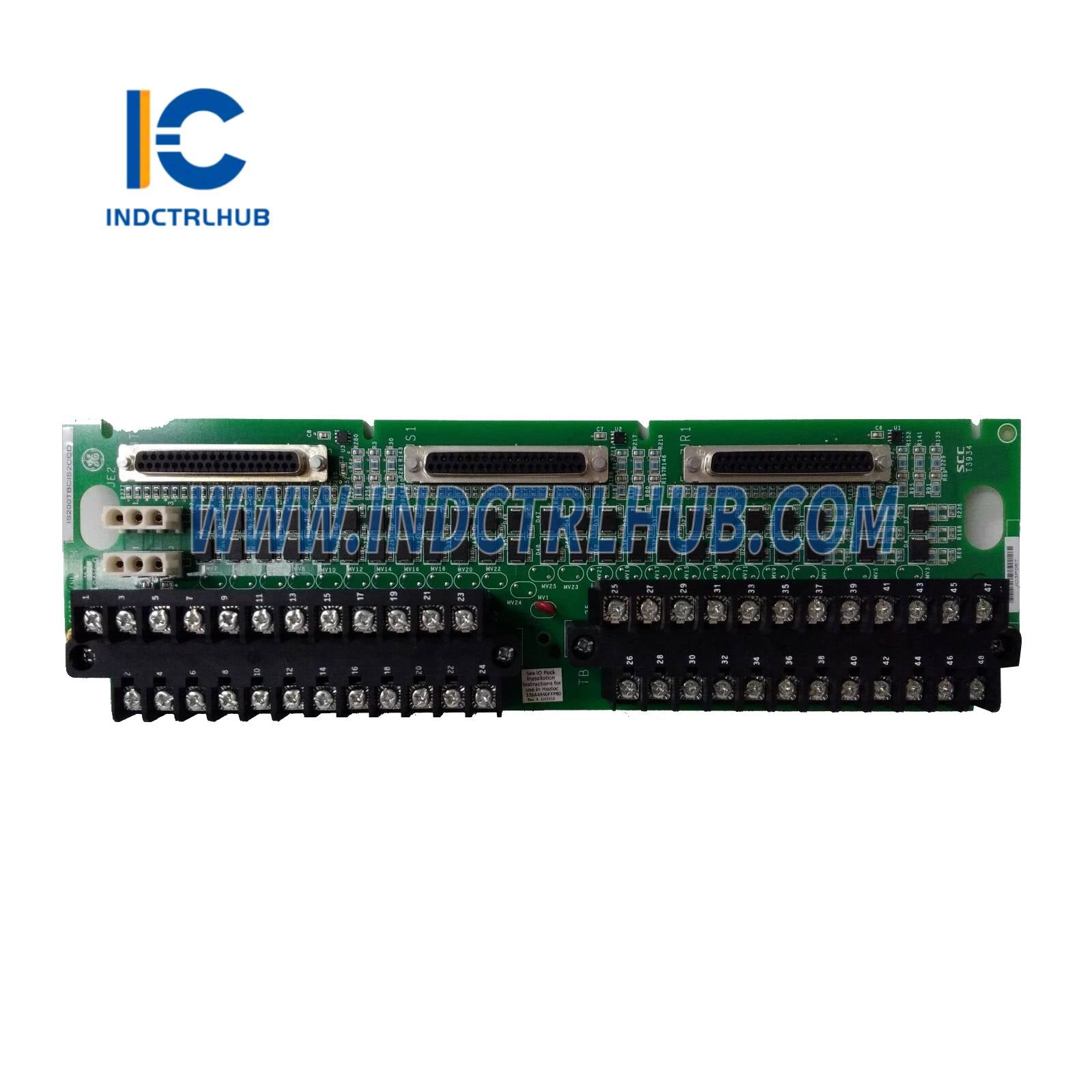

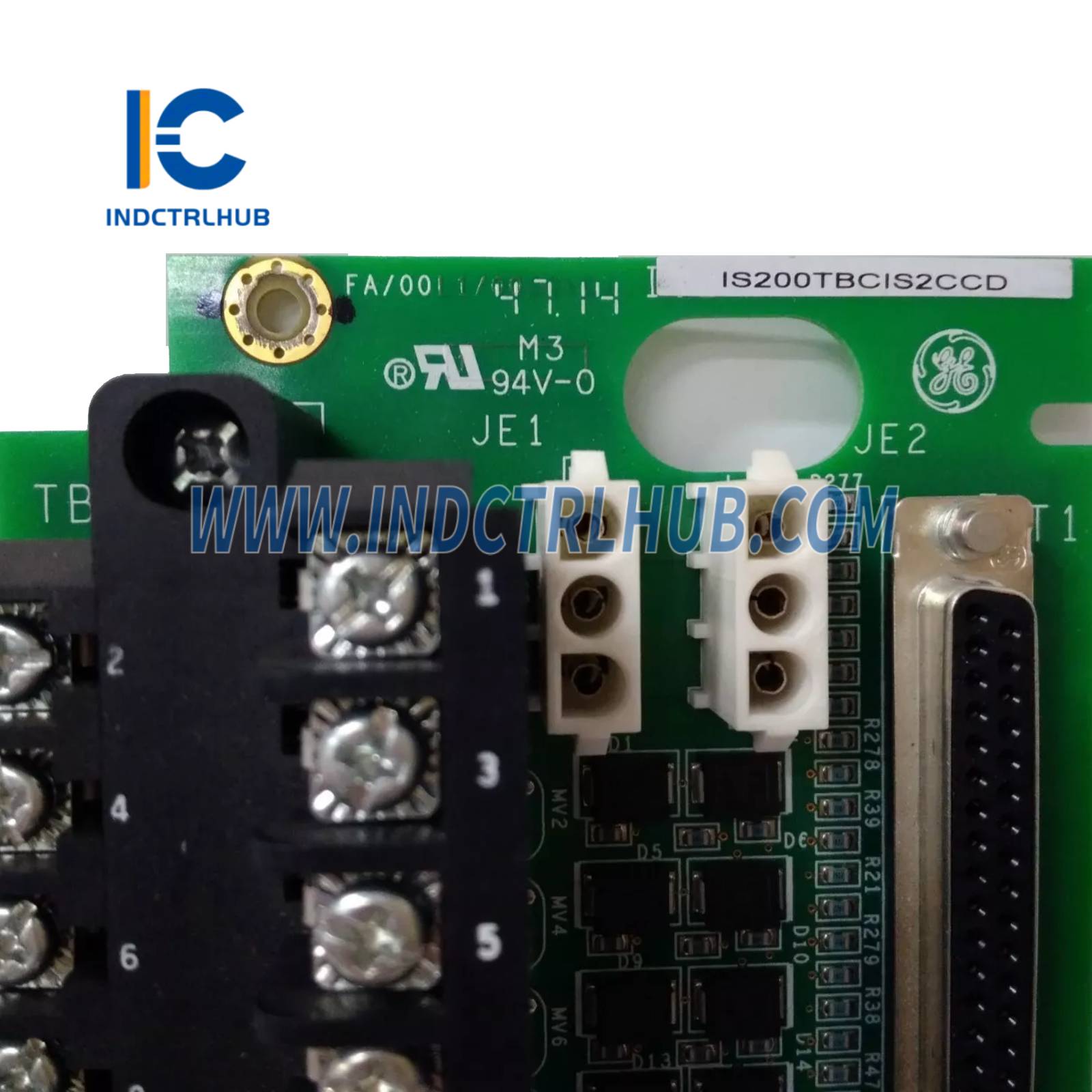

General Electric IS200TBCIS2CCD Contact Input Terminal Board
Product Overview
- Description: The General Electric IS200TBCIS2CCD is a contact input terminal board designed for use in GE’s Mark VIe turbine control systems. It interfaces with dry contact inputs to monitor discrete signals, such as switch positions or relay states, in turbine and generator applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS200TBCIS2CCD |
| Model Type | Contact Input Terminal Board |
| Function | Interfaces dry contact inputs for discrete signal monitoring |
| Display | LED indicators (status, power) |
| Inputs | 24 dry contact inputs (24 VDC or 125 VDC excitation, configurable) |
| Outputs | Digital data to Mark VIe control system |
| Communication Interfaces | Mark VIe system backplane |
| Signal Conditioning | Internal signal isolation, debounce filtering |
| Accuracy | Not applicable (discrete signal detection) |
| Redundancy | Non-redundant (simplex configuration) |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane), external excitation for contacts |
| Power Consumption | 5 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 40 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
