Product Description

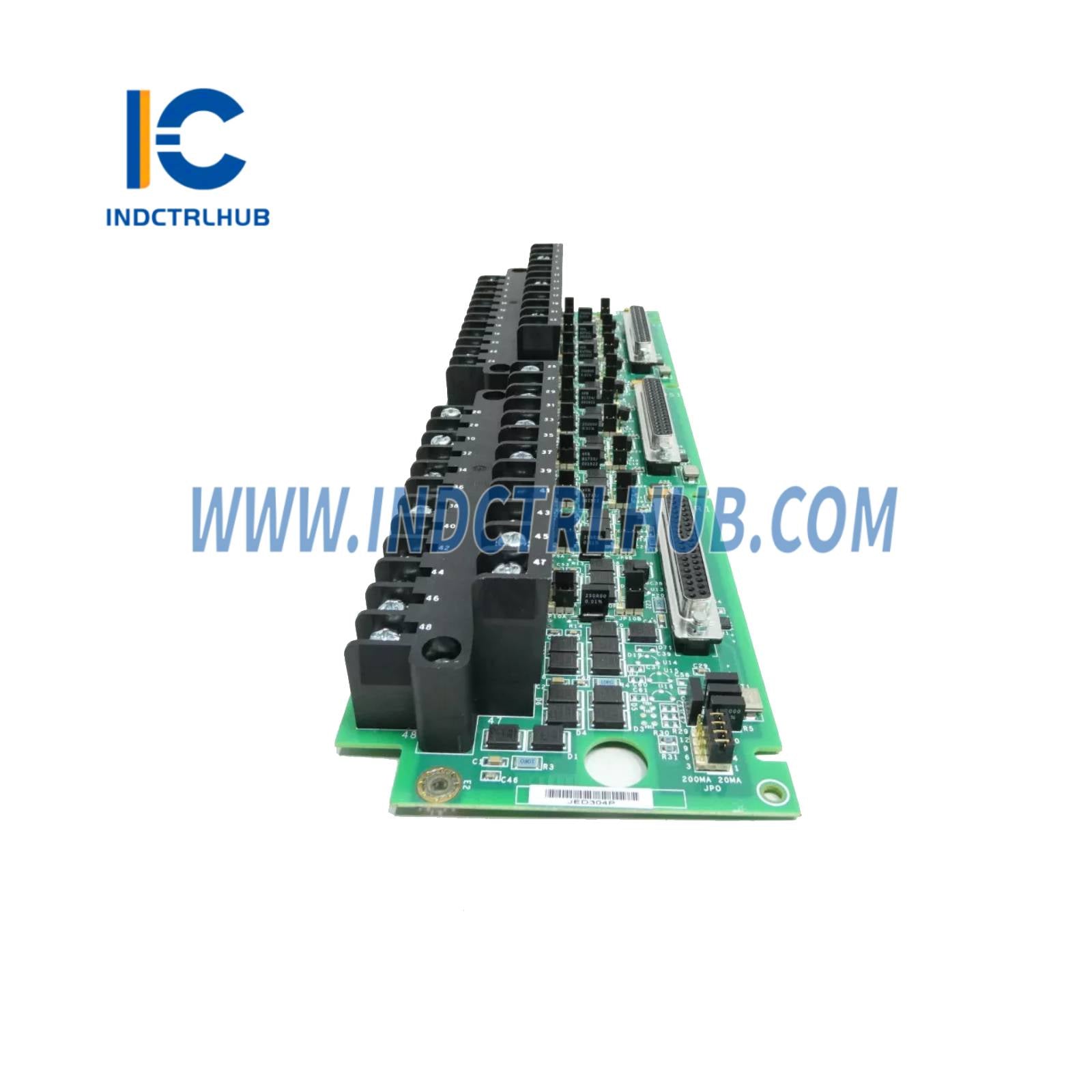

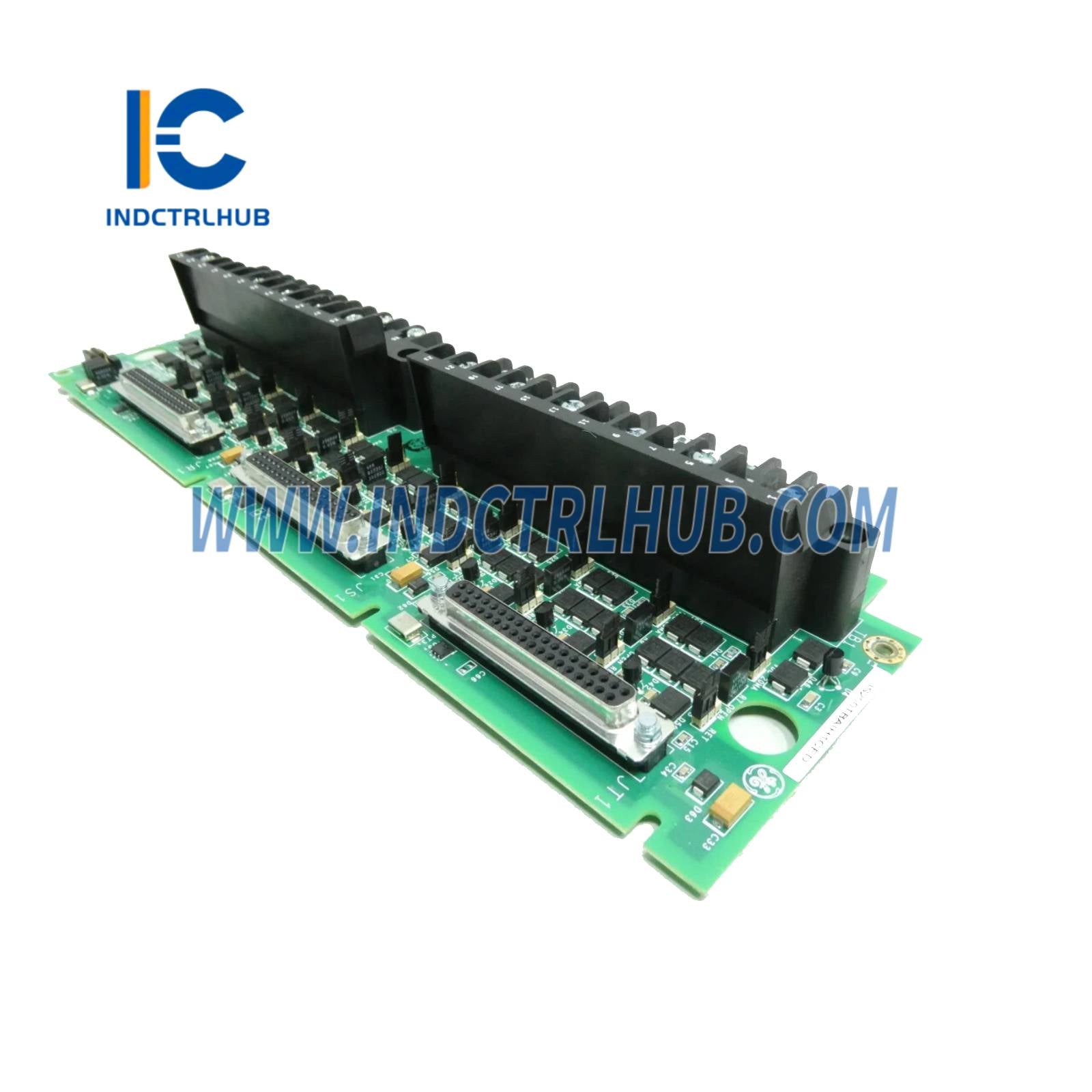

General Electric IS200TBCIH1CBC Contact Input Terminal Board
Product Overview
- Description: The General Electric IS200TBCIH1CBC is a contact input terminal board designed for use in GE’s Mark VI turbine control systems. It interfaces with dry contact inputs to monitor discrete signals, such as switch positions or relay states, in turbine and generator applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VI |
| Model/Part Number | IS200TBCIH1CBC |
| Model Type | Contact Input Terminal Board |
| Function | Interfaces dry contact inputs for discrete signal monitoring |
| Display | LED indicators (status, power) |
| Inputs | 24 dry contact inputs (125 VDC or 24 VDC excitation, configurable) |
| Outputs | Digital data to Mark VI control system |
| Communication Interfaces | Mark VI system backplane, VME bus |
| Signal Conditioning | Internal signal isolation, debounce filtering |
| Accuracy | Not applicable (discrete signal detection) |
| Redundancy | Non-redundant (simplex configuration) |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VI turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VI backplane), external excitation for contacts |
| Power Consumption | 5 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 40 mm (D) |
| Weight | 0.6 kg (approx.) |
| Mounting | Plugs into Mark VI VME rack |
| Certifications | CE, UL, cULus, RoHS |
