| Specification |
Details |
| Model |

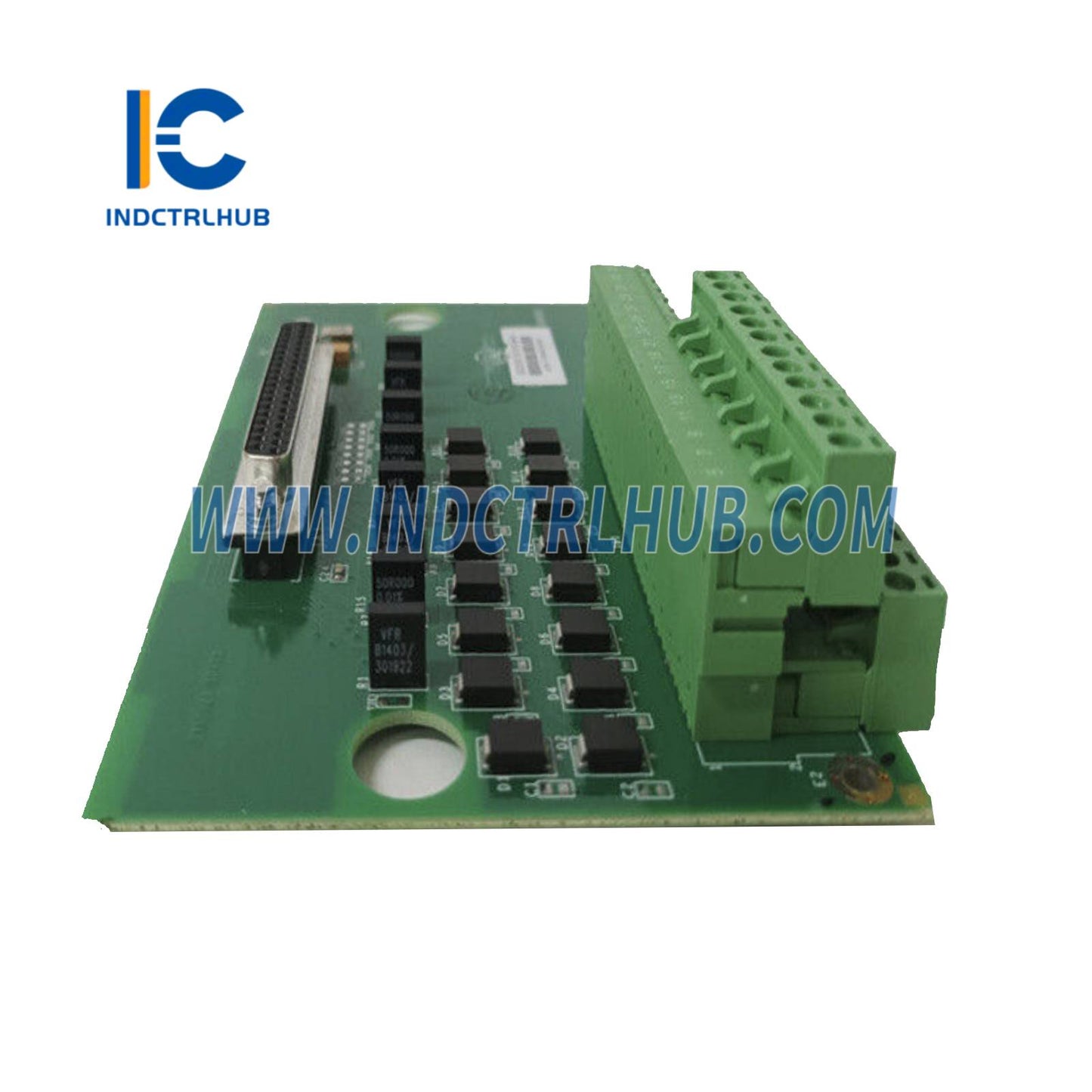

IS200STAOH1A |
| Series |
Mark VIe Speedtronic |
| Type |
Simplex Analog Output Terminal Board |
| Function |
Provides 8 analog output channels for control signals |
| Analog Outputs |
8 channels, 0–20 mA (configurable, typically 4–20 mA for industrial standards) |
| Output Load |
Up to 500 Ω per channel |
| I/O Pack Compatibility |
PAOA I/O pack (IS220PAOCH1A) |
| Connectors |
48 customer terminal blocks (TB1, fixed), multi-pin connectors for I/O pack and backplane |
| Components |
Surface-mount technology, terminal blocks, resistors, capacitors, integrated circuits |
| Power Consumption |
Approx. 1–2 A at 5 VDC (typical for Mark VIe modules, not publicly specified) |
| Board Size |
15.9 cm high x 17.8 cm wide (6.26 x 7.01 in) |
| Coating |
Conformal coating for environmental protection |
| Board Markings |
GE logo, IS200STAOH1A, 6BA01 code |
| Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Mounting |
Single slot in Mark VIe rack, flat or DIN-rail mount |
| Certifications |
CE, UL, CSA, Class I Div 2 |
| Compatibility |
Mark VIe Turbine Control System, ToolboxST software |
| Manual |
GEH-6721L |
