Product Description
General Information
- Manufacturer: General Electric
- Model/Part Number: IS200EXHSG4A

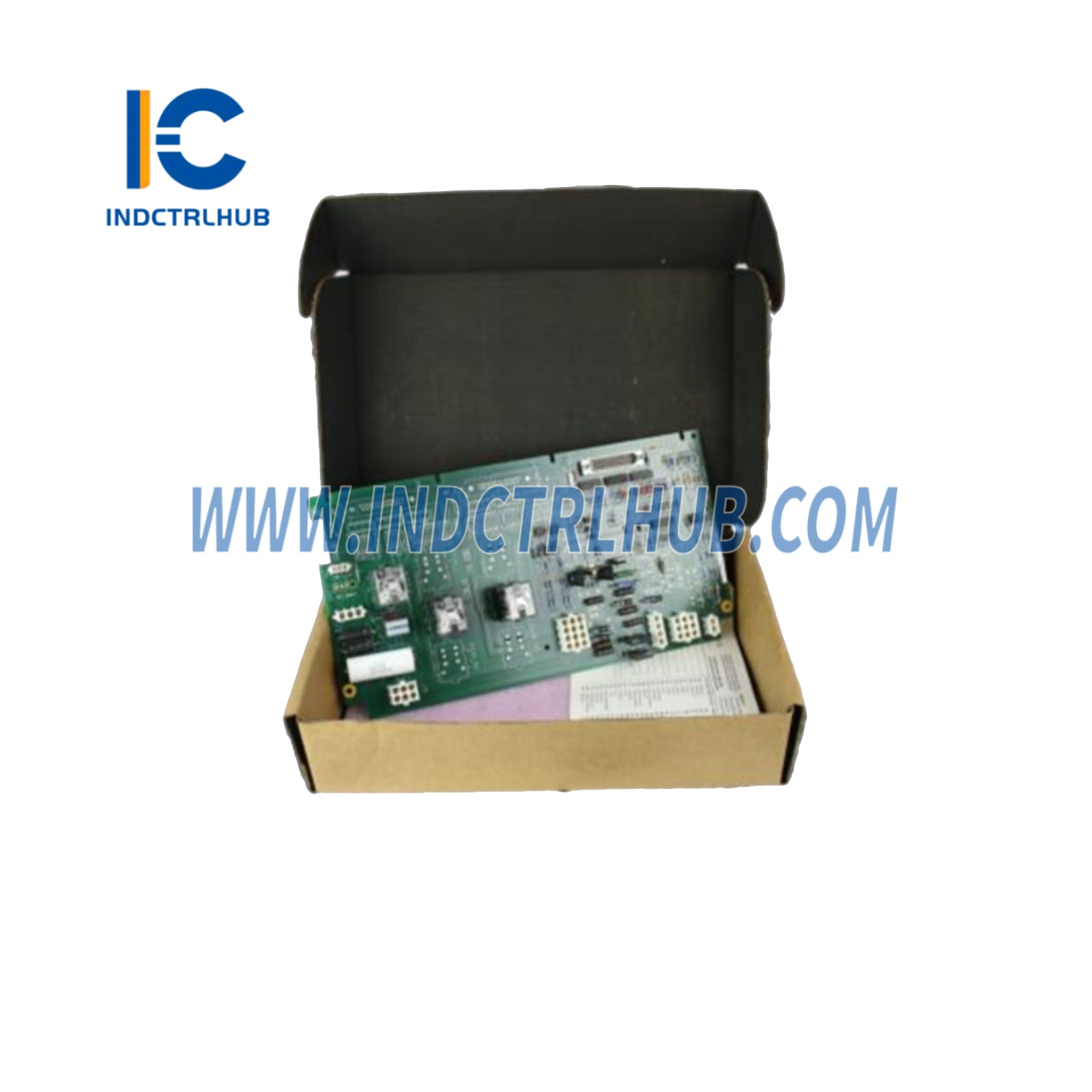

- Description: The General Electric IS200EXHSG4A is an Exciter High-Speed Relay Driver Board from the EX2100 series, designed for use in GE’s excitation control systems. This printed circuit board (PCB) manages high-speed relay outputs for static exciters, facilitating rapid switching and control of excitation systems in synchronous generators. It is a critical component for ensuring stable voltage regulation and reliable operation in power generation applications.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Exciter High-Speed Relay Driver Board |
| Series | EX2100 |
| Relay Outputs | Multiple high-speed relay drivers |
| Connectors | Terminal blocks and ribbon connectors for signal interfacing |
| Power Requirements | Derived from EX2100 backplane, typically 24 V DC |
| Operating Temperature | -30°C to +65°C |
| Weight | 0.45 kg (1 lb) |
| Application | Excitation control in synchronous generators, power generation |
