Product Description

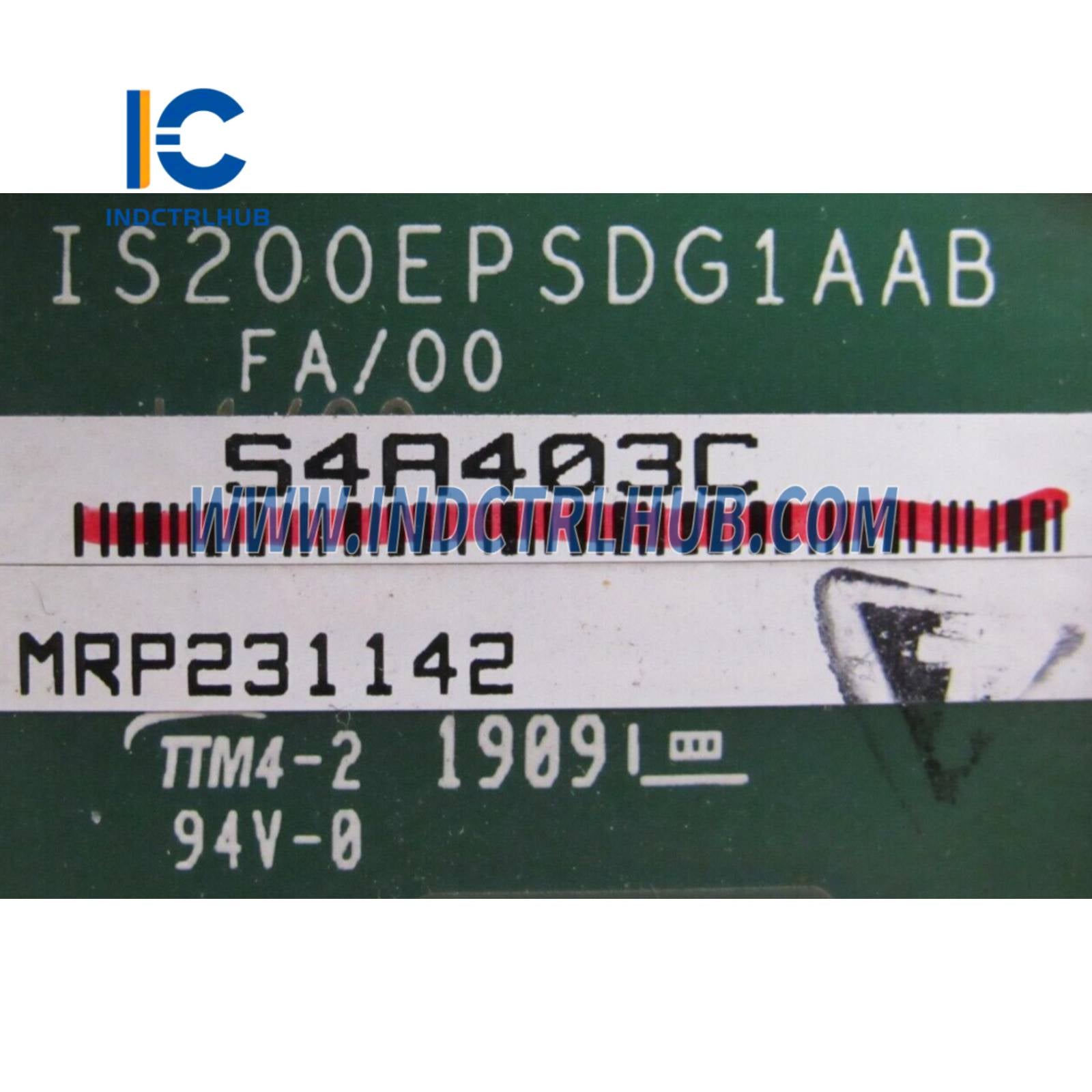

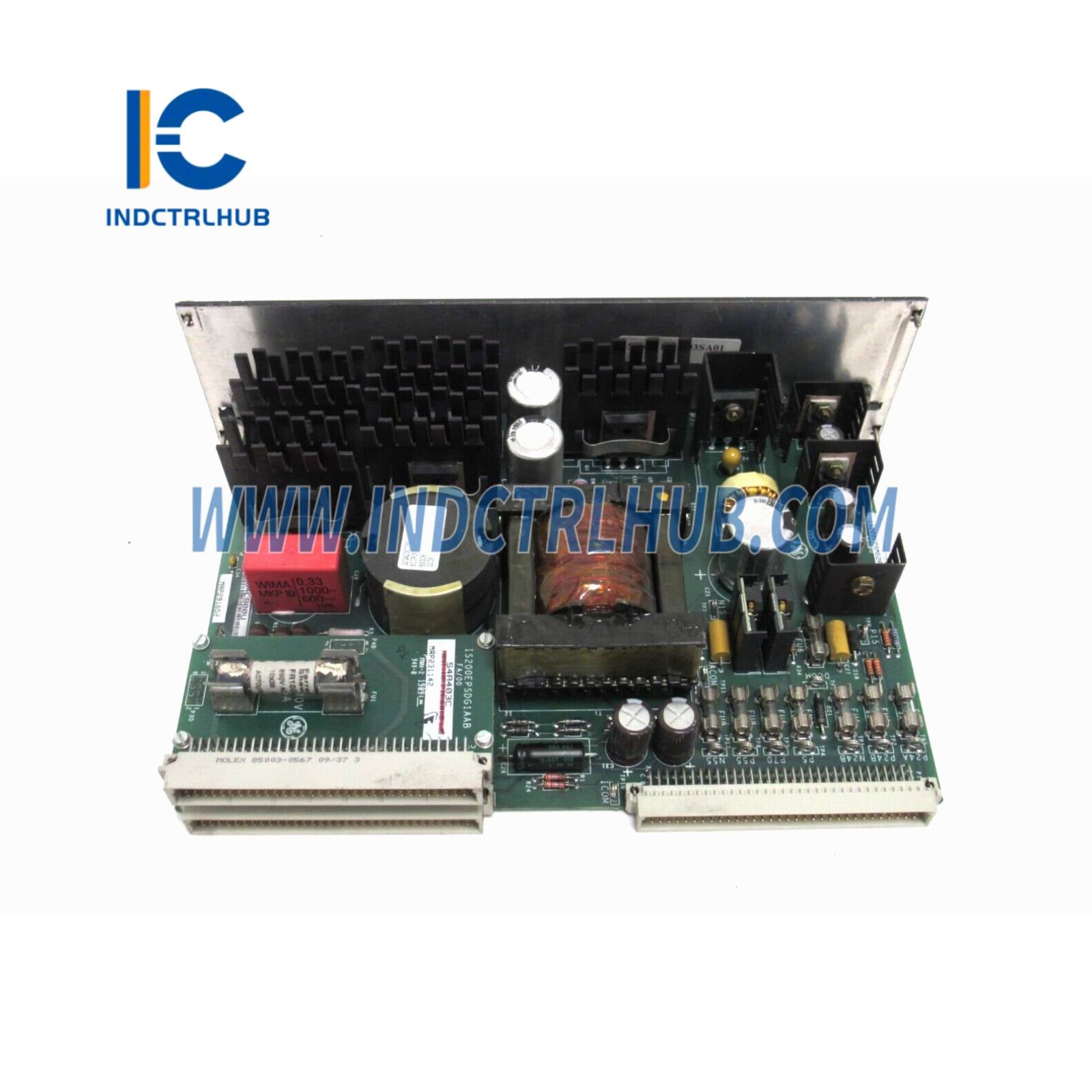

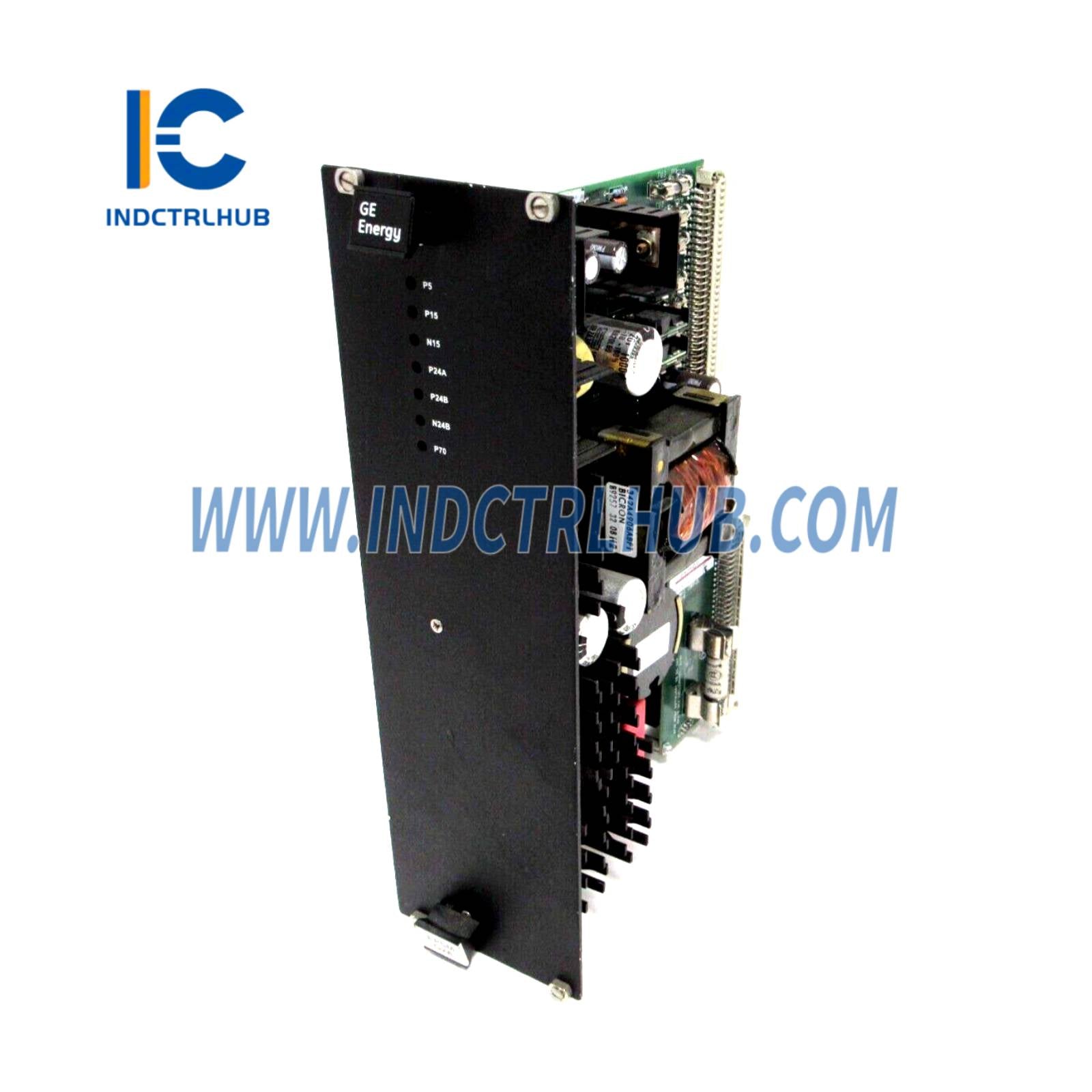

General Electric IS200EPSDG1AAB Exciter Power Supply Board
Product Overview
- Description: The General Electric IS200EPSDG1AAB is an exciter power supply board designed for use in GE’s Mark VI and Mark VIe turbine control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VI / Mark VIe |
| Model/Part Number | IS200EPSDG1AAB |
| Model Type | Exciter Power Supply Board |
| Function | Provides regulated power for exciter control modules |
| Display | LED indicators (status, power) |
| Inputs | 24 VDC or 125 VDC (from external source) |
| Outputs | Regulated DC power for exciter control (specific voltages vary by configuration) |
| Communication Interfaces | Mark VI/VIe system backplane |
| Signal Conditioning | Internal voltage regulation and filtering |
| Accuracy | ±5% voltage regulation (typical) |
| Redundancy | Supports redundancy in Mark VI/VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VI and Mark VIe turbine control systems |
| Power Supply | 24 VDC or 125 VDC (input from external source) |
| Power Consumption | 10 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 40 mm (D) |
| Weight | 0.6 kg (approx.) |
| Mounting | Plugs into Mark VI/VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
