| Specification |
Details |
| Model |

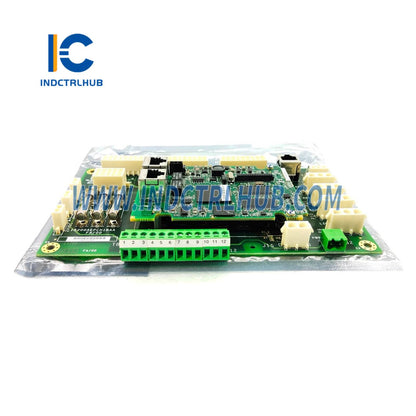

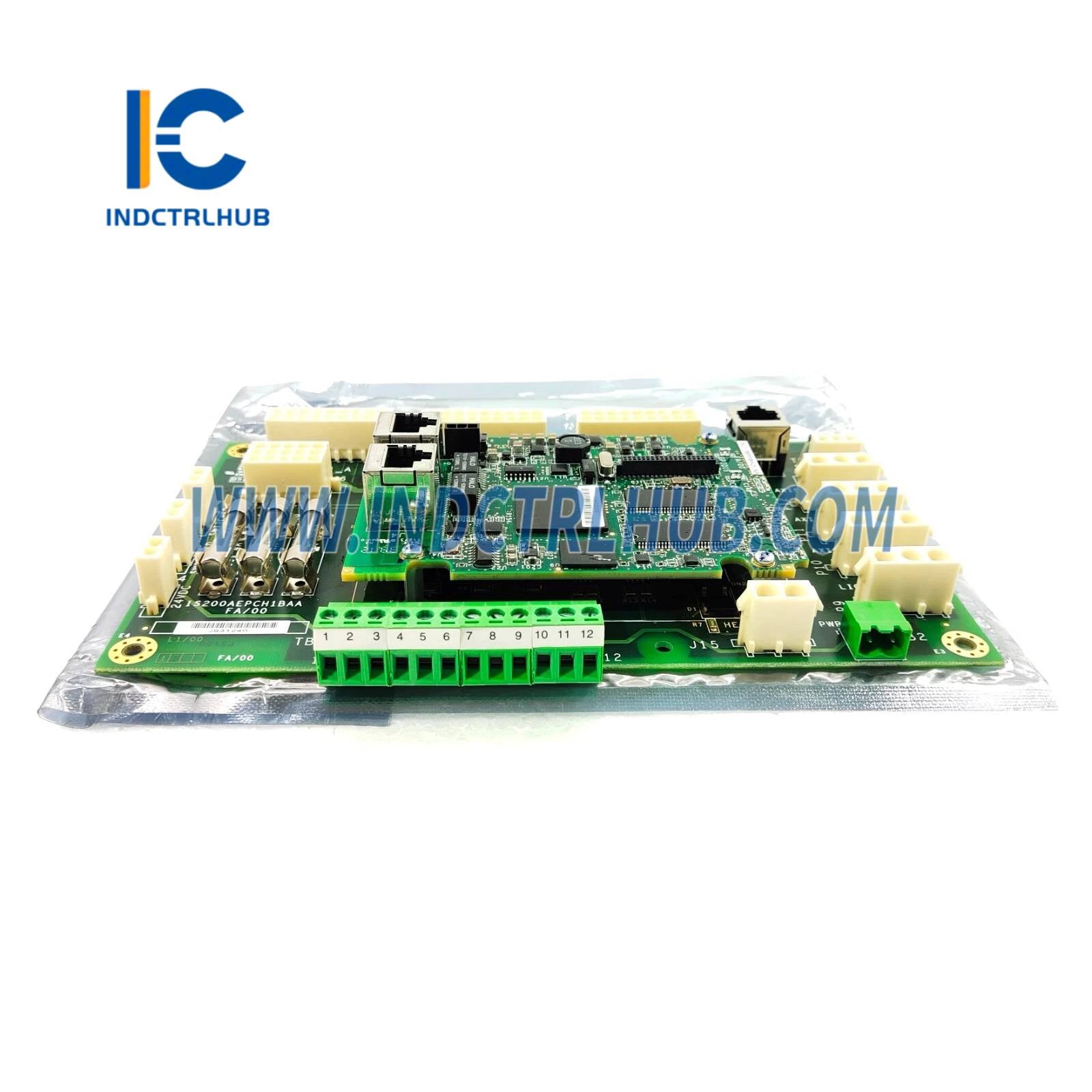

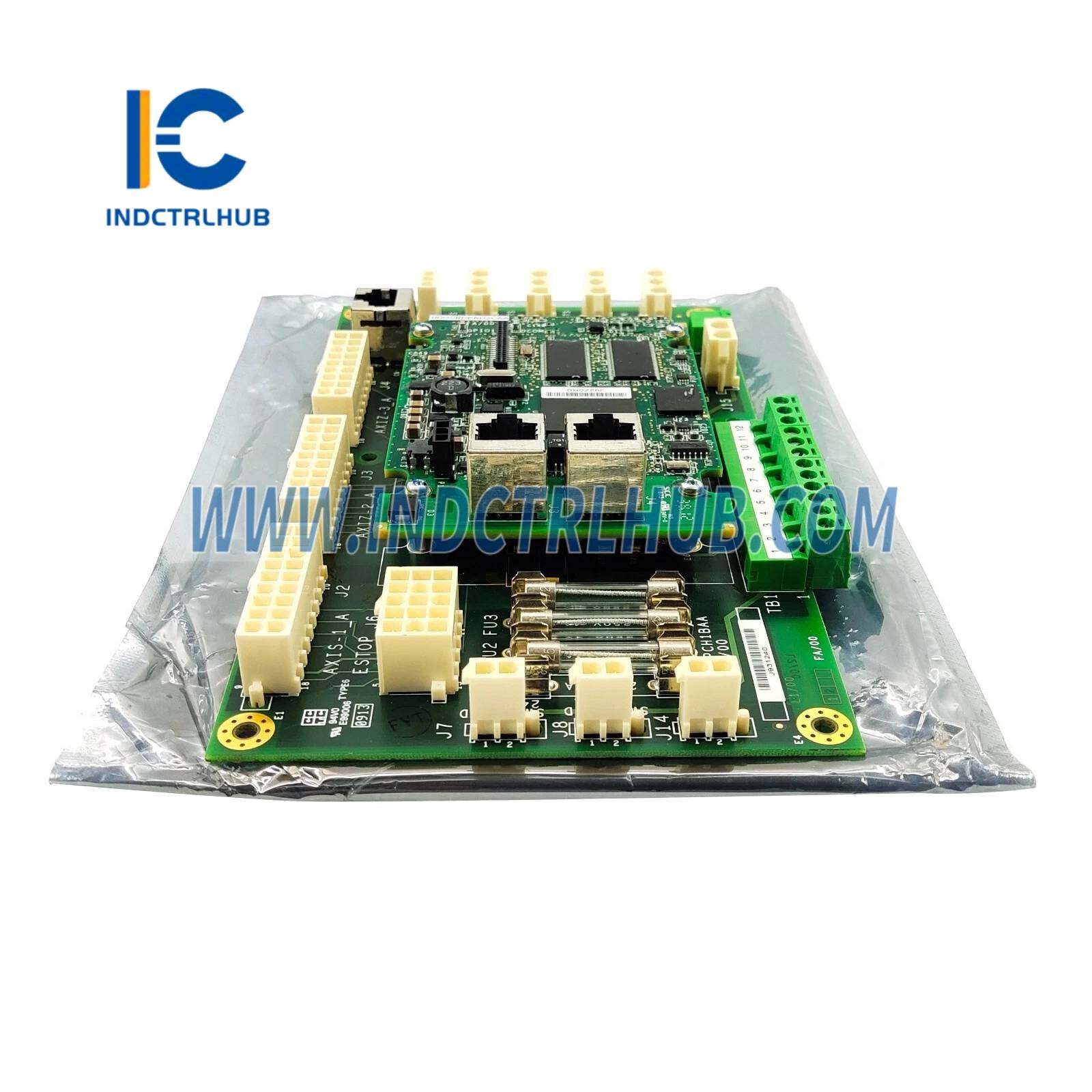

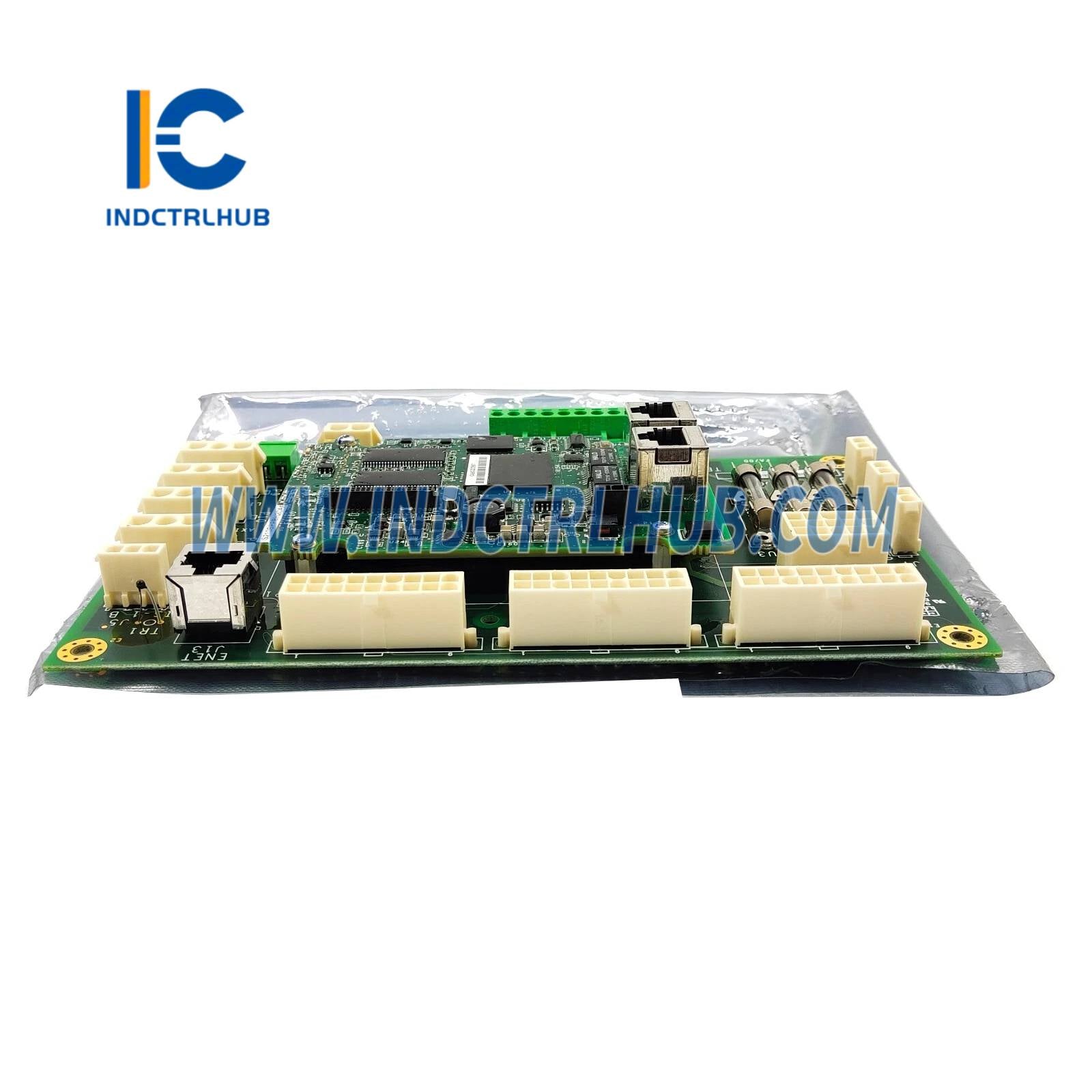

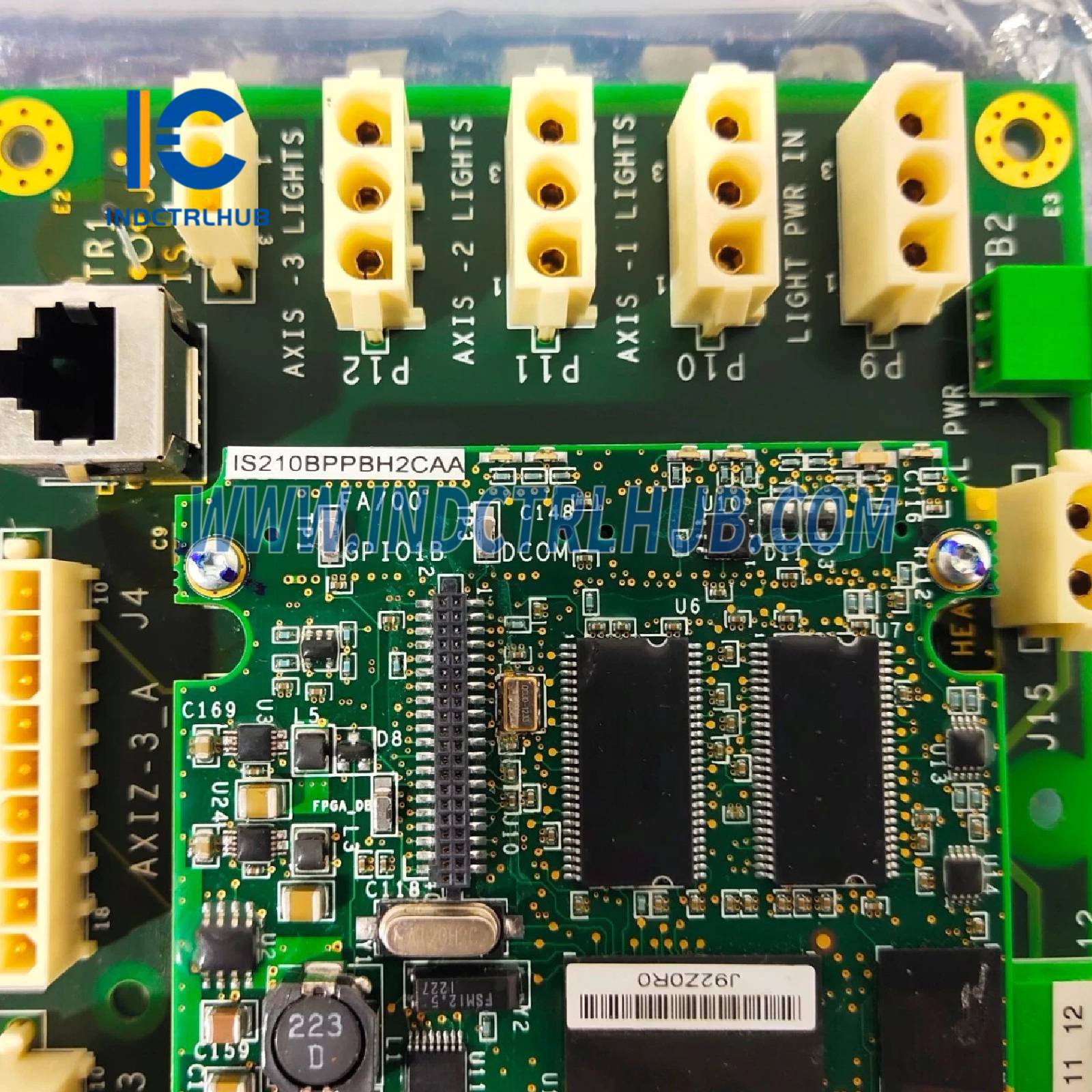

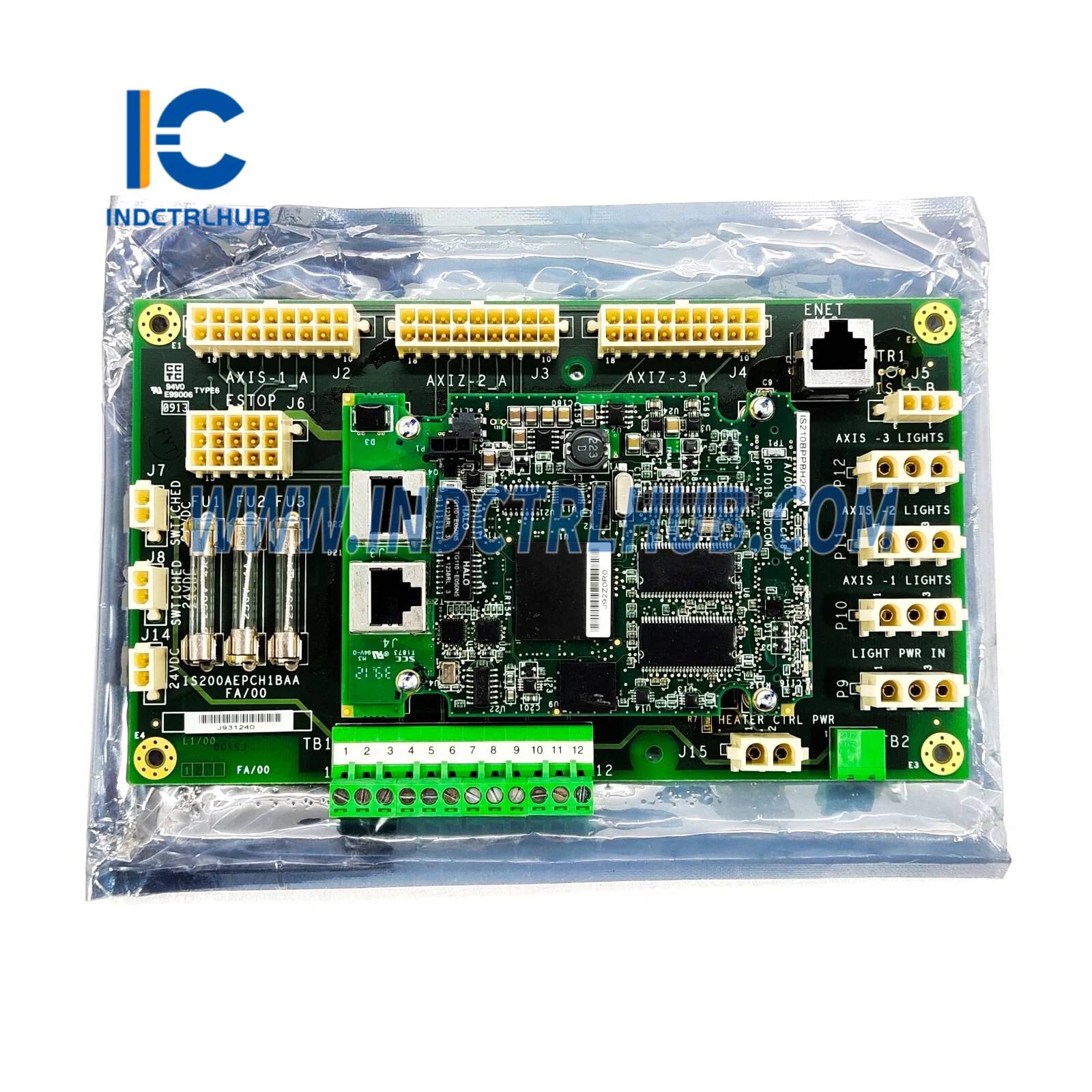

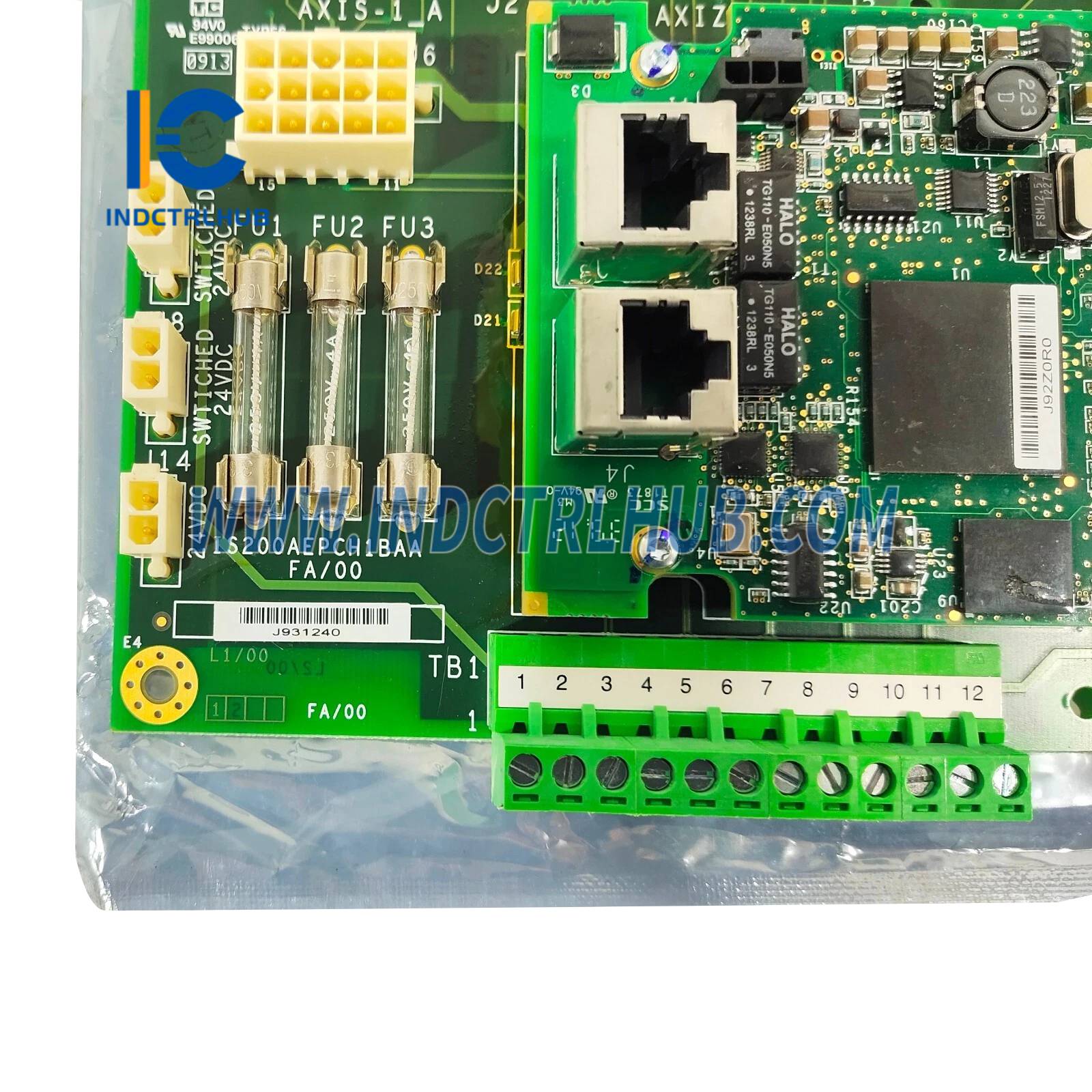

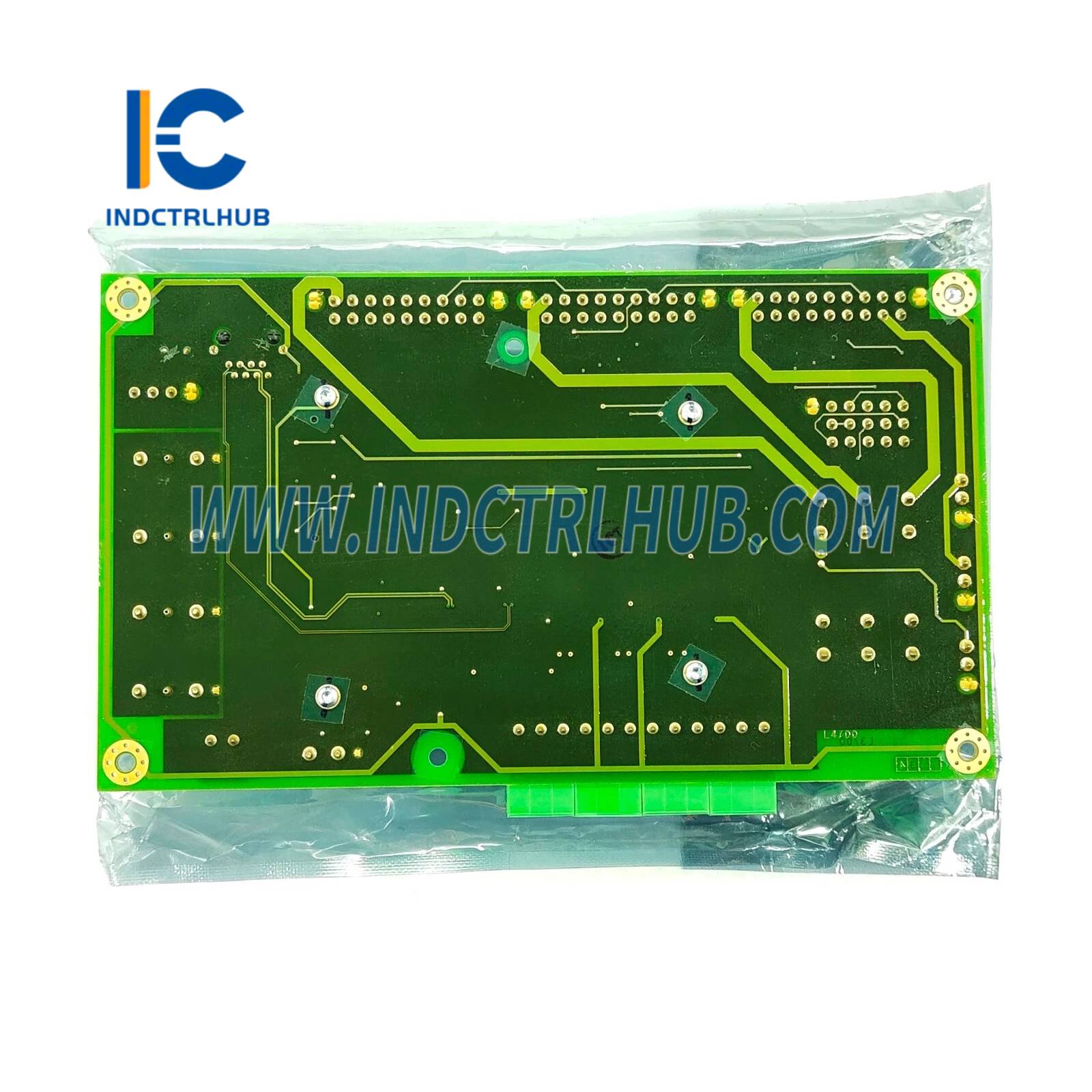

IS200AEPCH1BAA (IS215AEPCH1EB) |
| Series |
Mark VI Speedtronic |
| Type |
Application Control Layer (ACL) Module |
| Processor |
Microprocessor-based (specific model not publicly detailed) |
| Memory |
128 MB CompactFlash via IDE-to-SATA converter |
| Communication Interfaces |
Ethernet (10/100/1000BASE-T, Intel 82576 chipset), ISBus |
| Connectors |
Vertical male pin, backplane connector, multi-pin ribbon cable connector |
| Supported Features |
Jumbo frames, hardware-based checksumming, PC-compatible interface (CPU interface logic, keyboard, speaker control, real-time clock) |
| Power Consumption |
Approx. 1–2 A at 5 VDC (typical for Mark VI modules, not publicly specified) |
| Faceplate |
Thin faceplate with GE logo, board ID, multi-pin connectors |
| Board Markings |
Code 6BA00, GE logo, identification number |
| Coating |
Conformal coating for environmental protection |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
Approx. 0.5 kg (1.1 lbs) |
| Dimensions |
Approx. 13.3 x 5.1 x 13.5 cm (5.24 x 2.0 x 5.31 in) |
| Mounting |
Single slot in Mark VI VME rack or EX2100 control cabinet |
| Certifications |
CE, UL, CSA, Class I Div 2 |
| Compatibility |
Mark VI Turbine Control System, EX2100 Excitation Control, Proficy Machine Edition |
