Product Description

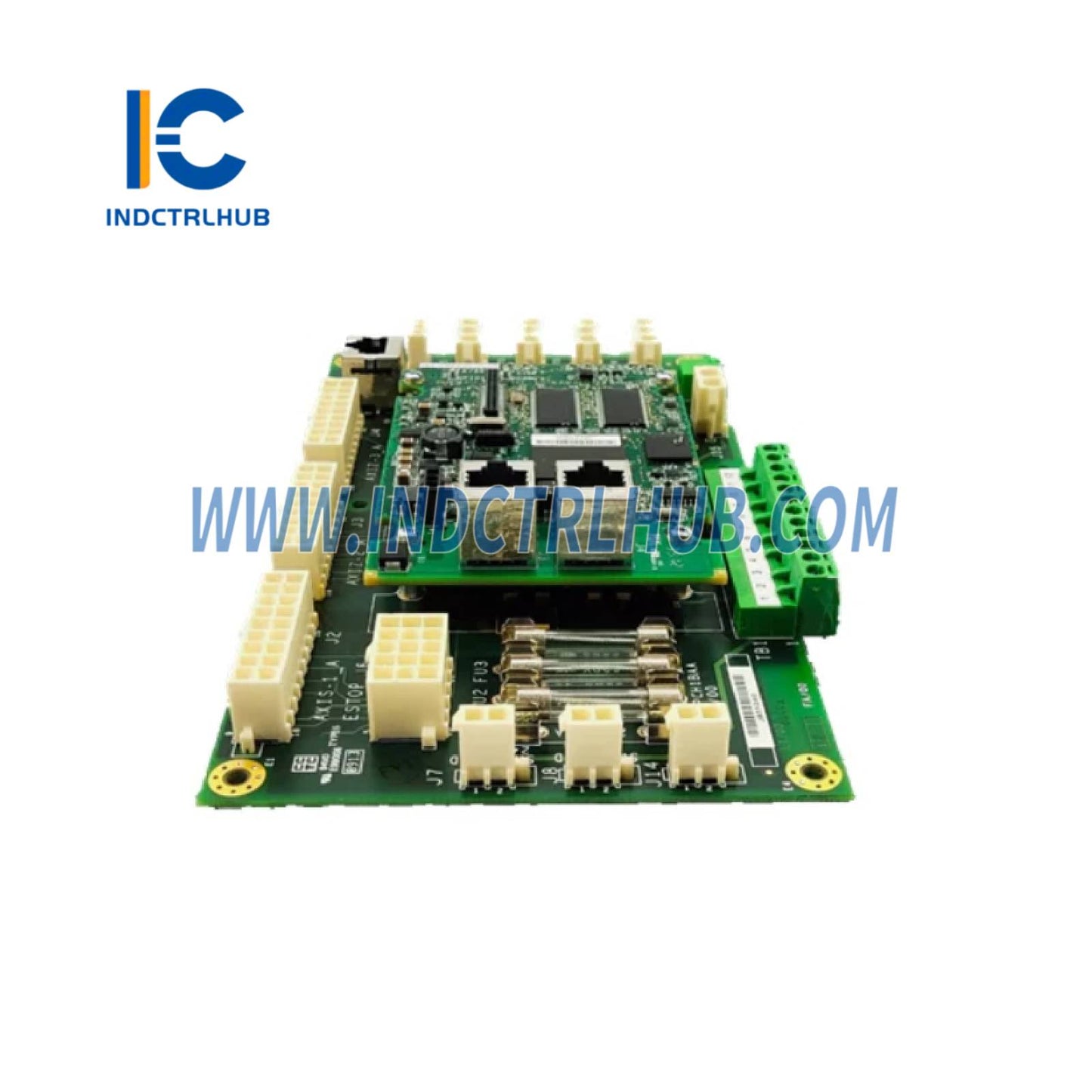

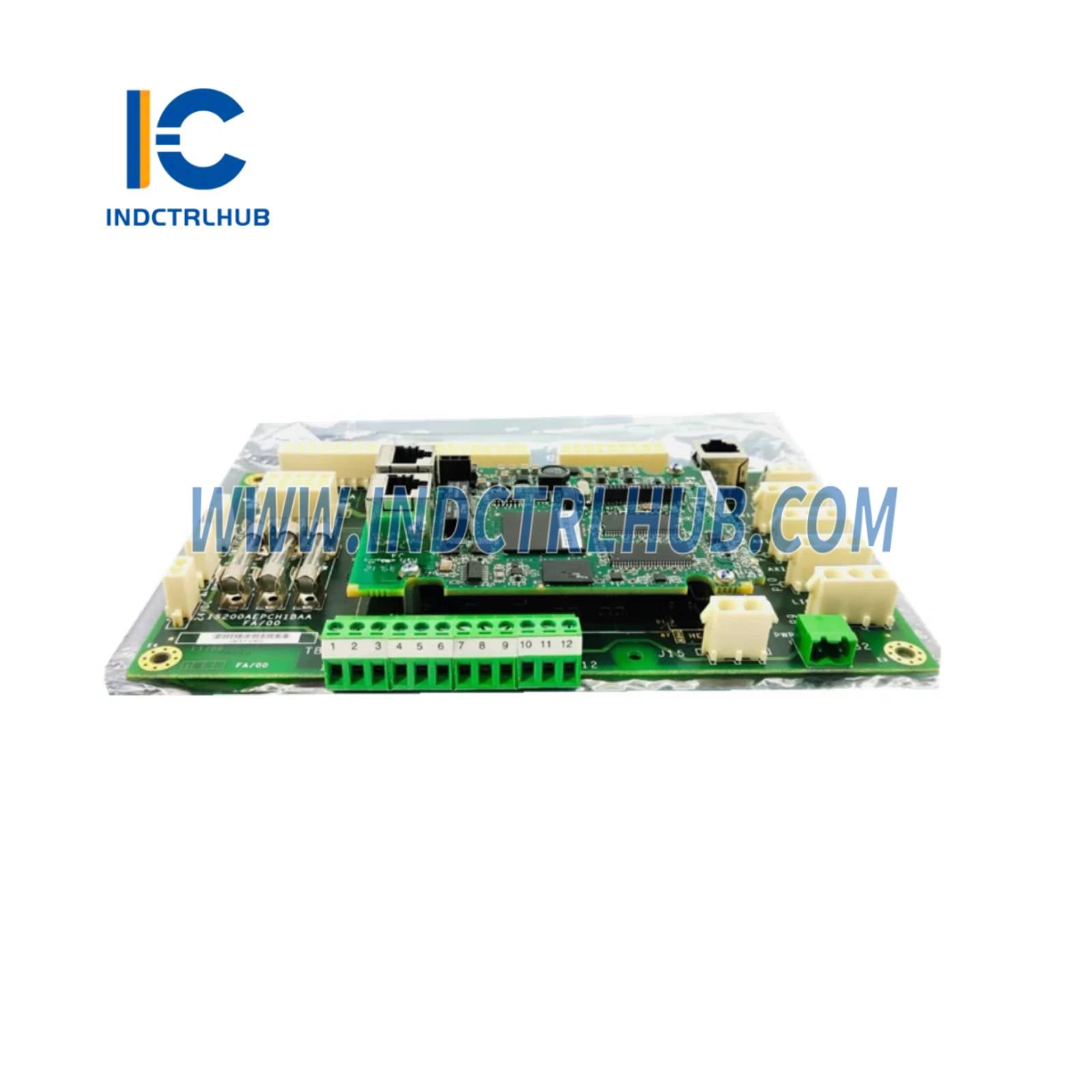

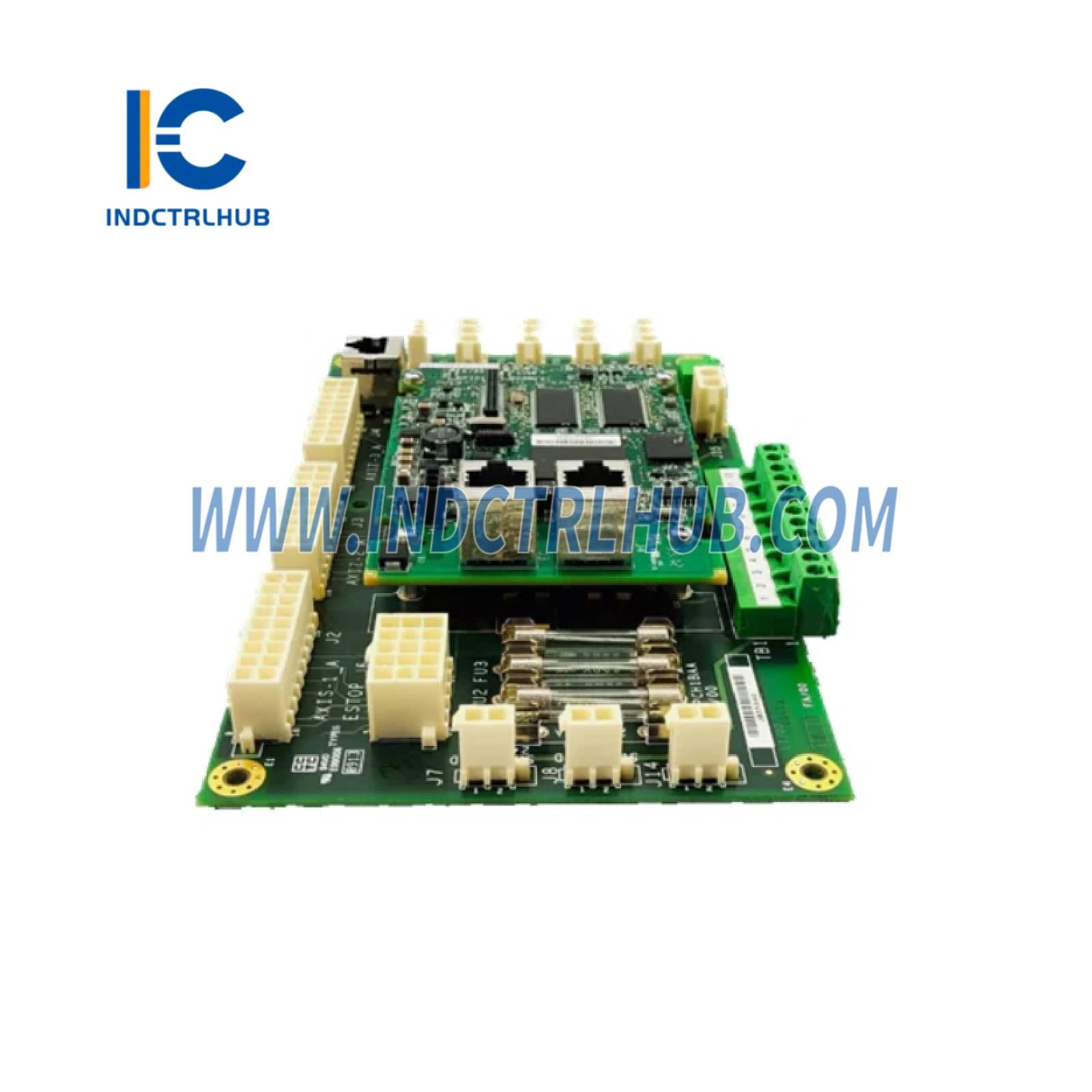

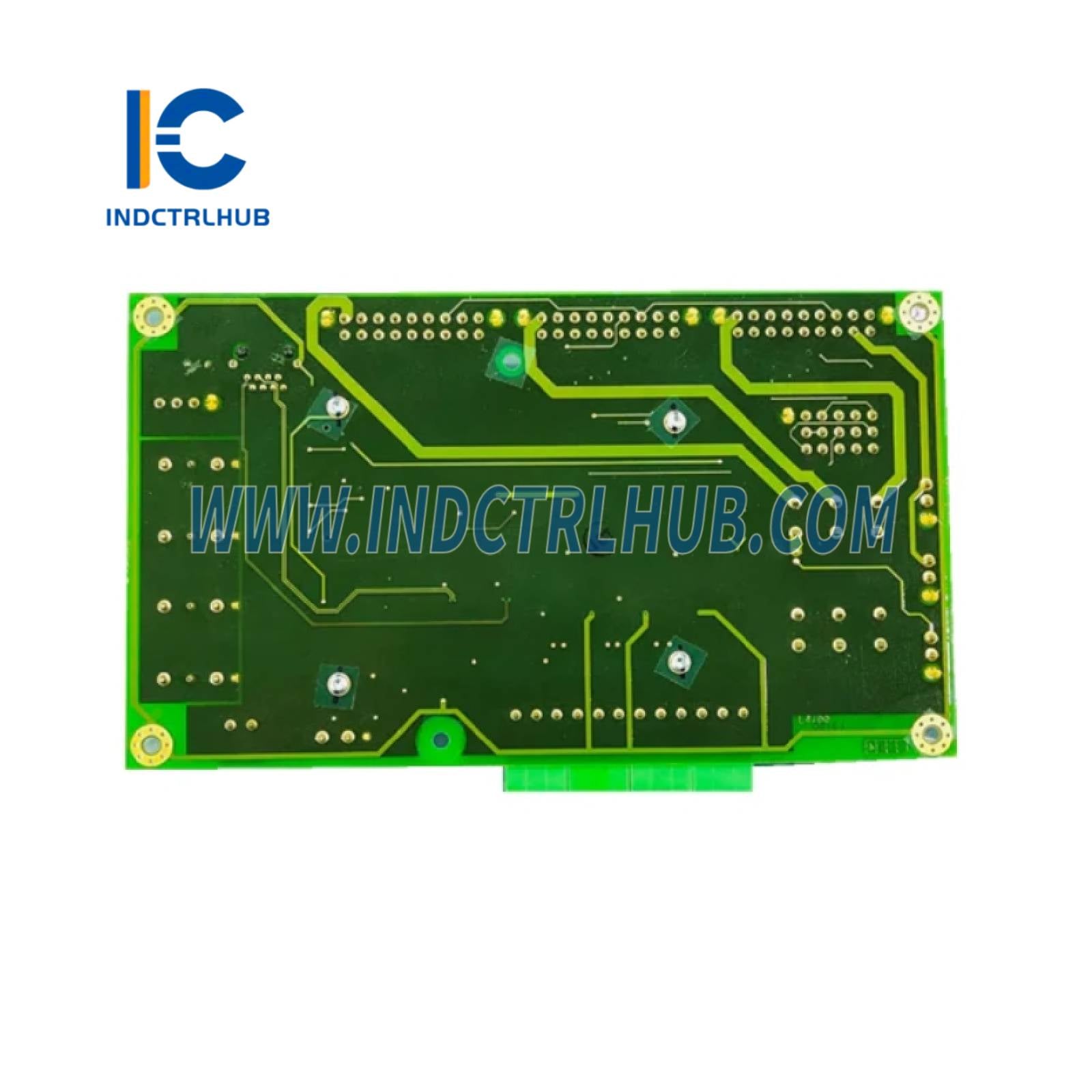

General Electric IS200AEPCH1ABC Energy Management Board
Product Overview
- Description: The General Electric IS200AEPCH1ABC is an energy management board designed for use in GE’s Mark VIe turbine control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS200AEPCH1ABC |
| Model Type | Energy Management Board |
| Function | Manages energy-related signals and control functions for turbine systems |
| Display | LED indicators (status, power) |
| Inputs | Digital and analog signals from Mark VIe system components |
| Outputs | Control signals to Mark VIe system components |
| Communication Interfaces | Mark VIe system backplane |
| Signal Conditioning | Internal signal processing and isolation |
| Accuracy | Not specified (application-dependent) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane) |
| Power Consumption | 5 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 50 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
