Product Description

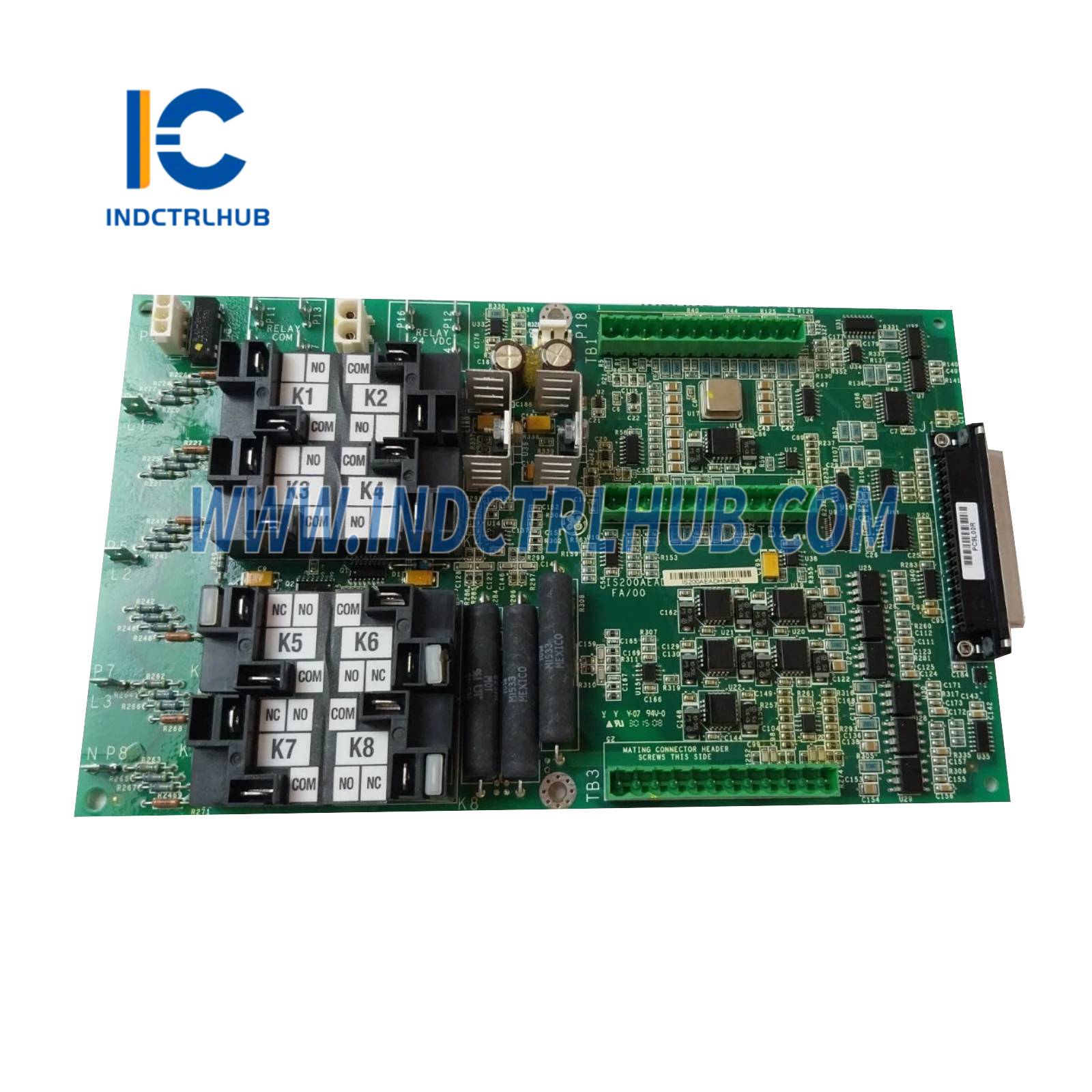

General Electric IS200AEADH3ADA Analog I/O Board
Product Overview
- Description: The General Electric IS200AEADH3ADA is an analog input/output (I/O) board designed for use in GE’s Mark VIe turbine control systems. It facilitates the processing of analog signals for monitoring and controlling turbine operations in industrial applications, such as power generation
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Mark VIe |
| Model/Part Number | IS200AEADH3ADA |
| Model Type | Analog I/O Board |
| Function | Processes analog input/output signals for turbine control |
| Display | LED indicators (status, power) |
| Inputs | Analog inputs (configurable, typically 4–20 mA, 0–10 V) |
| Outputs | Analog outputs (configurable, typically 4–20 mA, 0–10 V) |
| Communication Interfaces | Mark VIe system backplane |
| Signal Conditioning | Internal analog-to-digital and digital-to-analog conversion, signal isolation |
| Accuracy | ±0.1% of full scale (typical) |
| Resolution | 16 bits (typical) |
| Redundancy | Supports redundancy in Mark VIe configurations |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Mark VIe turbine control systems |
| Power Supply | 5 VDC, 24 VDC (from Mark VIe backplane) |
| Power Consumption | 5 W max (typical) |
| Environmental Specifications | Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in control cabinet) |
| Dimensions | Approx. 200 mm (H) x 100 mm (W) x 50 mm (D) |
| Weight | 0.5 kg (approx.) |
| Mounting | Plugs into Mark VIe control rack |
| Certifications | CE, UL, cULus, RoHS |
