Product Description

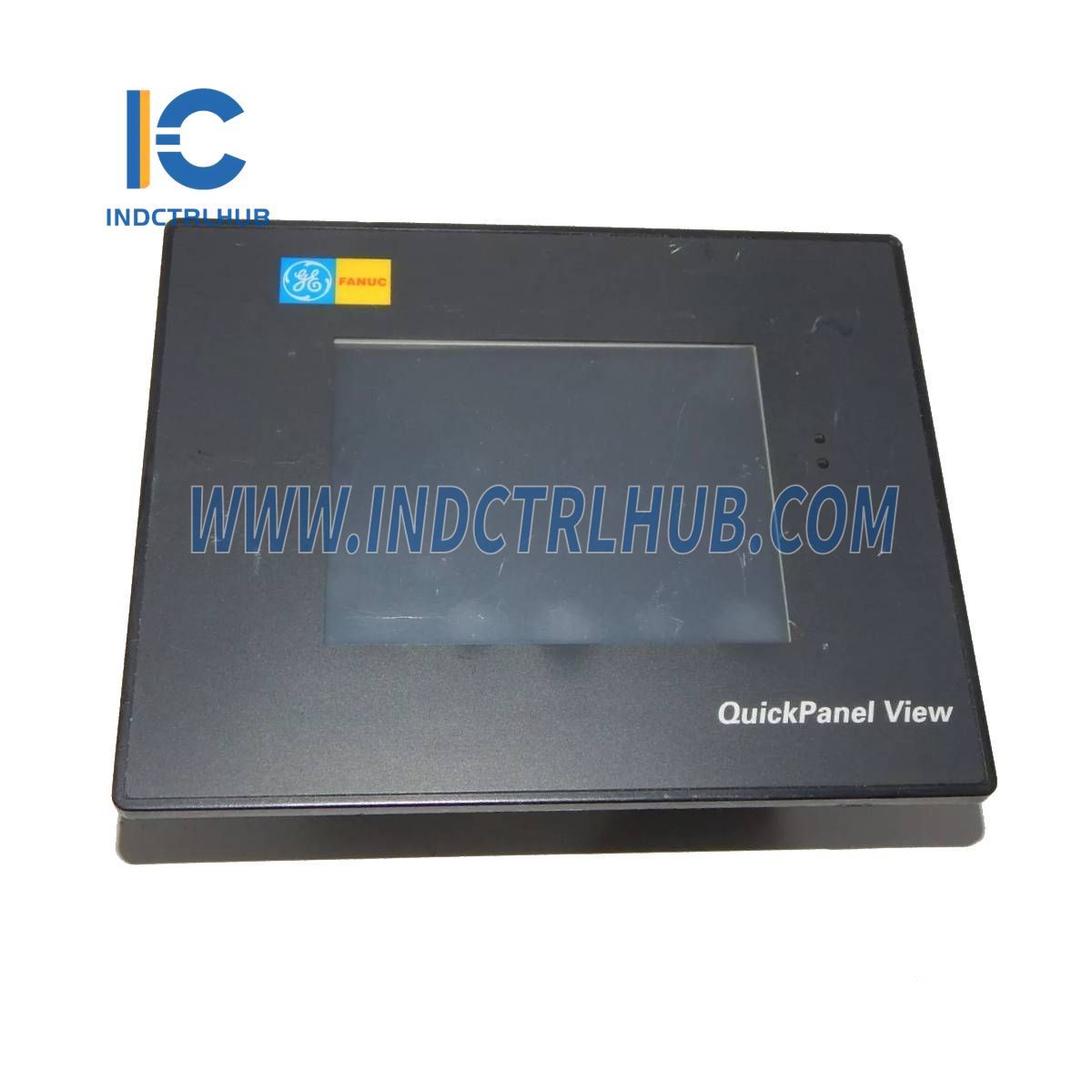

General Electric IC754VGI06STD QuickPanel View Operator Interface
Product Overview
- Description: The General Electric IC754VGI06STD is a QuickPanel View operator interface terminal designed for use in industrial automation applications
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | QuickPanel View |
| Model/Part Number | IC754VGI06STD |
| Model Type | Operator Interface Terminal (HMI) |
| Function | Provides visualization and control for industrial processes |
| Display | 6-inch STN color touchscreen, 320 x 240 pixels |
| Inputs | Touchscreen input, data from connected PLCs/devices |
| Outputs | Control signals to connected PLCs/devices |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-232, RS-485, USB |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, system diagnostics via software |
| Compatibility | GE Fanuc PLCs (Series 90-30, RX3i, VersaMax), third-party PLCs via supported protocols |
| Processor | 200 MHz AMD Geode GX2 |
| Memory | 32 MB DRAM, 32 MB flash |
| Operating System | Microsoft Windows CE |
| Power Supply | 12–30 VDC |
| Power Consumption | 24 W max |
| Environmental Specifications | Operating Temperature: 0°C to +50°C Storage Temperature: -20°C to +70°C Relative Humidity: 10% to 85% non-condensing |
| Enclosure | IP65 (front panel, when properly mounted) |
| Dimensions | 192 mm (H) x 146 mm (W) x 65 mm (D) |
| Weight | 1.0 kg |
| Mounting | Panel mount |
| Certifications | CE, UL, cULus, RoHS |
