Product Description

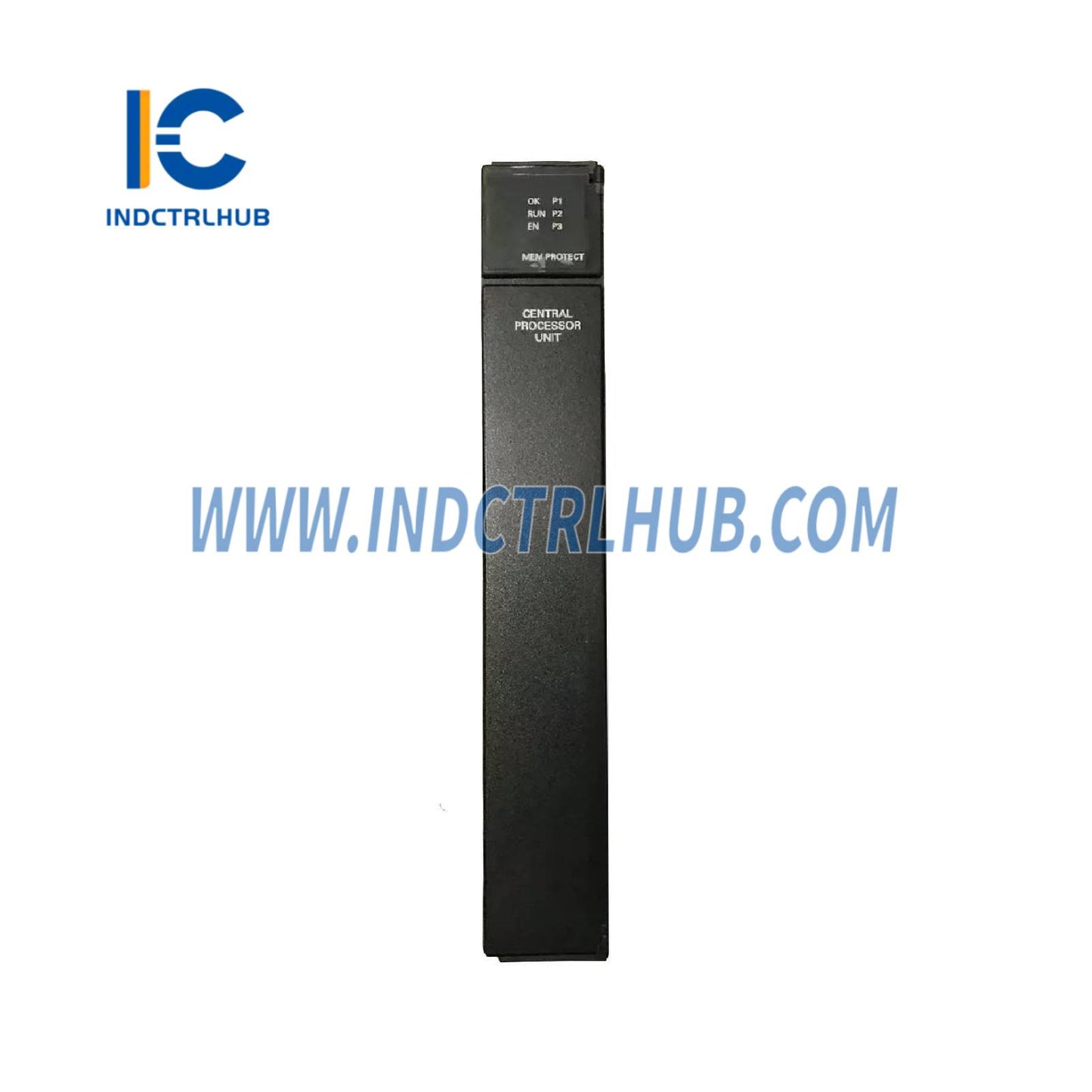

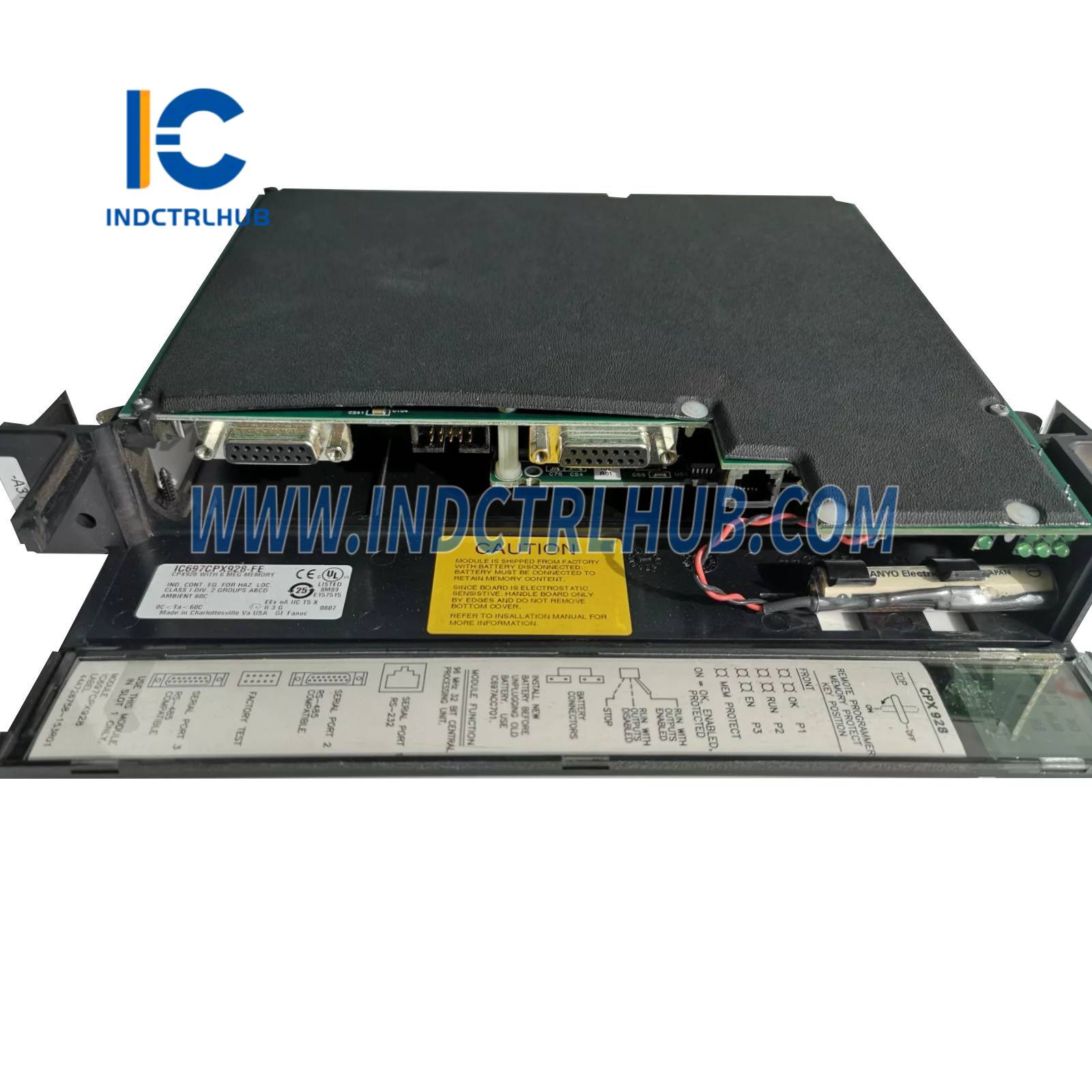

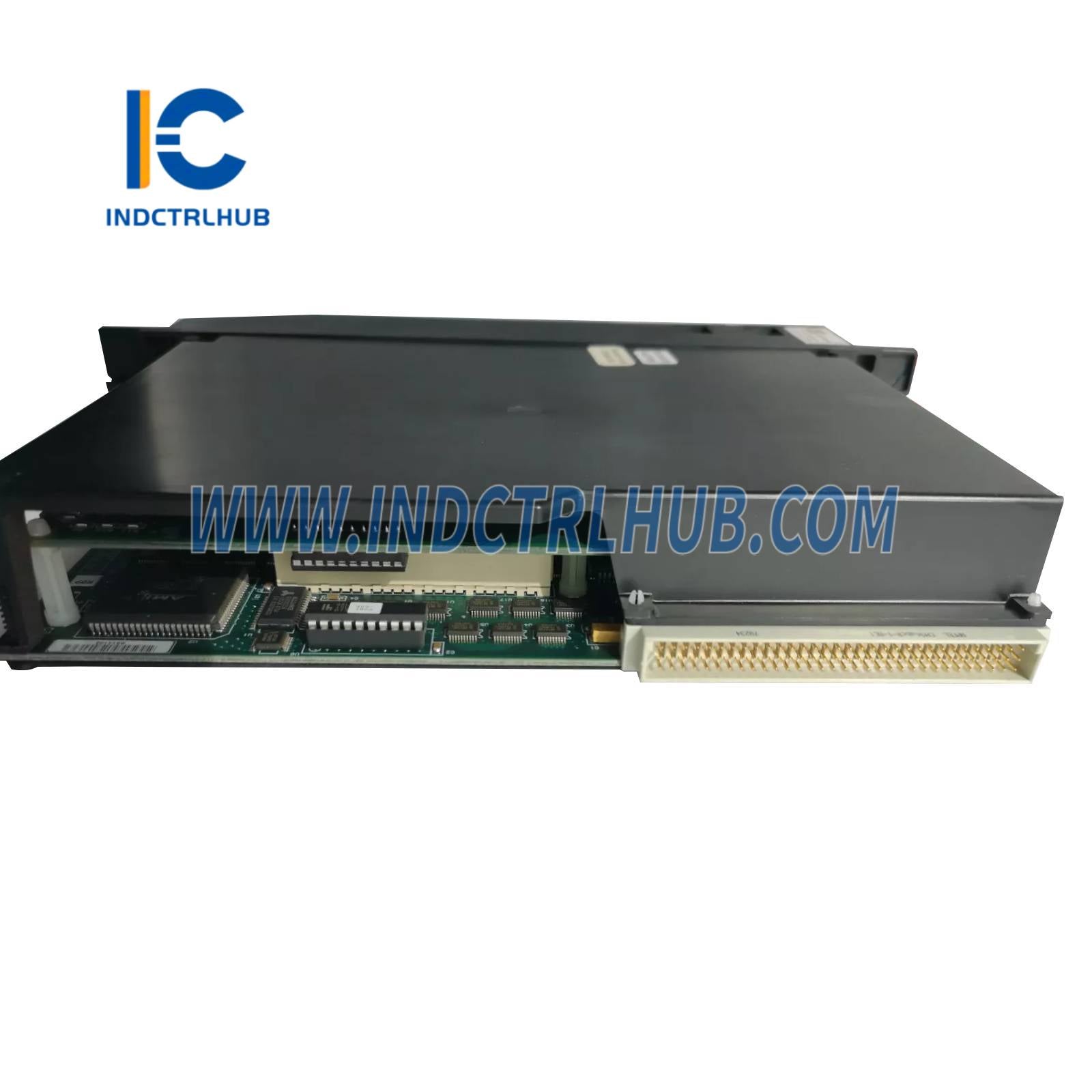

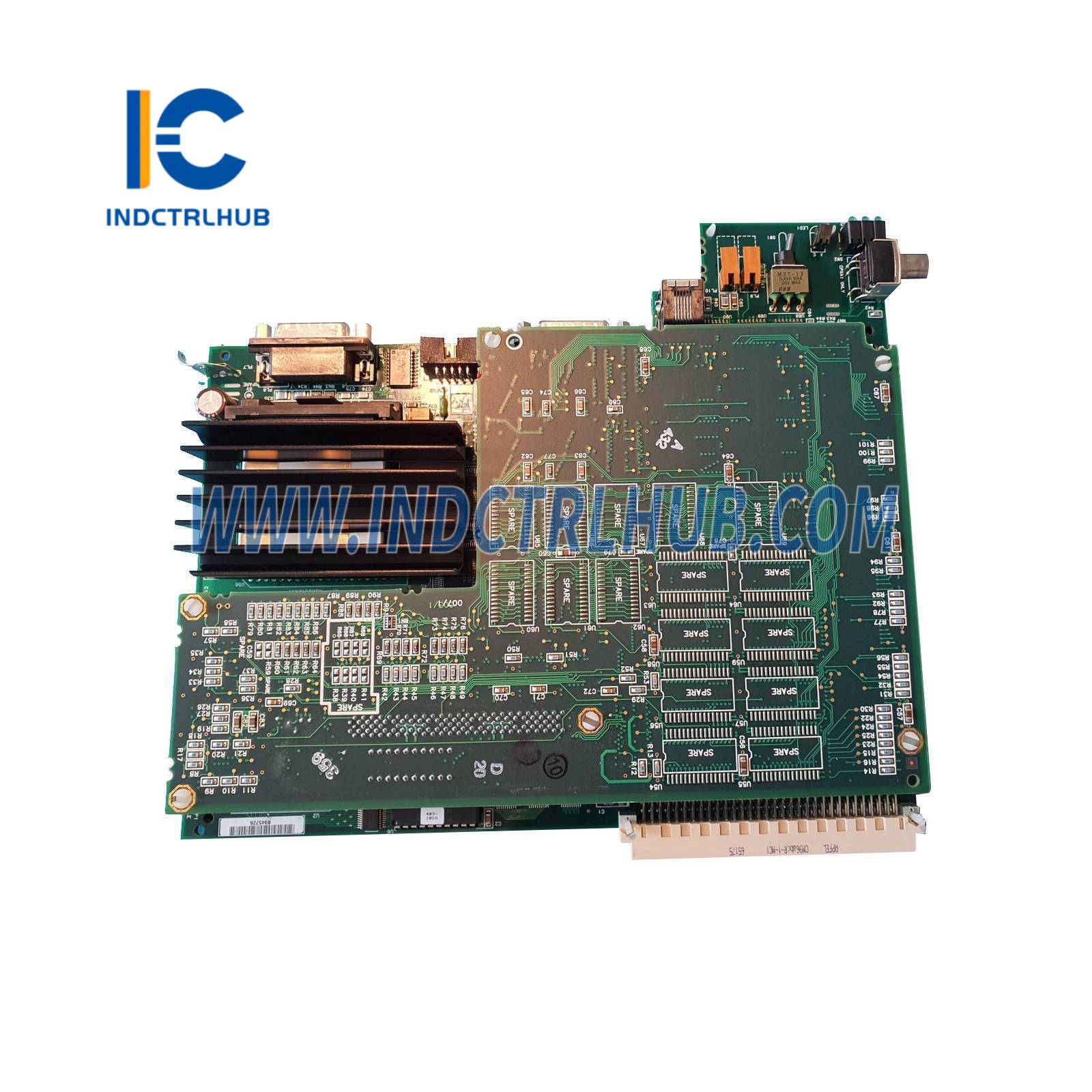

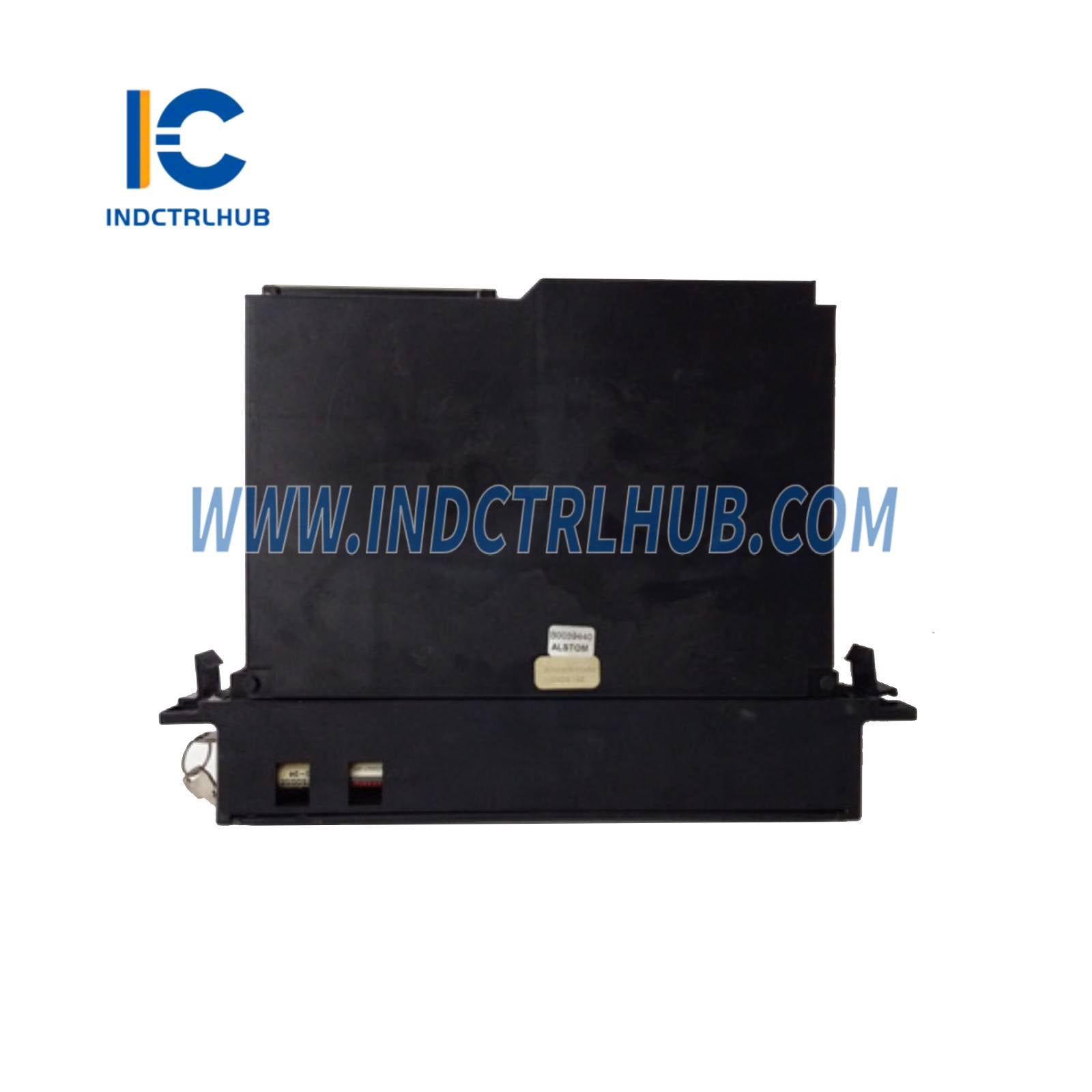

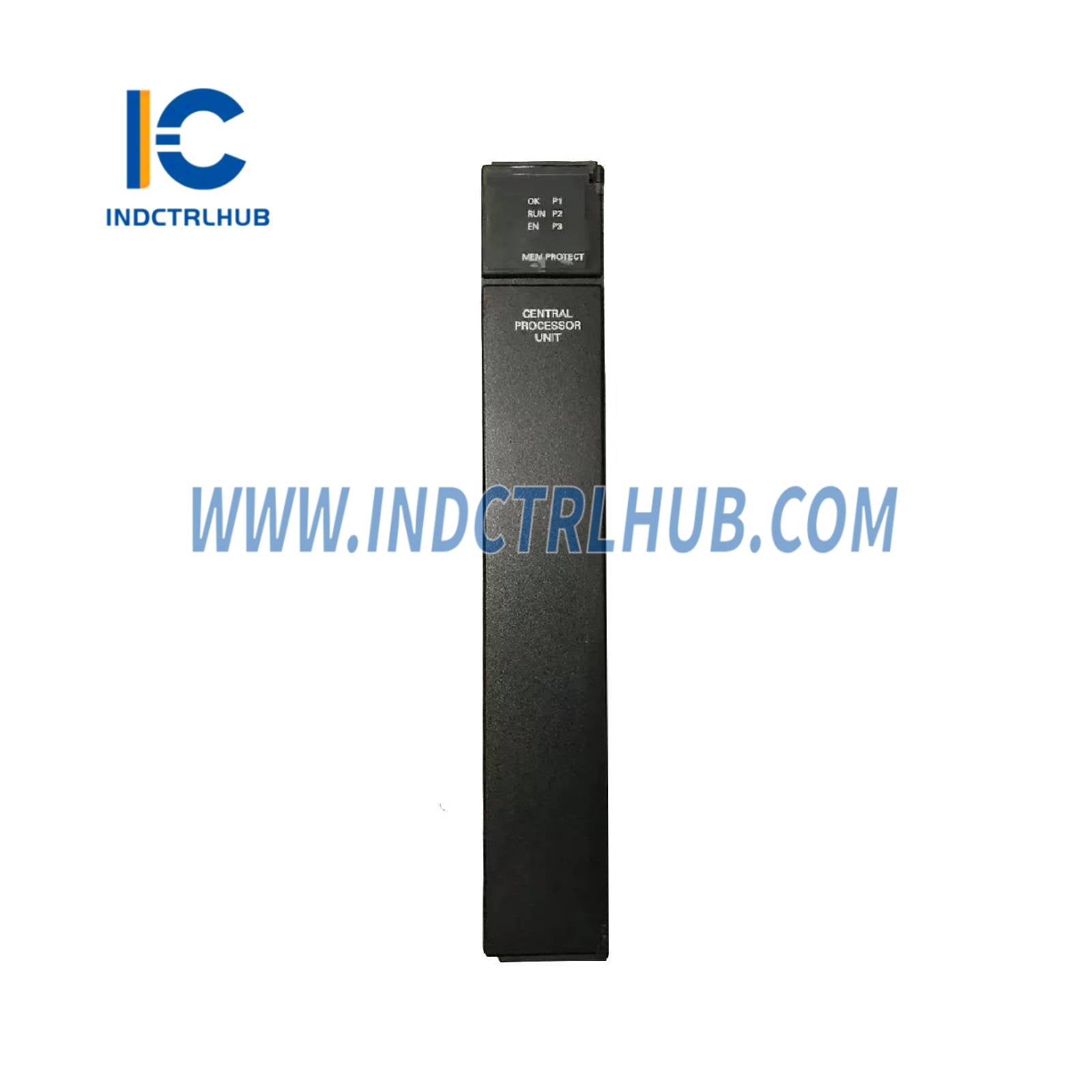

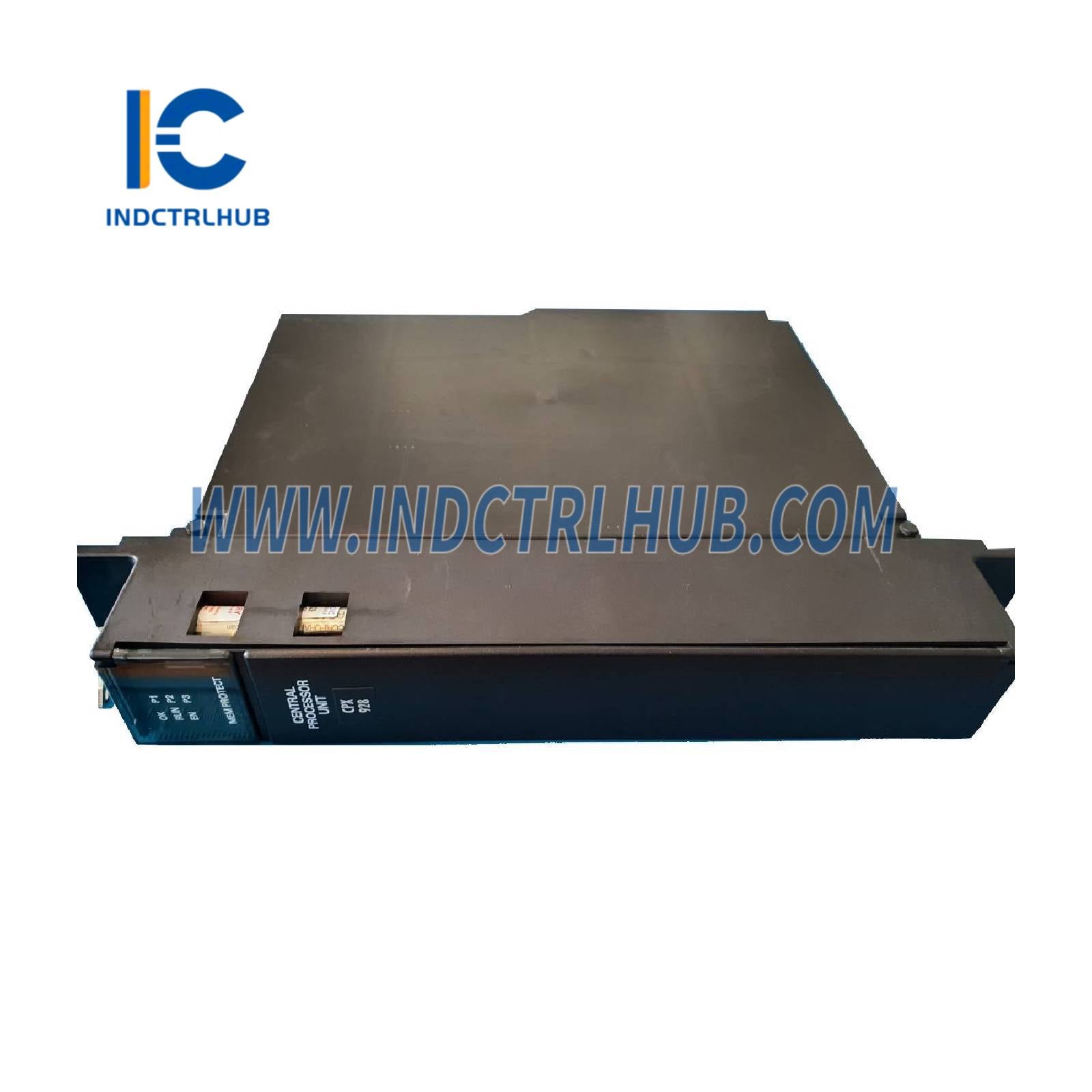

General Electric IC697CPX928-HF CPU Module
Product Overview
- Description: The General Electric IC697CPX928-HF is a high-performance central processing unit (CPU) module designed for use with GE Fanuc Series 90-70 PLC systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Series 90-70 |
| Model/Part Number | IC697CPX928-HF |
| Model Type | CPU Module |
| Function | Executes control logic, manages I/O, and handles communication |
| Display | LED indicators (power, status, communication, fault), 7-segment display |
| Inputs | Data from Series 90-70 I/O modules |
| Outputs | Control signals to Series 90-70 I/O modules |
| Communication Interfaces | 3 serial ports (RS-232, RS-485), Ethernet (via optional module), Series 90-70 backplane |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable |
| Redundancy | Supports redundancy with appropriate configuration |
| Diagnostics | LED status indicators, 7-segment display, fault reporting, program diagnostics |
| Compatibility | GE Fanuc Series 90-70 PLC systems |
| Processor | 96 MHz 80486DX4 microprocessor |
| Memory | 6 MB user memory (flash), 512 KB RAM (battery-backed) |
| Scan Time | 0.4 ms per 1 KB of logic (typical) |
| Power Supply | 5 VDC (from Series 90-70 backplane) |
| Power Consumption | 7.5 A at 5 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 265 mm (H) x 60 mm (W) x 220 mm (D) |
| Weight | 1.0 kg |
| Mounting | Plugs into Series 90-70 PLC rack |
| Certifications | CE, UL, cULus, RoHS |
