Product Description

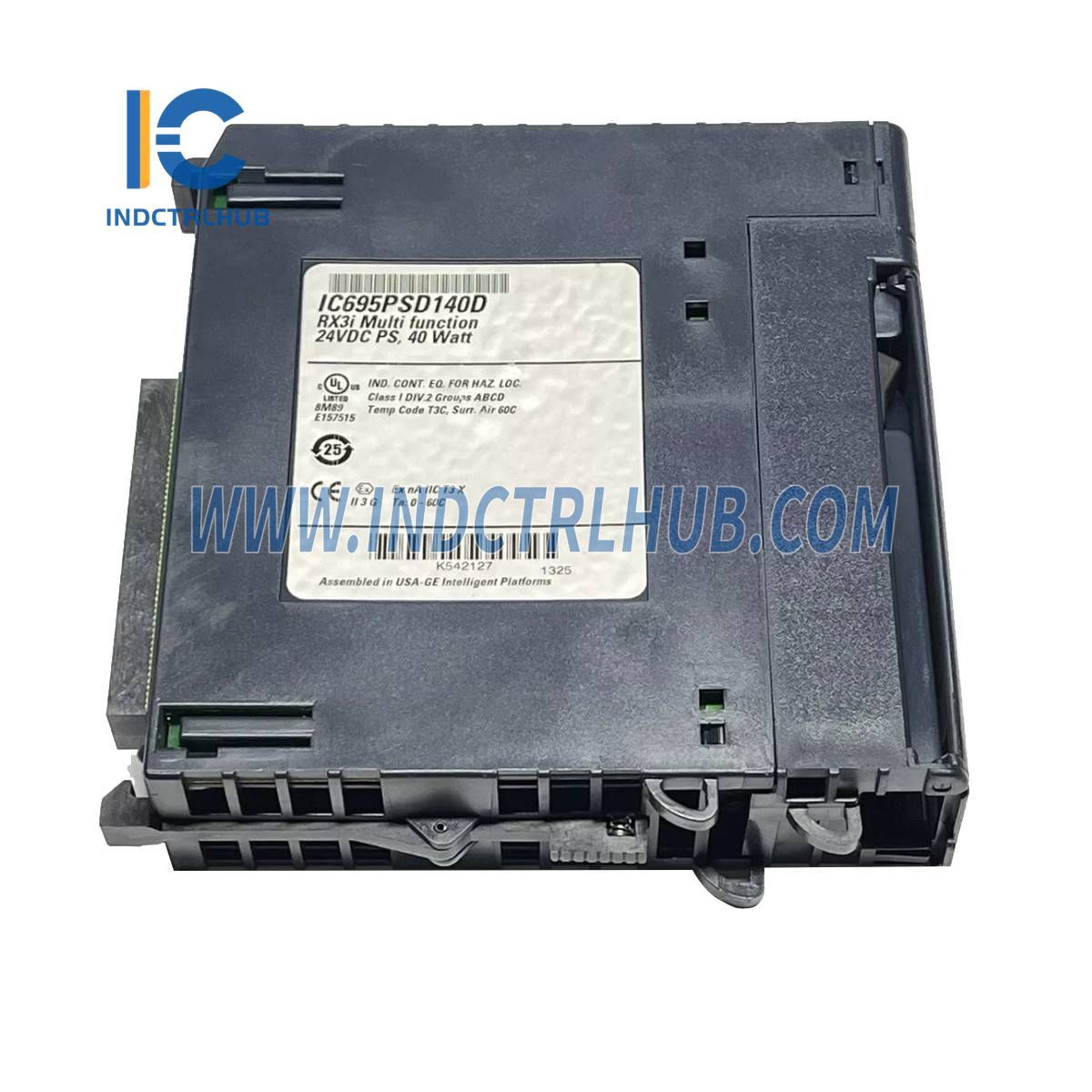

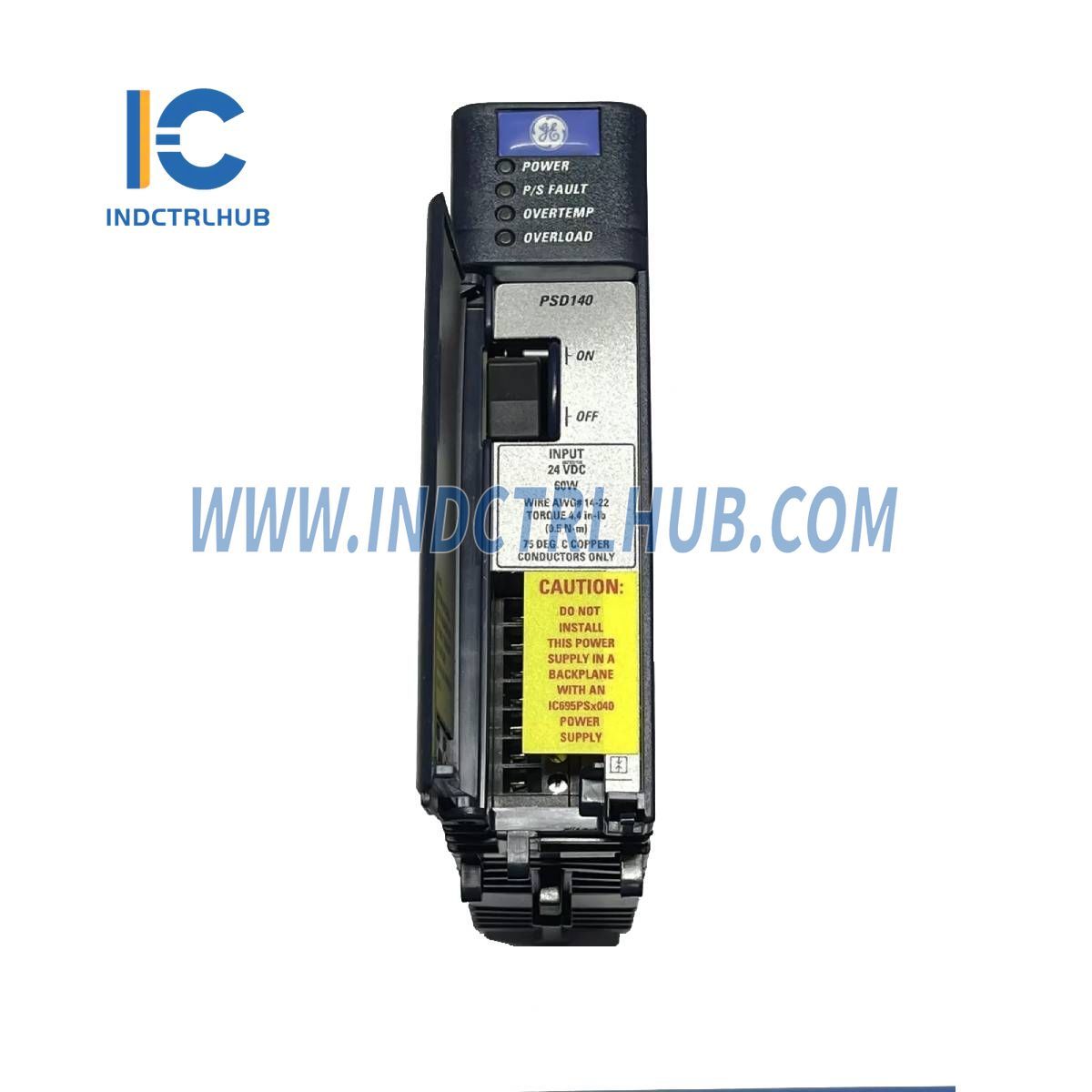

General Electric IC695PSD140D Power Supply
Product Overview
- Description: The General Electric IC695PSD140D is a multi-purpose 24 VDC power supply module designed for the GE Fanuc RX3i PACSystems. It provides power to the RX3i backplane, supporting modules such as CPUs, I/O, and specialty modules in industrial automation applications, including manufacturing, process control, and energy sectors. The module supports hot-swapping for maintenance without system shutdown and is compatible with RX3i racks, ensuring reliable power distribution for programmable logic controller (PLC) systems. Unlike Bently Nevada sensors (e.g., 87870-01 Velomitor XA), this is a power supply, not a vibration or condition monitoring device.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric (GE Fanuc) |
| Series | RX3i PACSystems |
| Model/Part Number | IC695PSD140D |
| Model Type | Power Supply Module |
| Function | Provides 24 VDC power to RX3i backplane for PLC modules |
| Processor | Not applicable |
| Memory | Not applicable |
| Display | LED indicators (Power, OK, Fault) |
| Inputs | 24 VDC nominal input (18–30 VDC range) |
| Outputs | +5 VDC: 30 W max +3.3 VDC: 30 W max +24 VDC relay: 6 W max Total: 40 W max |
| Communication Interfaces | None (backplane power distribution only) |
| Signal Conditioning | Internal voltage regulation and overcurrent protection |
| Measurement Range | Not applicable |
| Frequency Range | Not applicable |
| Accuracy | ±5% voltage regulation |
| Redundancy | Supports redundant power supply configurations with additional IC695PSD140 modules |
| Diagnostics | LED status indicators, backplane fault reporting |
| Compatibility | Compatible with RX3i PACSystems racks (e.g., IC695CHS007, IC695CHS012); supports RX3i CPUs, I/O modules, and specialty modules |
| Power Supply | Input: 24 VDC, 2.5 A max |
| Power Consumption | Up to 60 W (input power, depending on load) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C (+32°F to +140°F) Storage Temperature: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 5% to 95% non-condensing Vibration: Complies with IEC 60068-2-6 Shock: Complies with IEC 60068-2-27 |
| Enclosure | IP20 (open, rack-mounted) |
| Dimensions | Approximately 133 mm (H) x 35 mm (W) x 125 mm (D) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
| Mounting | Plugs into RX3i backplane slot (dedicated power supply slot) |
| Certifications | Meets CE, UL, cULus, ATEX Zone 2, IECEx, and RoHS standards |
