Product Description

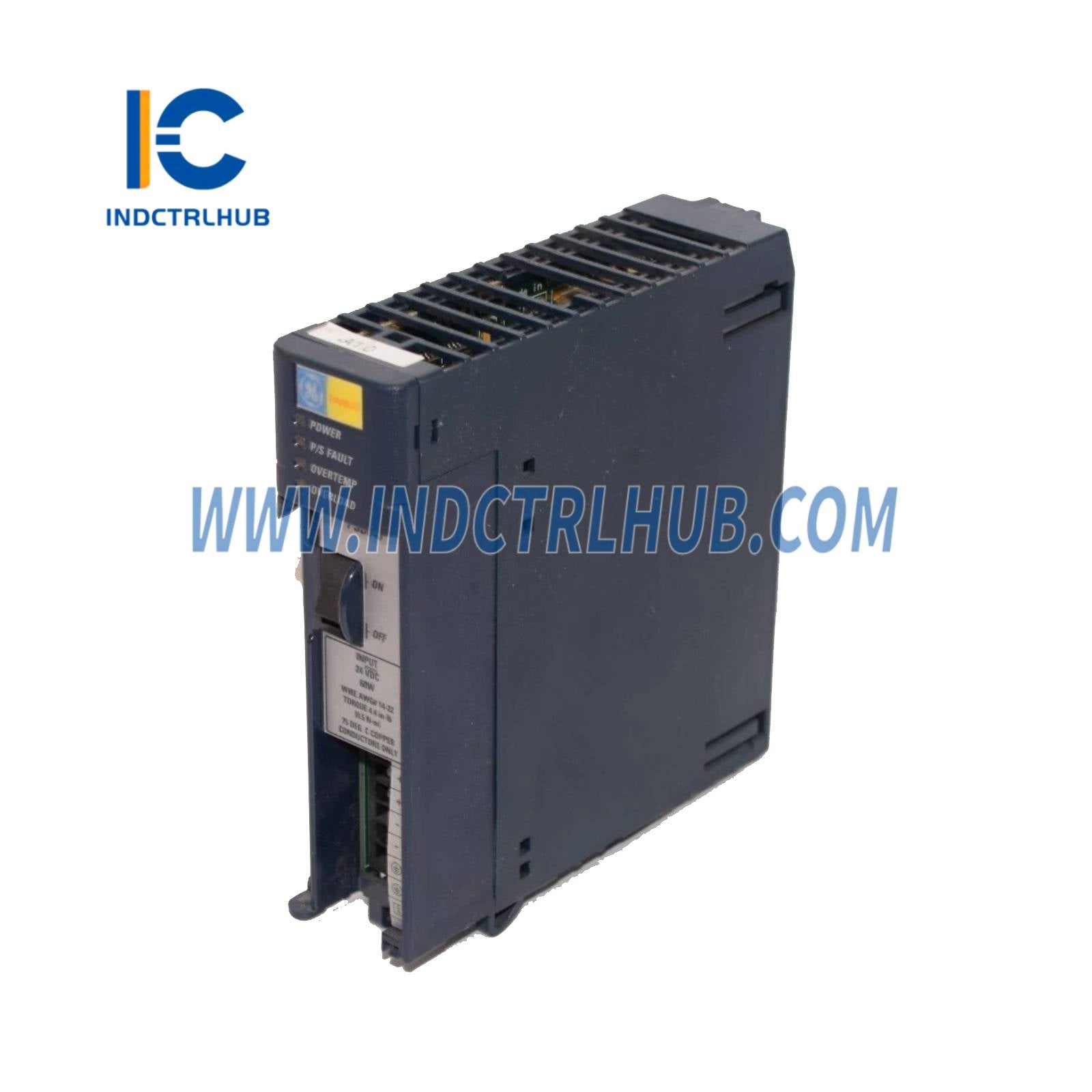

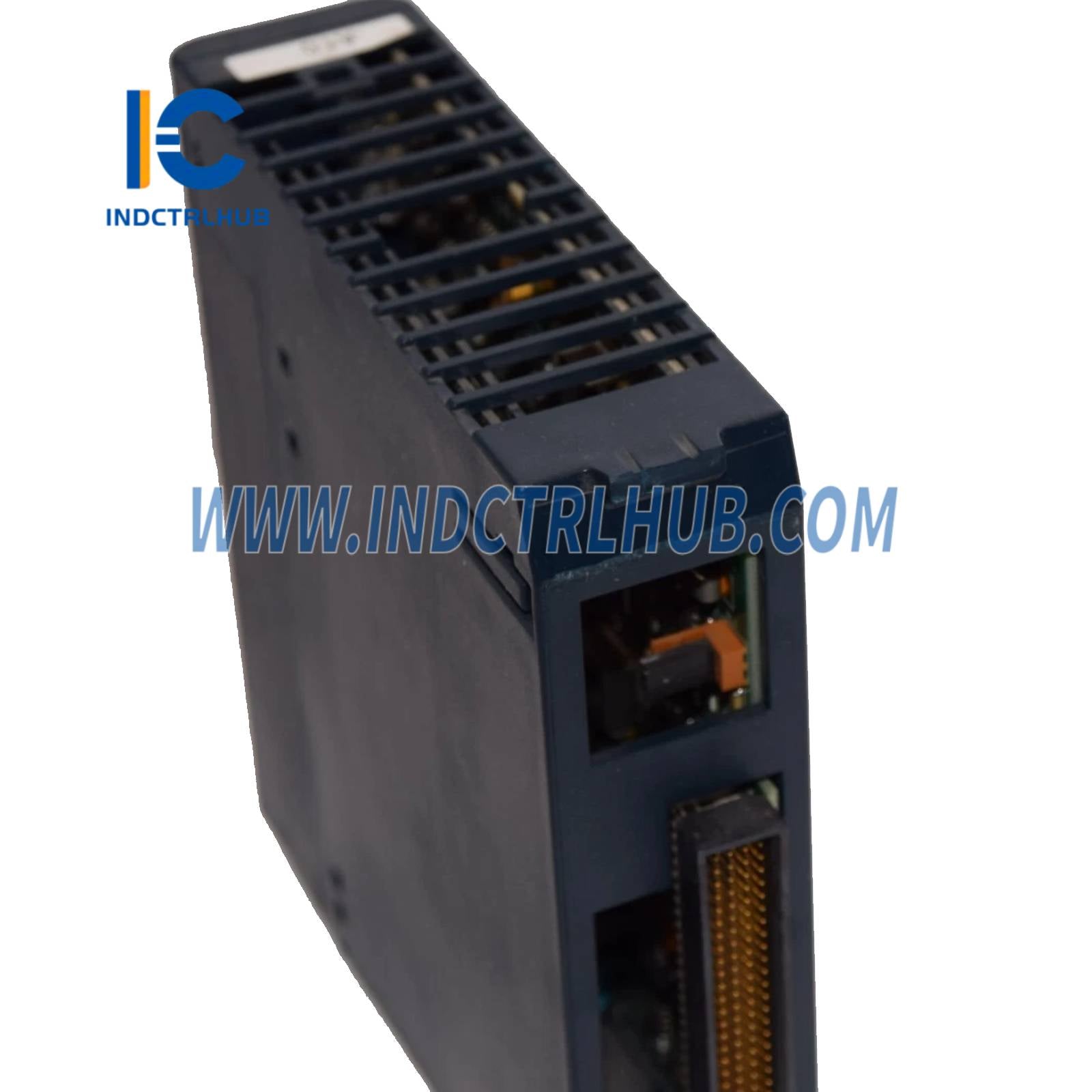

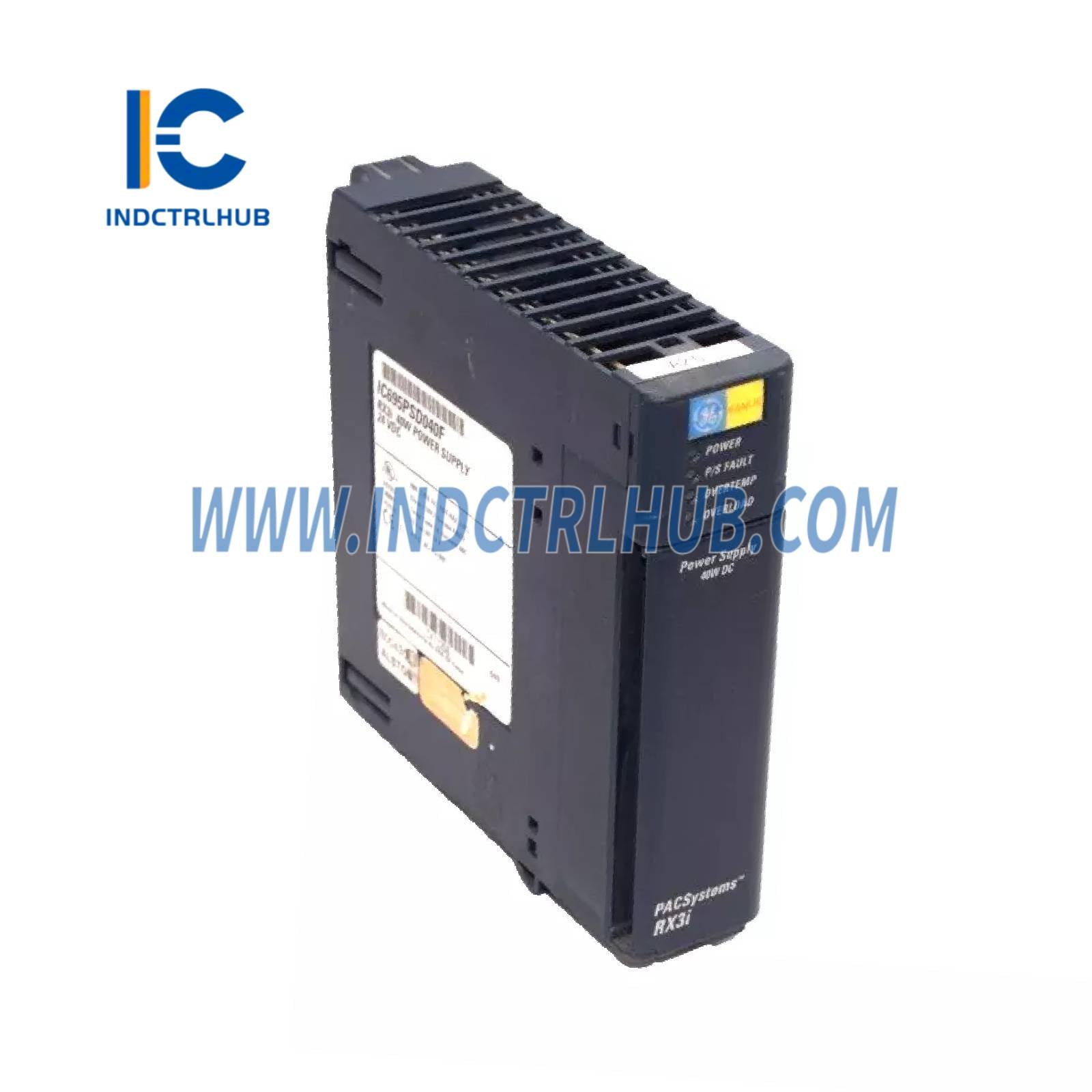

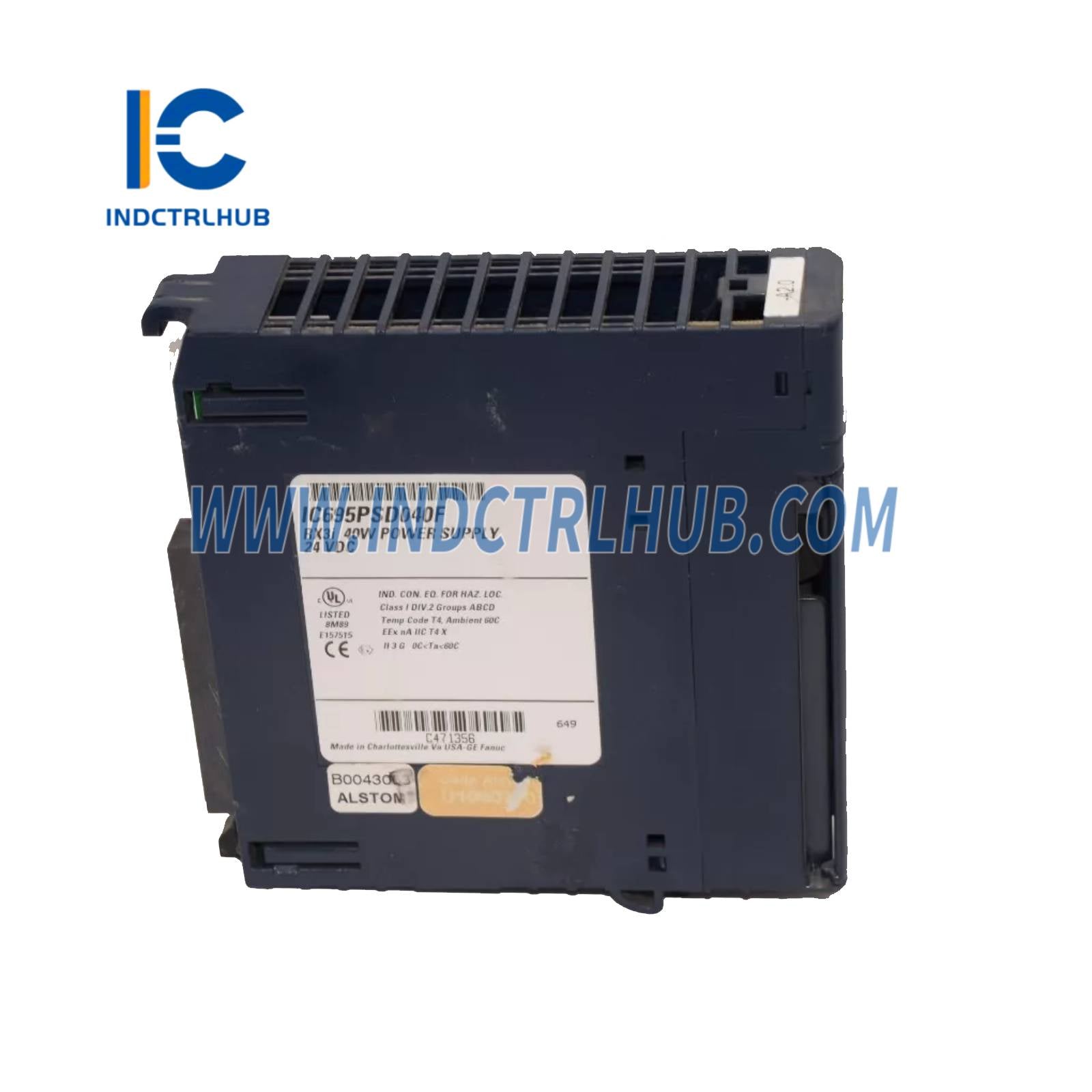

General Electric IC695PSD040 Power Supply Module
Product Overview
- Description: The General Electric IC695PSD040 is a power supply module designed for use with GE Fanuc RX3i PACSystems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | RX3i PACSystems |
| Model/Part Number | IC695PSD040 |
| Model Type | Power Supply Module |
| Function | Provides DC power to RX3i PACSystems backplane |
| Display | LED indicators (power, status, fault) |
| Inputs | 24 VDC (18–30 VDC range) |
| Outputs | 5 VDC (6 A max), 3.3 VDC (9 A max), 24 VDC relay (0.7 A max); 40 W total max |
| Communication Interfaces | None (power supply only) |
| Signal Conditioning | Internal voltage regulation, overcurrent, and overvoltage protection |
| Accuracy | ±5% voltage regulation |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting to PLC |
| Compatibility | GE Fanuc RX3i PACSystems |
| Power Supply | Input: 24 VDC (50 W max) |
| Power Consumption | 50 W max (input power) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 140 mm (H) x 40 mm (W) x 125 mm (D) |
| Weight | 0.5 kg |
| Mounting | Plugs into RX3i PLC rack |

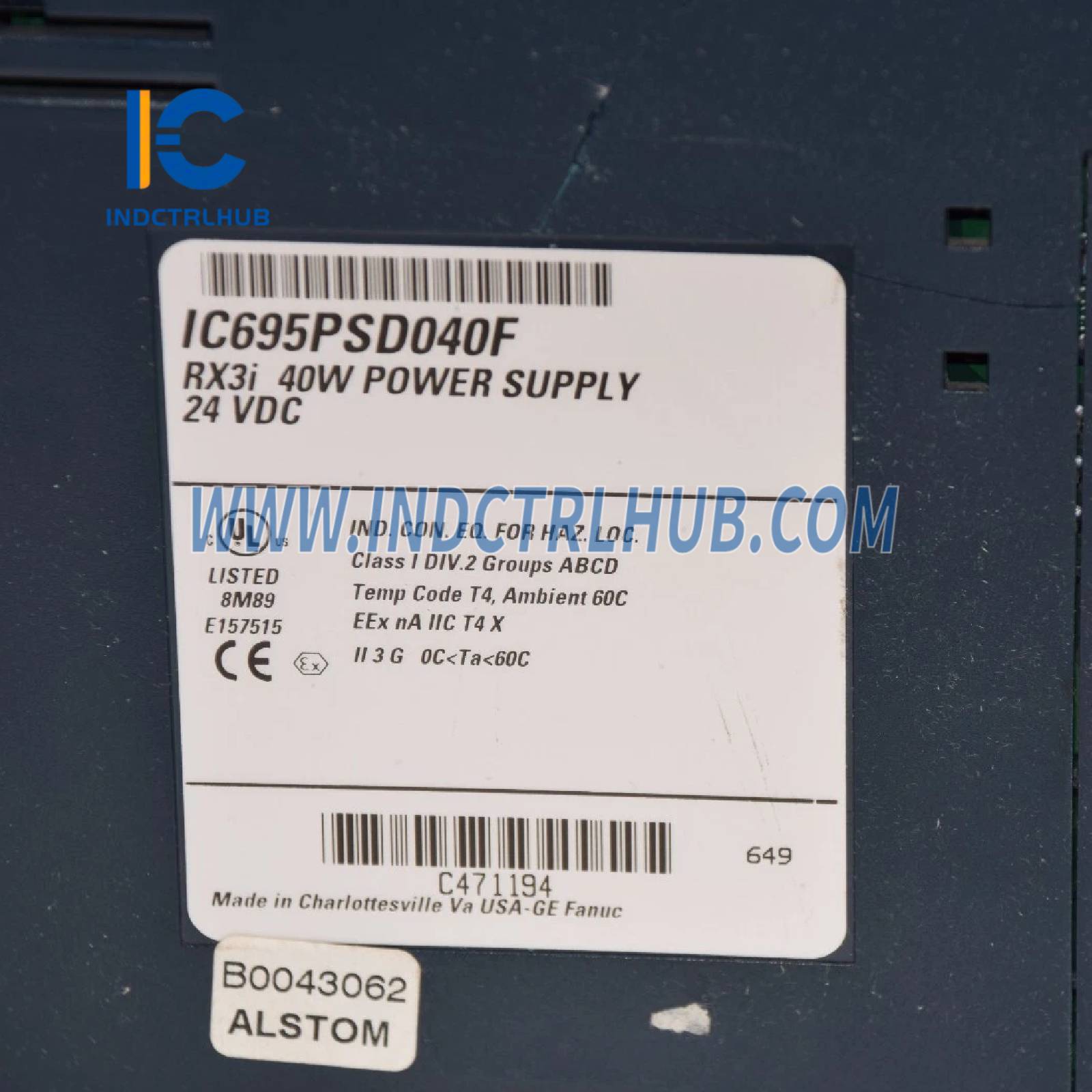

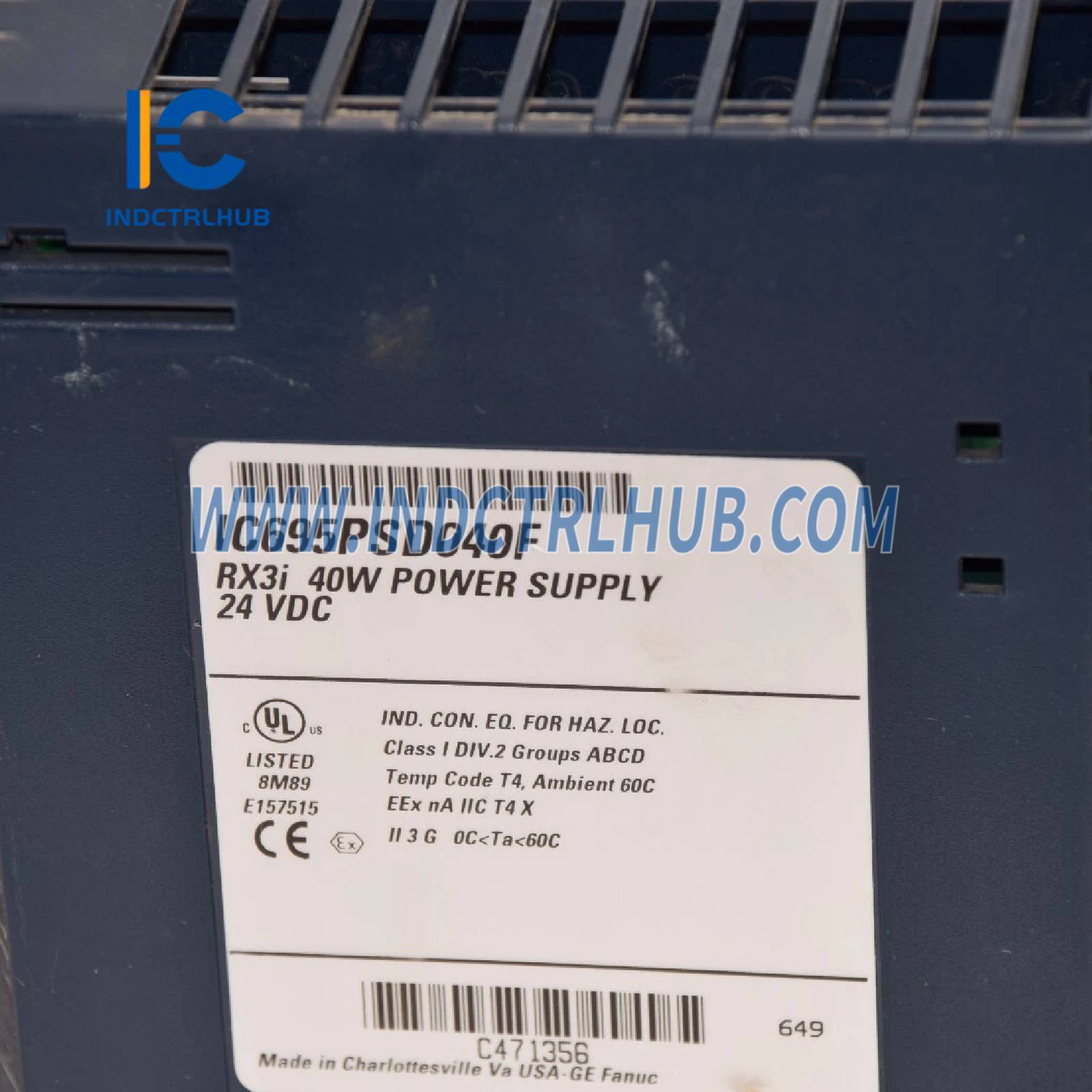

| Certifications | CE, UL, cULus, RoHS |
