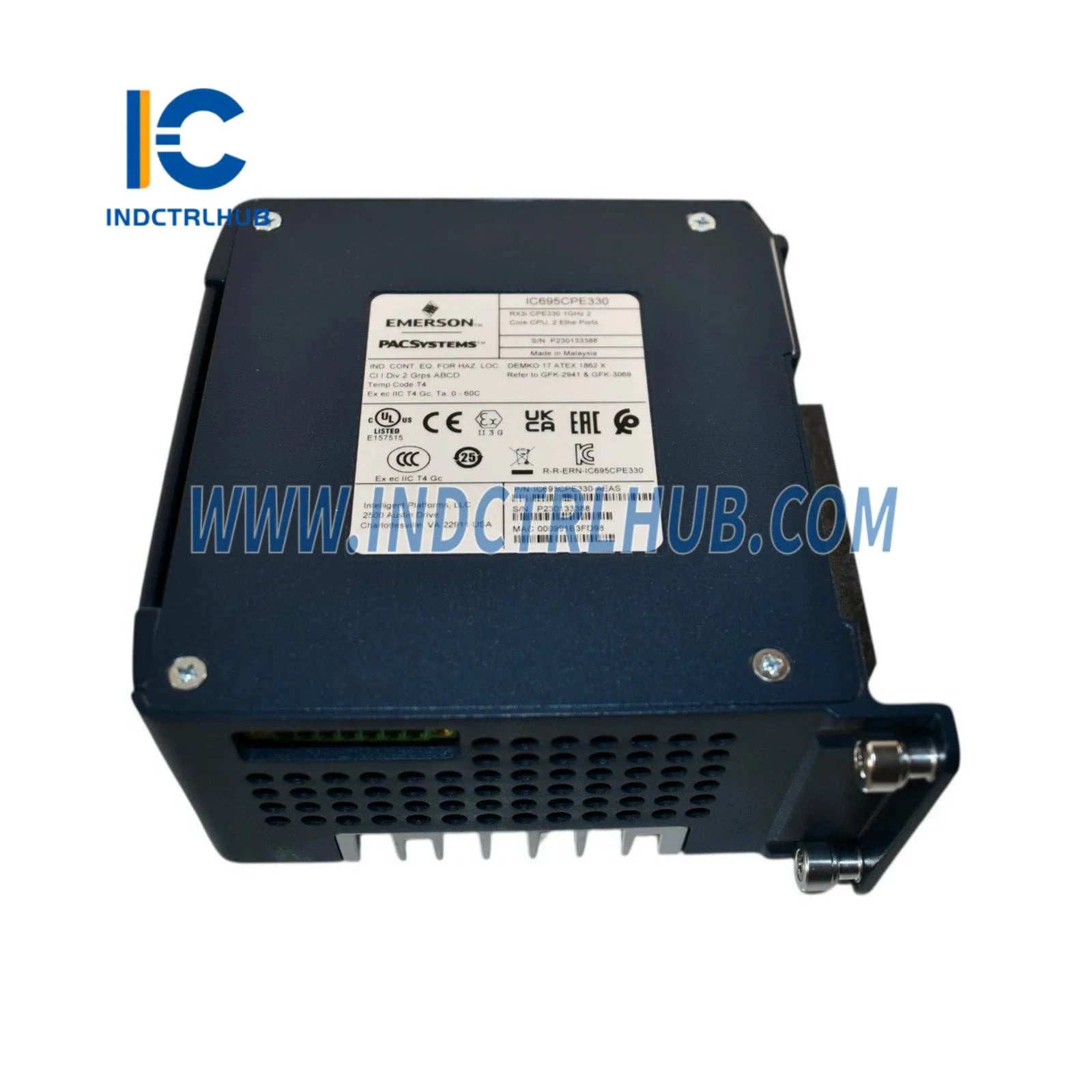

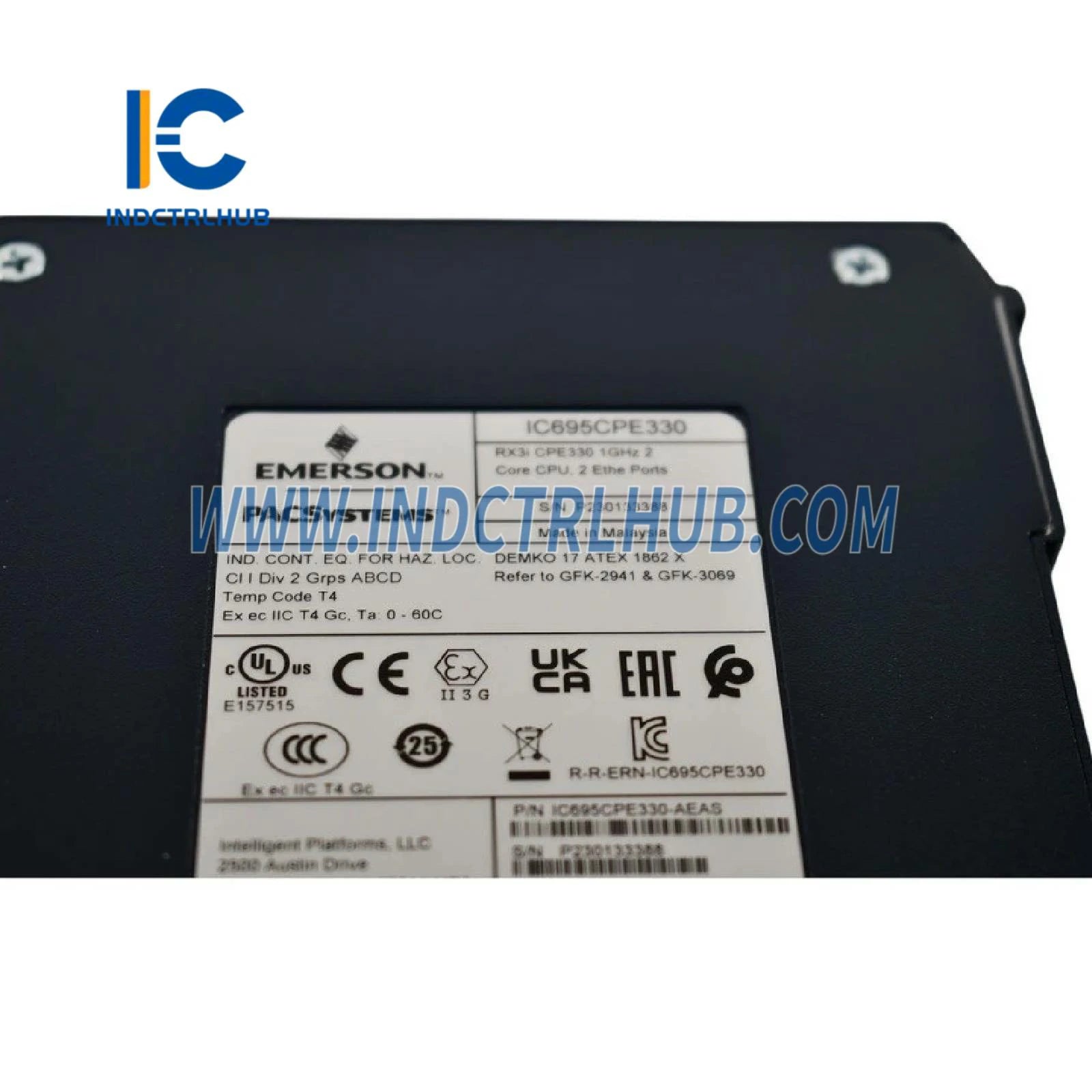

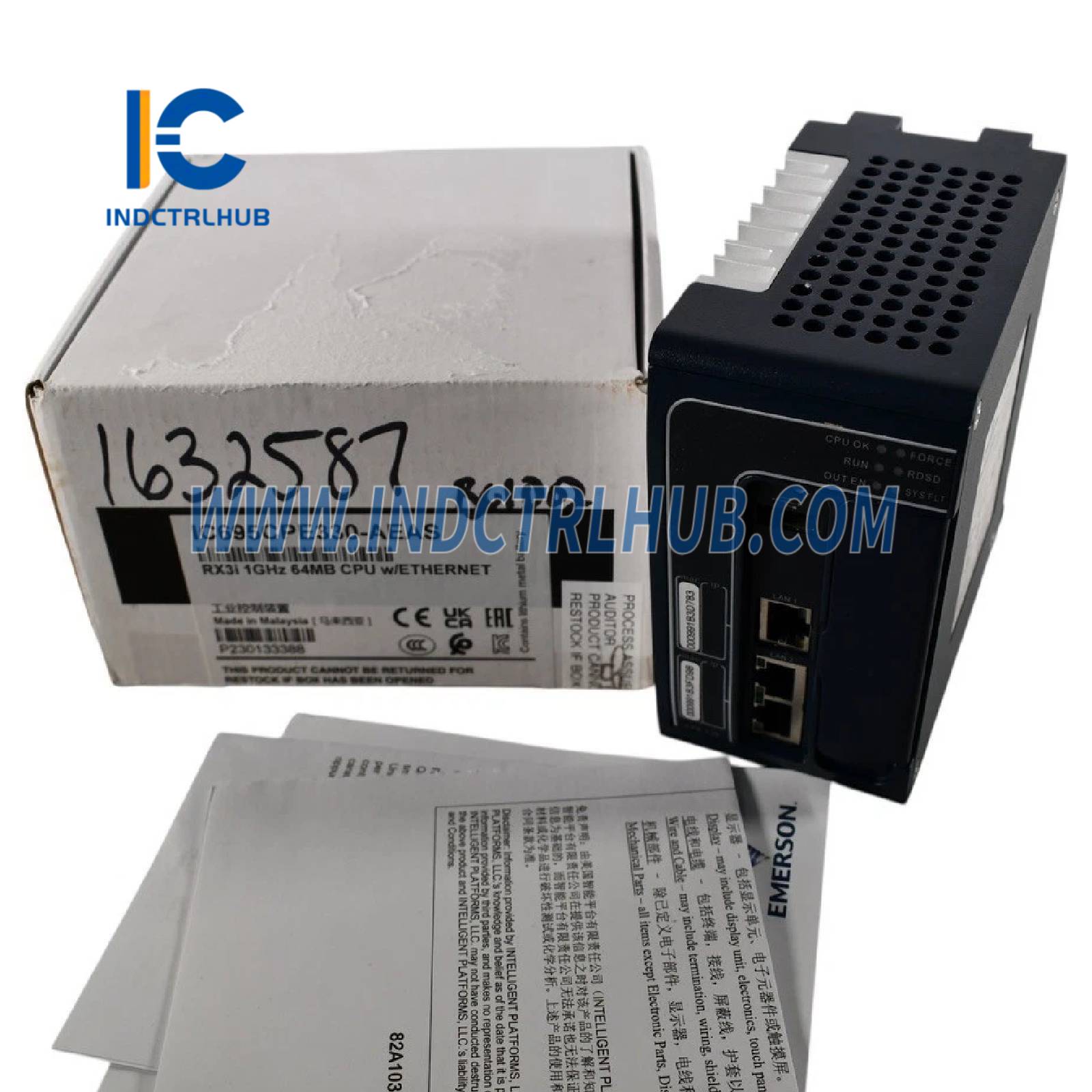

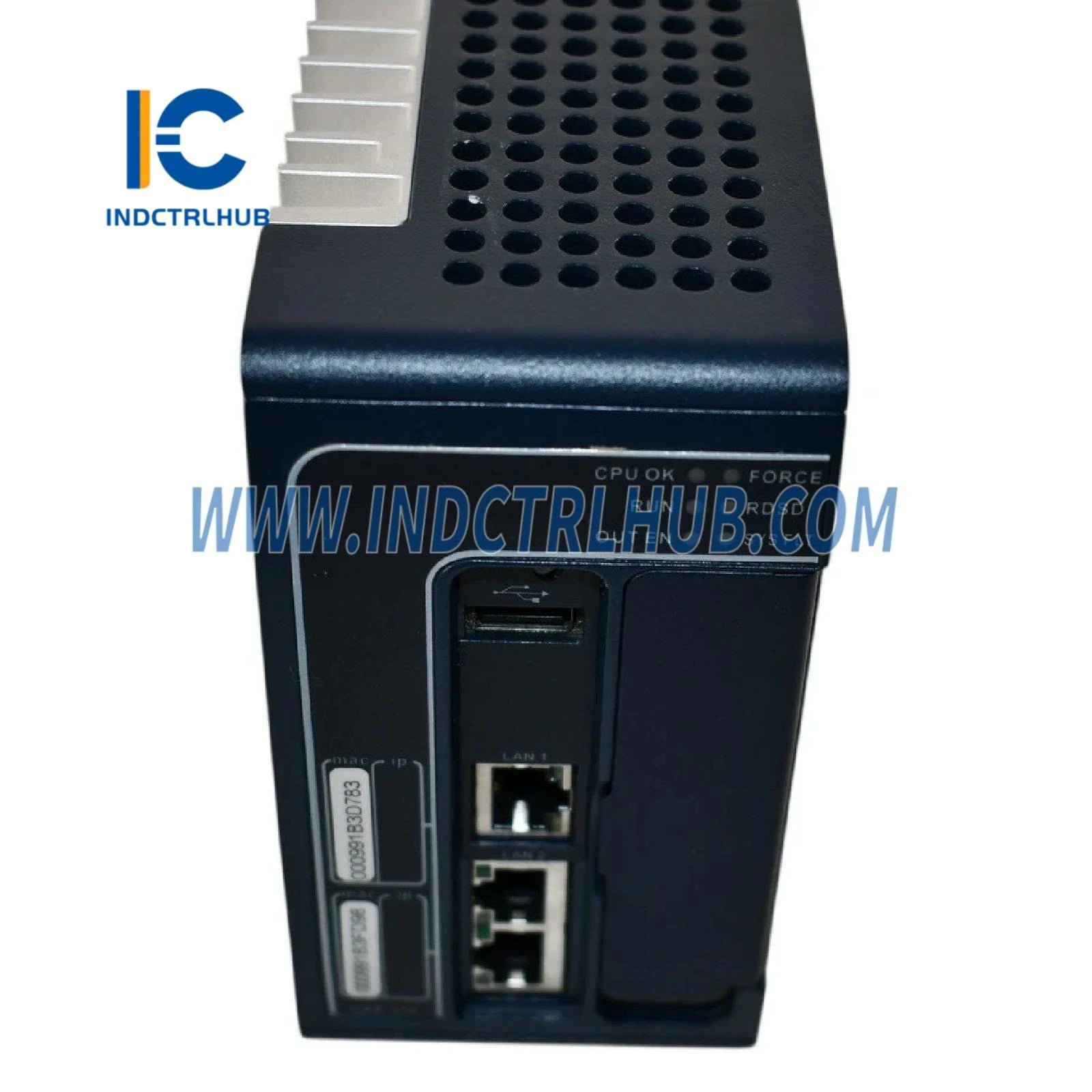

GE IC695CPE330 PACSystems RX3i High-Performance CPU Module

GE IC695CPE330 PACSystems RX3i High-Performance CPU Module

  • Manufacturer: General Electric

  • Product No.: IC695CPE330

  • Condition:1000 in stock

  • Product Type: PACSystems RX3i High-Performance CPU Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number IC695CPE330
Description PACSystems RX3i High-Performance CPU Module

Product Overview



Parameter Details
Part Number IC695CPE330
Product Name IC695CPE330 RX3i CPU 330
Application High-performance programmable logic controller for industrial automation and process control
Compatibility Integrates with GE PACSystems RX3i platform, supports high-speed backplane and expansion modules
Function Executes control programs, manages I/O processing, supports Ethernet communication and redundancy

Functional Specifications



Parameter Details
Processor 1 GHz CPU with 10 MB user memory, 2 MB configurable data memory
Cycle Time 0.011 µs per boolean function
Communication Ports 2x Ethernet (10/100 Mbps, supports SRTP, Modbus TCP), 1x RS-232/RS-485 serial
I/O Capacity Supports up to 512 I/O points locally, expandable to 2048 with remote drops
Redundancy Supports hot standby CPU redundancy and media redundancy
Power Supply 5 V DC from backplane (system dependent)
Power Consumption 2.5 W maximum
Operating Temperature Range 0°C to +60°C
Mounting DIN rail or rack mount in RX3i chassis
Dimensions 2.47" x 0.69" x 4.41" (62.7 mm x 17.5 mm x 112 mm)
Weight 0.3 lb (0.14 kg)
Standards Compliance IEC 61131-2, CE, UL, CSA, Class I Division 2

View full details

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number IC695CPE330
Description PACSystems RX3i High-Performance CPU Module

Product Overview



Parameter Details
Part Number IC695CPE330
Product Name IC695CPE330 RX3i CPU 330
Application High-performance programmable logic controller for industrial automation and process control
Compatibility Integrates with GE PACSystems RX3i platform, supports high-speed backplane and expansion modules
Function Executes control programs, manages I/O processing, supports Ethernet communication and redundancy

Functional Specifications



Parameter Details
Processor 1 GHz CPU with 10 MB user memory, 2 MB configurable data memory
Cycle Time 0.011 µs per boolean function
Communication Ports 2x Ethernet (10/100 Mbps, supports SRTP, Modbus TCP), 1x RS-232/RS-485 serial
I/O Capacity Supports up to 512 I/O points locally, expandable to 2048 with remote drops
Redundancy Supports hot standby CPU redundancy and media redundancy
Power Supply 5 V DC from backplane (system dependent)
Power Consumption 2.5 W maximum
Operating Temperature Range 0°C to +60°C
Mounting DIN rail or rack mount in RX3i chassis
Dimensions 2.47" x 0.69" x 4.41" (62.7 mm x 17.5 mm x 112 mm)
Weight 0.3 lb (0.14 kg)
Standards Compliance IEC 61131-2, CE, UL, CSA, Class I Division 2
